QG-214-2
125CC Manual Clutch Mid Size Dirt Bike
Previous
Next

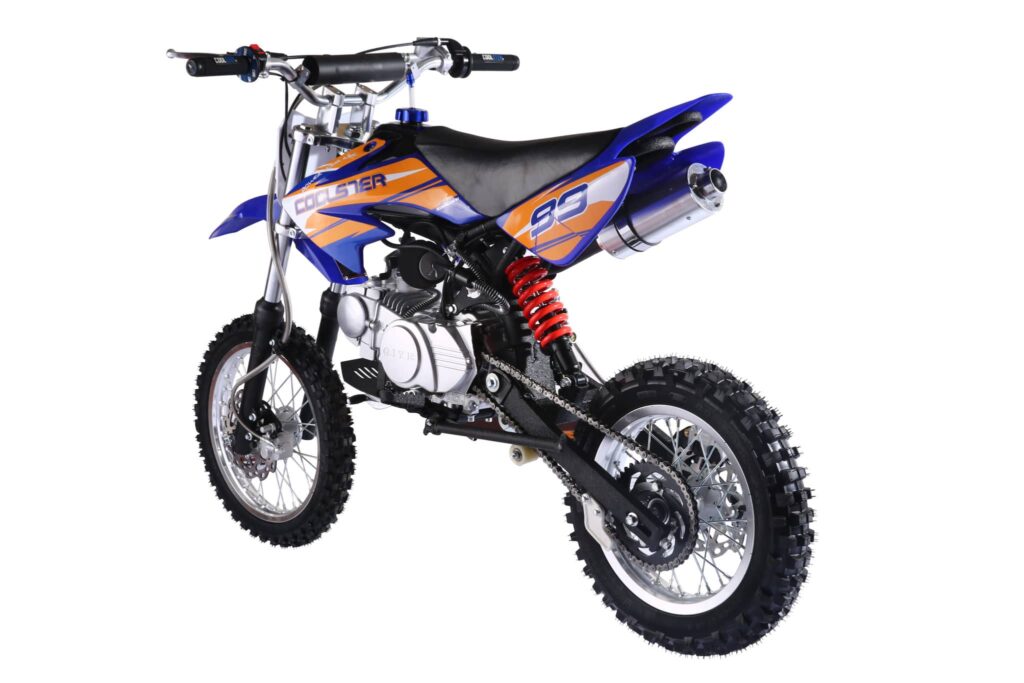

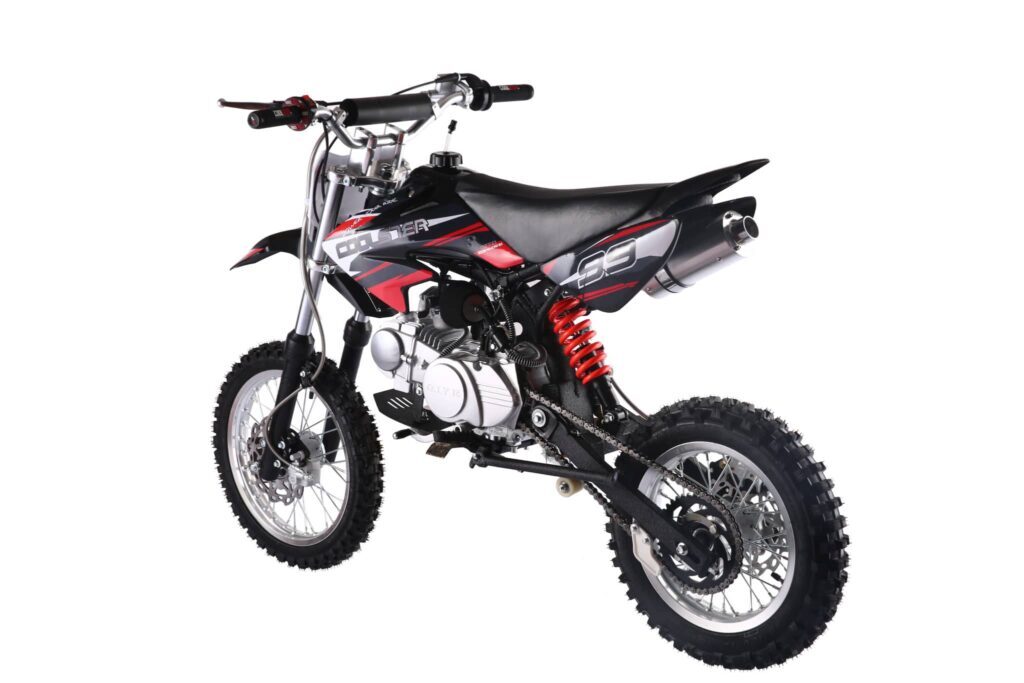

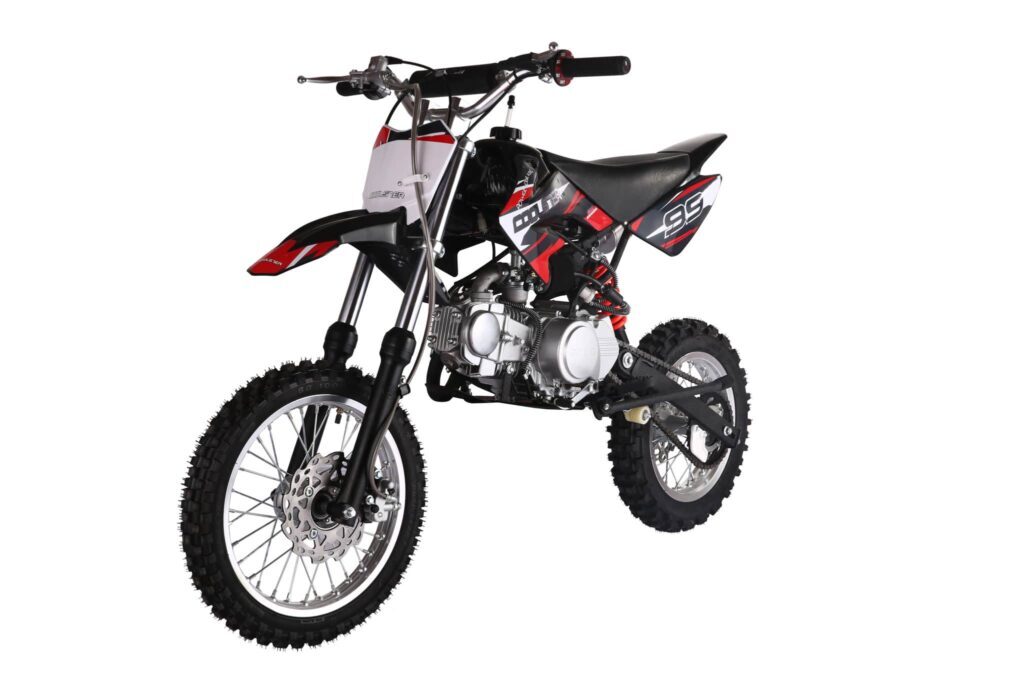

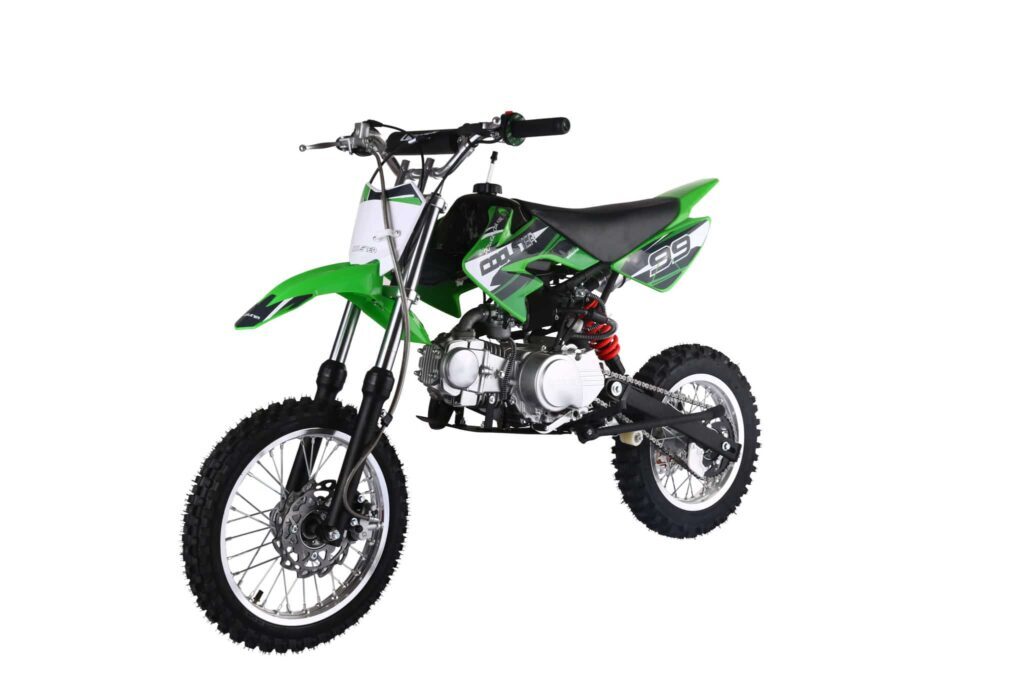

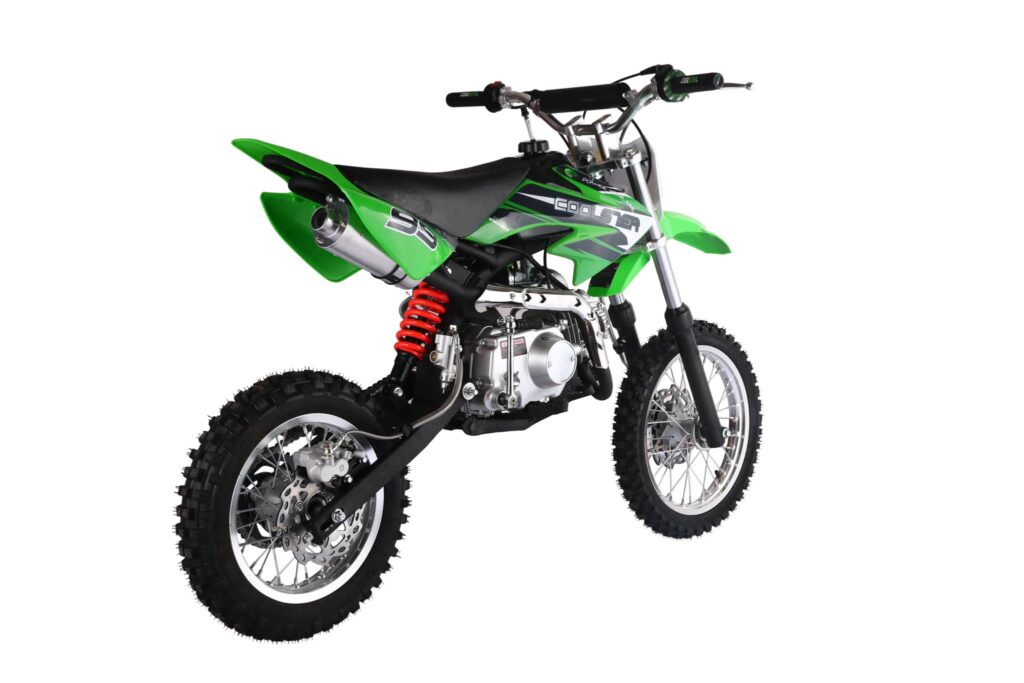

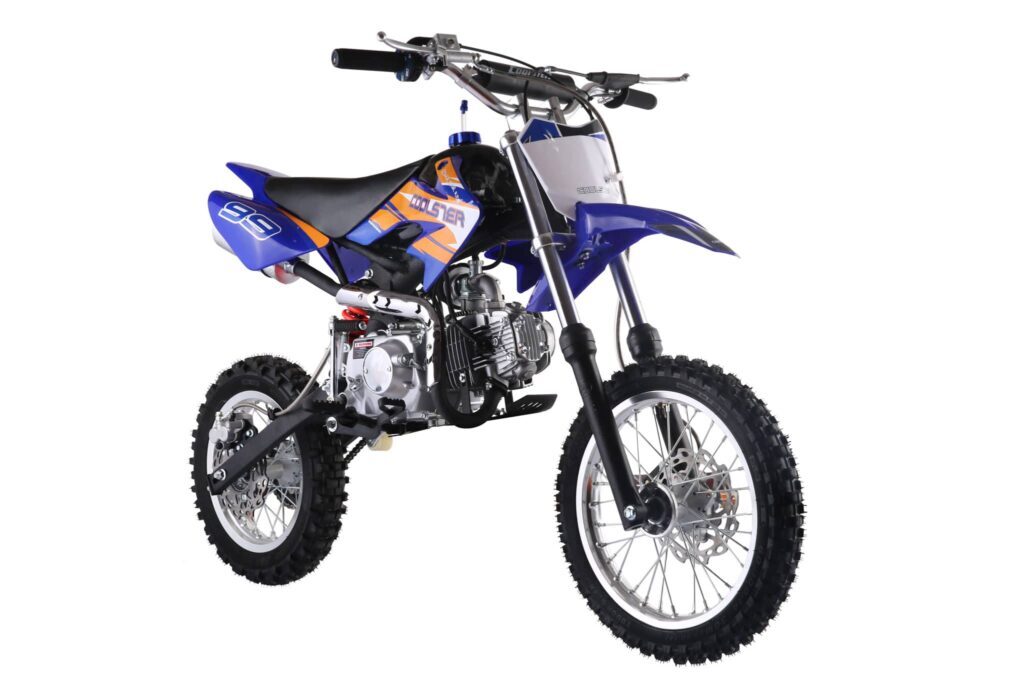

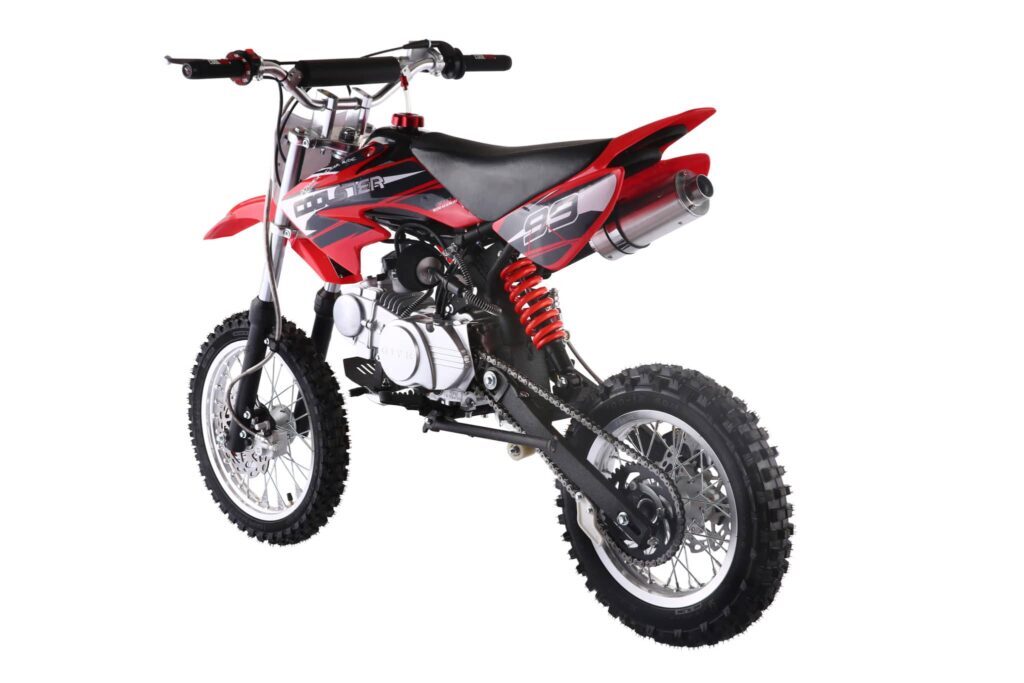

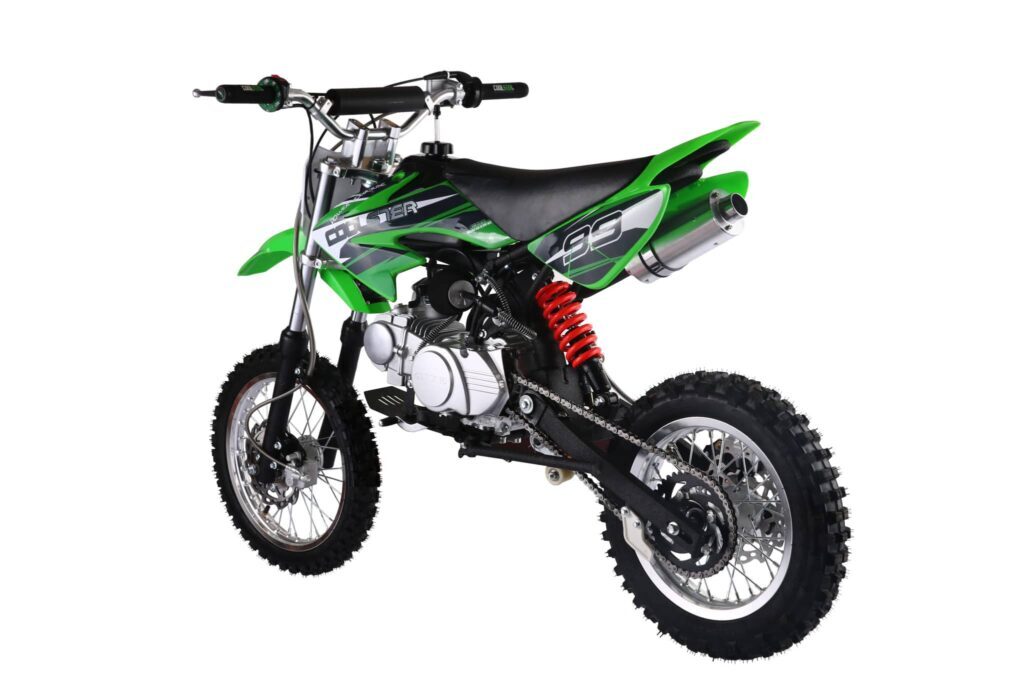

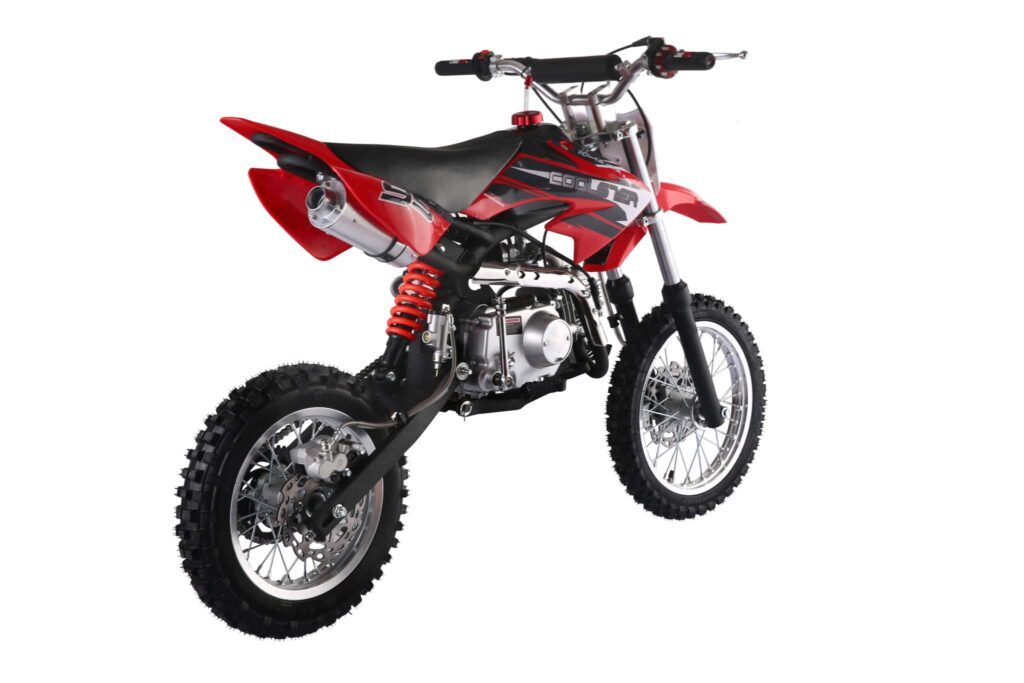

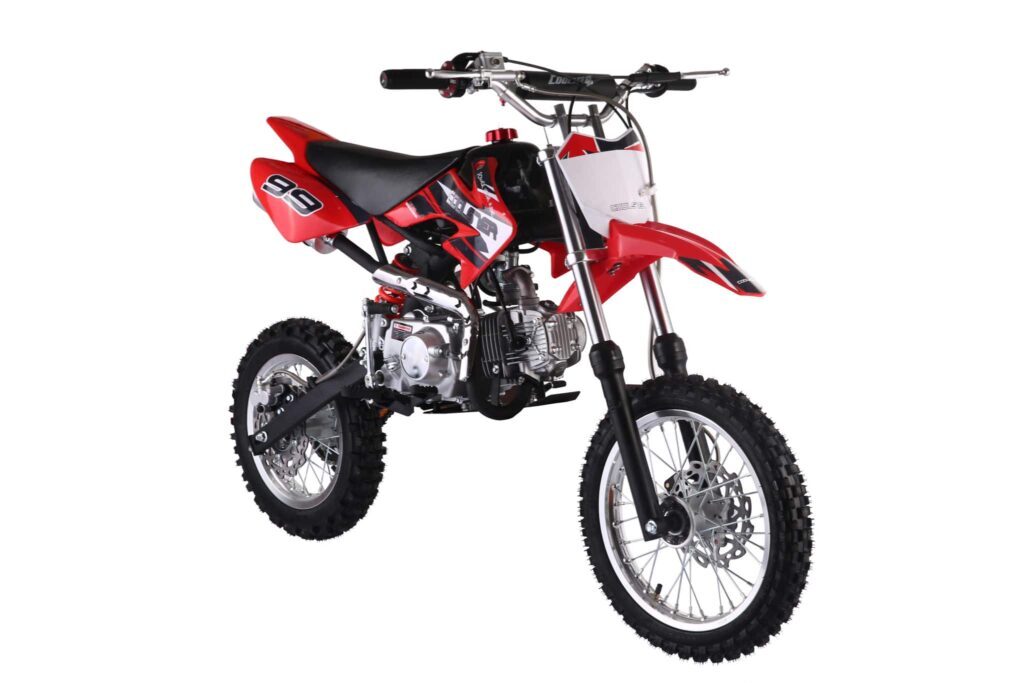

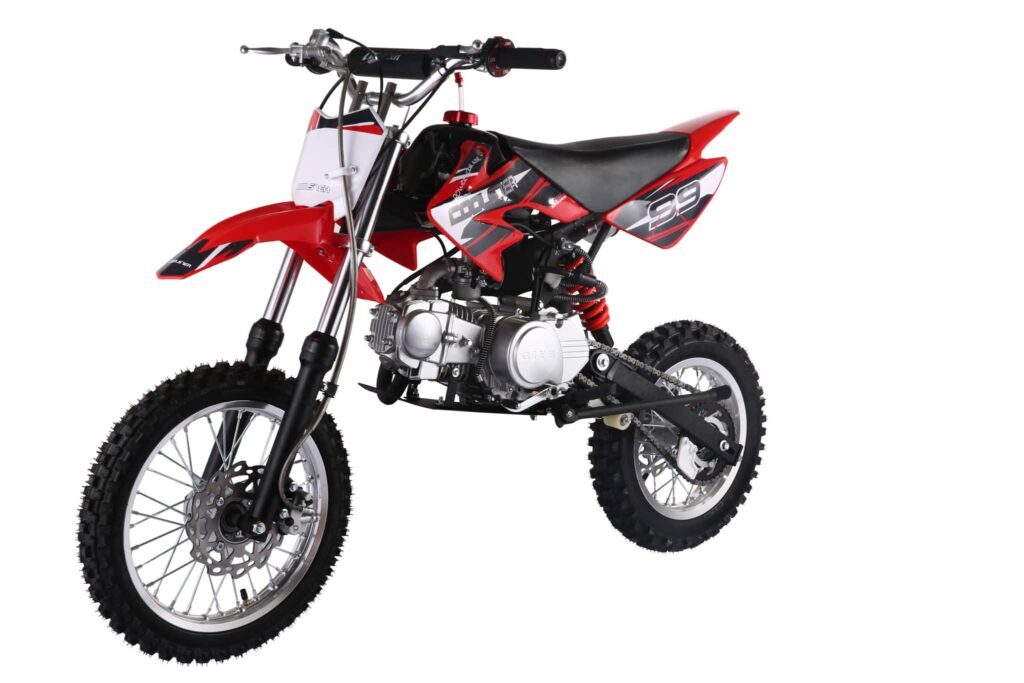

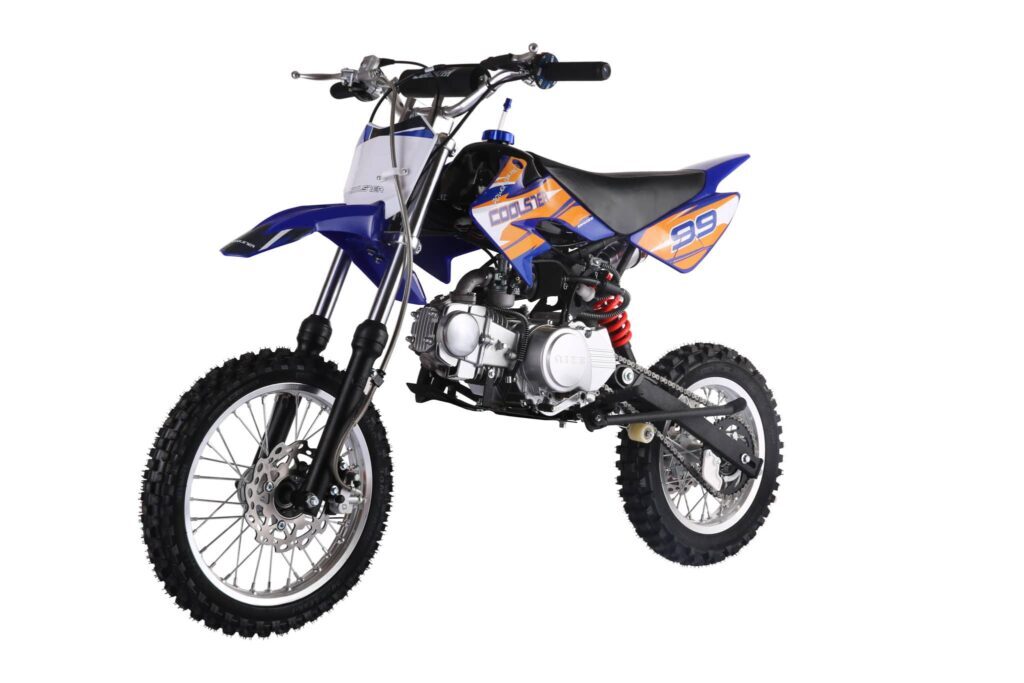

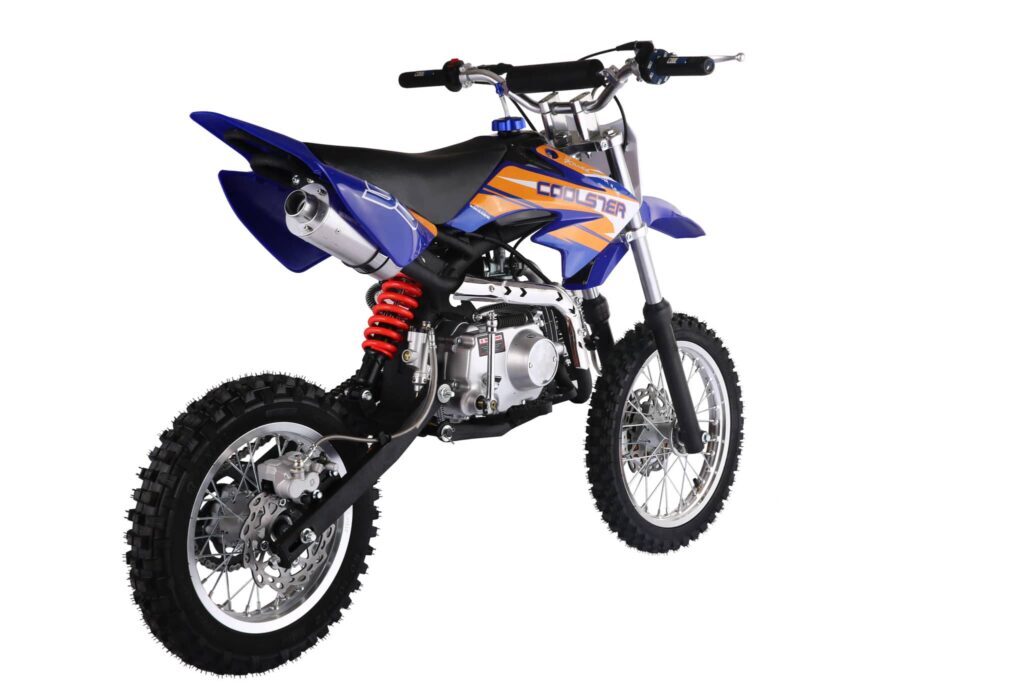

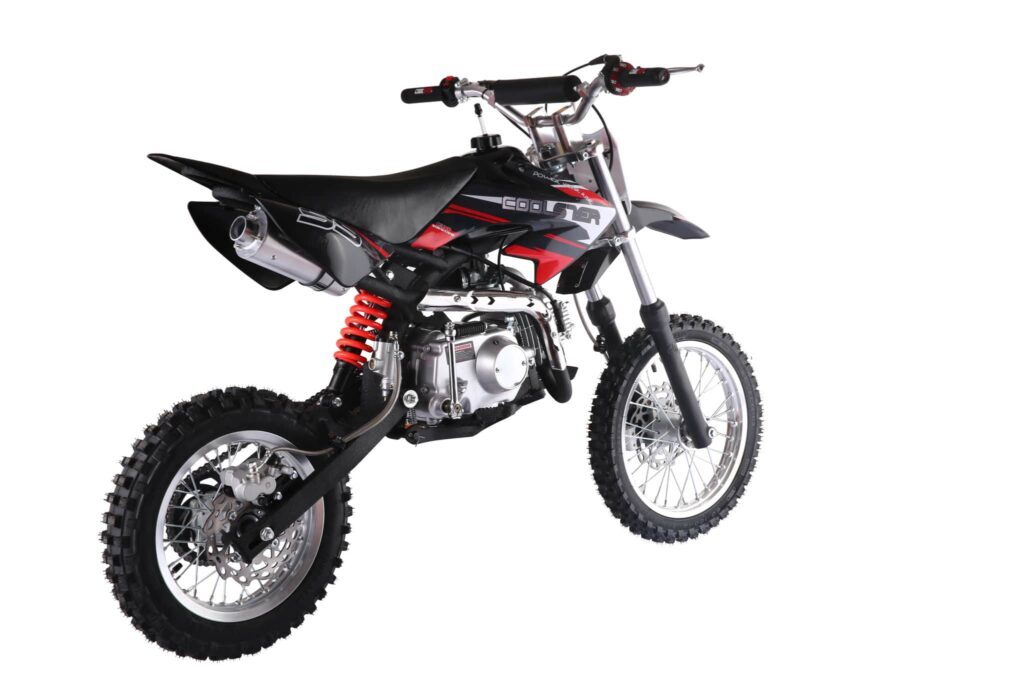

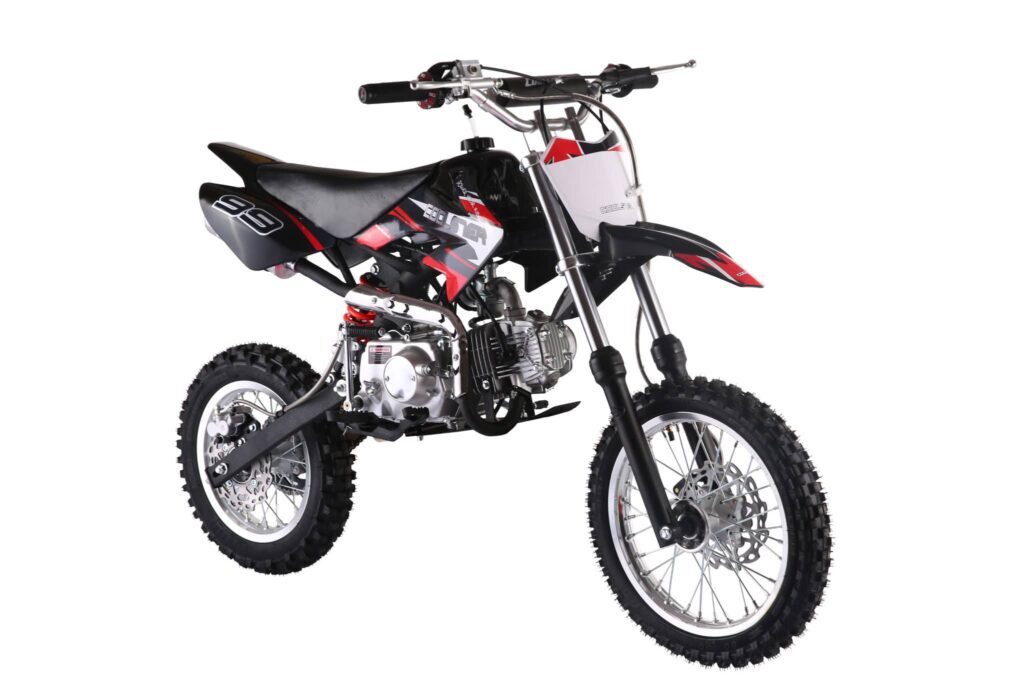

The Coolster QG-214 is our premiere mid sized dirt bike. The Coolster QG-214 is powered by a 4-stroke, 125cc engine with a top speed of around 50 MPH. It is available in blue, black and red colors. The QG-214 features a manual transmission with front and rear drum brakes, and a heavy duty frame built for durability.
For more information, please click the tabs, or click here to reach us directly.
Available Colors
QG-214-2 Parts
Dealers Near You
Specifications
Manual
Exploded Diagram
Disclaimer
QG-214-2 Parts
| Image | Name | Price | Buy |
|---|
Dealers Near You
Search Location
Dealers: 0
PRINT
Specifications
| Model Number: | QG-214 |
| Engine Type: | 120CC Single cylinder, 4-stroke, air-cooled |
| Max Torque: | 6.9N.m/6000r/min |
| Max Power: | 5.5KW/8500r/min |
| Bore Stroke: | 52.4×55.5mm |
| Ignition: | CDI |
| Starting System: | Kick Start |
| Clutch: | Manual |
| Transmission: | Chain, Foot |
| Brakes Front/Rear: | Hydraulic disc/Hydraulic disc |
| Tires Front/Rear: | 2.75 x 14 / 3.00 – 12 |
| Rims: | Aluminum |
| Weight: | G.W./N.W :70KG /59KG |
| Wheelbase: | 1070mm |
| Fuel Capacity/Oil Type: | 3.5 L |
| Dimensions: | 1554 x 680 x 740mm |
| Height to Seat: | 740mm |
| Minimum Ground Clearance: | 280mm |
Manual
Exploded Diagram
Coming soon…
Disclaimer
Please read the owner’s manual and all on-product warnings. Dirt Bikes can be hazardous to operate. For operator’s safety, always wear a helmet, eye protection, and protective gear. Never carry a passenger. Never ride under the influence of drugs or alcohol. Never ride on public roads nor pavement. Be extra careful on difficult terrain. Never allow a child to operate a Dirt Bike without adult supervision.
