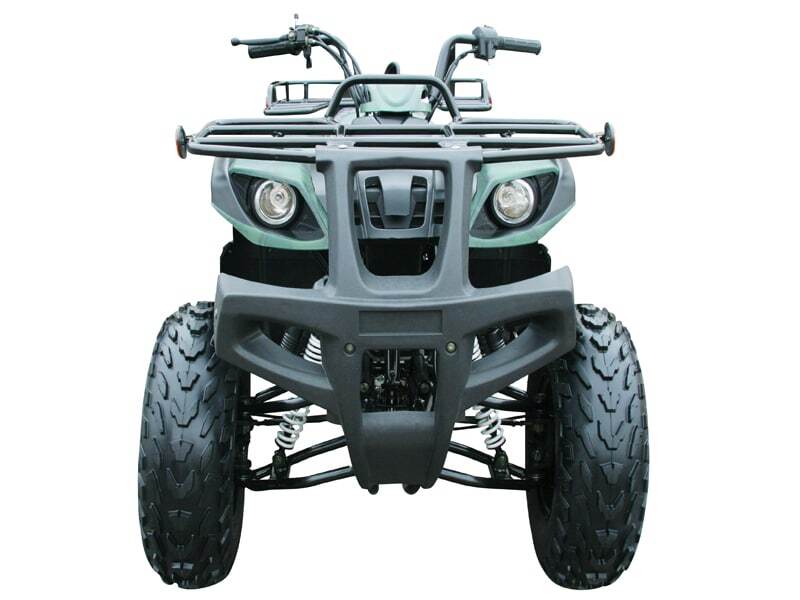

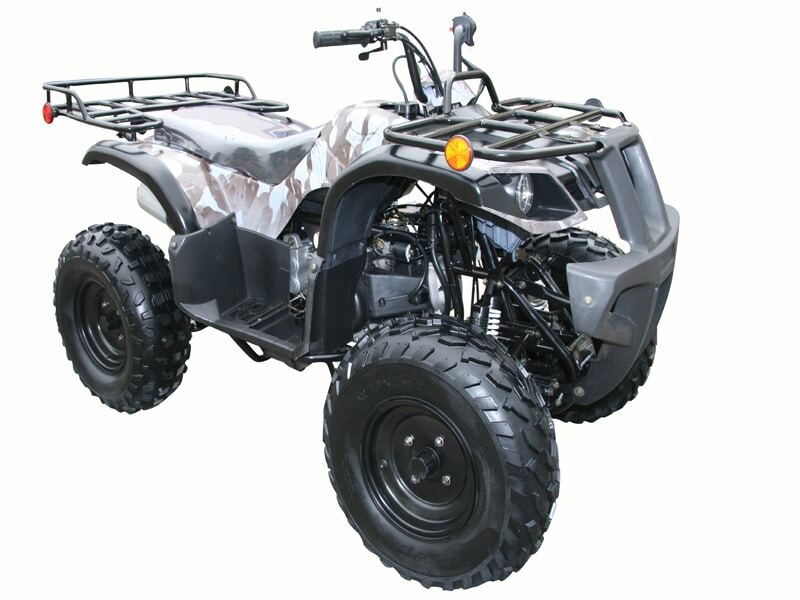

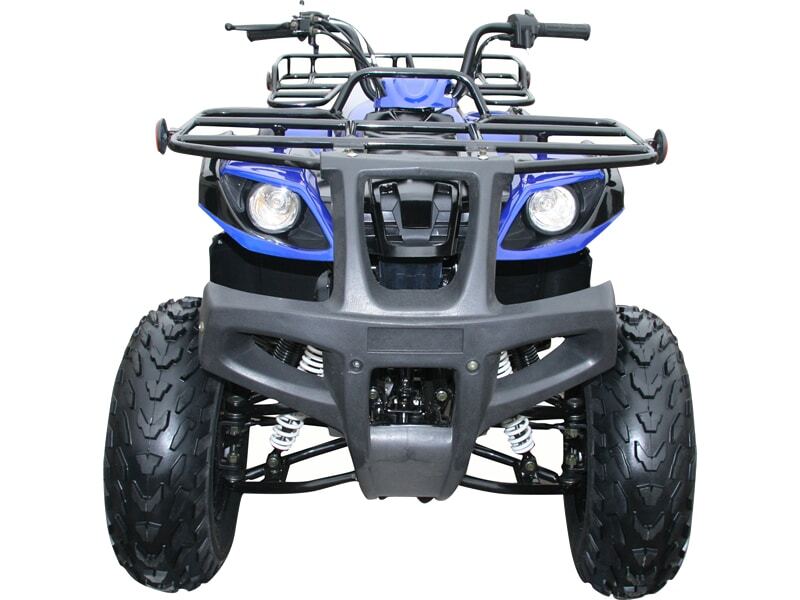

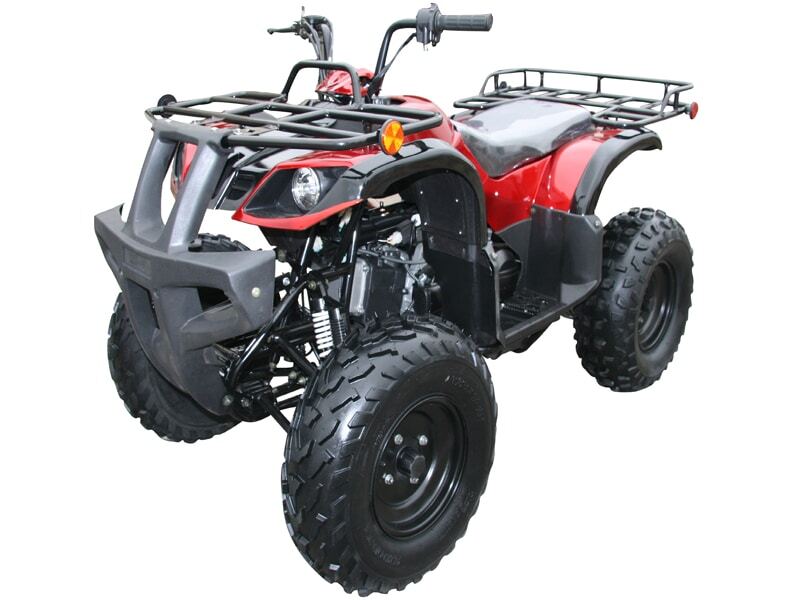

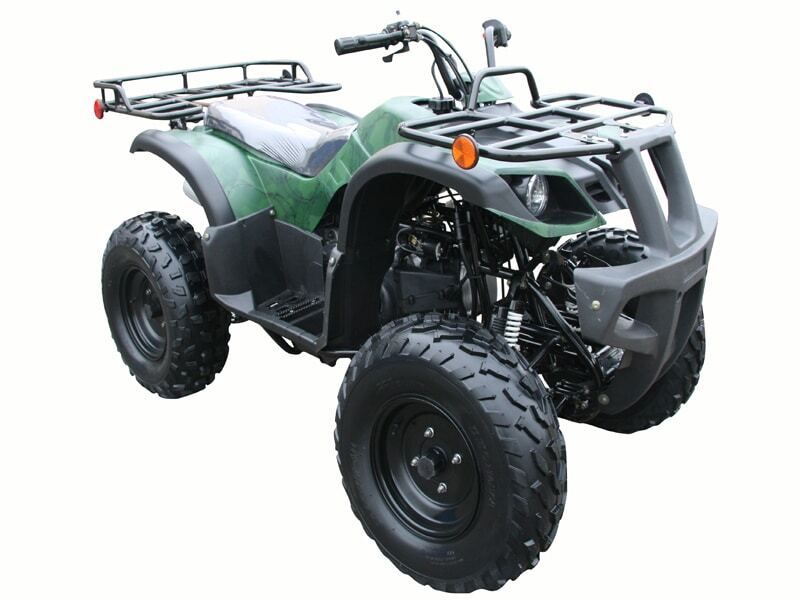

ATV-3150DX-2
150CC Fully Automatic Full Sized Utility ATV

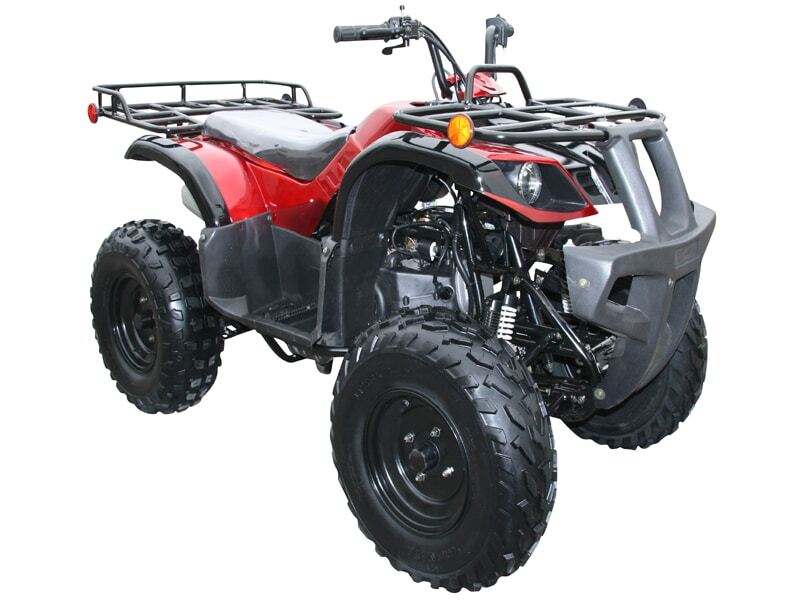

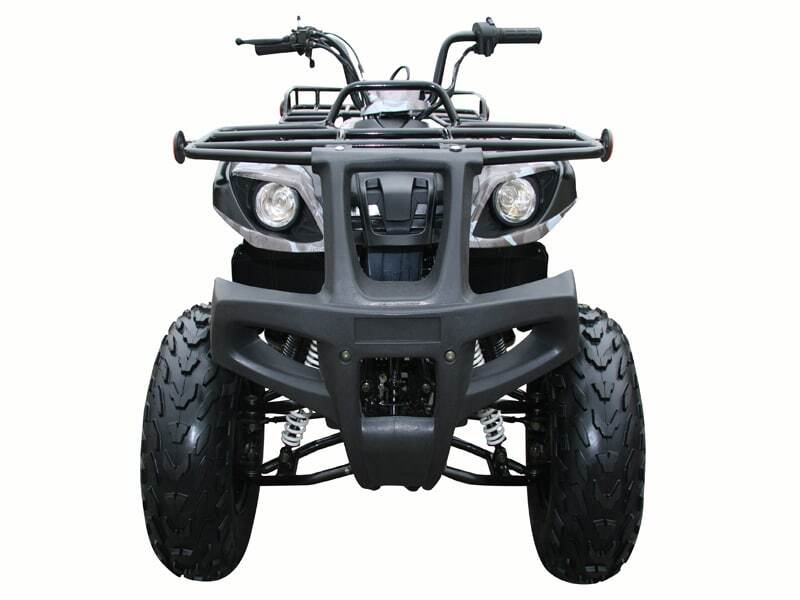

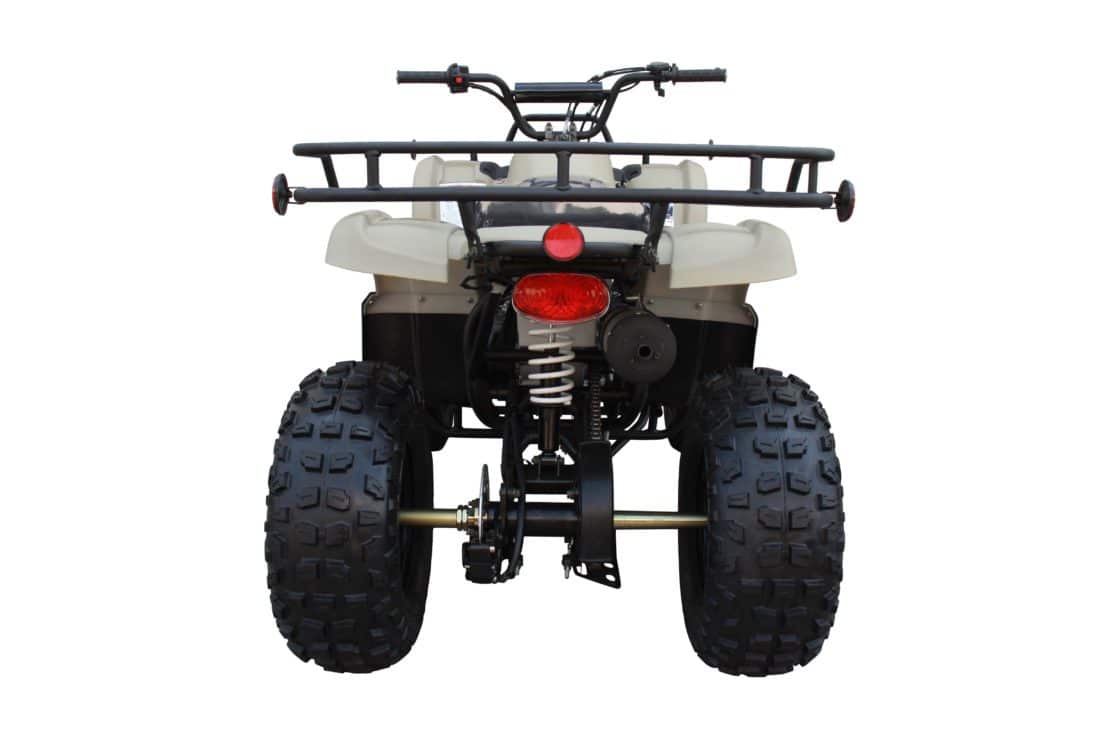

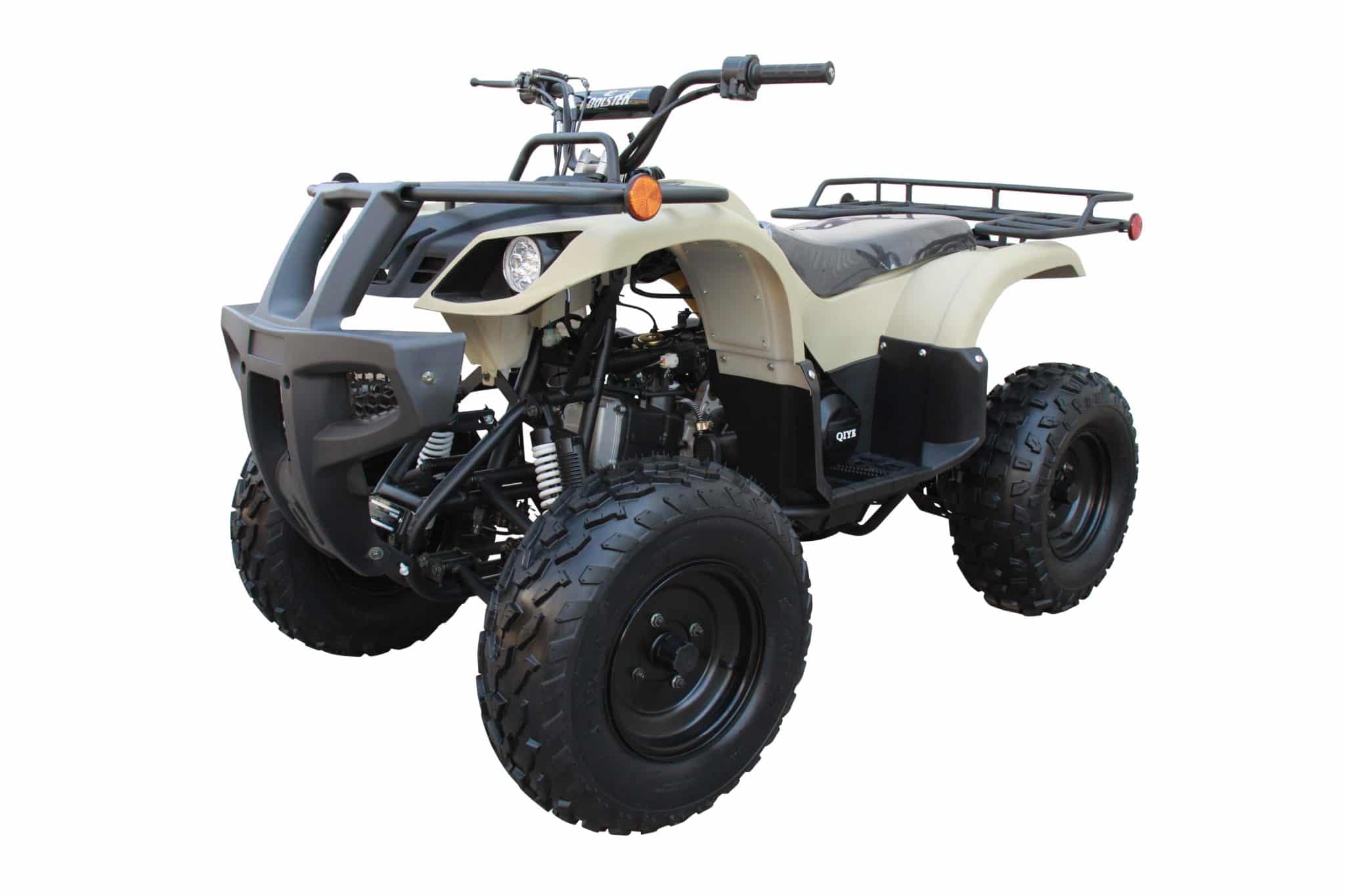

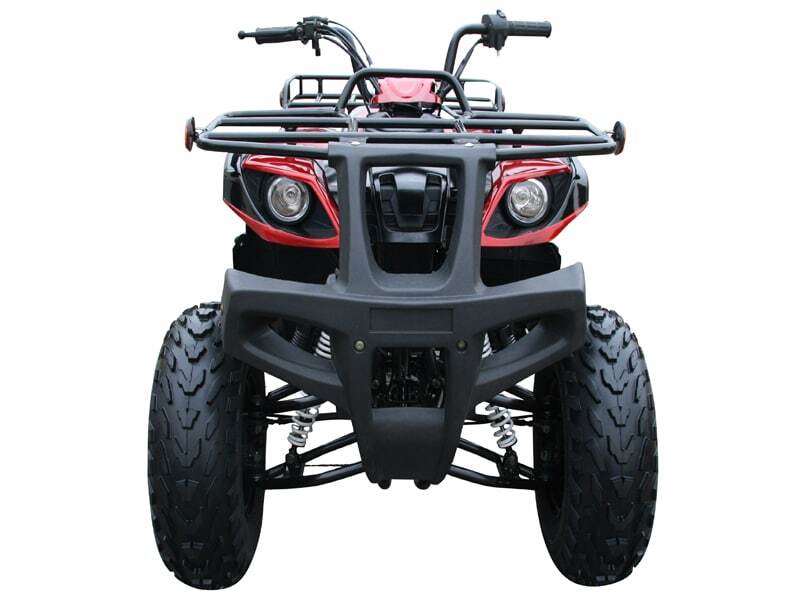

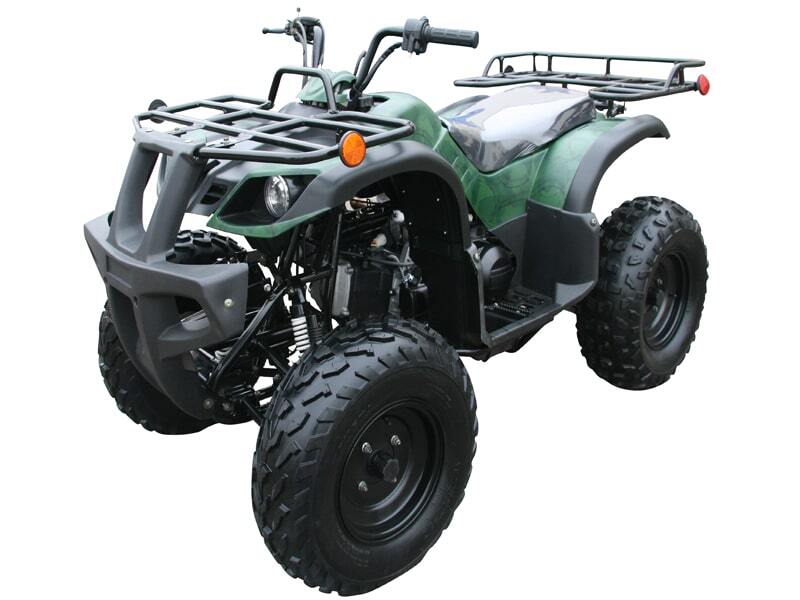

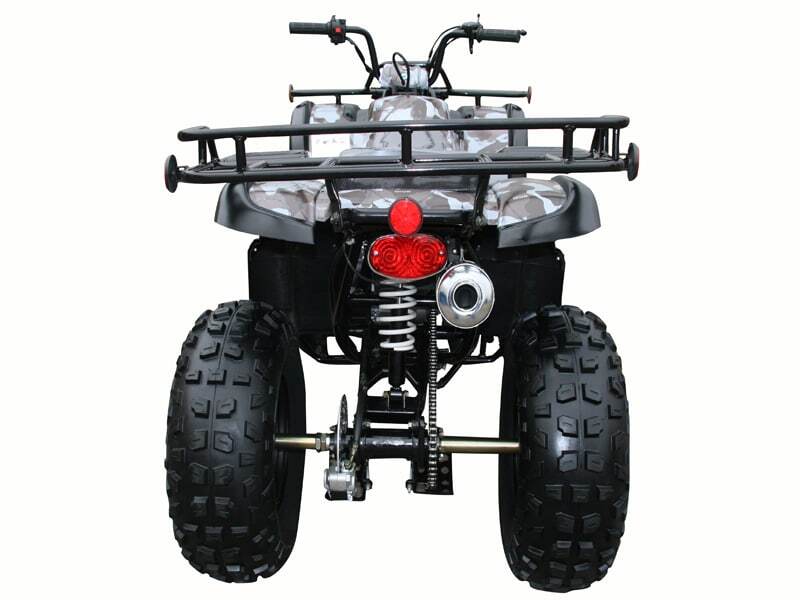

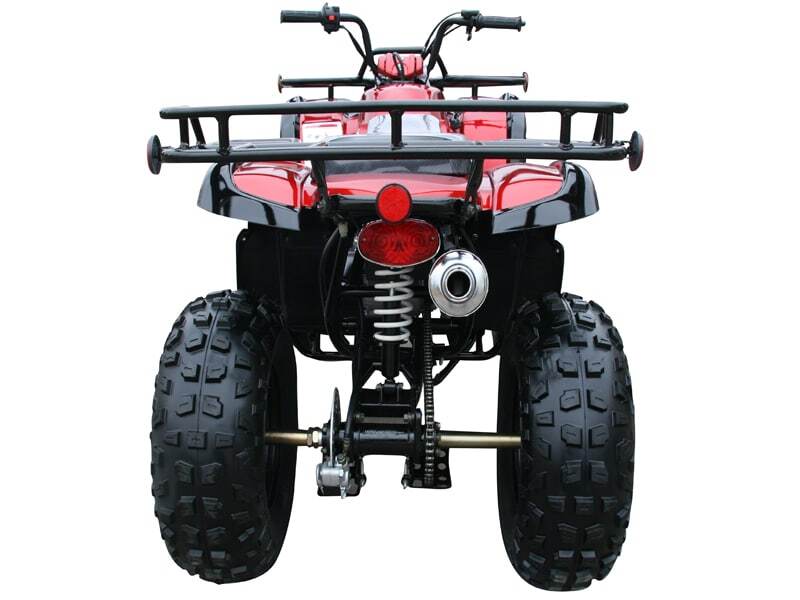

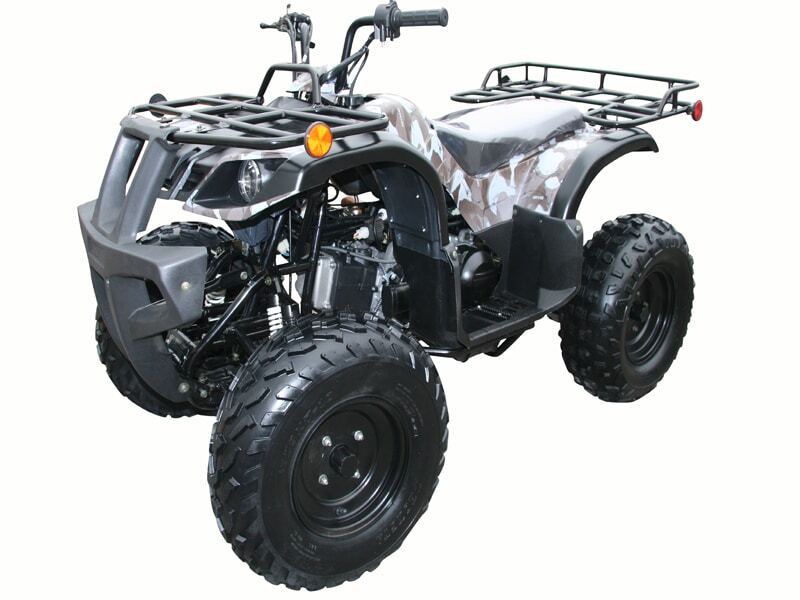

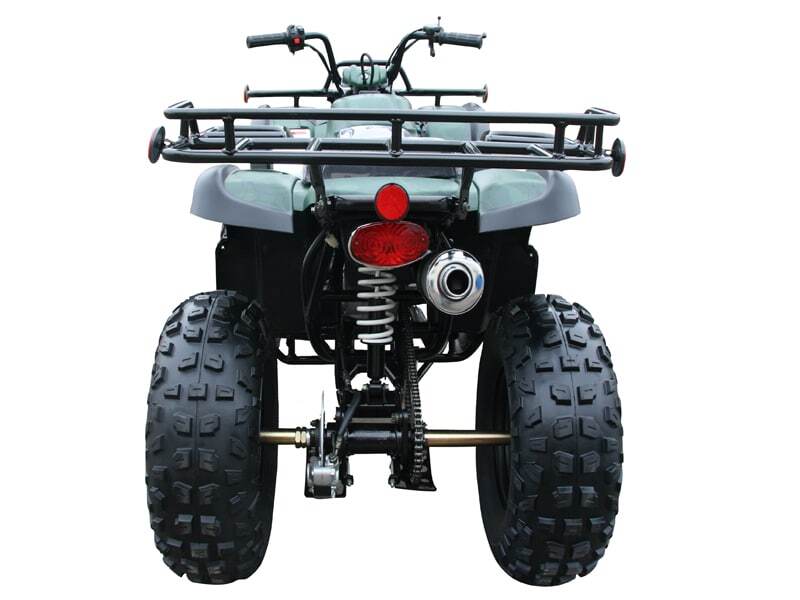

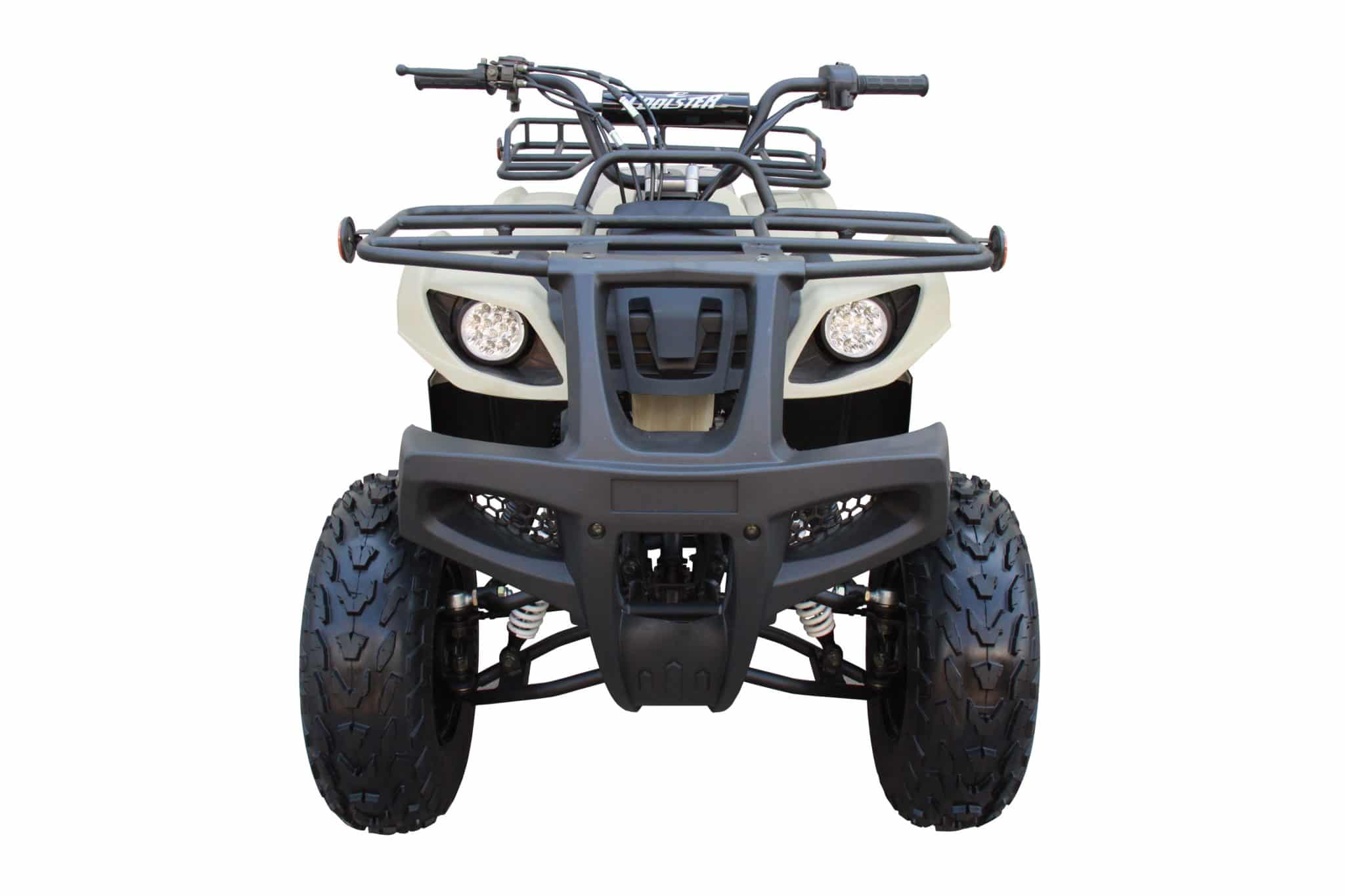

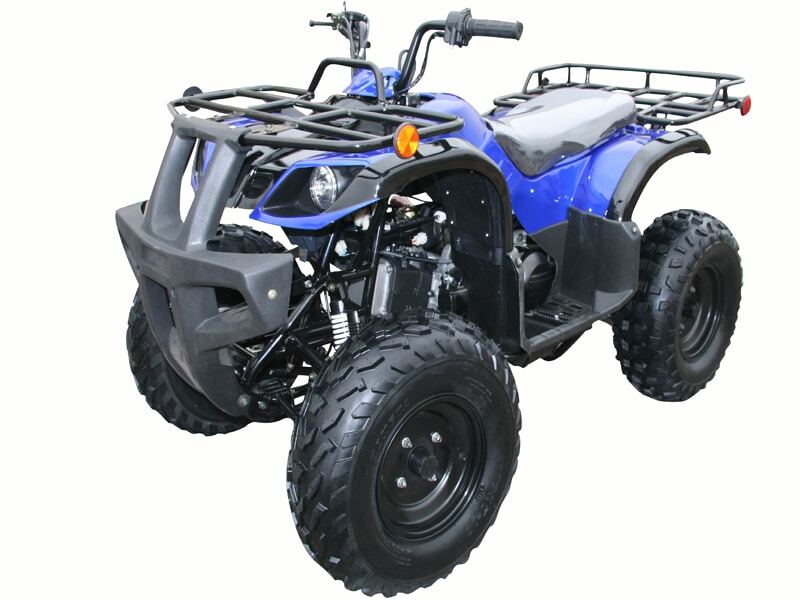

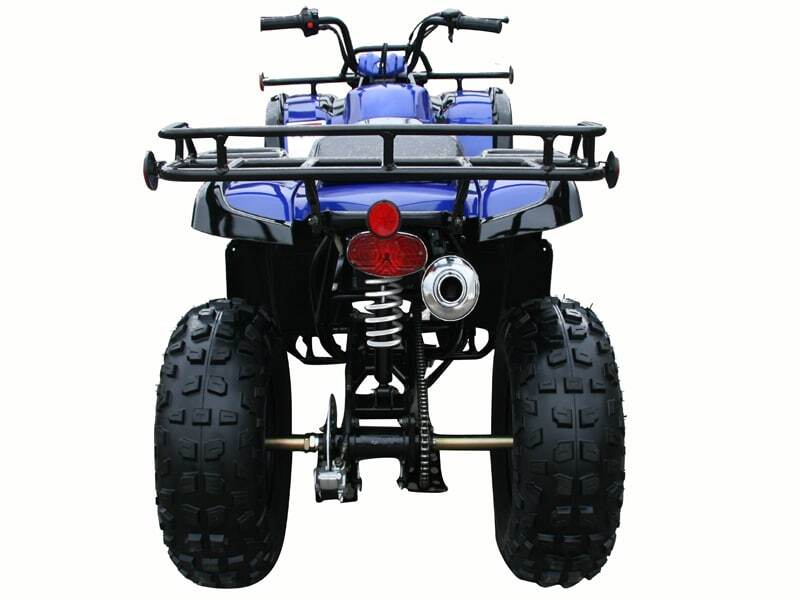

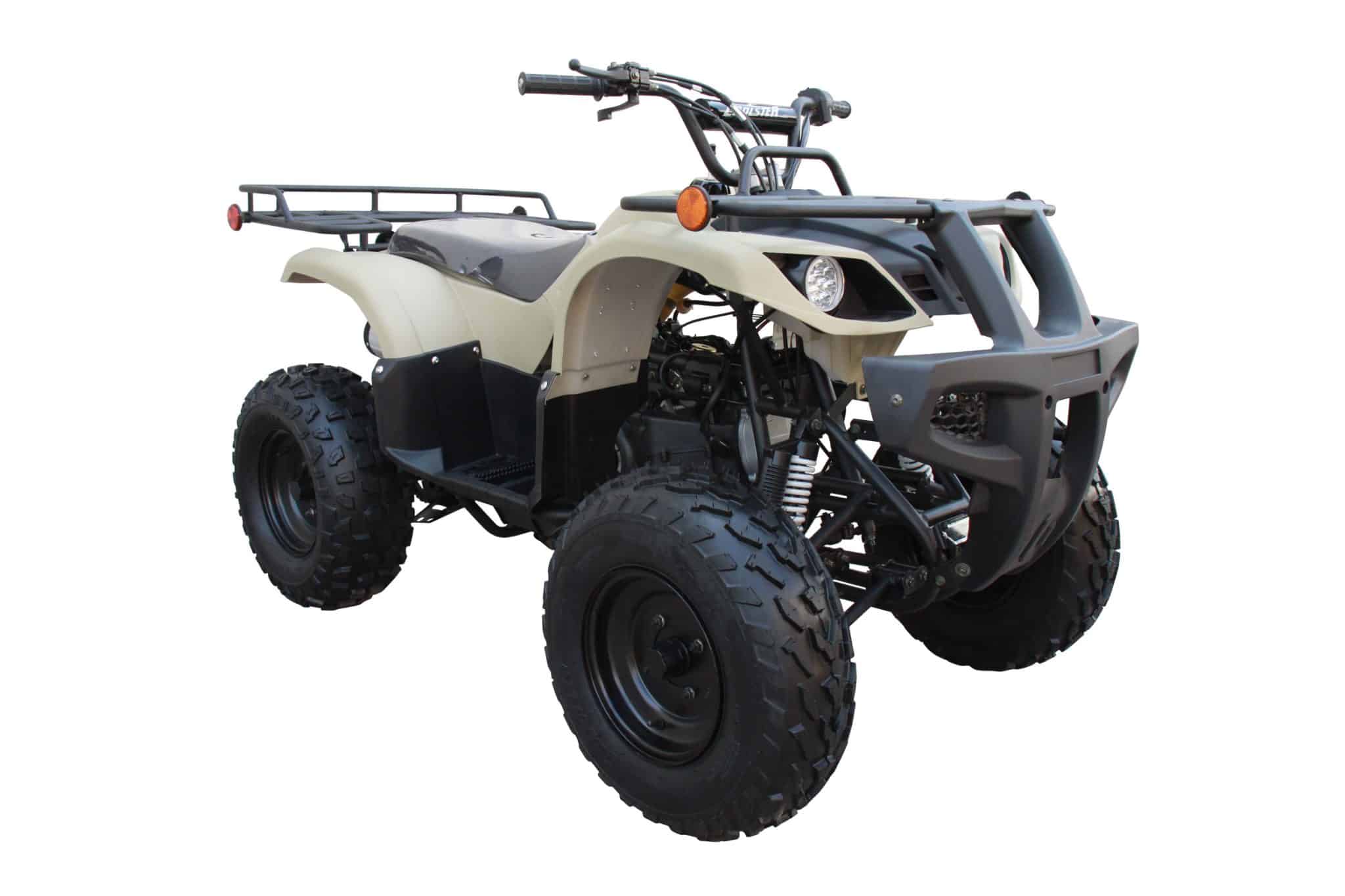

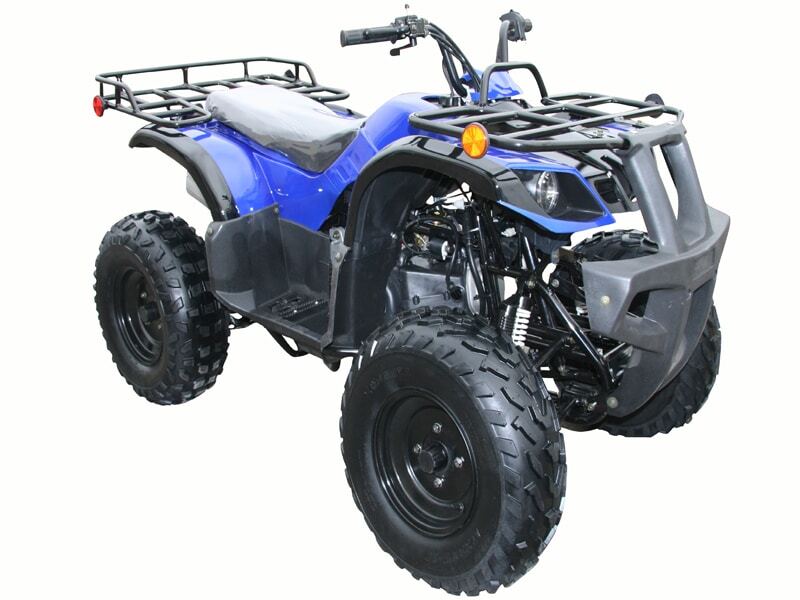

Available Colors
The Coolster ATV-3150DX-2 is our longest running utility ATV, and for good reason. Its durability is played in part by the large 23″/22″ tires working seamlessly with the compulsory powered, 4-stroke 150cc engine. Whether its work or recreation, the Coolster ATV-3150DX-2 gets the job finished.
For more information, please click the tabs, or click here to reach us directly.
Download ATV-3150DX-2 Manual
(Must be logged in to download)
| Â Model Number: | Â ATV-3150DX-2 |
| Â Engine Type: | Â Single cylinder, 4-stroke, air-cooled |
| Â Displacement: | Â 150cc |
| Â Max Torque: | Â 9.2.N.m/6,000r/min (N.m/r/min) |
| Â Max Power: | Â 6.5kW/7,500r/min (N.m/r/min) |
| Â Bore Stroke: | Â 57.4 x 57.8mm |
| Â Ignition: | Â CDI |
| Â Starting System: | Â Electric |
| Â Battery: | Â 12V, 9Ah |
| Â Clutch: | Â CVT Automatic |
| Â Transmission: | Â Chain, rear wheel drive |
| Â Brakes Front/Rear: | Â Hub/hydraulic disc |
|  Tires Front/Rear: |  23 x 7 – 10 / 22 x 10 – 10 |
| Â Fuel Capacity: | Â 5.6L |
| Â Weight: | Â (G.W./N.W) 183 kg/164 kg |
| Â Wheelbase: | Â 1215mm |
| Â Dimensions: | Â 1524 x 812.8 x 762 mm |
| Â Height to Seat: | Â 620mm |
| Â Min. Ground Clearance: | Â 165mm |
Â
Â
| Image | Name | Price | Buy |
|---|
Please read the owner’s manual and all on-product warnings. ATVs can be hazardous to operate. For operator’s safety, always wear a helmet, eye protection, and protective gear. Never carry a passenger. Never ride under the influence of drugs nor alcohol. Never ride on public roads nor pavement. Be extra careful on difficult terrain. Never allow a child under the age of 16 to operate an ATV without adult supervision. It is strongly recommended that all ATV riders take a training course. For more information, contact your local dealer or call 1-626-228-0251
