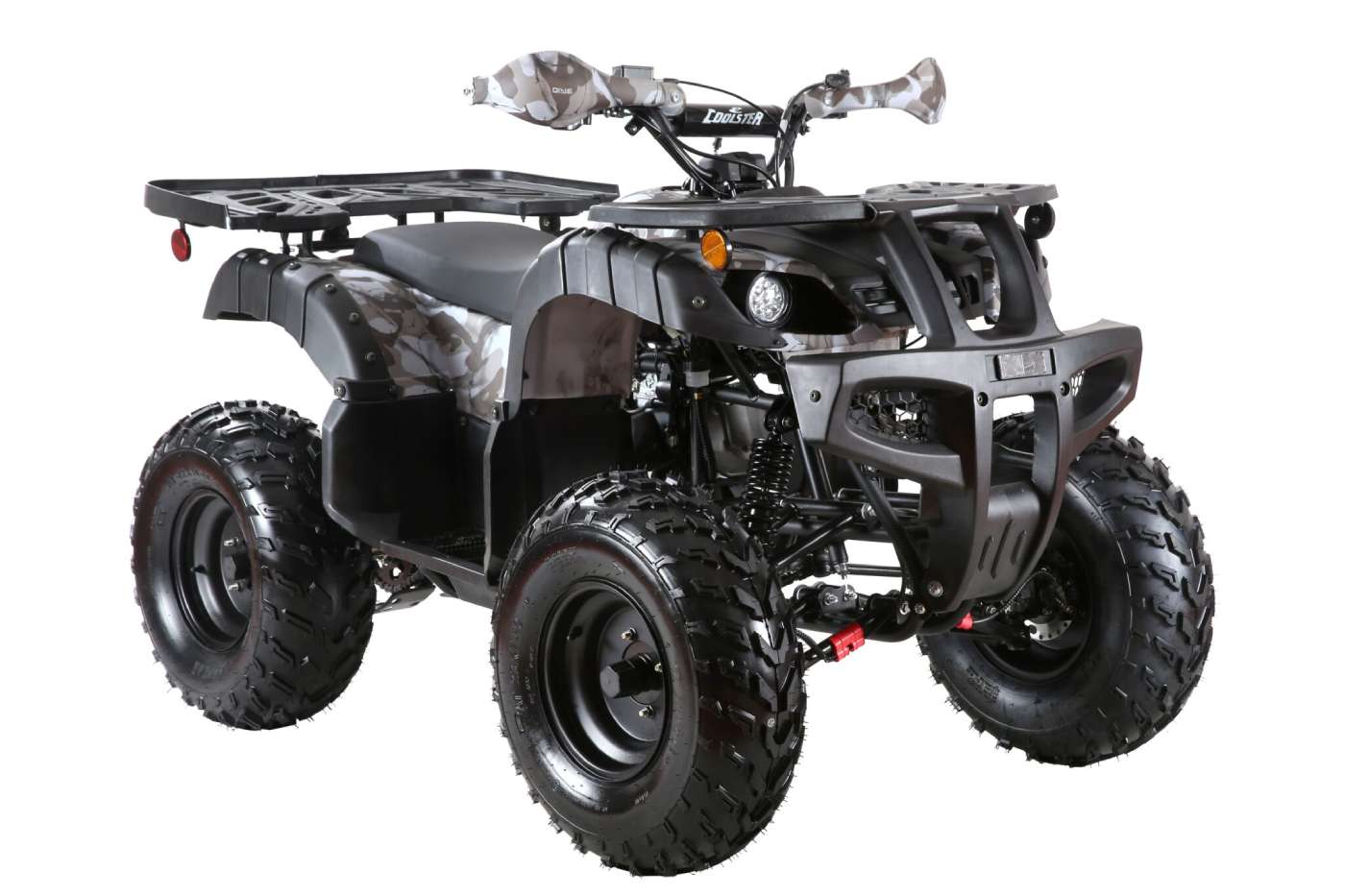

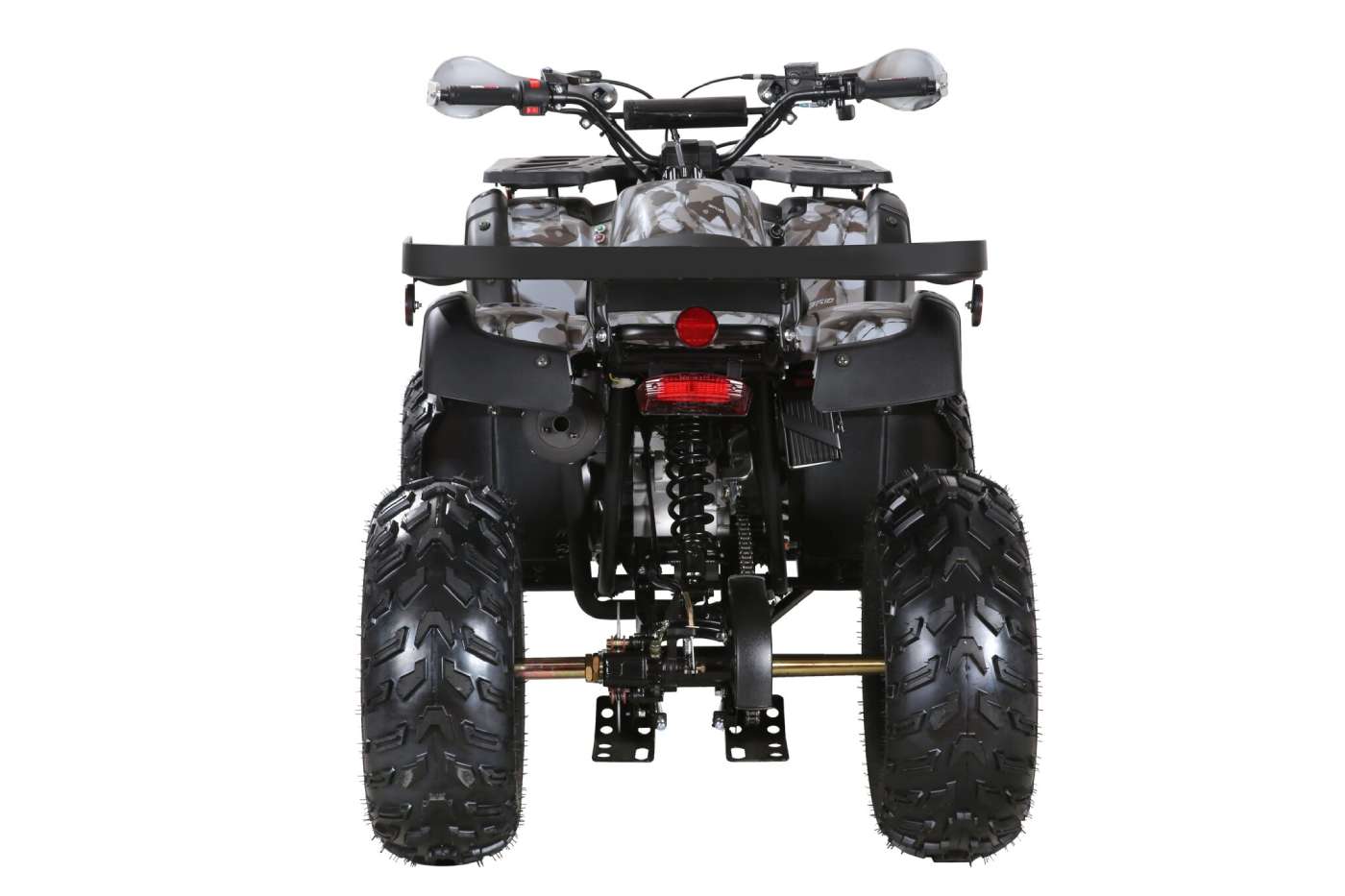

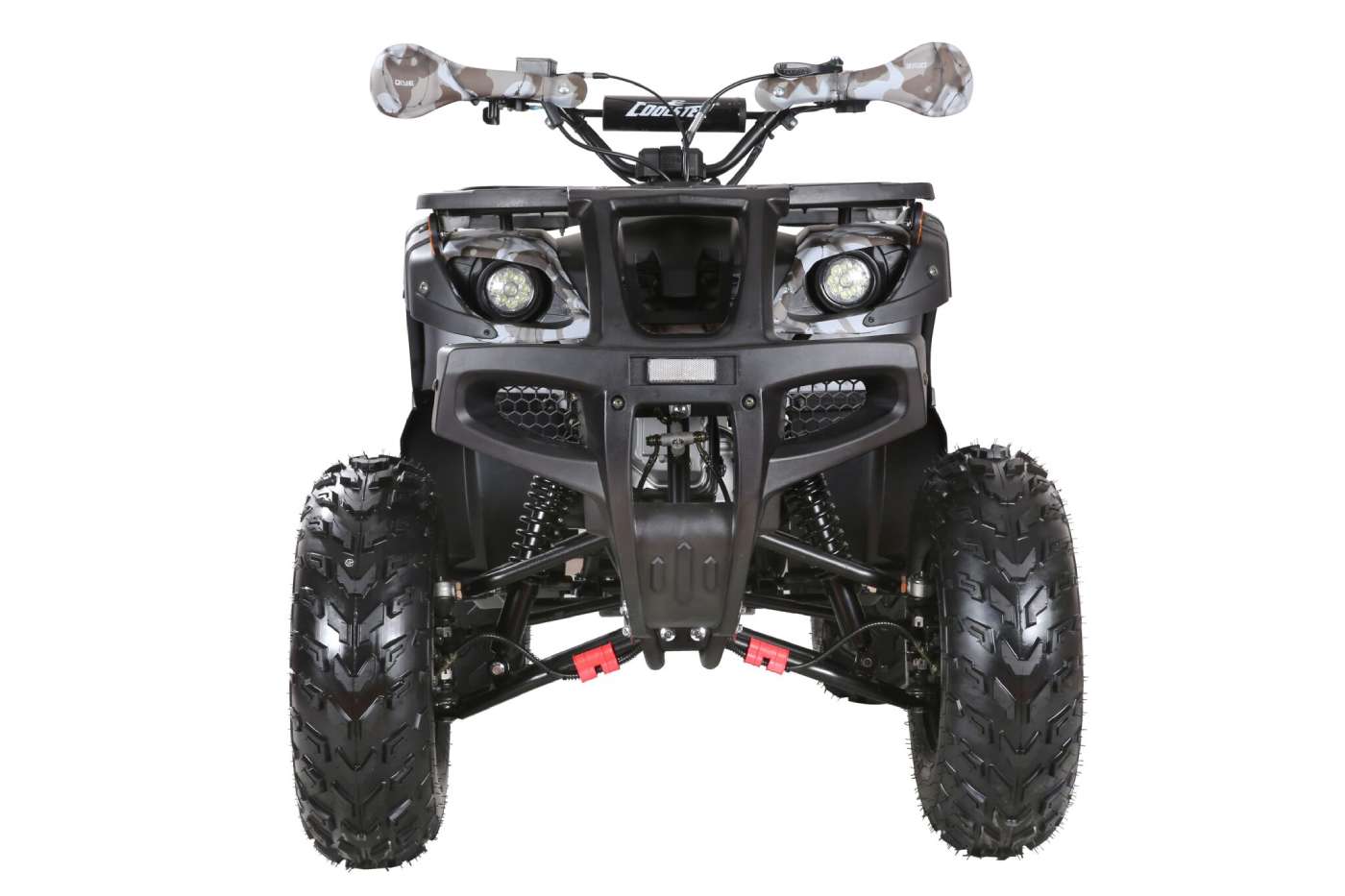

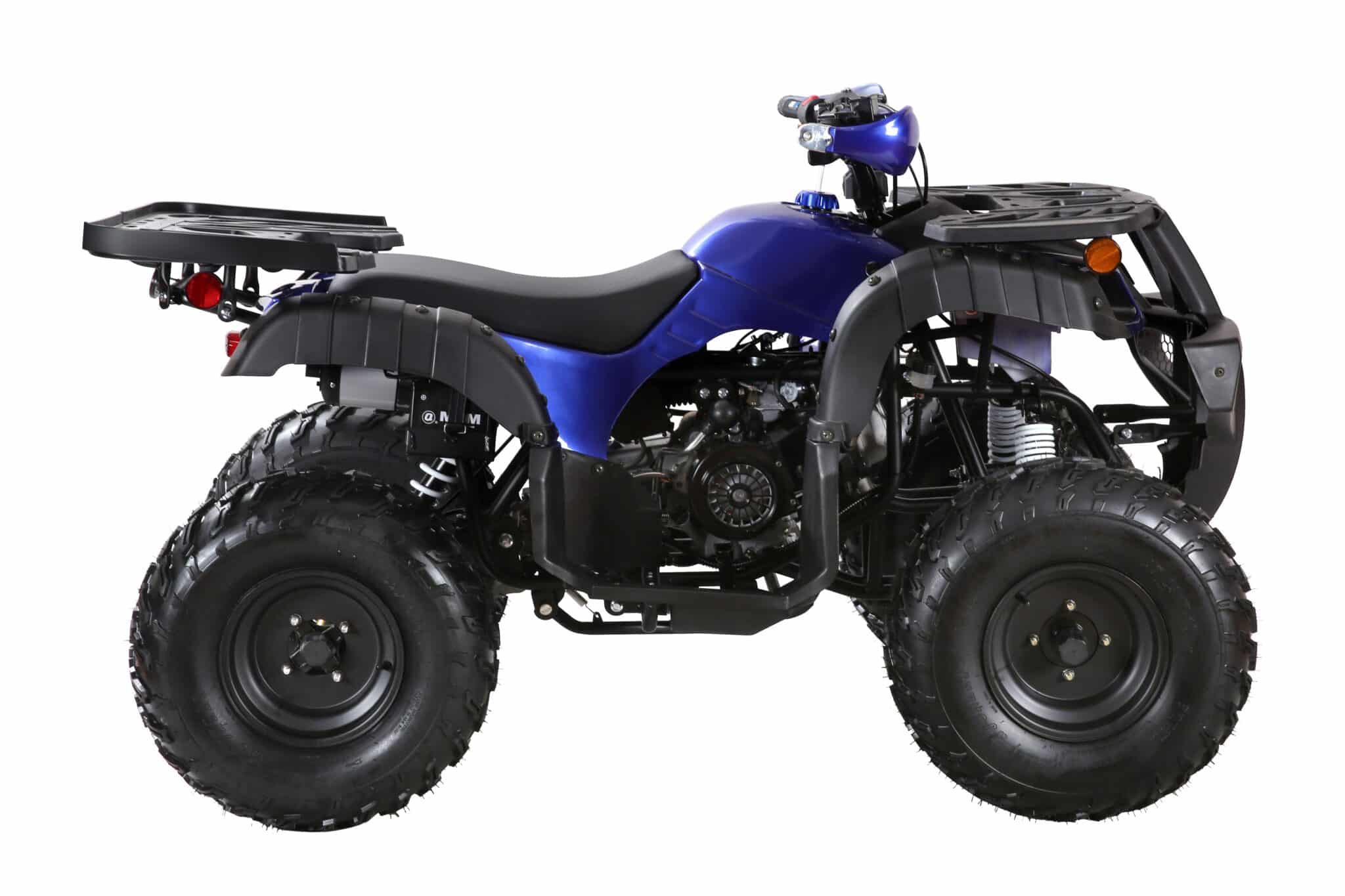

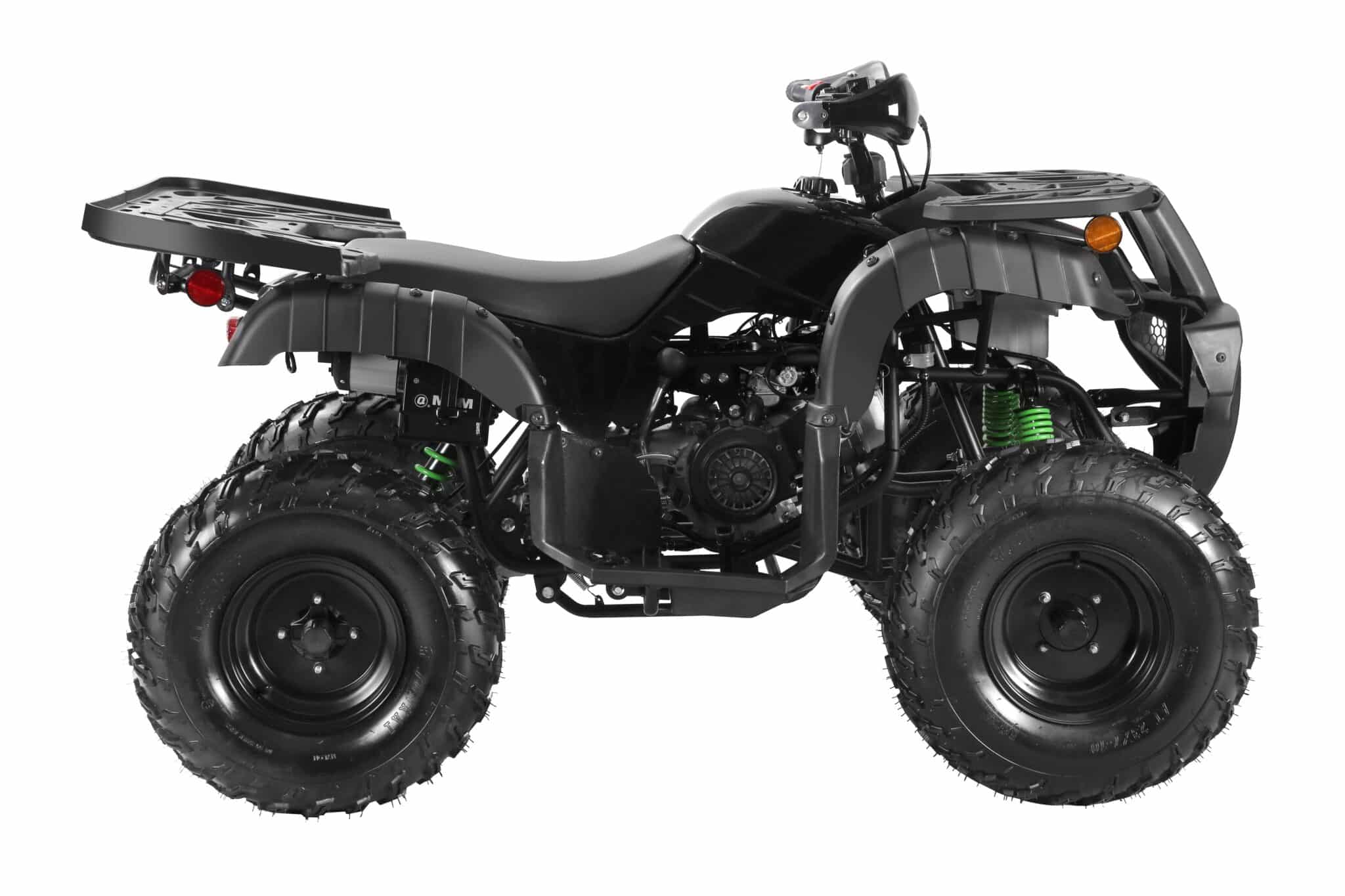

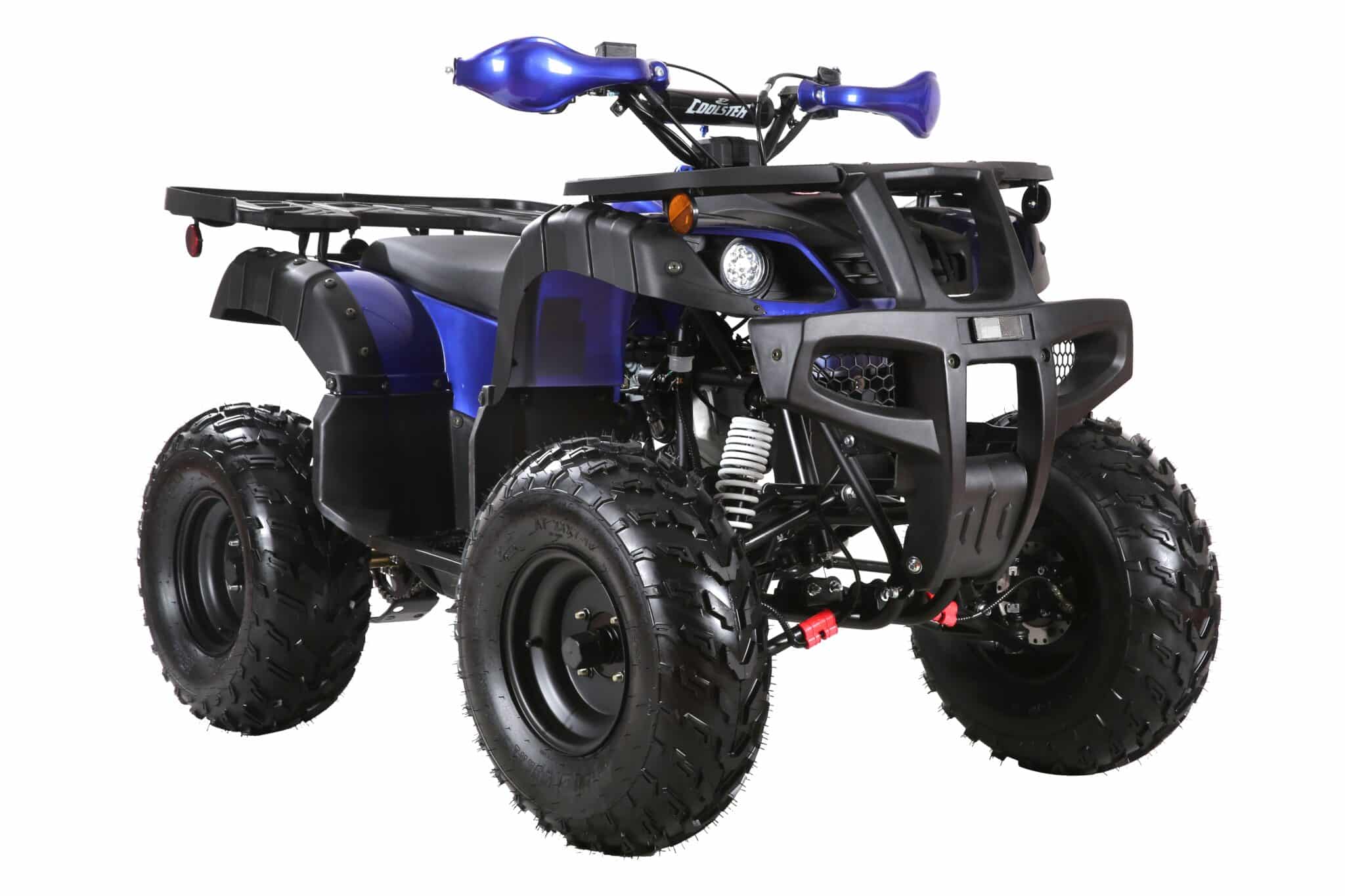

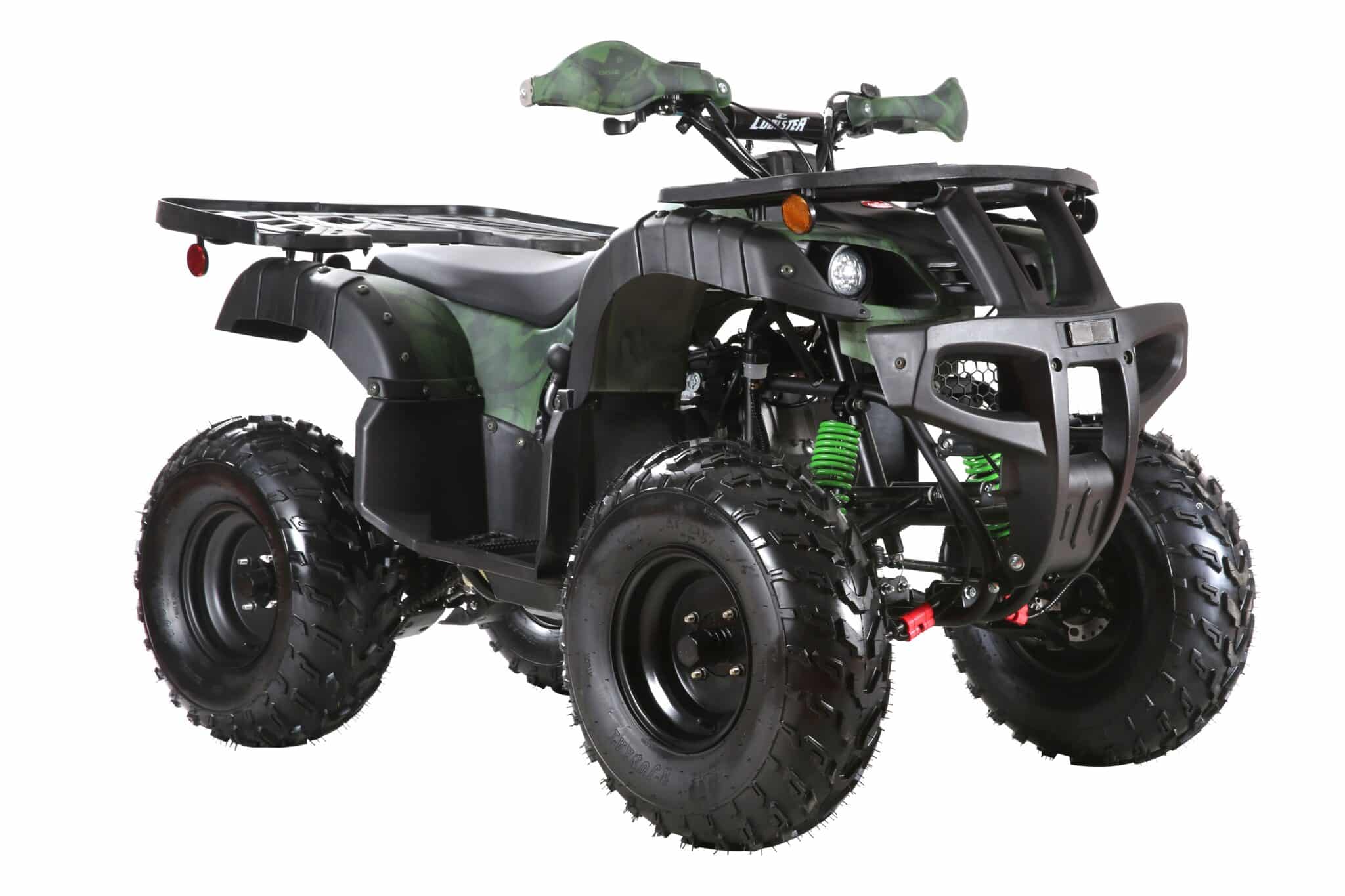

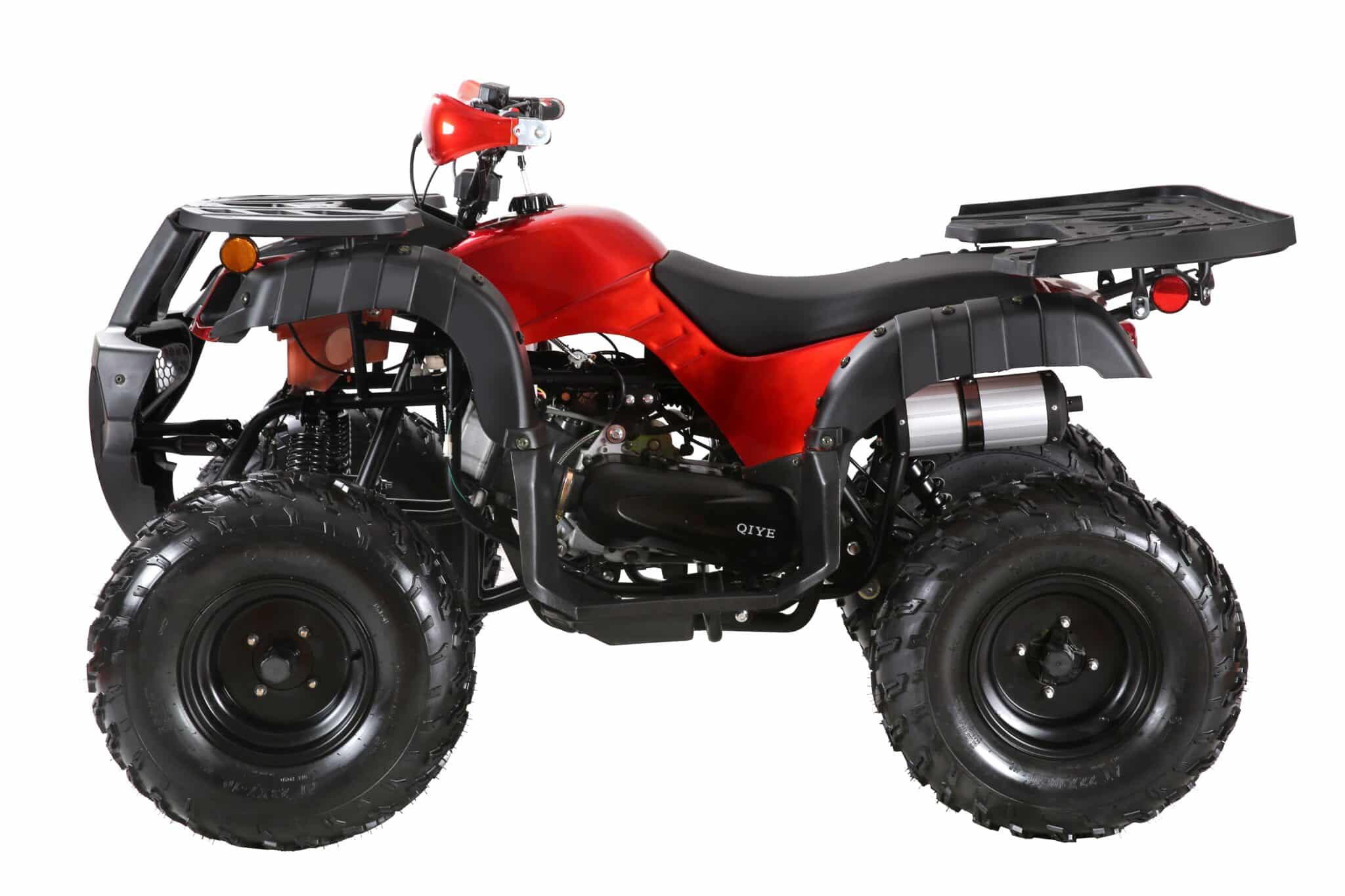

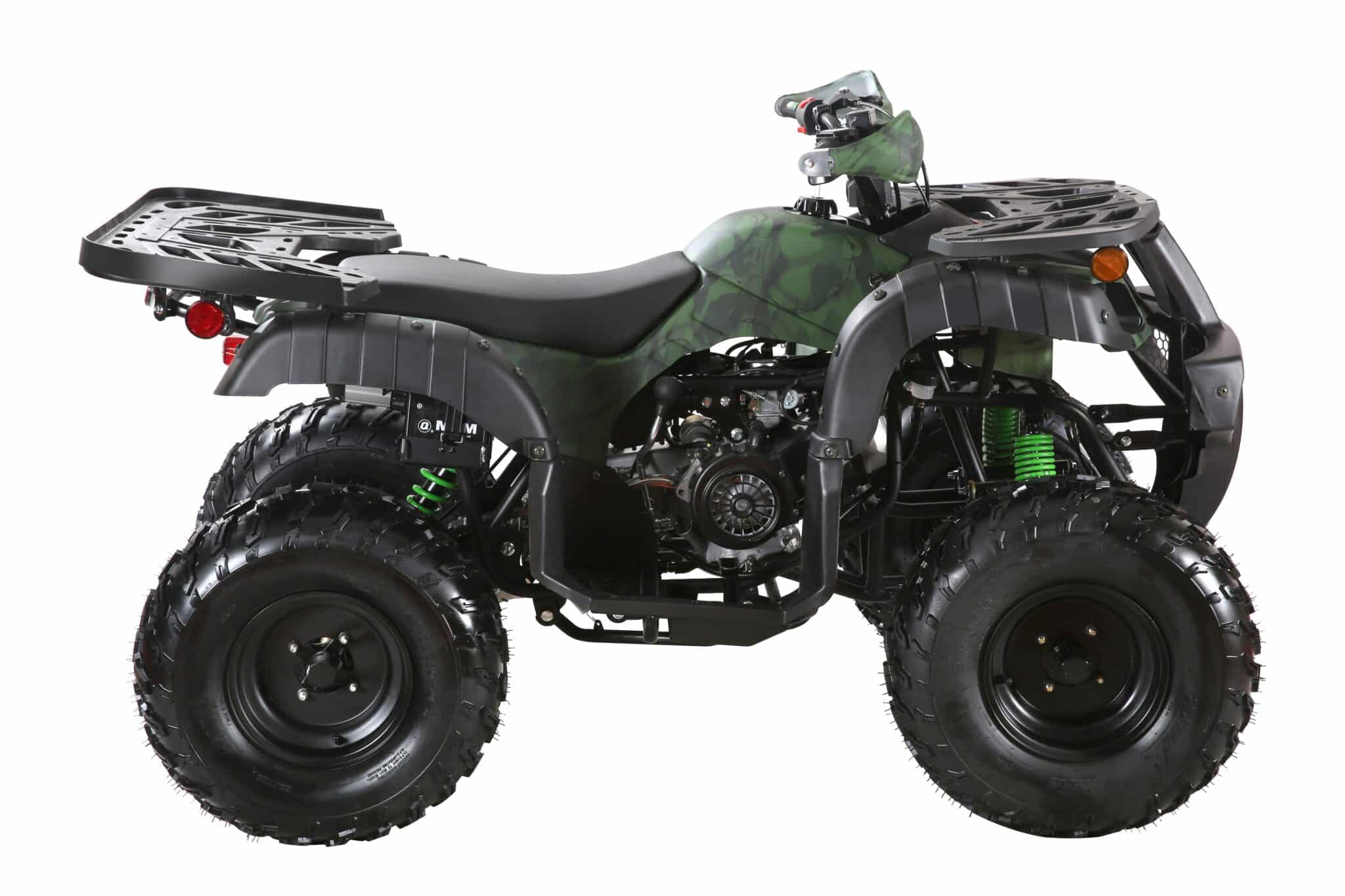

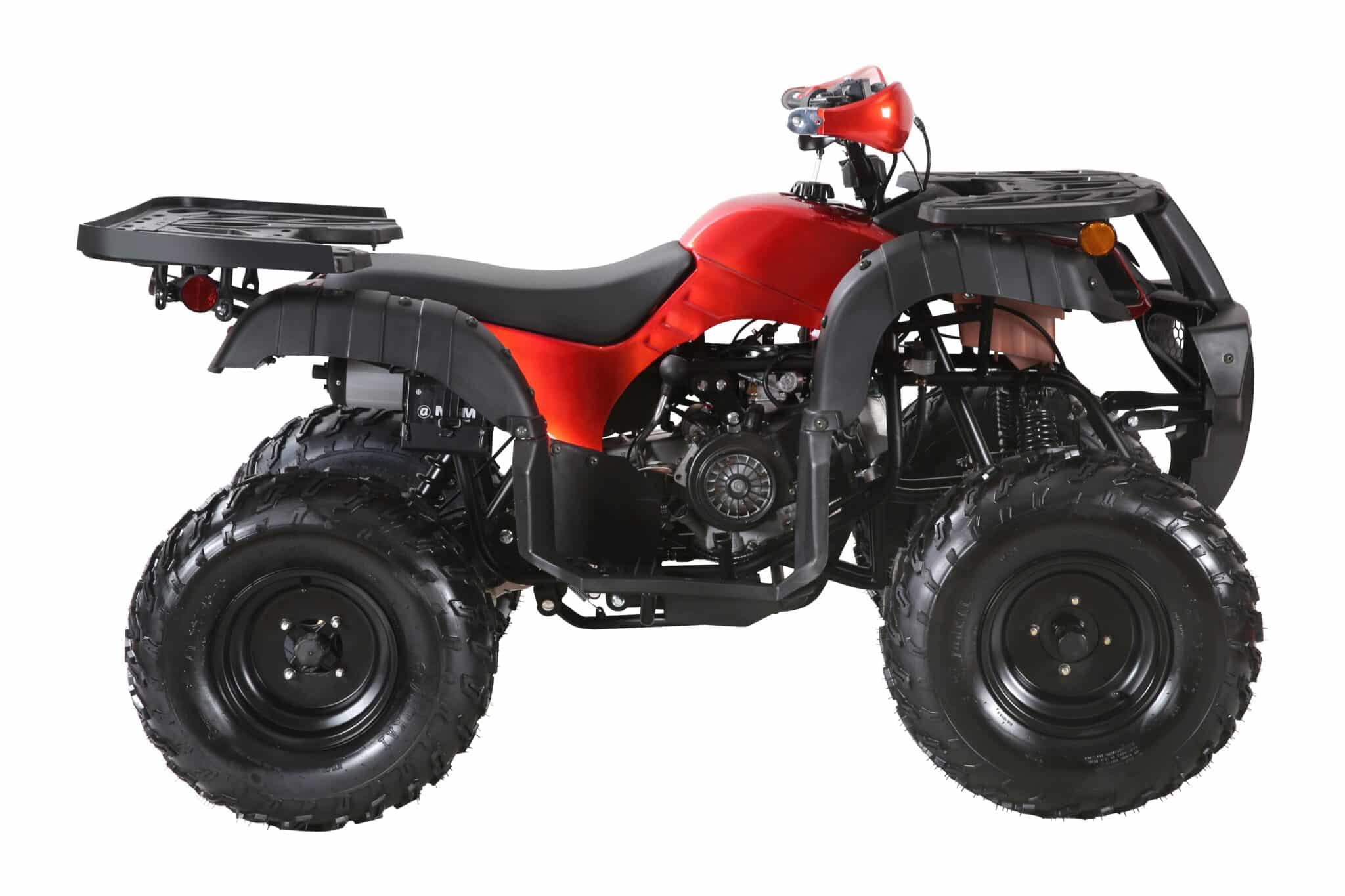

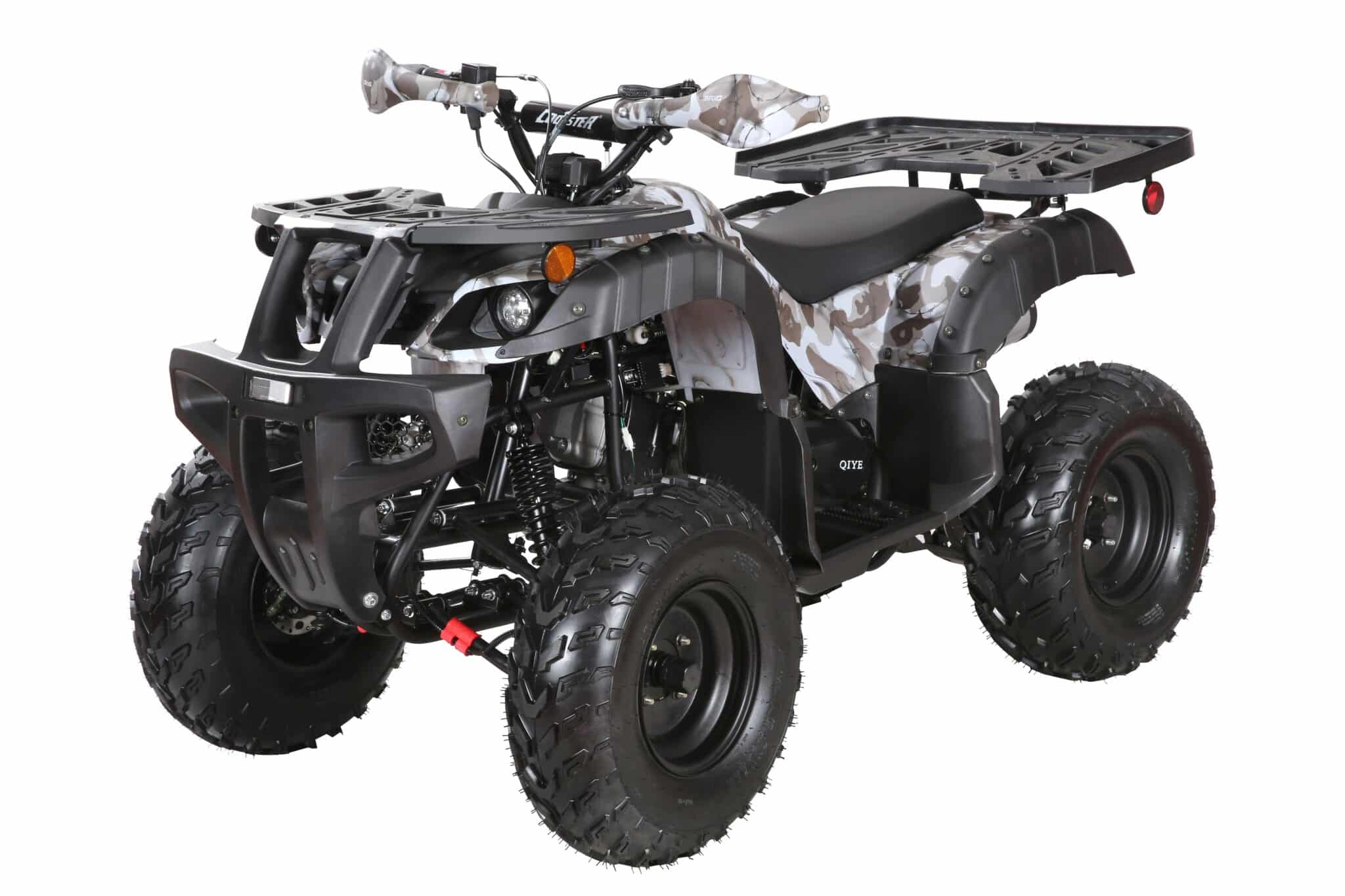

ATV-3200U
175CC Fully Automatic Full Sized Utility ATV
Available Colors

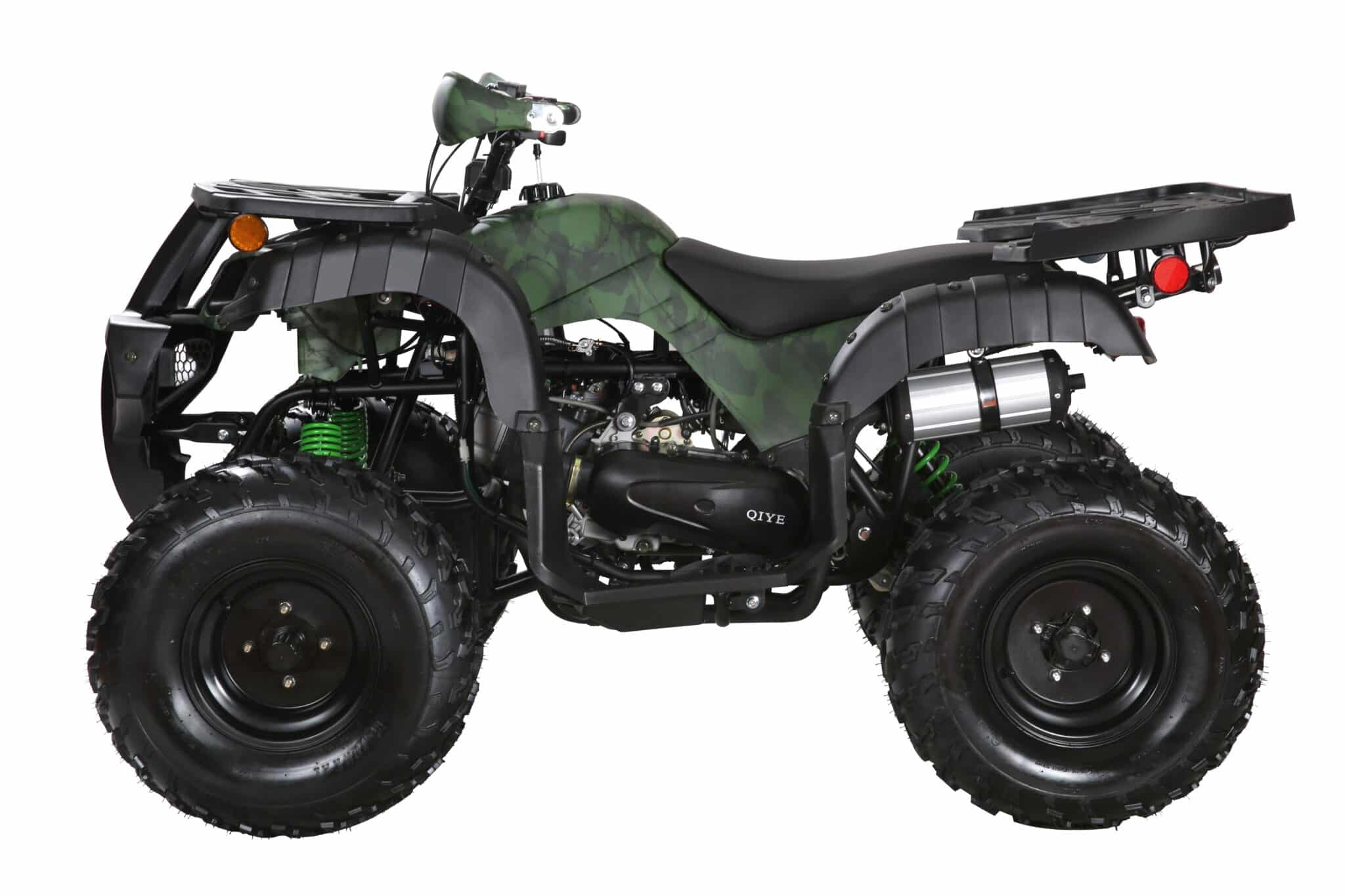

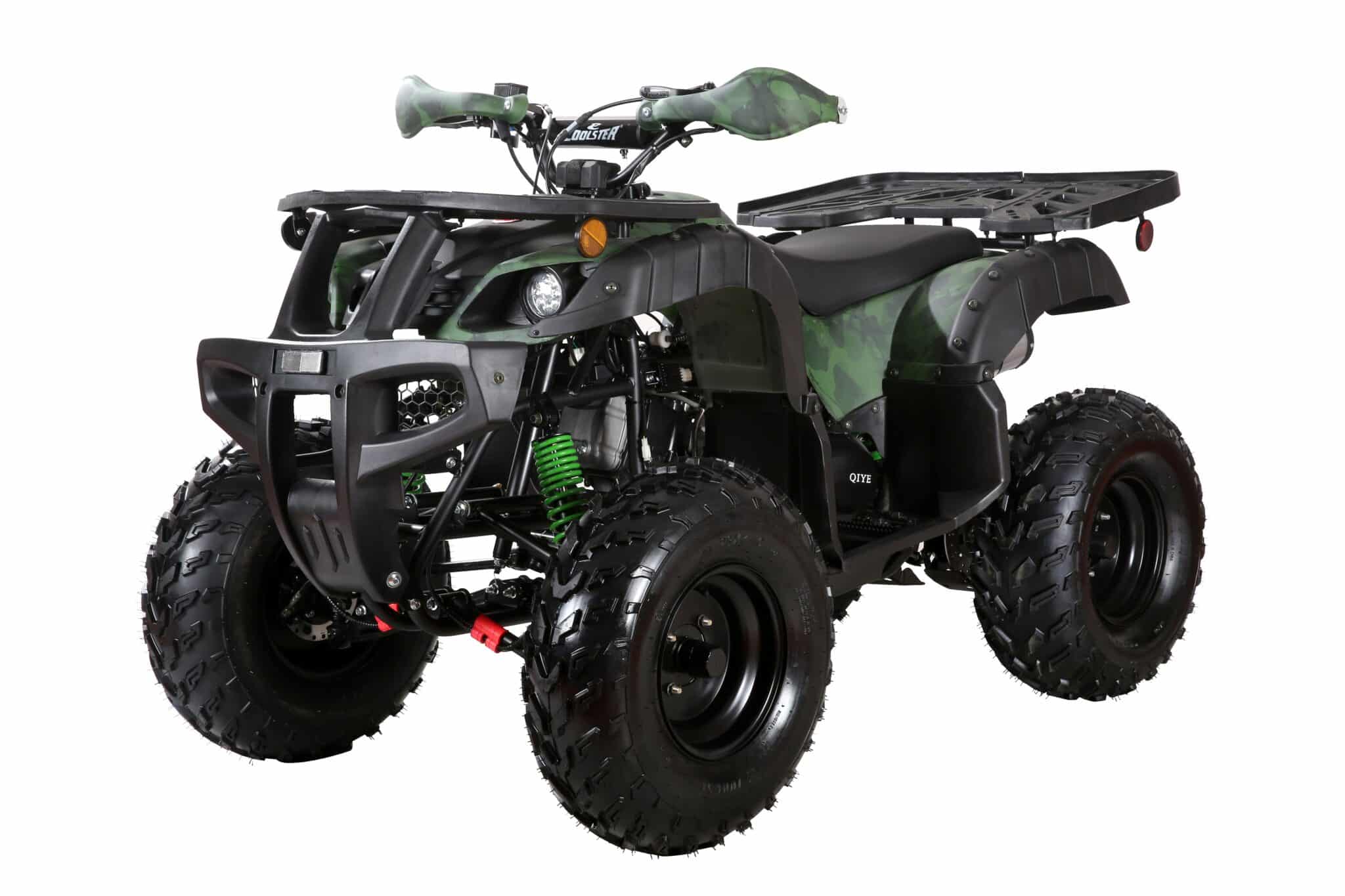

Army Black
Orange

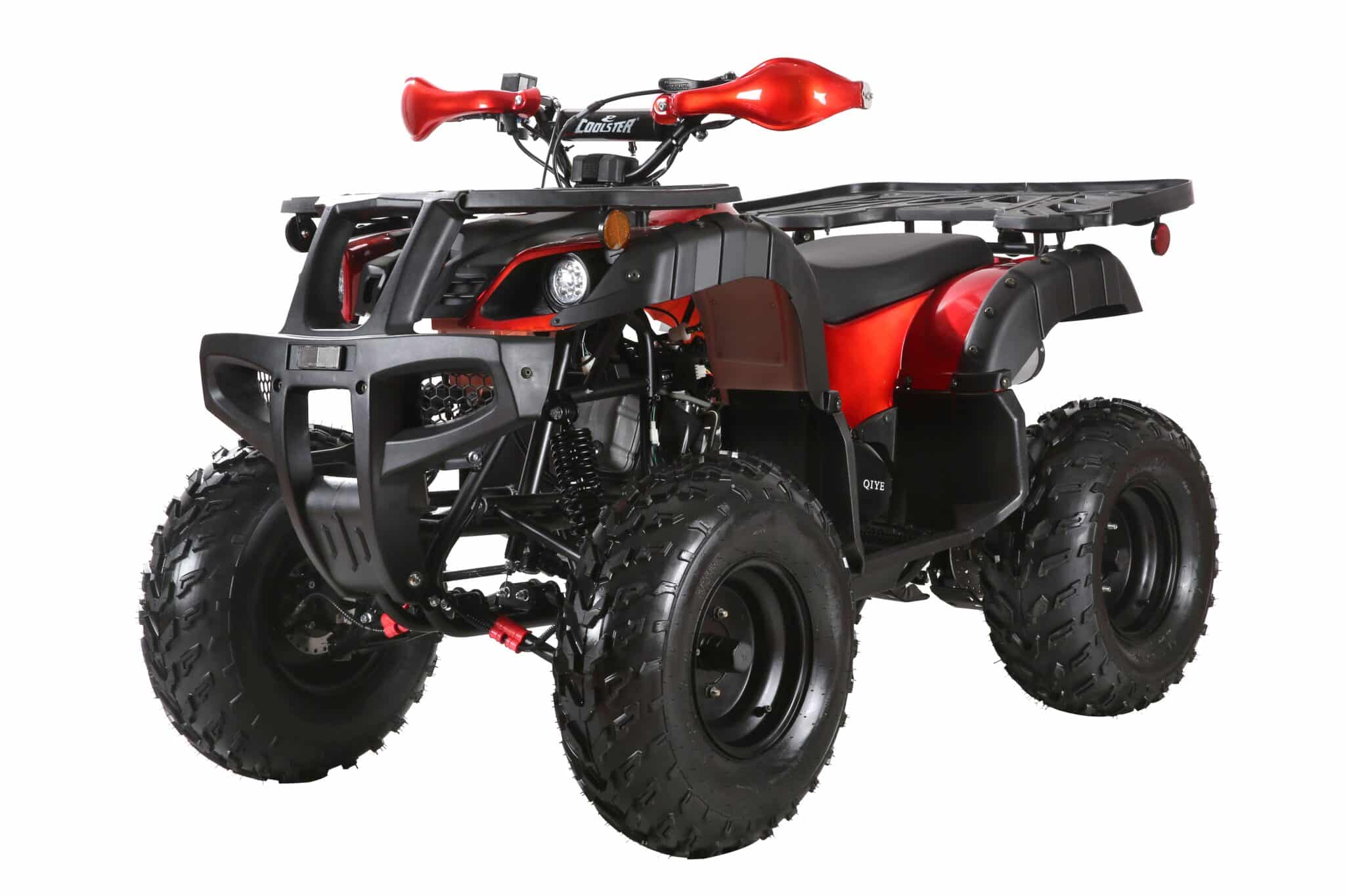

Red

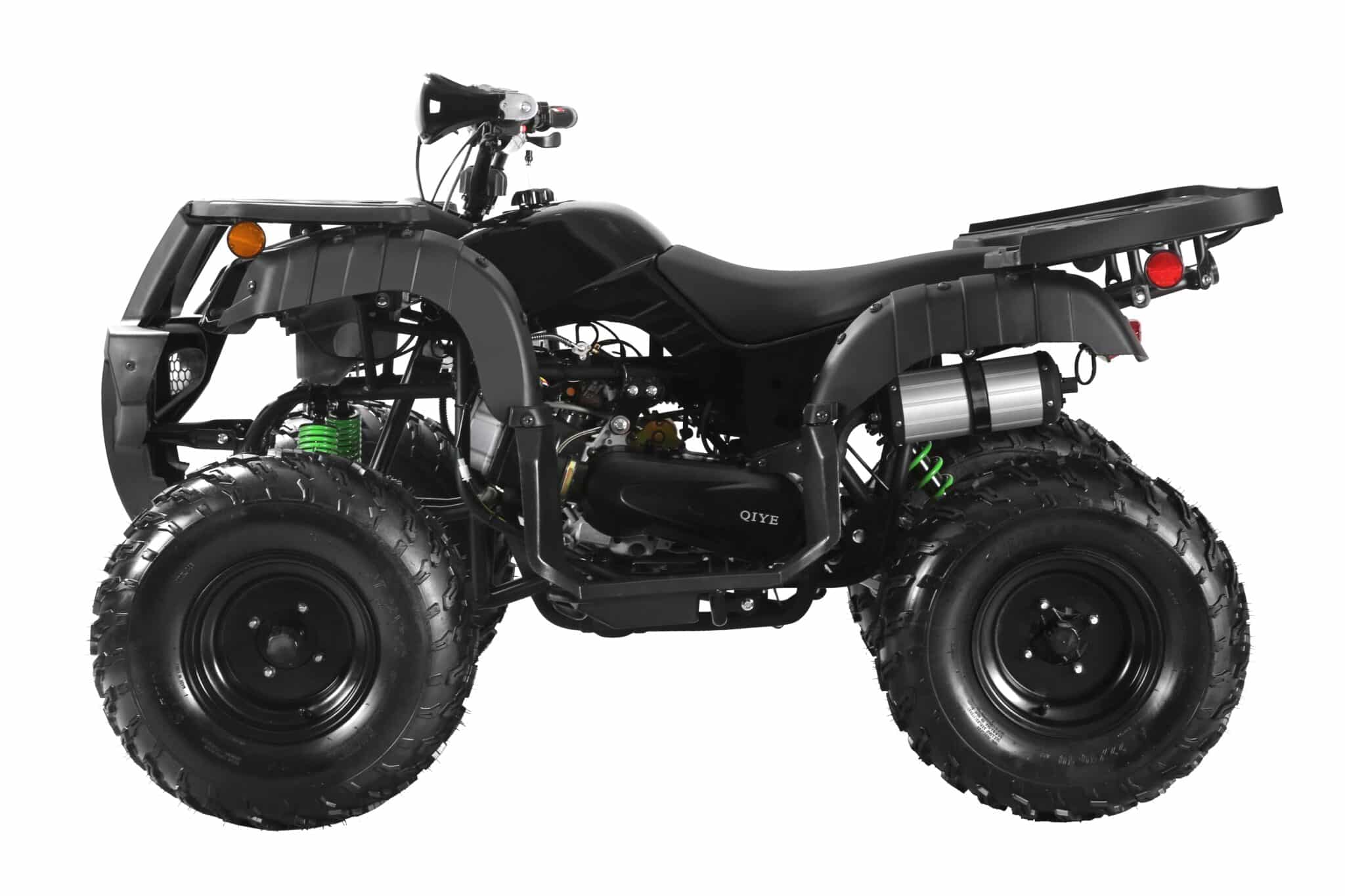

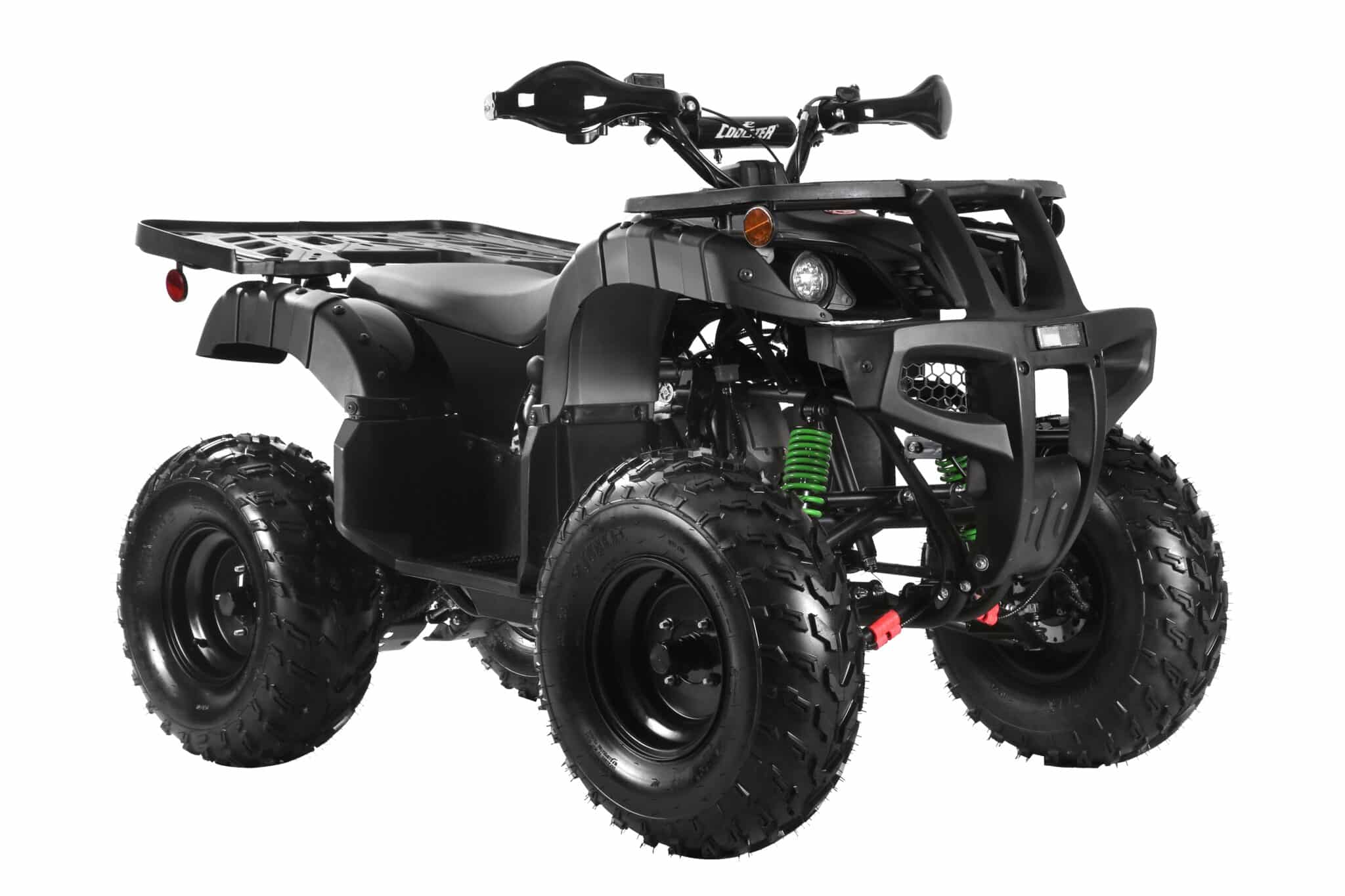

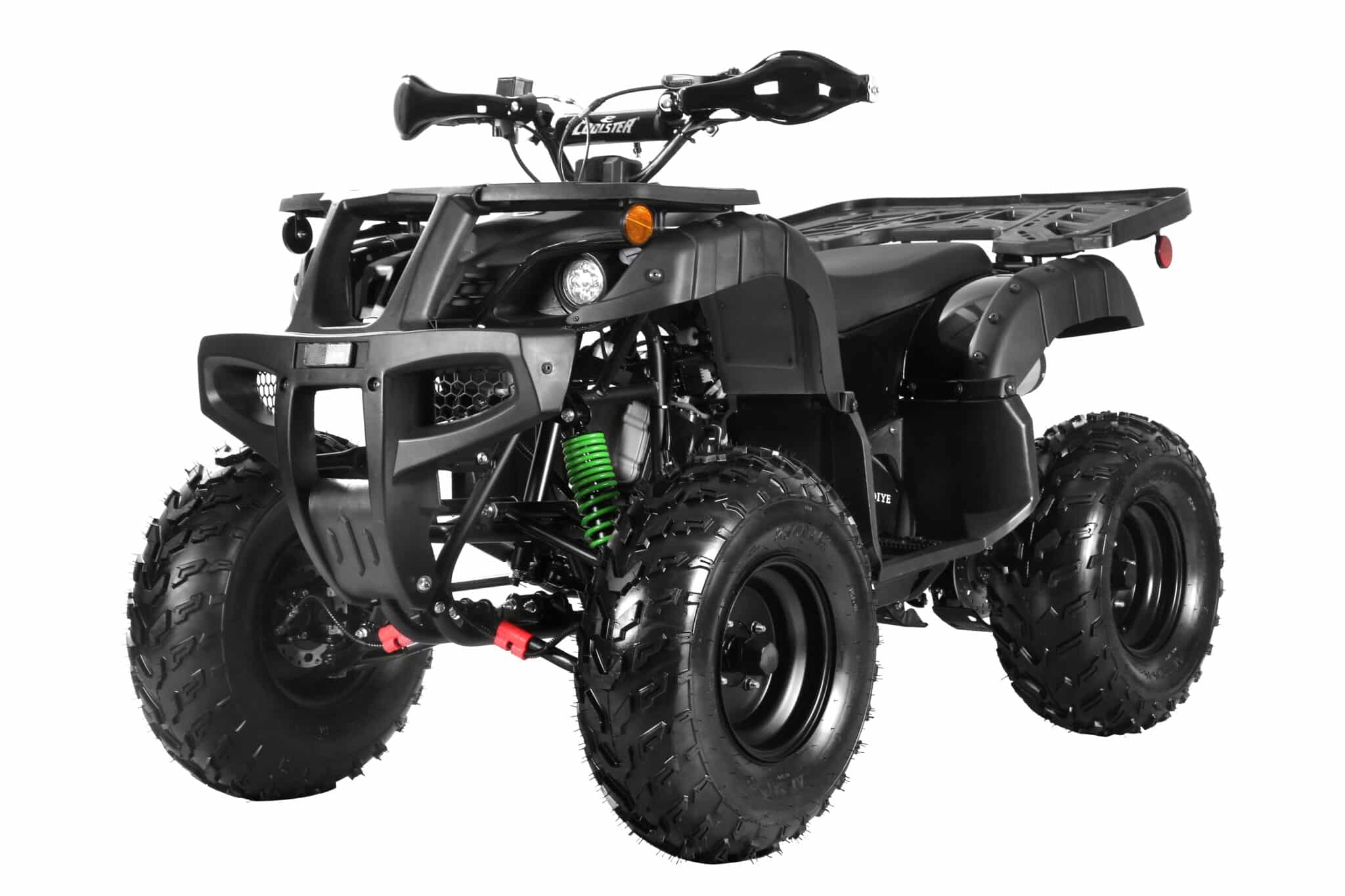

Black

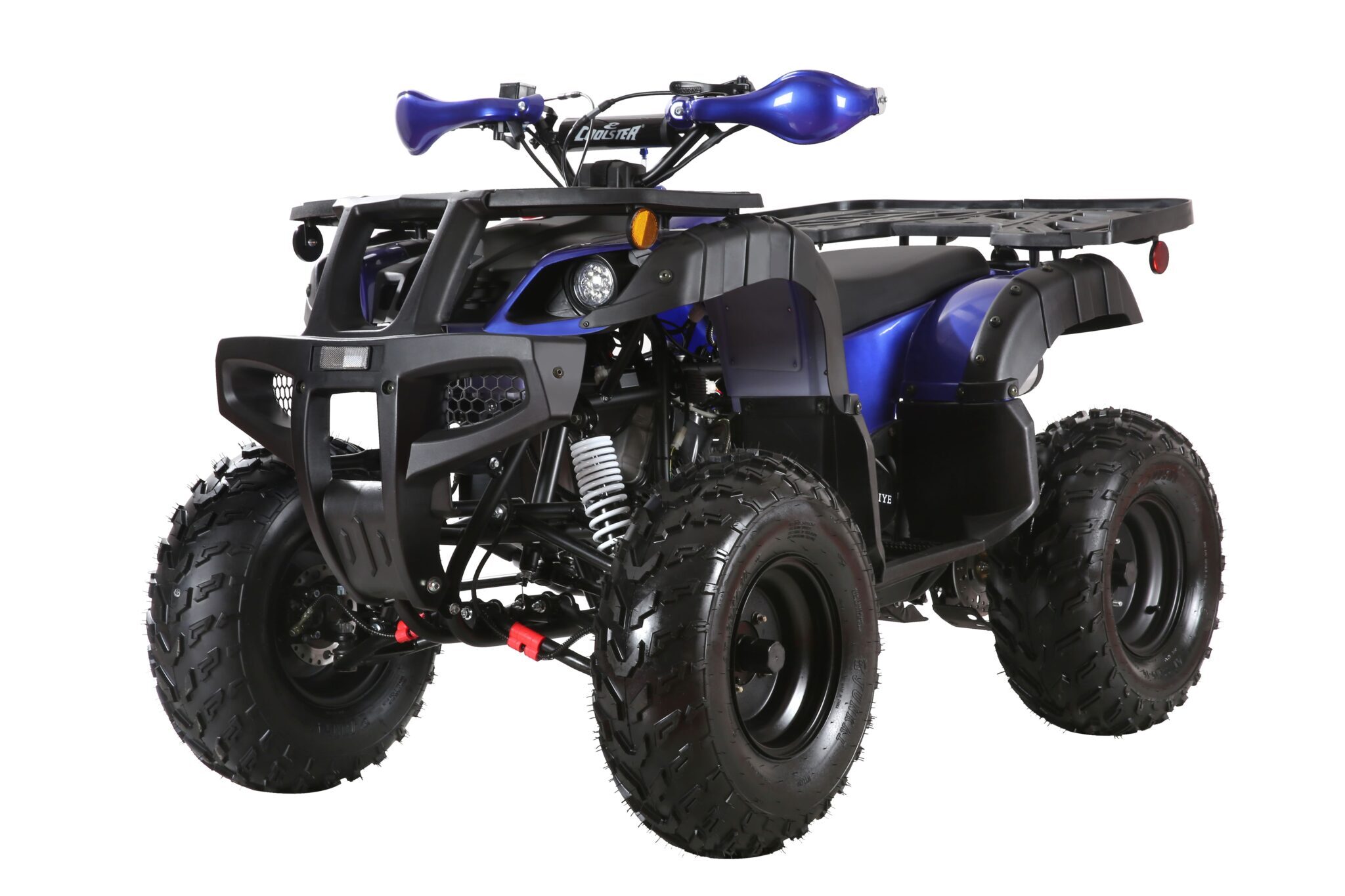

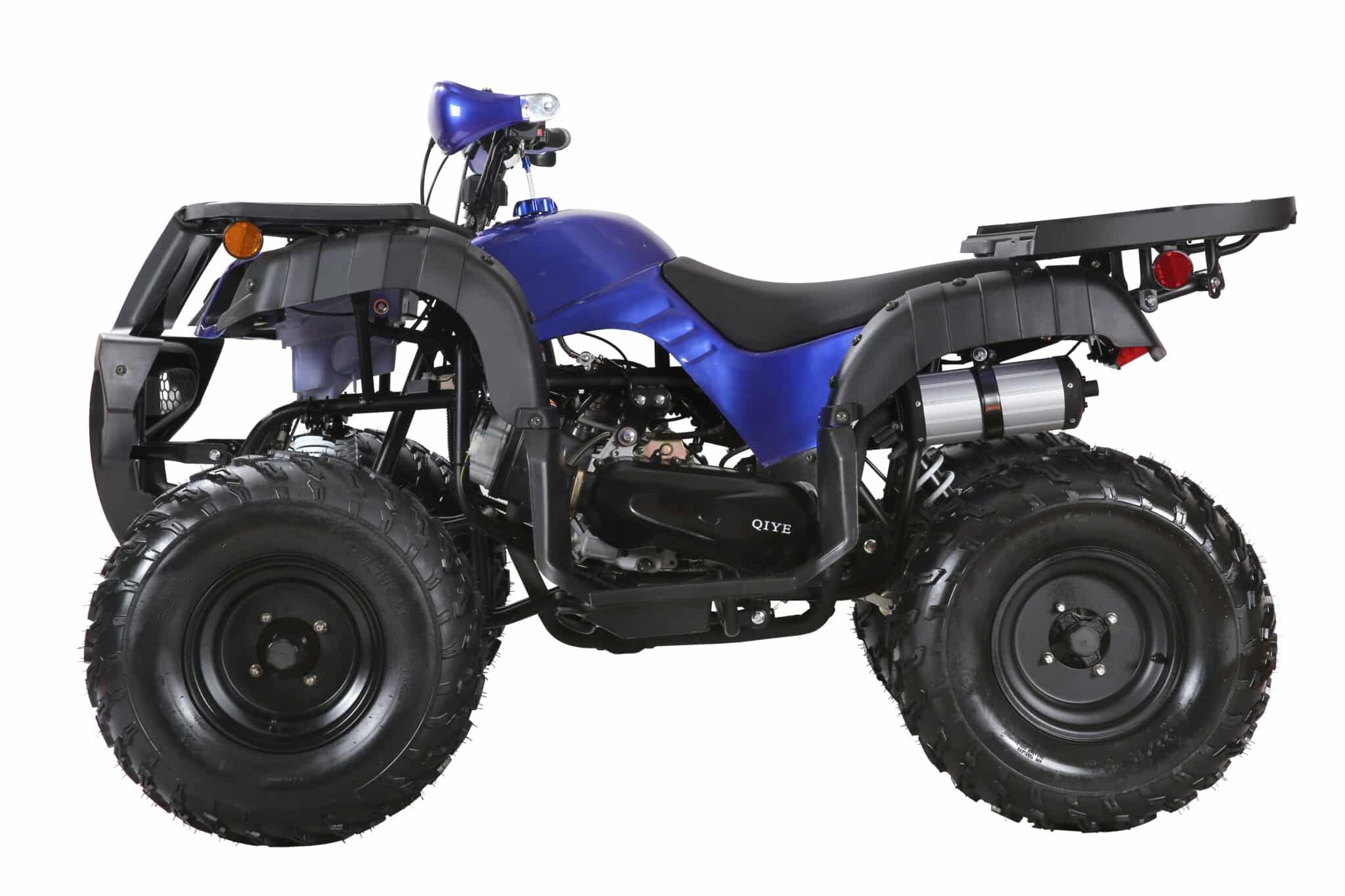

Blue
Product Description
Specifications
Parts
Disclaimer
Product Description
Specifications
 Model Number: |  ATV-3200U/ATV-EV3200U |
 Engine Type: |  Single Cylinder, 4-Stroke, Air-Cooled |
 Displacement: |  168.9cc |
 Max Torque: |  10.2 N·m/5000 r/min (N.m/r/min) |
 Max Power: |  7.6 kW/7000 r/min (kW/r/min) |
 Bore Stroke: |  61 x 57.8mm |
 Ignition: |  CDI |
 Starting System: |  Electric |
 Battery: |  12V, 9Ah |
 Clutch: |  Automatic |
 Transmission: |  Chain, Rear Wheel Drive |
 Brakes Front/Rear: |  Hydraulic Disc |
 Tires Front/Rear: |  23×7-10 / 22×10-10 |
 Fuel Capacity: |  1.35 gallons / 5.1L |
 Maximum Weight Capacity: |  220 lbs / 100 kg (rider, all cargo and accessories) |
 Wheelbase: |  1,165mm |
 Dimensions: |  1,825 x 1,075 x 1,100mm |
 Height to Seat: |  440mm |
 Min. Ground Clearance: |  155mm |
Â
Parts
| Image | Name | Price | Buy |
|---|
Disclaimer
Please read the owner’s manual and all on-product warnings. ATVs can be hazardous to operate. For operator’s safety, always wear a helmet, eye protection, and protective gear. Never carry a passenger. Never ride under the influence of drugs nor alcohol. Never ride on public roads nor pavement. Be extra careful on difficult terrain. Never allow a child under the age of 16 to operate an ATV without adult supervision. It is strongly recommended that all ATV riders take a training course. For more information, contact your local dealer or call 1-626-228-0251
