125CC Fully Automatic Mid Size ATV
The Coolster ATV-3125A2 is the successor of the 3125A and features an array of upgrades that include a reinforced metal frame, metal footrests, and stronger front and rear racks. The vehicle is equipped with a 125cc fully automatic engine and can double as a recreational and work utility vehicle.
For more information, please click the tabs, or click here to reach us directly.

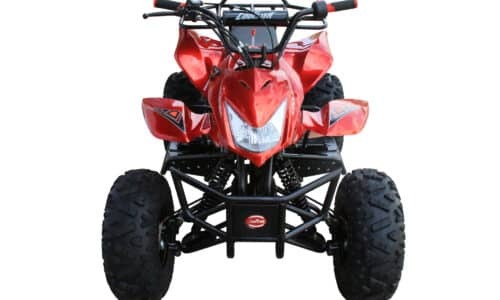

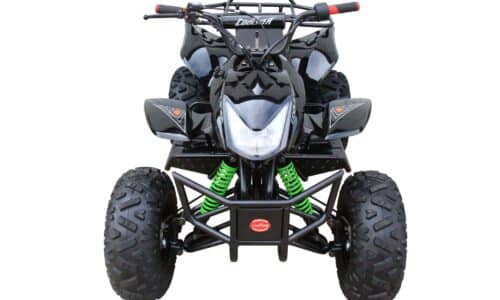

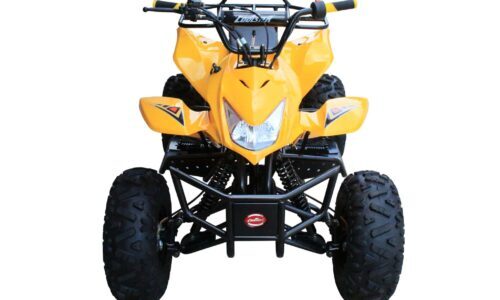

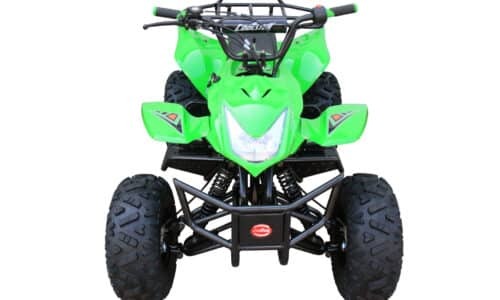

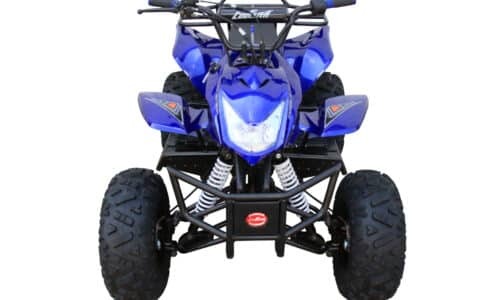

Available Colors
Disclaimer
Specifications
Disclaimer
The Consumer Product Safety Commission (CPSC) adheres to a strict age-group guideline to ensure the utmost safety of riders. Before operation of a vehicle, please check that the user falls within the appropriate age groups as listed below:
A. For all Coolster 125cc ATVs, riders must be 16+
B. For all other Coolster vehicles, the recommended age for riders should be 16+
If you need further assistance on ATV training, please enroll in an ATV Safety Institute (ASI) training course. For more information, you can reach out to ASI at (800) 887-2887, or contact the after-hours safety hotline at (800) 307-3429.
Specifications
| Model Number: | ATV-3125A2 |
| Engine Type: | Single cylinder, 4-stroke, air-cooled |
| Displacement: | 120cc |
| Max Torque: | 8.5.N.m/5,000r/min (N.m/r/min) |
| Max Power: | 5.8kW/7,500r/min (N.m/r/min) |
| Bore Stroke: | 52.4 x 55.5mm |
| Ignition: | CDI |
| Starting System: | Electric |
| Battery: | 12V, 5Ah |
| Clutch: | Automatic |
| Transmission: | Chain, rear wheel drive |
| Brakes Front/Rear: | Hub/hydraulic disc |
| Tires Front/Rear: | 16 x 8.0-7 /18 x 9.50-8 |
| Fuel Capacity: | 2.2L |
| Weight: | (G.W./N.W) 111 kg/99 kg |
| Wheelbase: | 970mm |
| Dimensions: | 1560 x 960 x 950mm |
| Height to Seat: | 690mm |
| Min. Ground Clearance: | 125mm |
