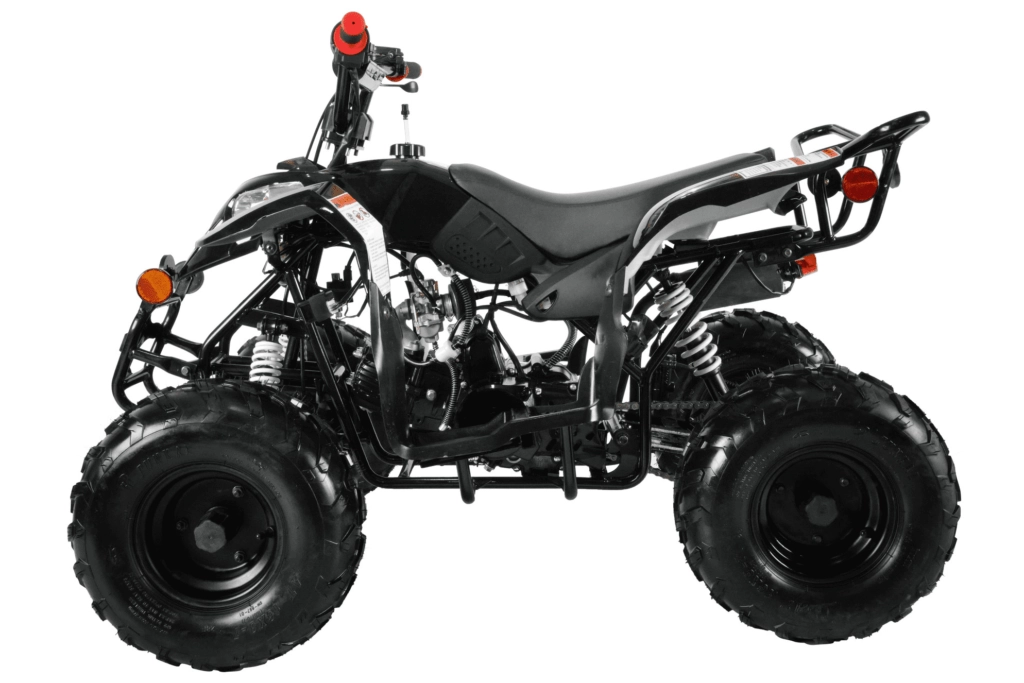

ATV-3050B
110CC Fully Automatic Junior Sized ATV

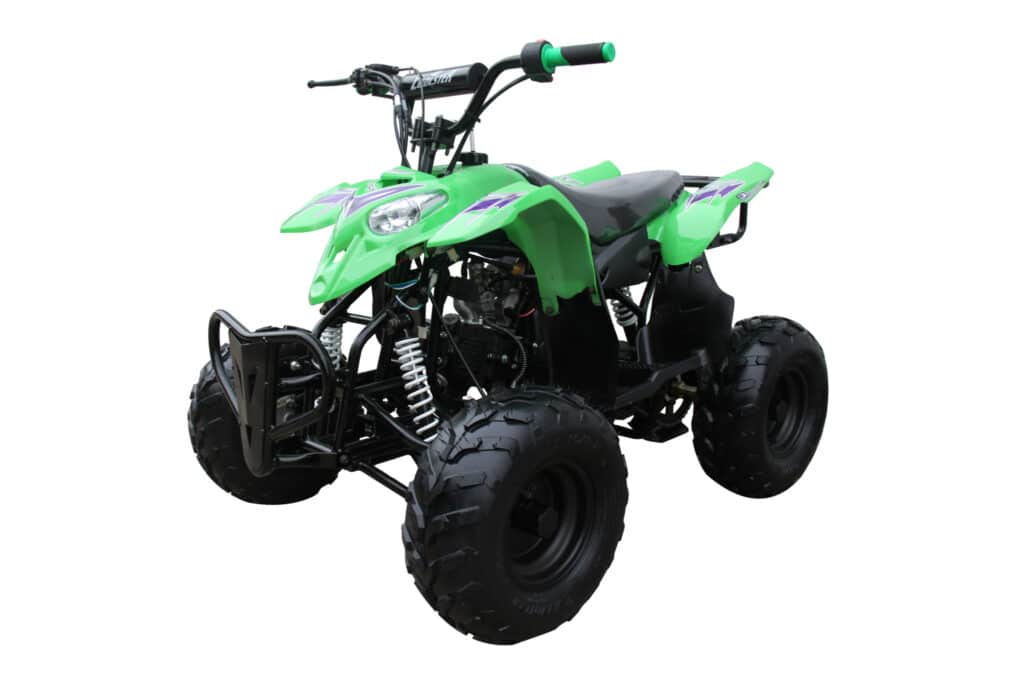

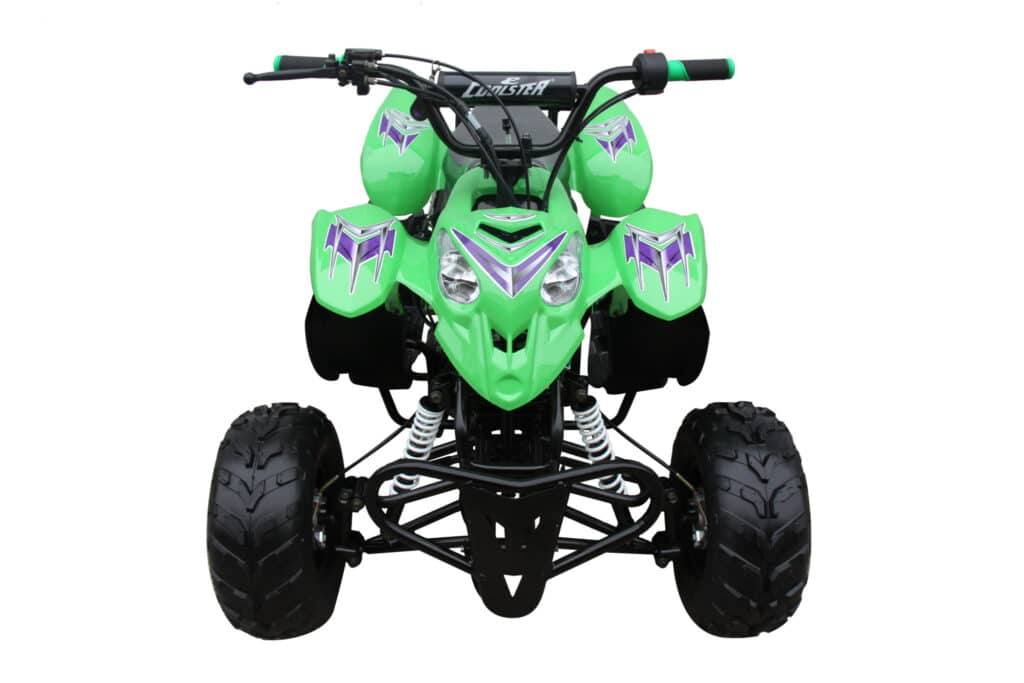

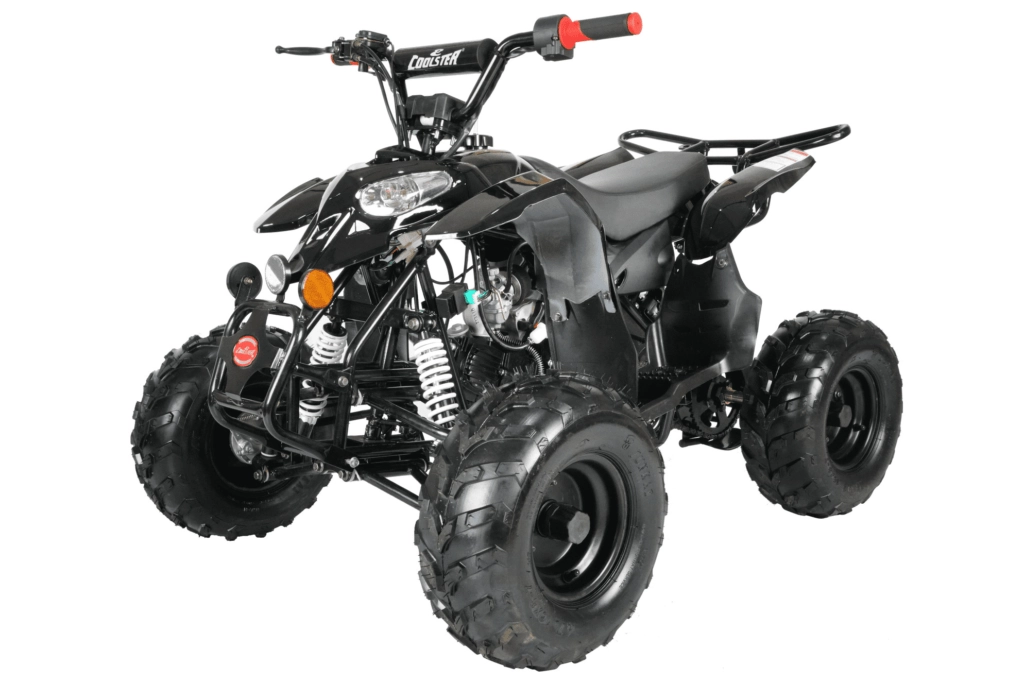

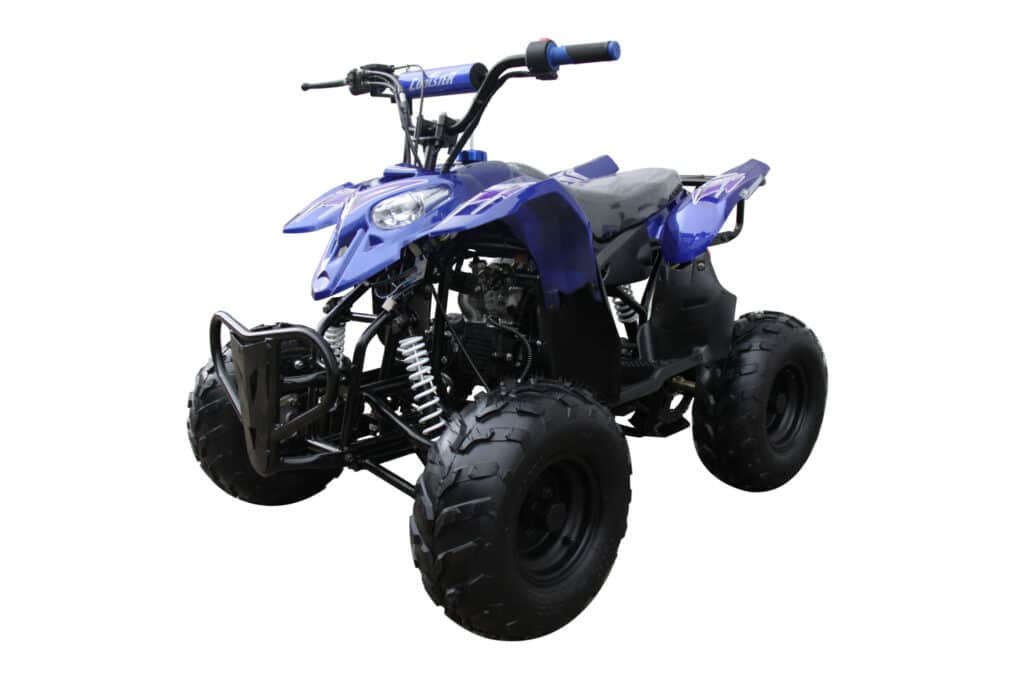

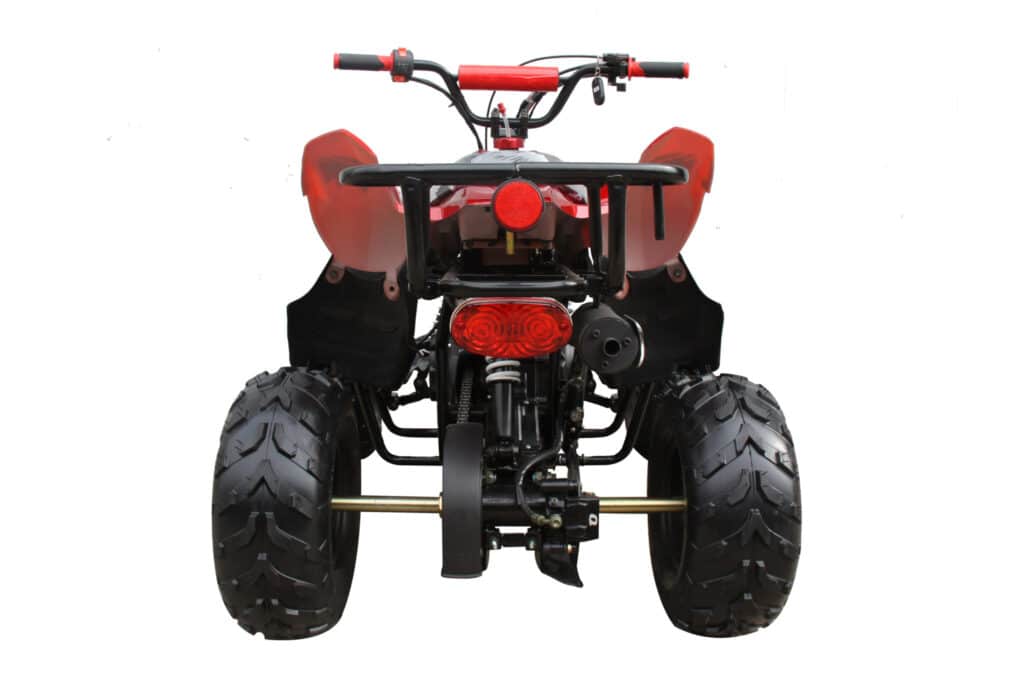

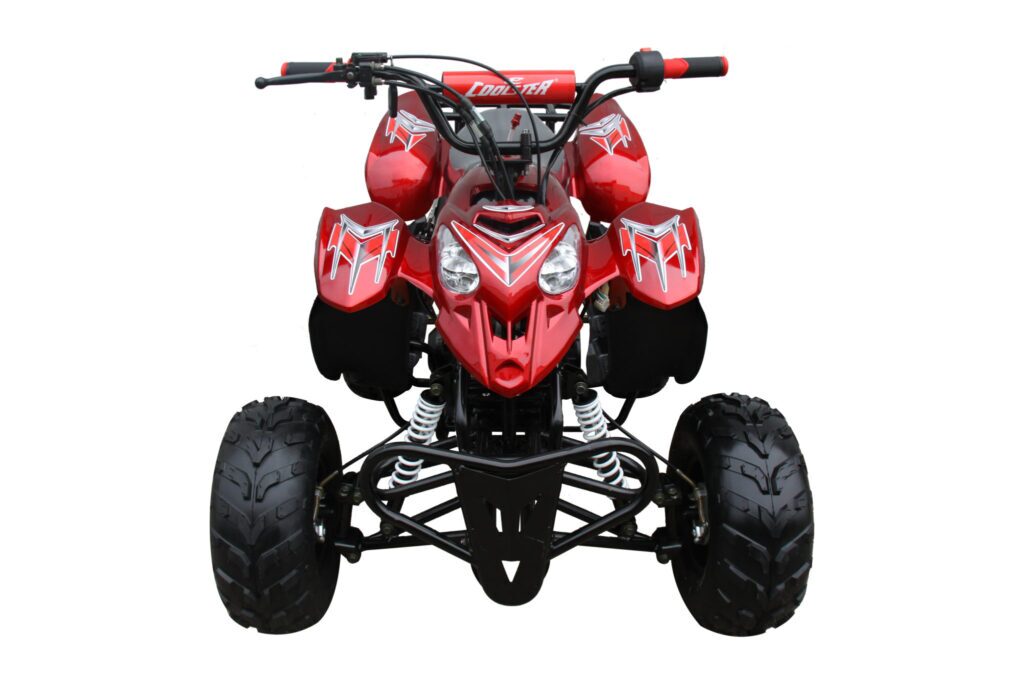

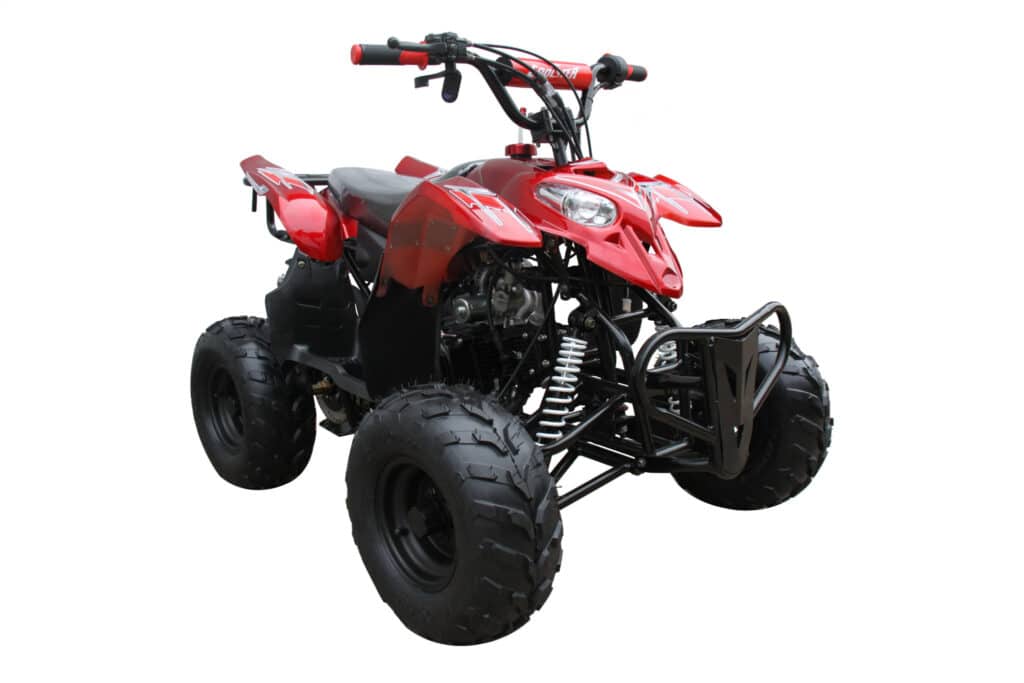

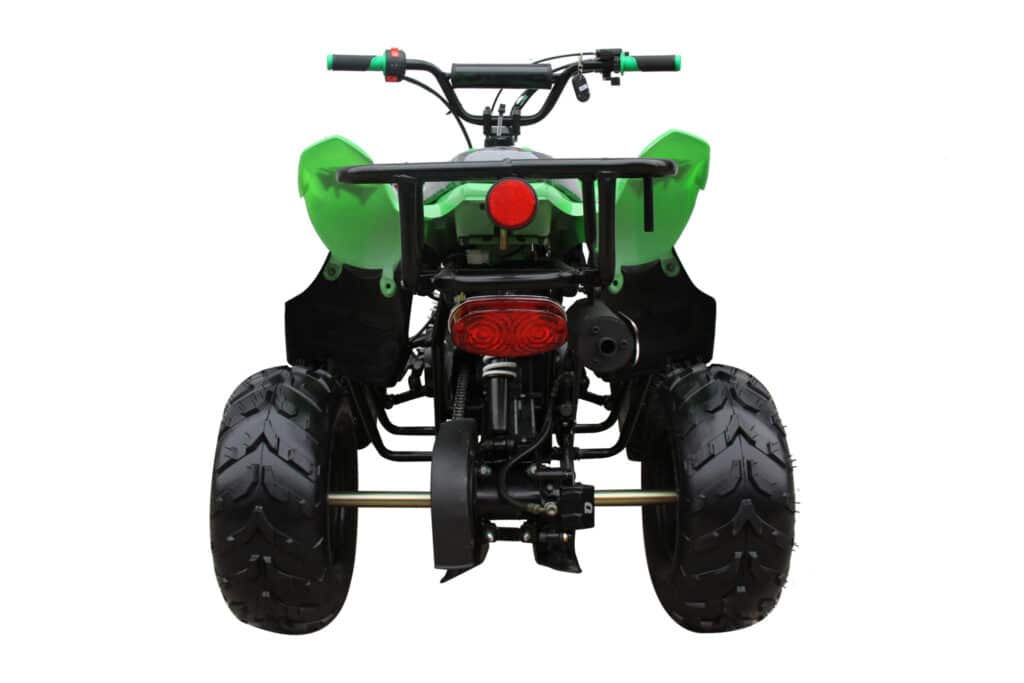

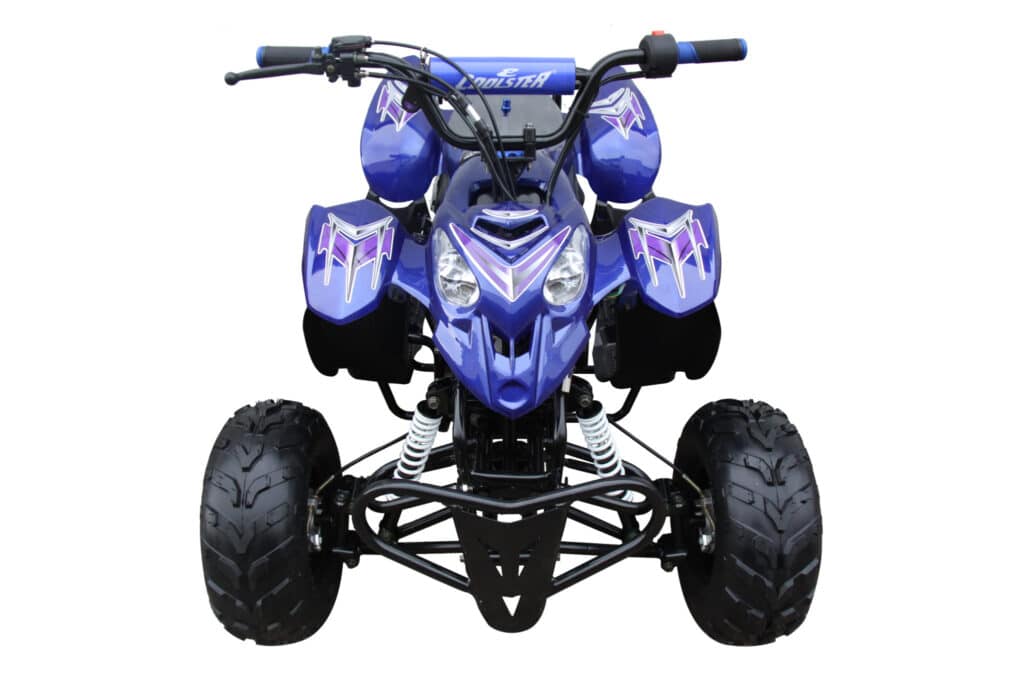

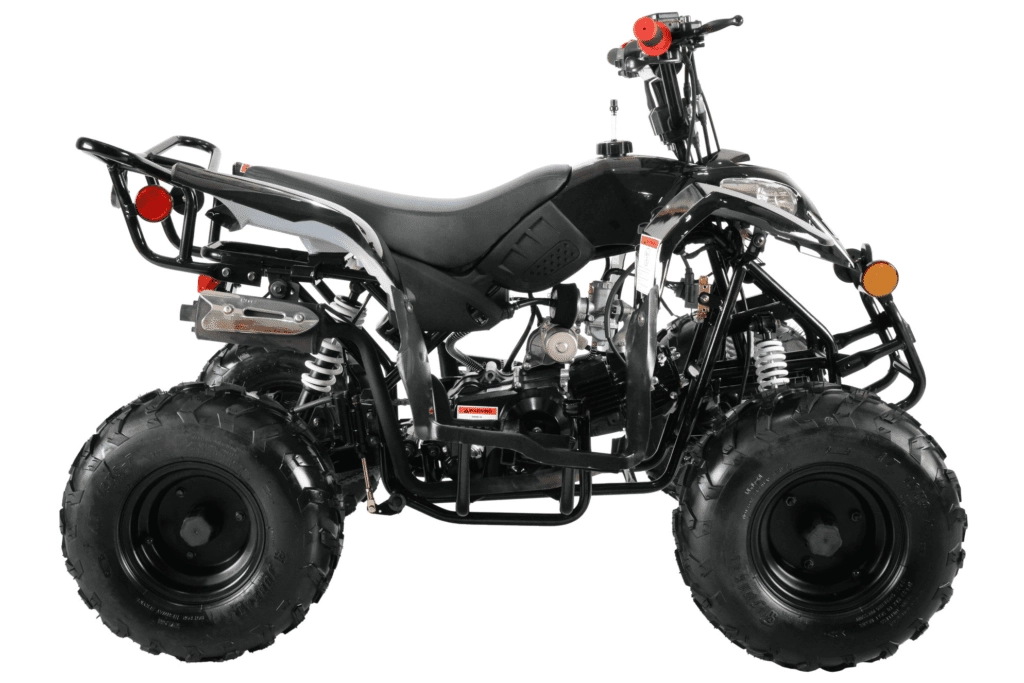

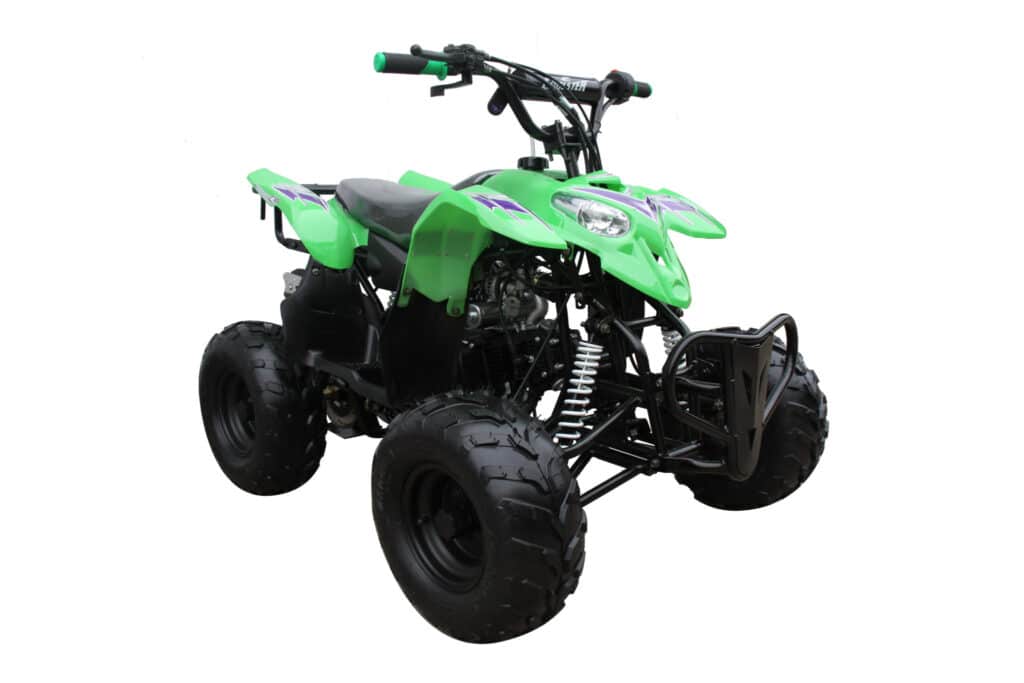

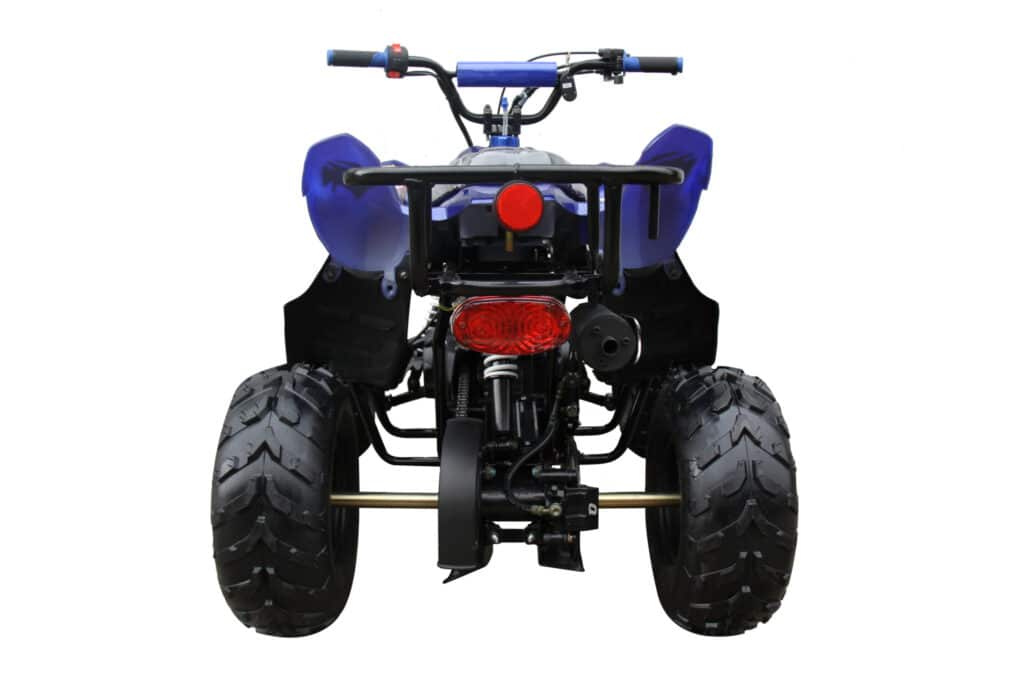

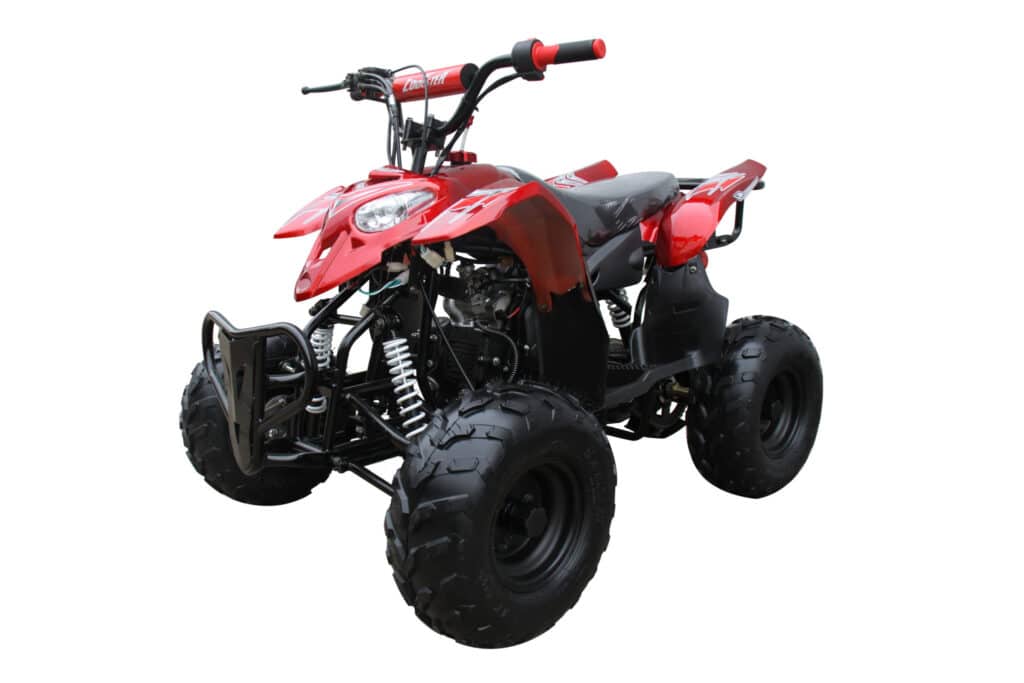

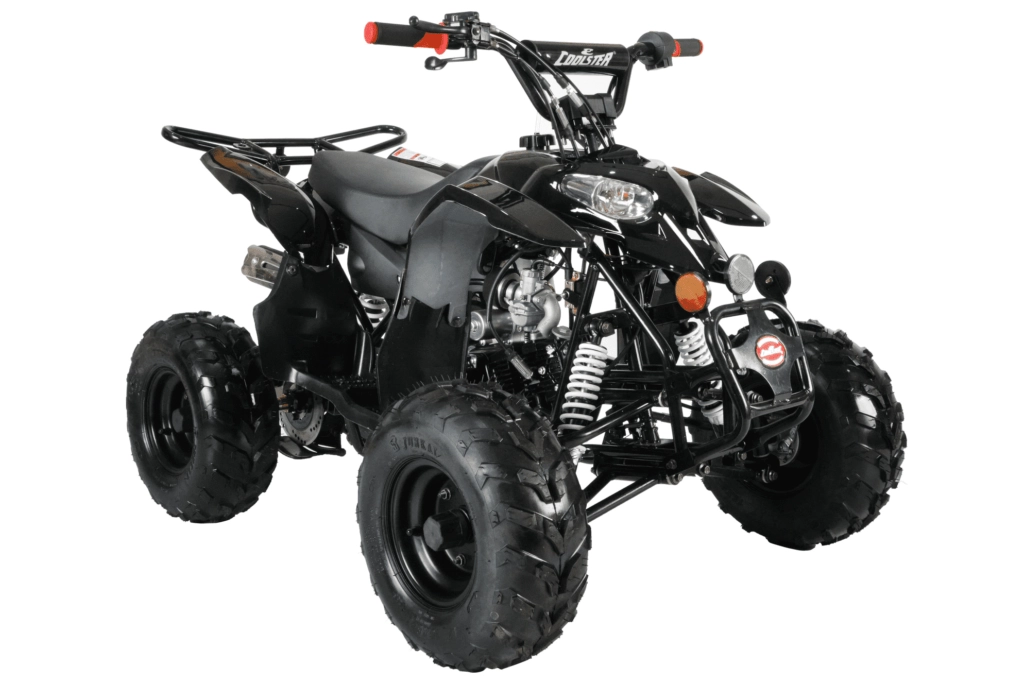

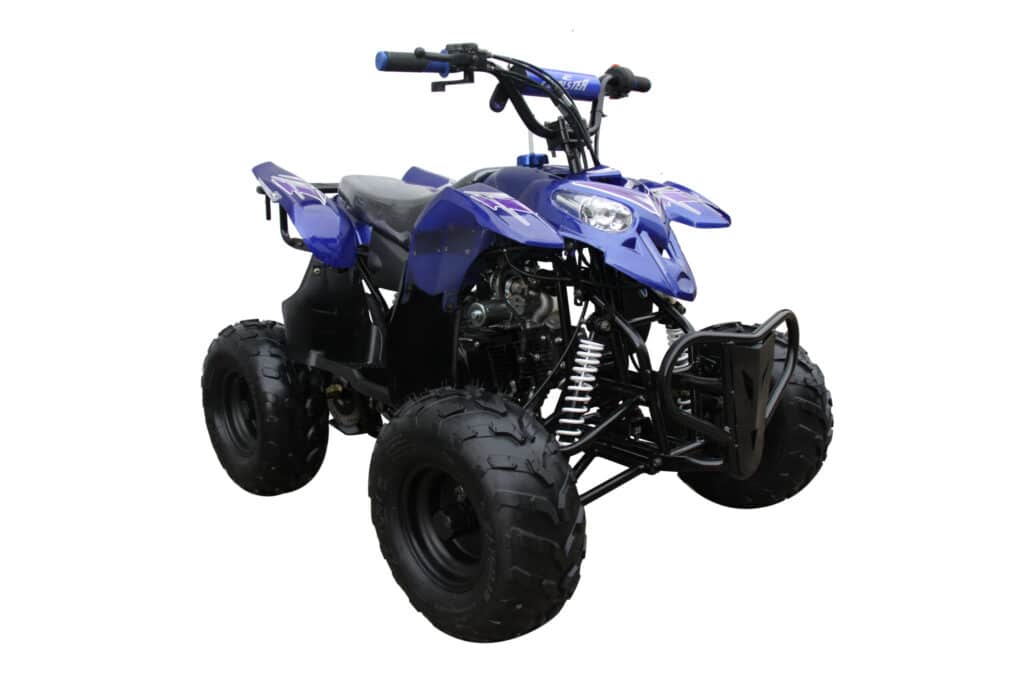

Available Colors
Our Coolster ATV-3050B2 all-terrain vehicle is designed specifically for off-road fun. Powered by a dependable 110CC 4-stroke, air cooled engine, the vehicle features durable double a-arms, shock-absorbent suspensions, and light handling. Perfect for beginners and younger riders. For more information, please click the tabs, or click here to reach us directly.
Download ATV-3050B Manual
(Must be logged in to download)
 Model Number: |  ATV-3050B2 |
 Engine Type: |  110CC Single Cylinder, 4-Stroke |
 Displacement: |  107cc |
 Max Torque: |  6.9N.m/6,500 ± 500r/min (N.m/r/min) |
 Max Power: |  4.8kW/8,000 ± 500r/min (kW/r/min) |
 Bore Stroke: |  52.4 x 49.5mm |
 Ignition: |  CDI |
 Starting System: |  Electric |
 Battery: |  12V, 4Ah |
 Clutch: |  Automatic |
 Transmission: |  Chain, Rear Wheel Drive |
 Brakes Front/Rear: |  Drum/Hydraulic Disc |
 Tires Front/Rear: |  16 x 8-7 /16 x 8-7 |
 Fuel Capacity: |  0.54 gallons / 2.06L |
 Weight: |  G.W./N.W154 lbs/176 lbs |
 Max Load: |  145 lbs / 65 kg (rider, all cargo and accessories) |
 Wheelbase: |  860mm |
 Dimensions: |  1,275 x 930 x 900mm |
 Height to Seat: |  440mm |
 Min. Ground Clearance: |  85 mm |
| Image | Name | Price | Buy |
|---|
Please read the owner’s manual and all on-product warnings. ATVs can be hazardous to operate. For operator’s safety, always wear a helmet, eye protection, and protective gear. Never carry a passenger. Never ride under the influence of drugs nor alcohol. Never ride on public roads nor pavement. Be extra careful on difficult terrain. Never allow a child under the age of 16 to operate an ATV without adult supervision. It is strongly recommended that all ATV riders take a training course. For more information, contact your local dealer or call 1-626-228-0251
