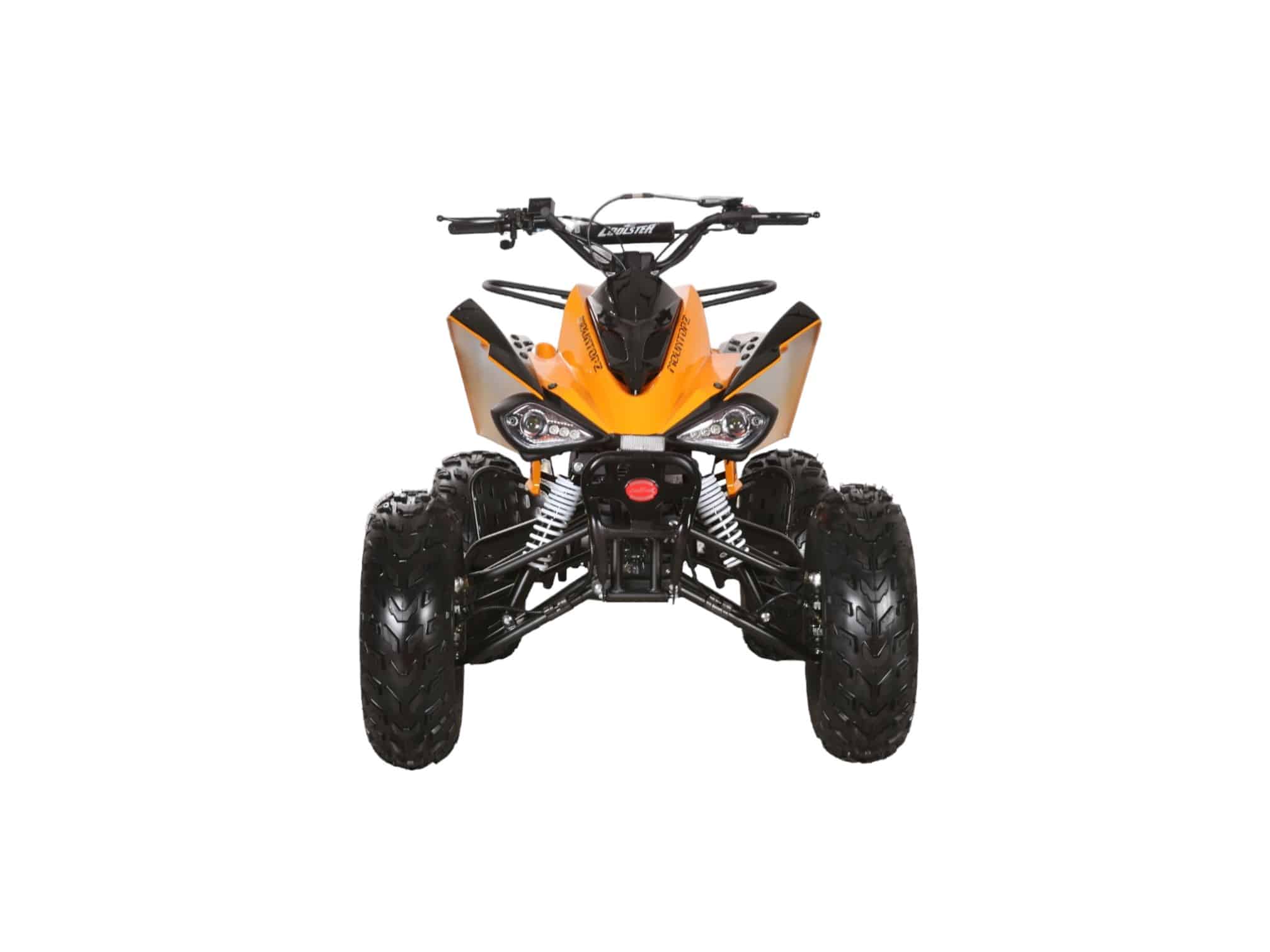

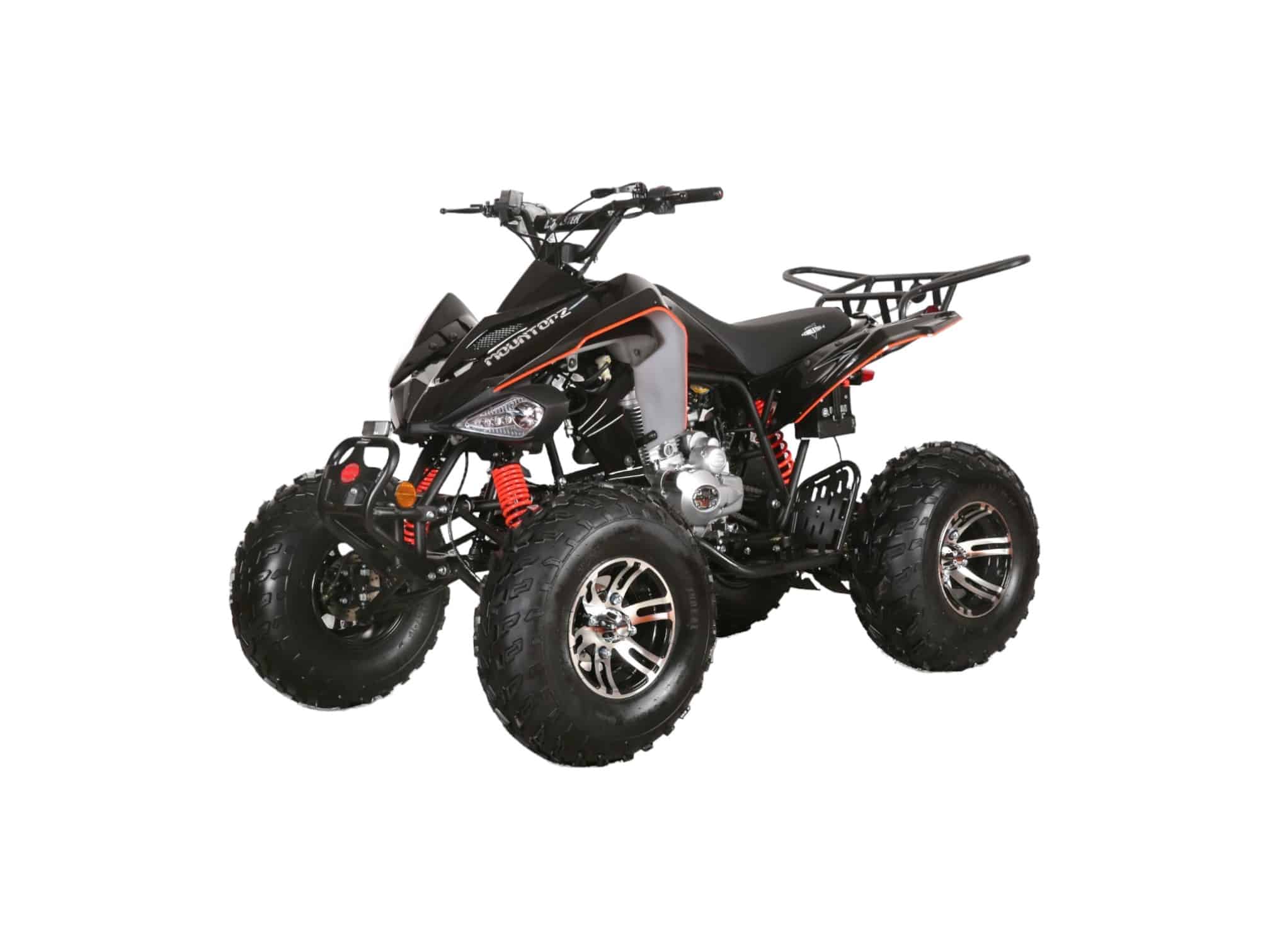

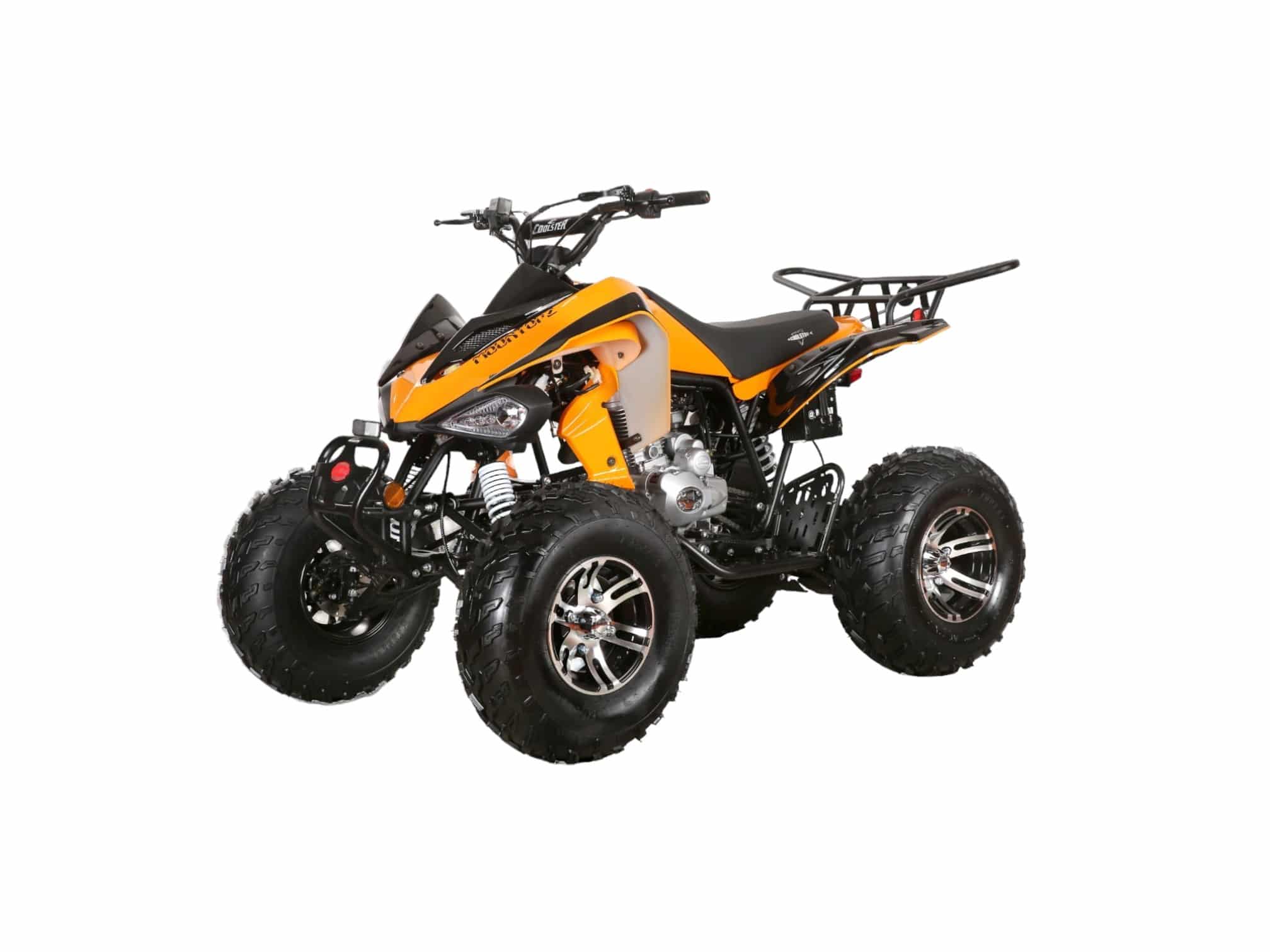

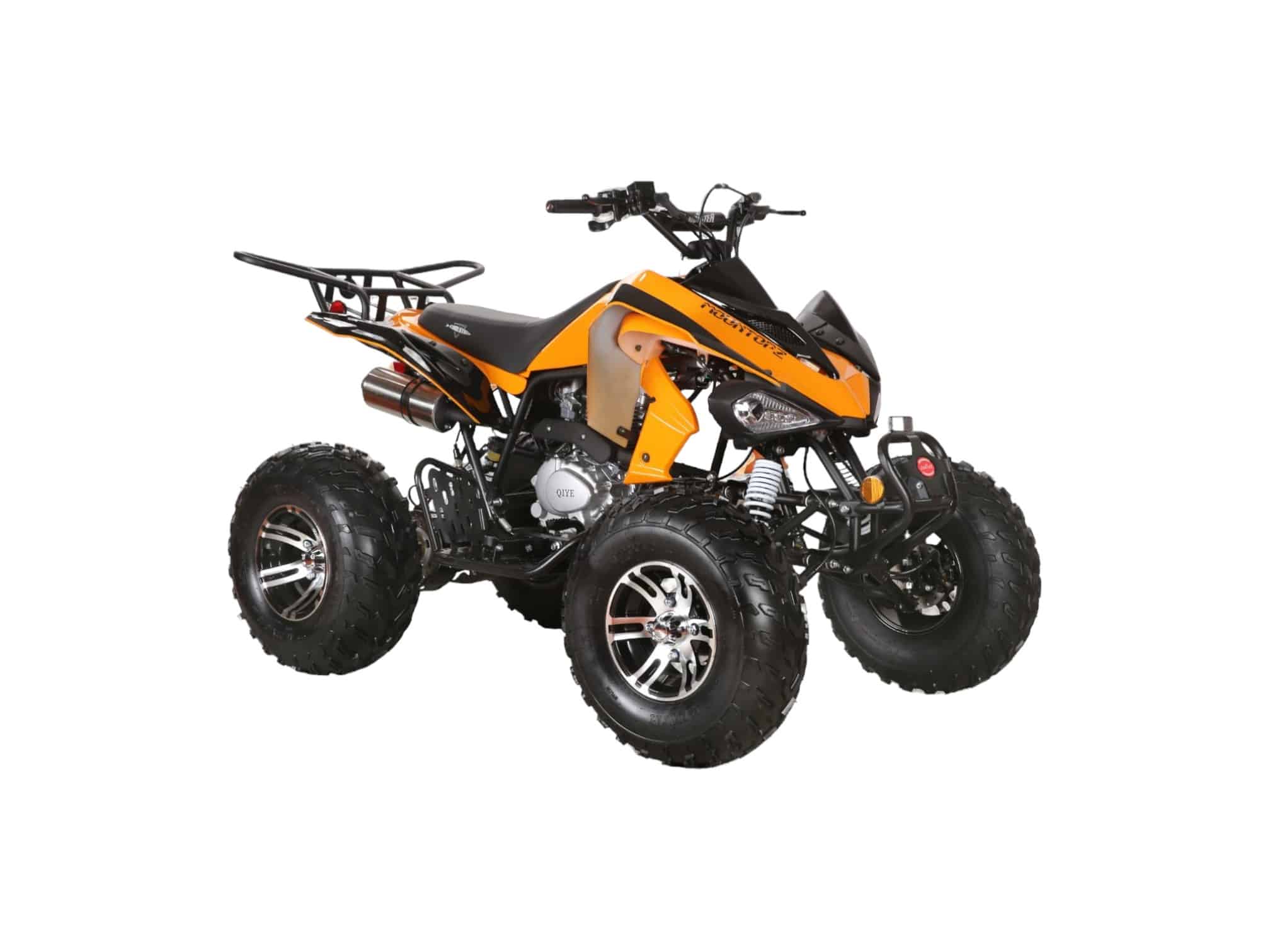

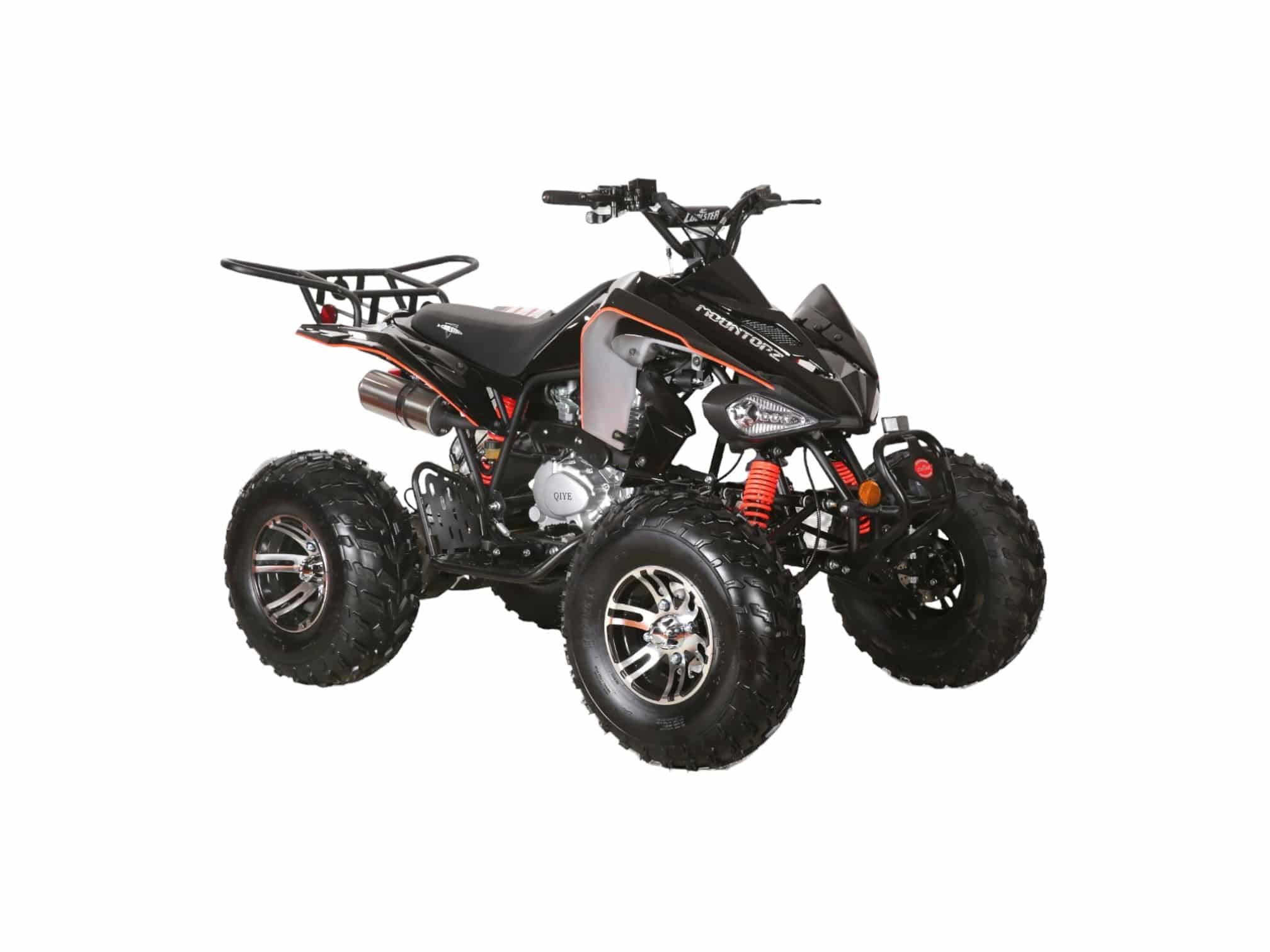

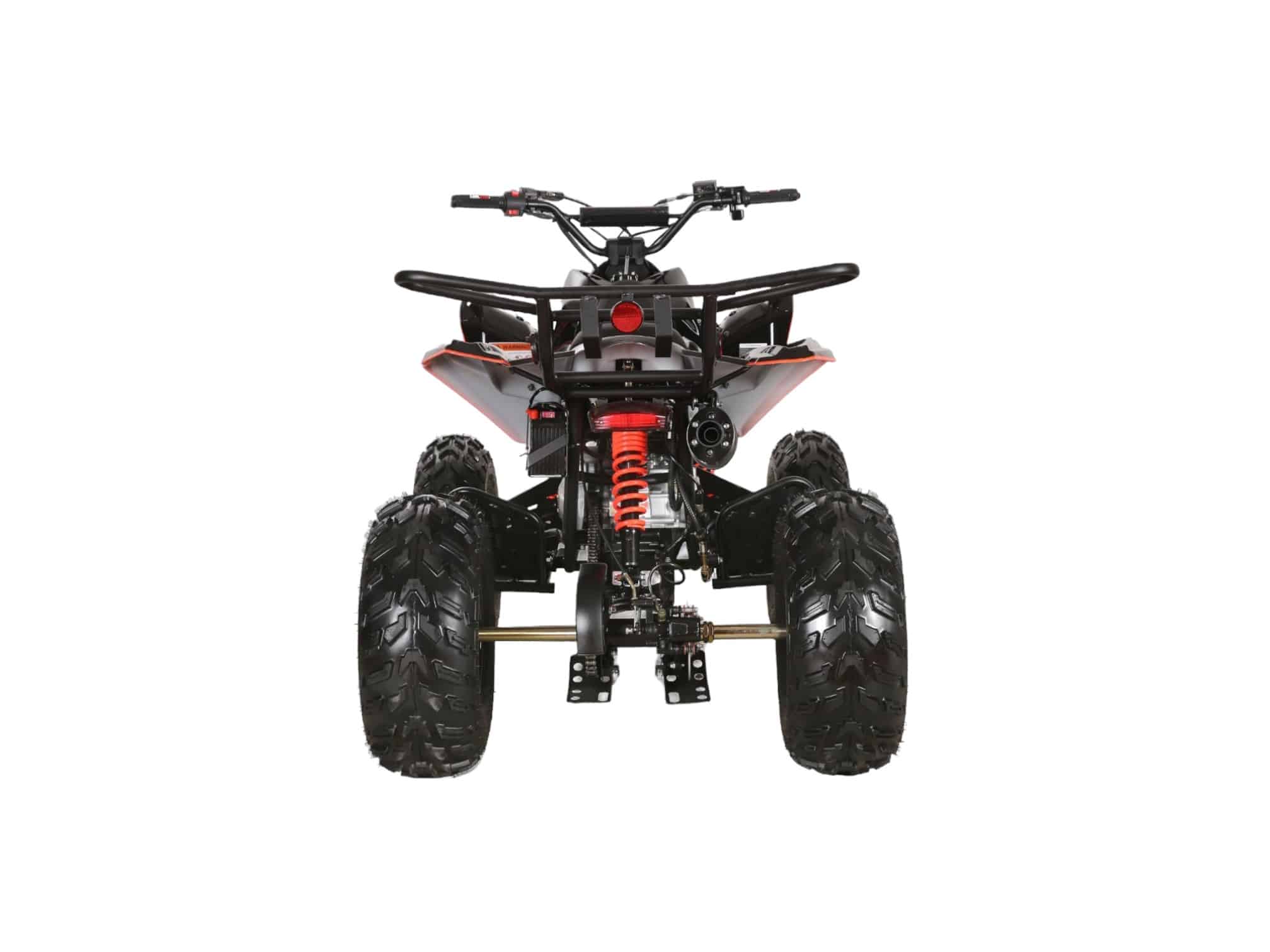

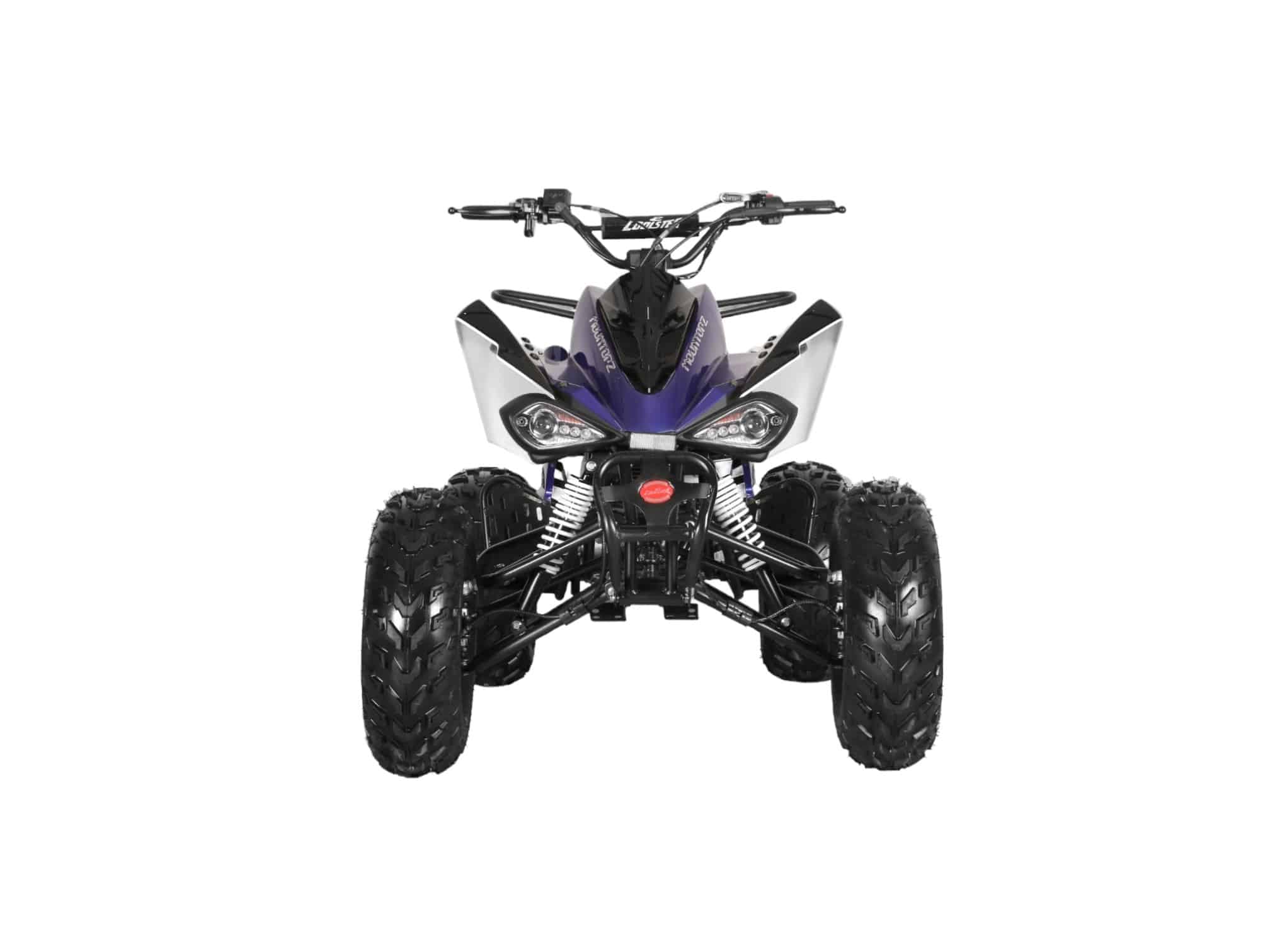

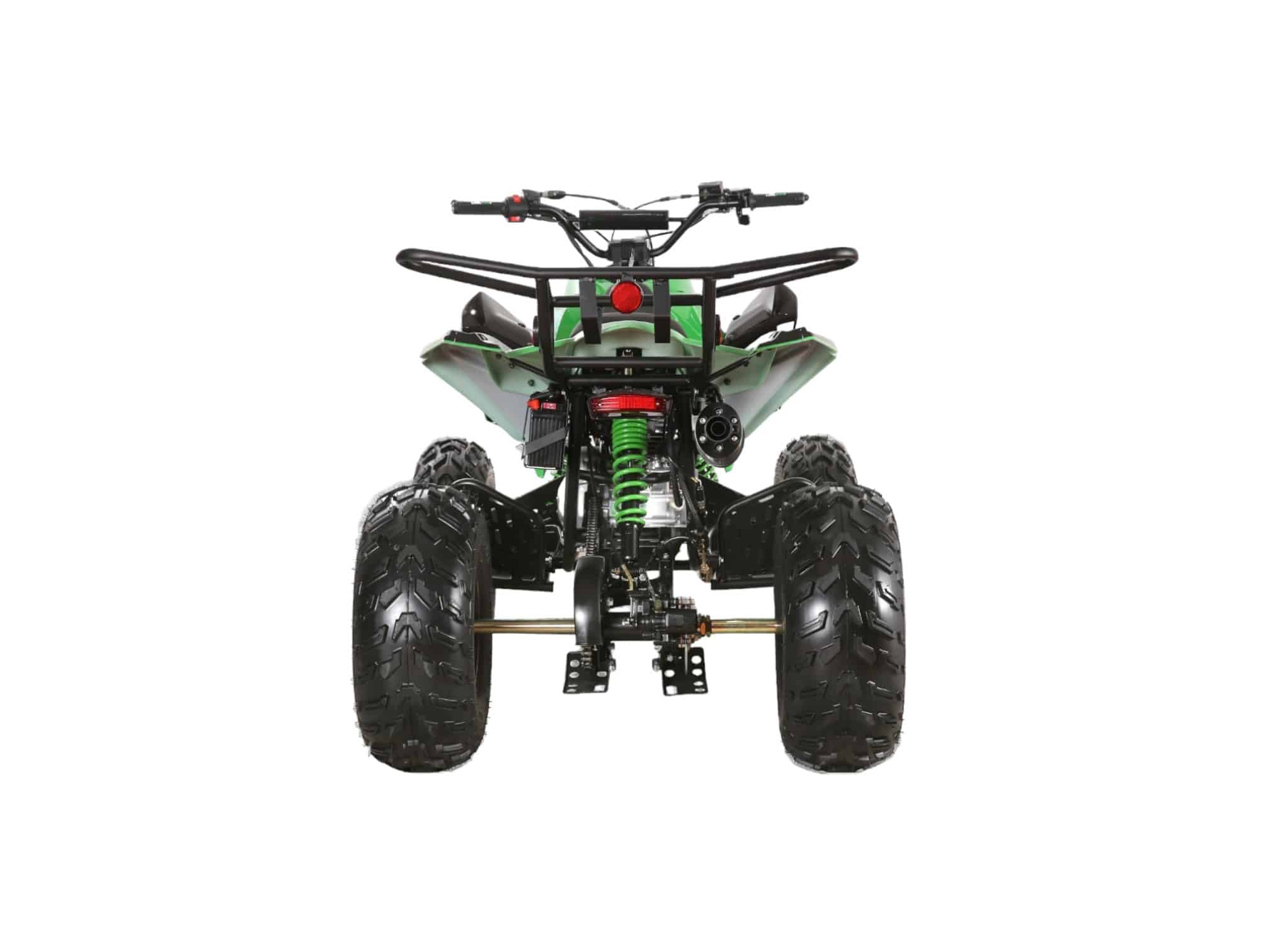

ATV-3250S
200CC Manual Full Sized Sport ATV
Available Colors

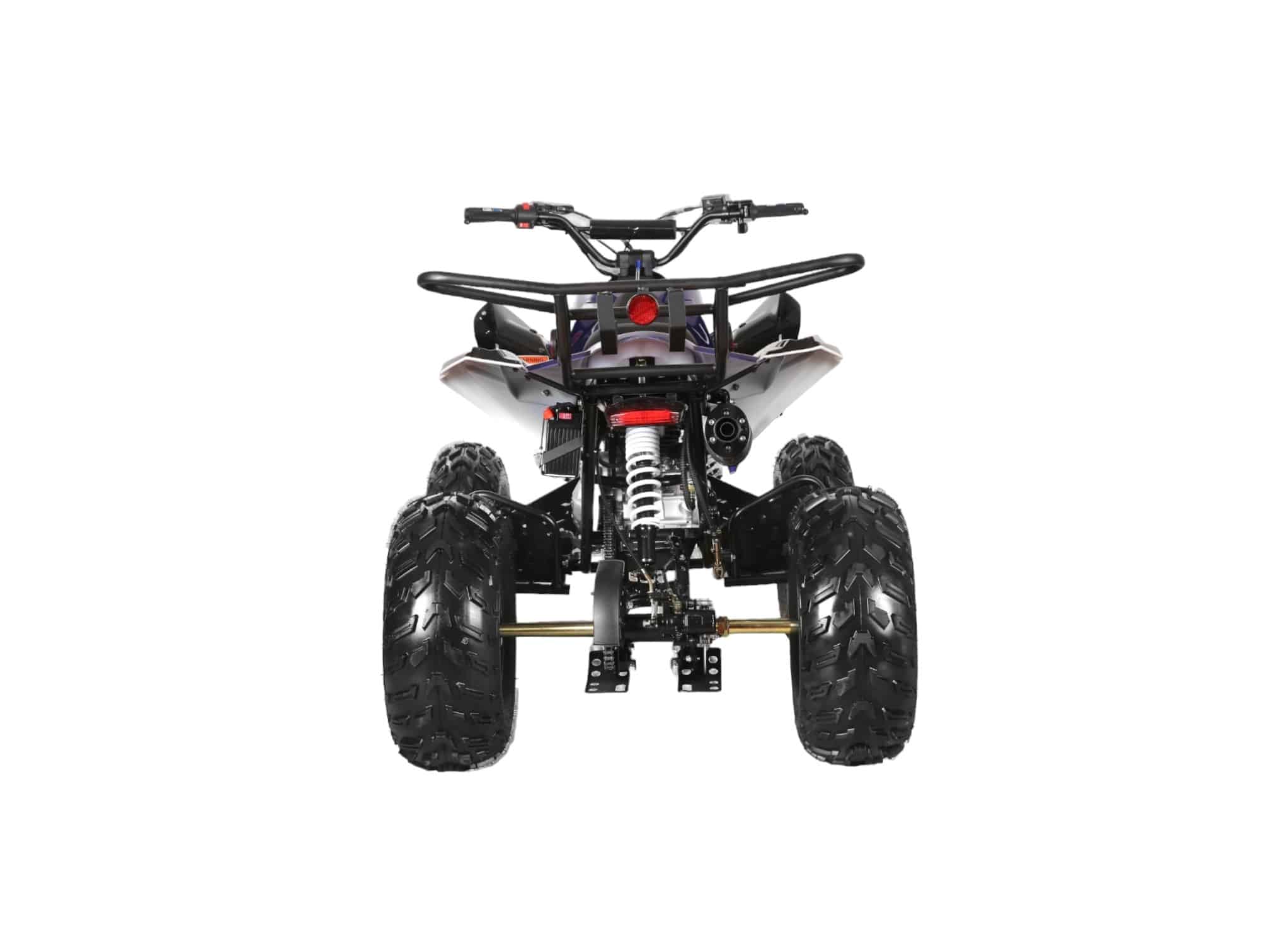

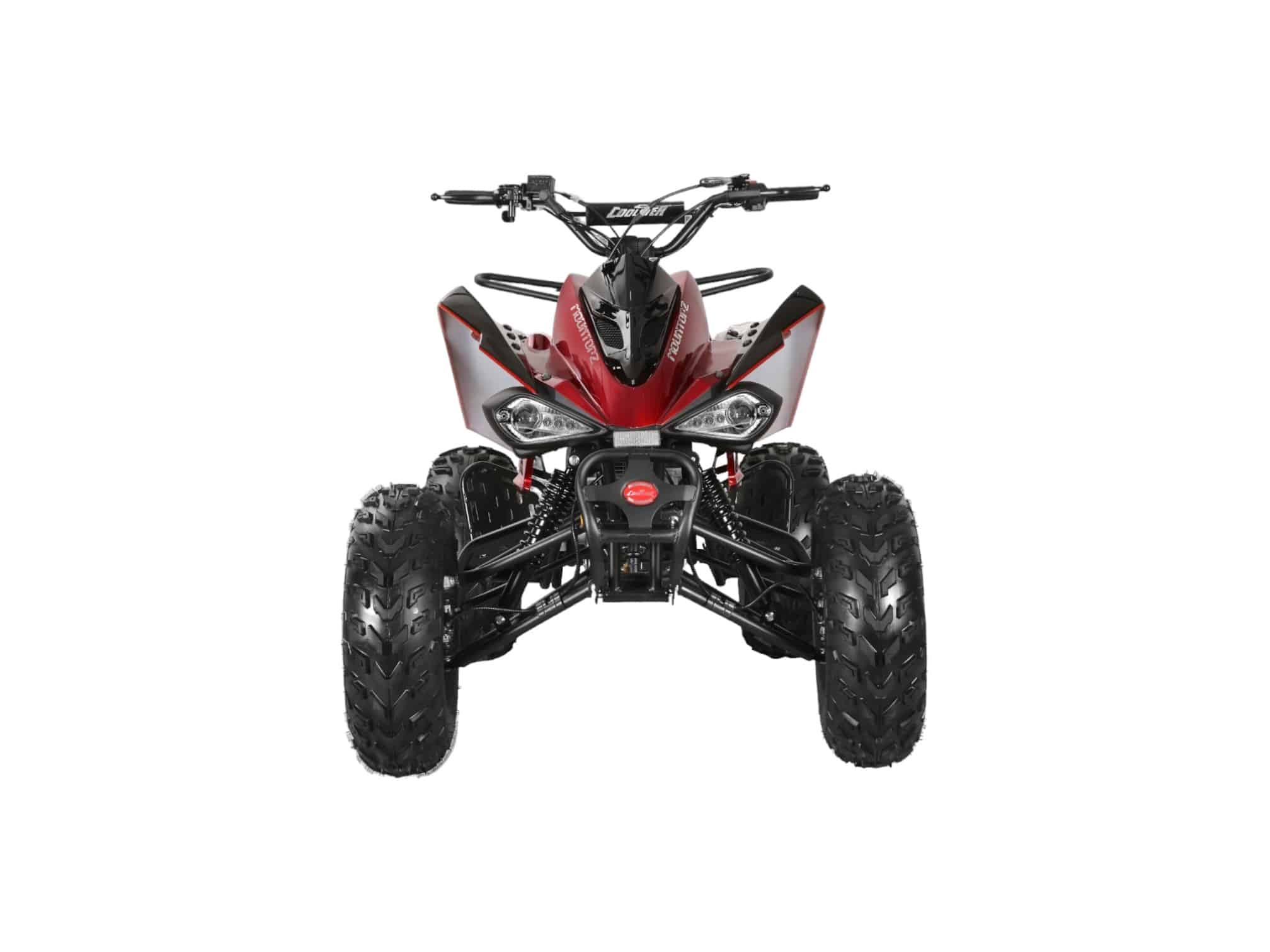

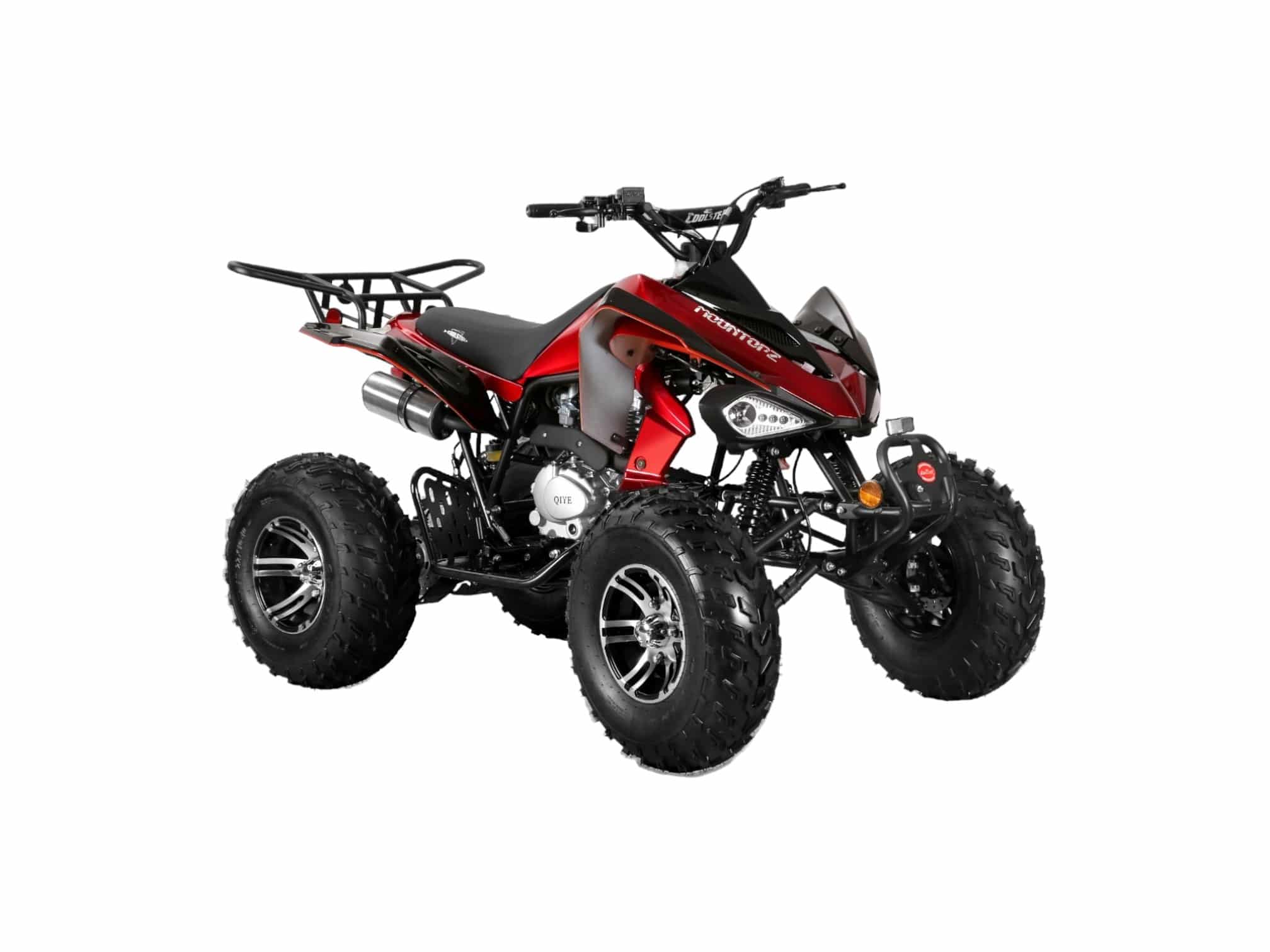

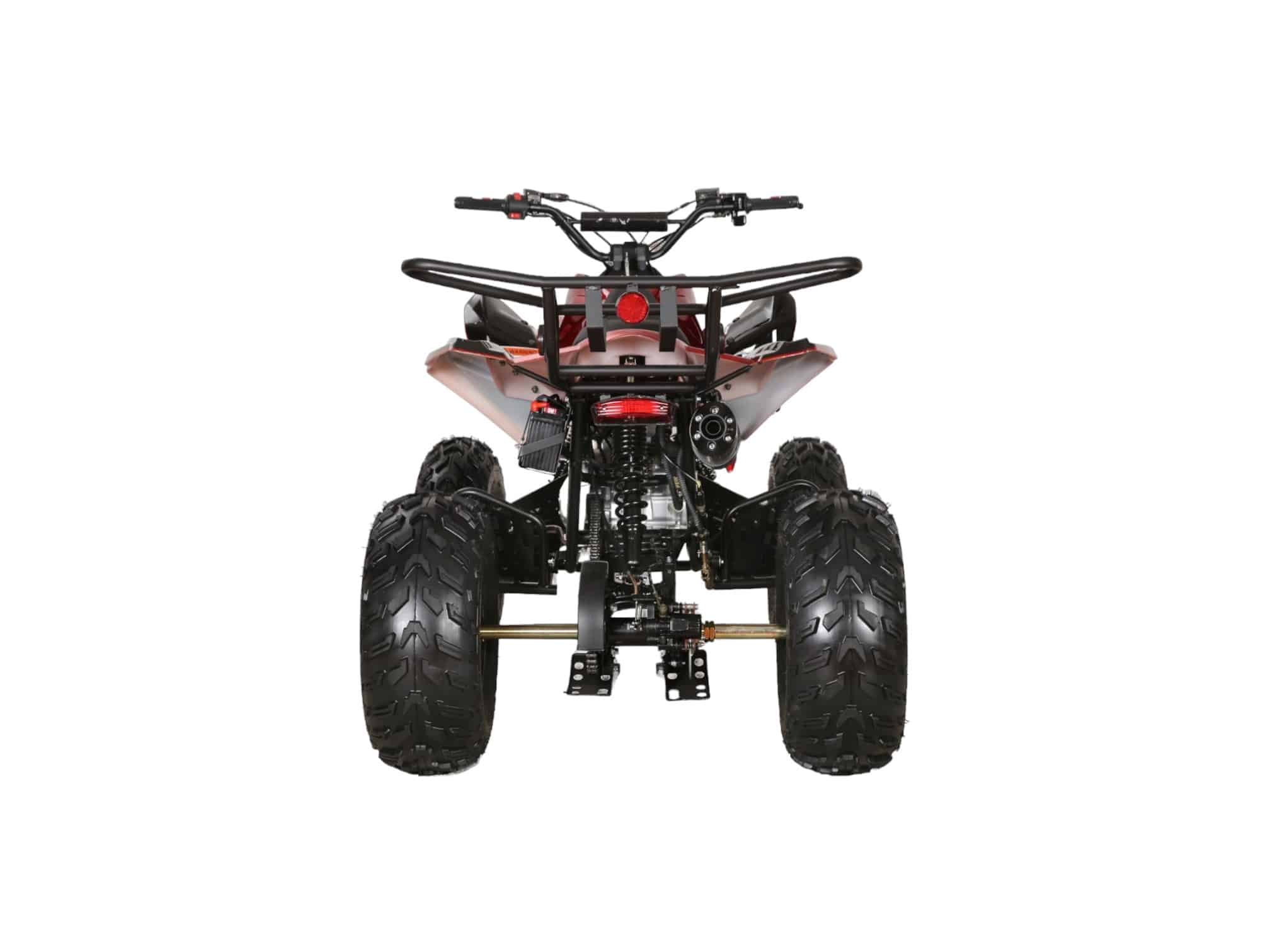

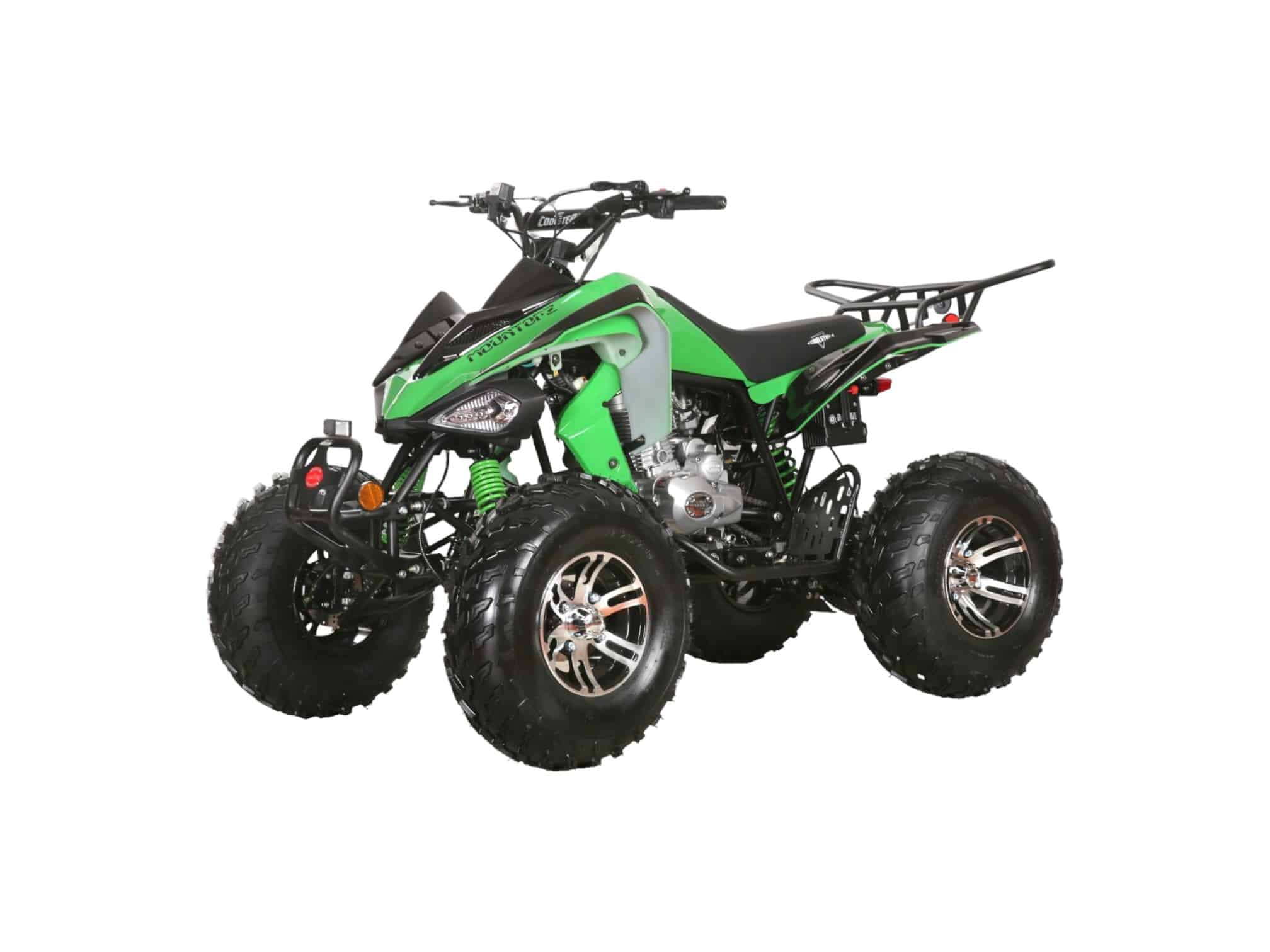

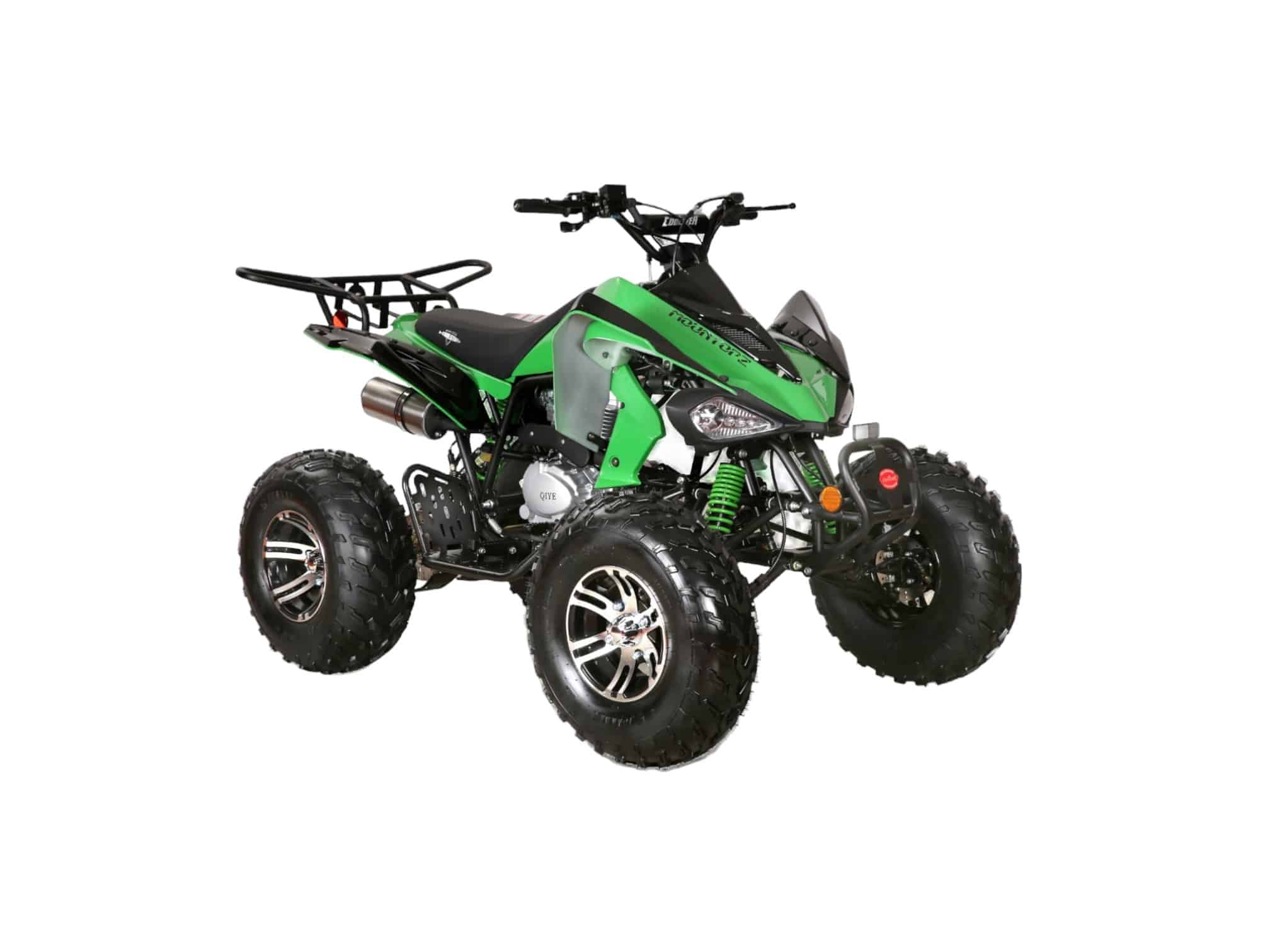

Coolster ATV-3250S equipped with a gas powered, manual 196.9 cc engine, responsive hydraulic brakes and superior 22×10-10 rear wheels. Chrome rims, durable shocks and a sturdy rear rack for optimal comfort and stability for all-terrain off-road terrains.
For more information, please click the tabs, or click here to reach us directly.
Download ATV-3250S Manual
(Must be logged in to download)
| Model Number: | ATV-3250S/ATV-EV3250S |
| Engine Type: | Single Cylinder, 4-Stroke, Air-Cooled |
| Displacement: | 196.9cc |
| Max Torque: | 14 N·m/6000 r/min (N.m/r/min) |
| Max Power: | 10.2 kW/7500 r/min (kW/r/min) |
| Bore Stroke: | 63.5 x 62.2mm |
| Ignition: | CDI |
| Starting System: | Electric |
| Battery: | 12V, 9Ah |
| Clutch: | Semi-Automatic |
| Transmission: | Chain, Rear Wheel Drive |
| Brakes Front/Rear: | Hydraulic Disc |
| Tires Front/Rear: | 23×7-10 / 22×10-10 |
| Fuel Capacity: | 1.35 gallons / 5.1L |
| Maximum Weight Capacity: | 220 lbs / 100 kg (rider, all cargo and accessories) |
| Wheelbase: | 1,170mm |
| Dimensions: | 1,890 x 1,090 x 1,200mm |
| Height to Seat: | 845mm |
| Min. Ground Clearance: | 140mm |
| Image | Name | Price | Buy |
|---|
Please read the owner’s manual and all on-product warnings. ATVs can be hazardous to operate. For operator’s safety, always wear a helmet, eye protection, and protective gear. Never carry a passenger. Never ride under the influence of drugs nor alcohol. Never ride on public roads nor pavement. Be extra careful on difficult terrain. Never allow a child under the age of 16 to operate an ATV without adult supervision. It is strongly recommended that all ATV riders take a training course. For more information, contact your local dealer or call 1-626-228-0251
