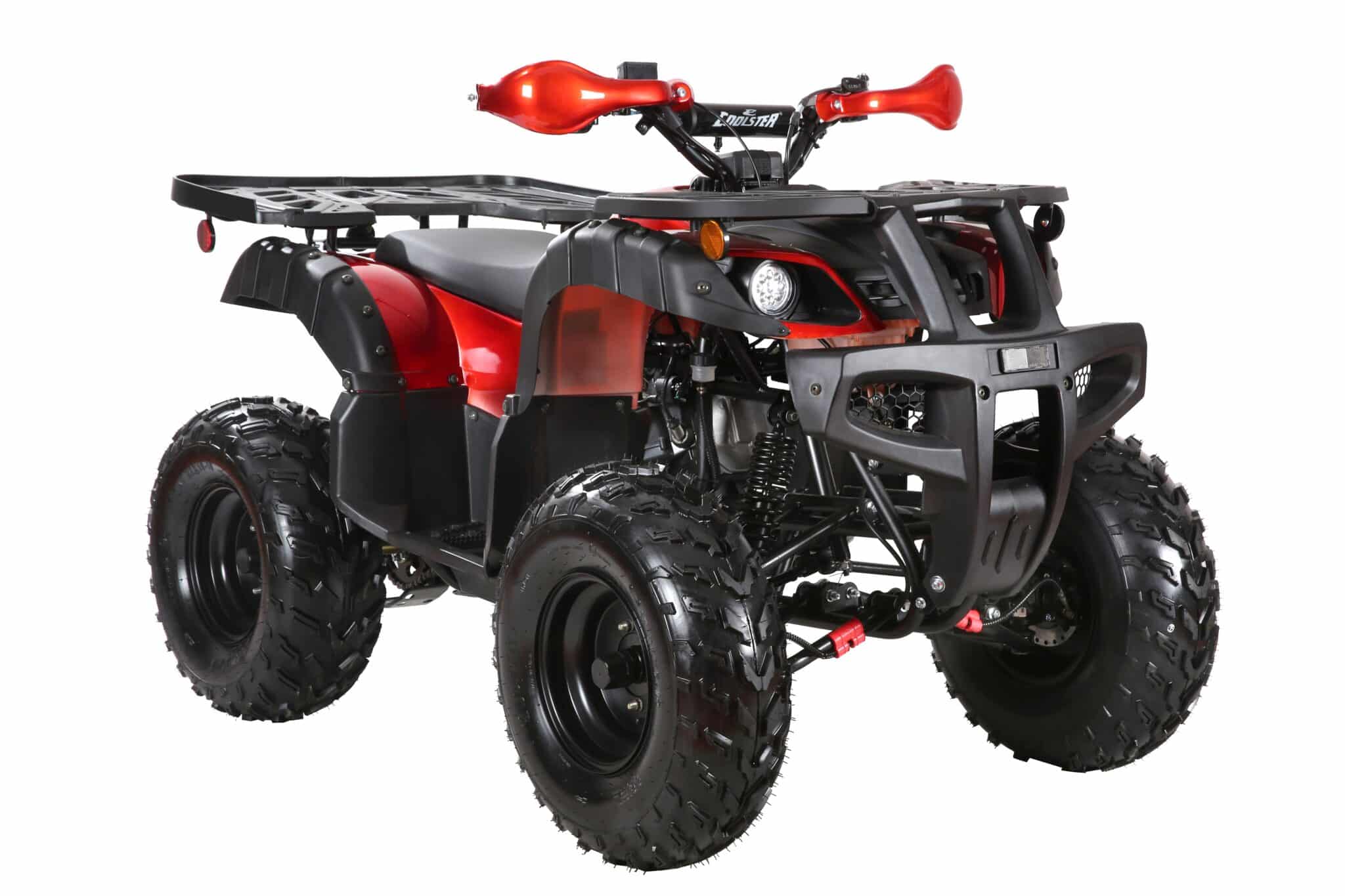

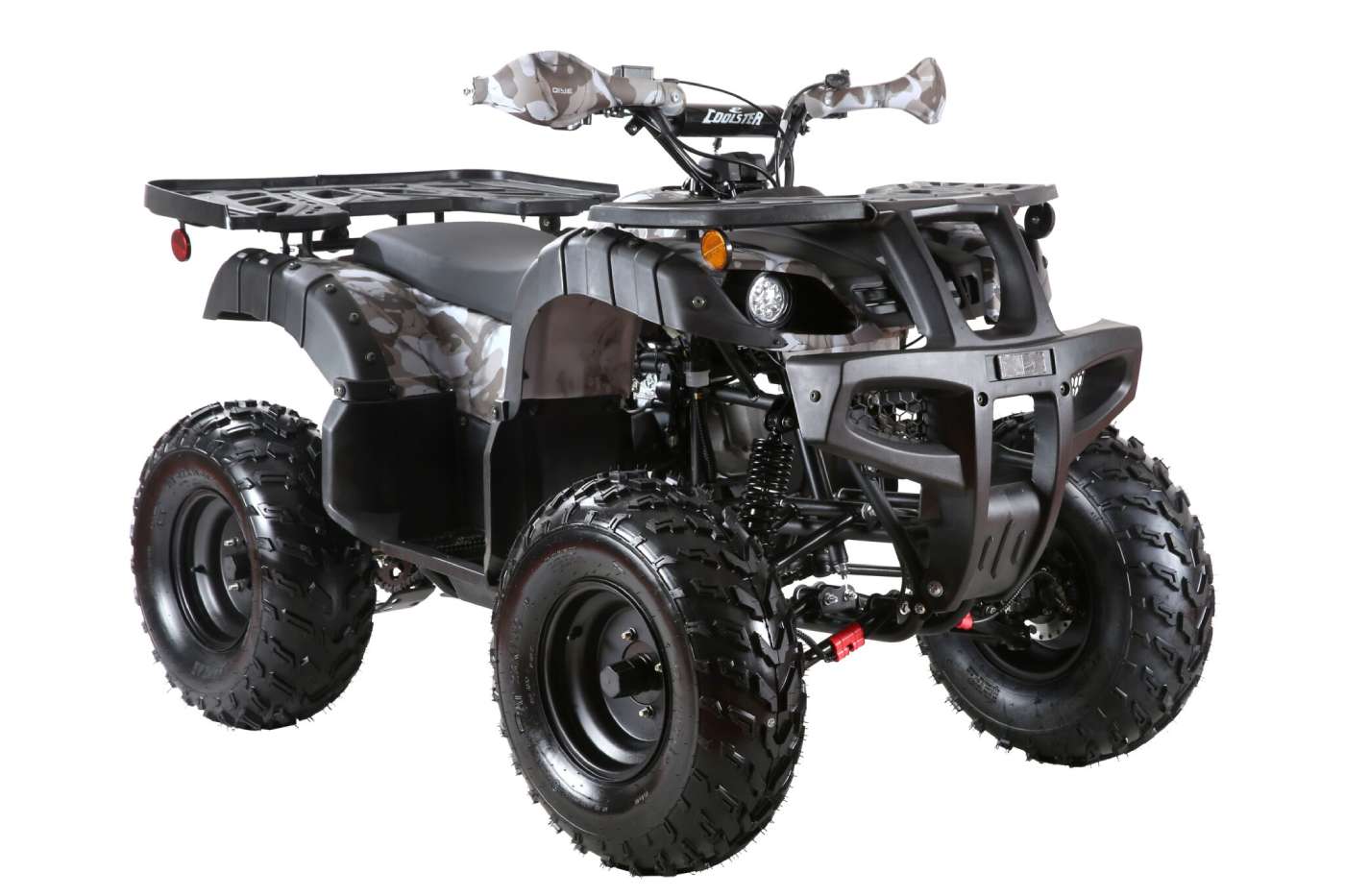

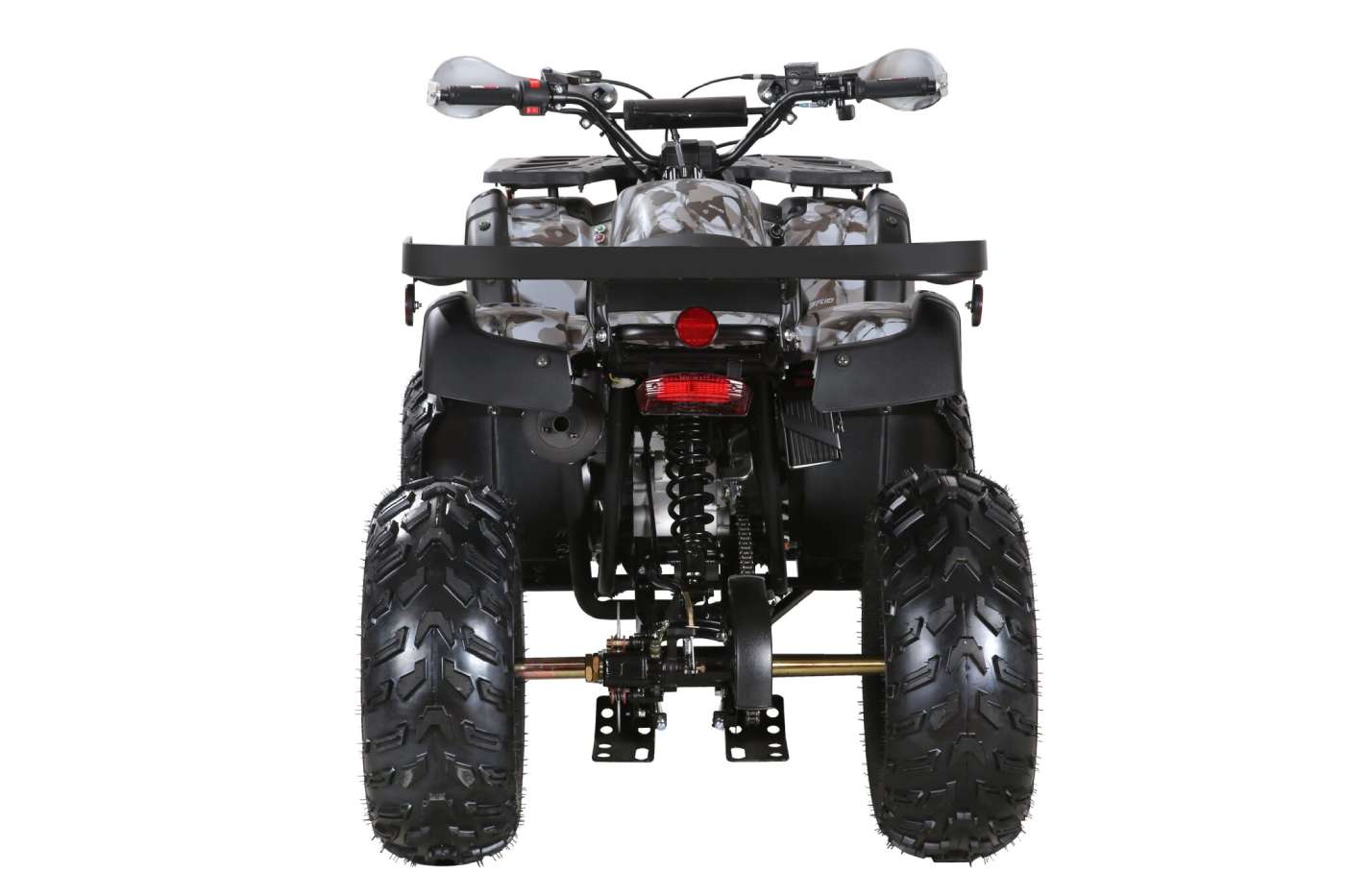

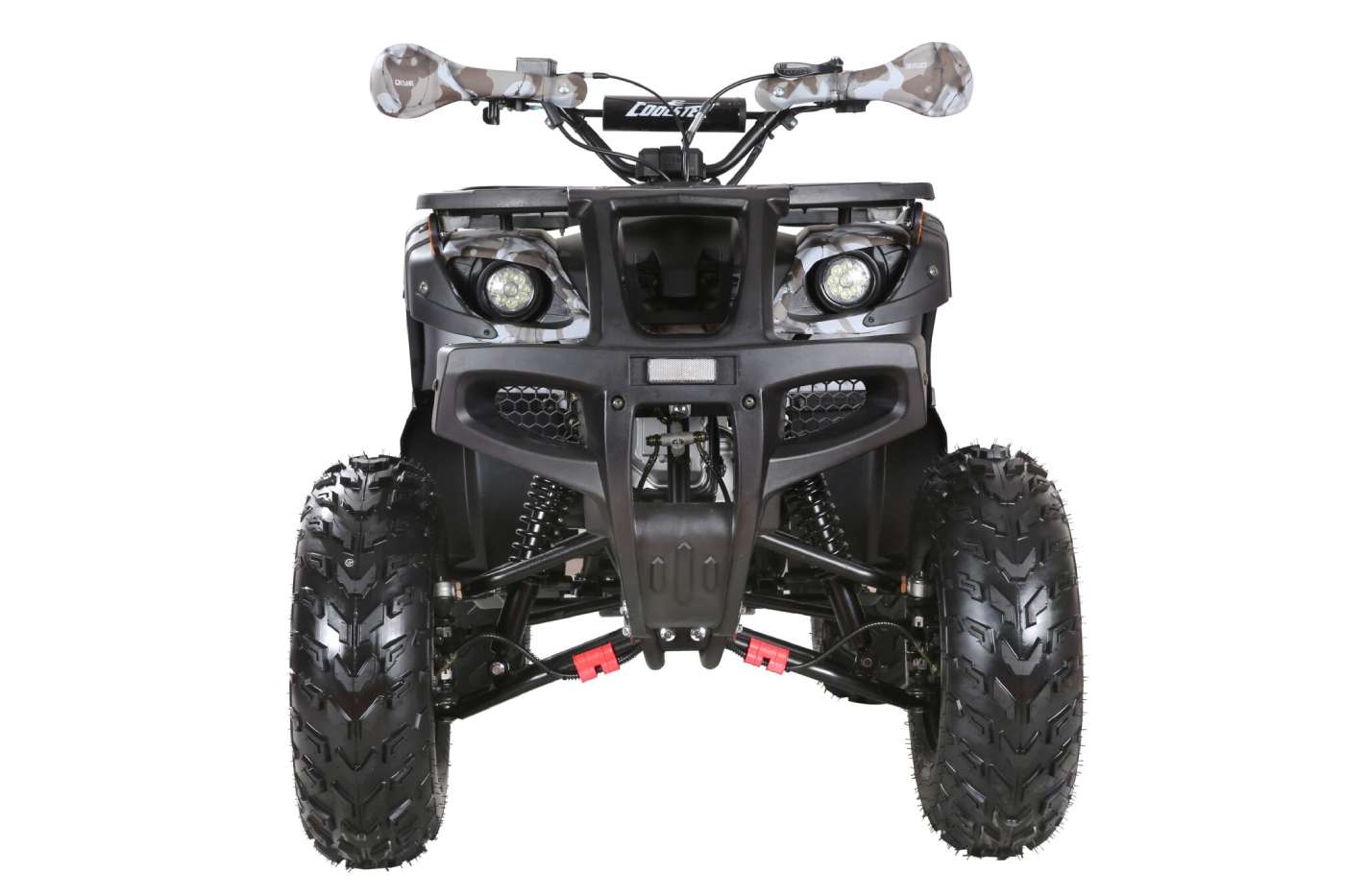

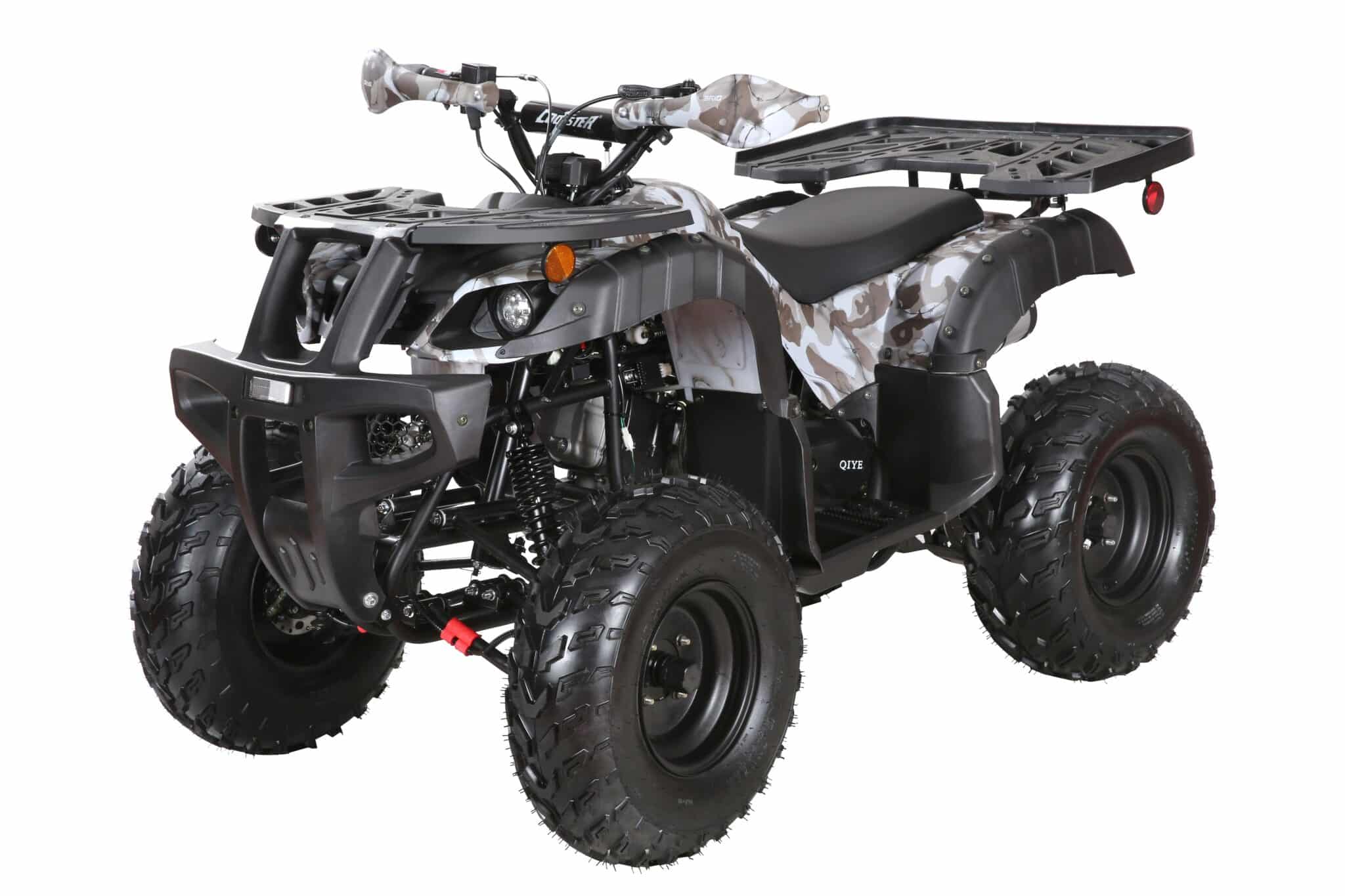

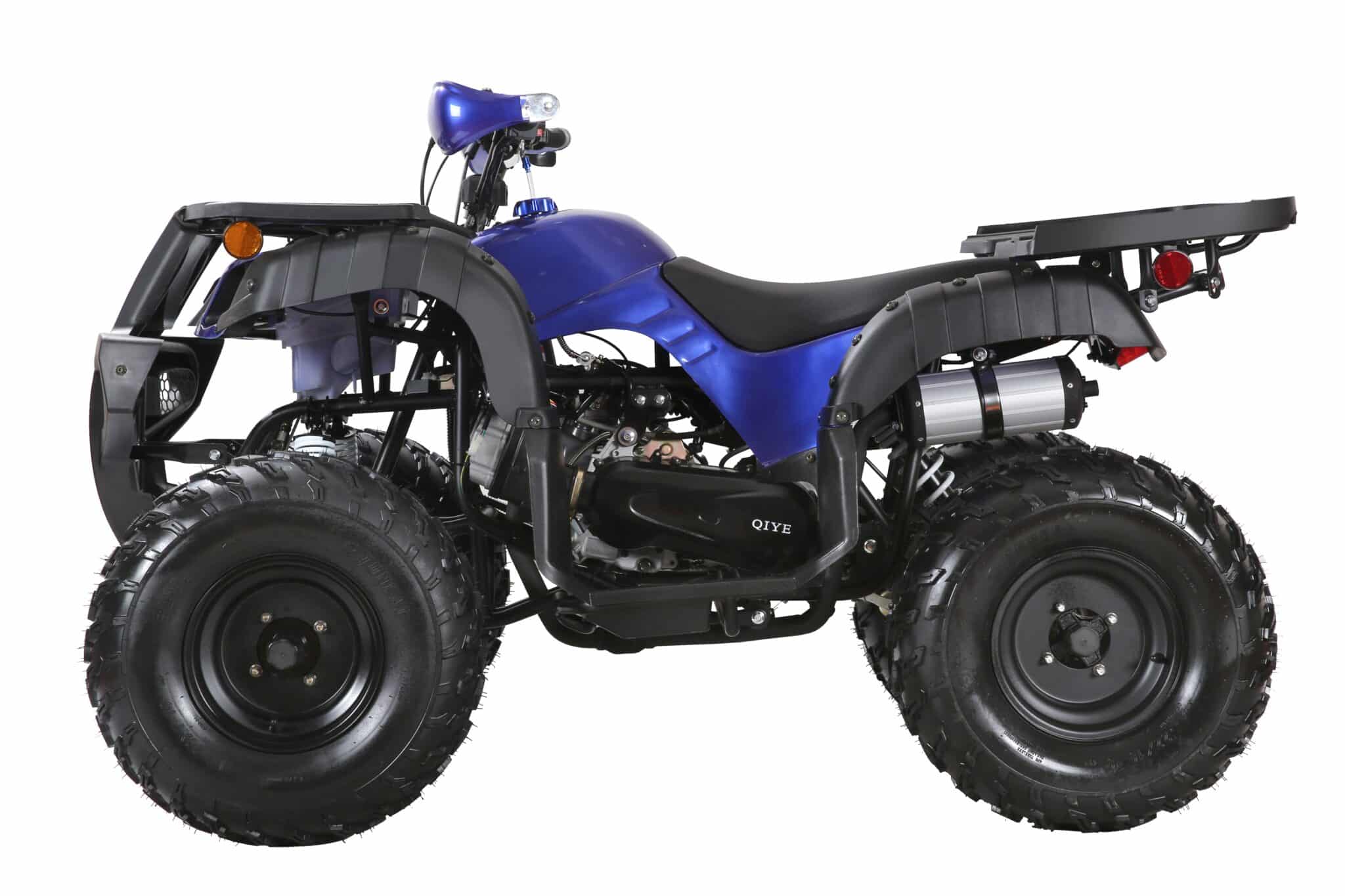

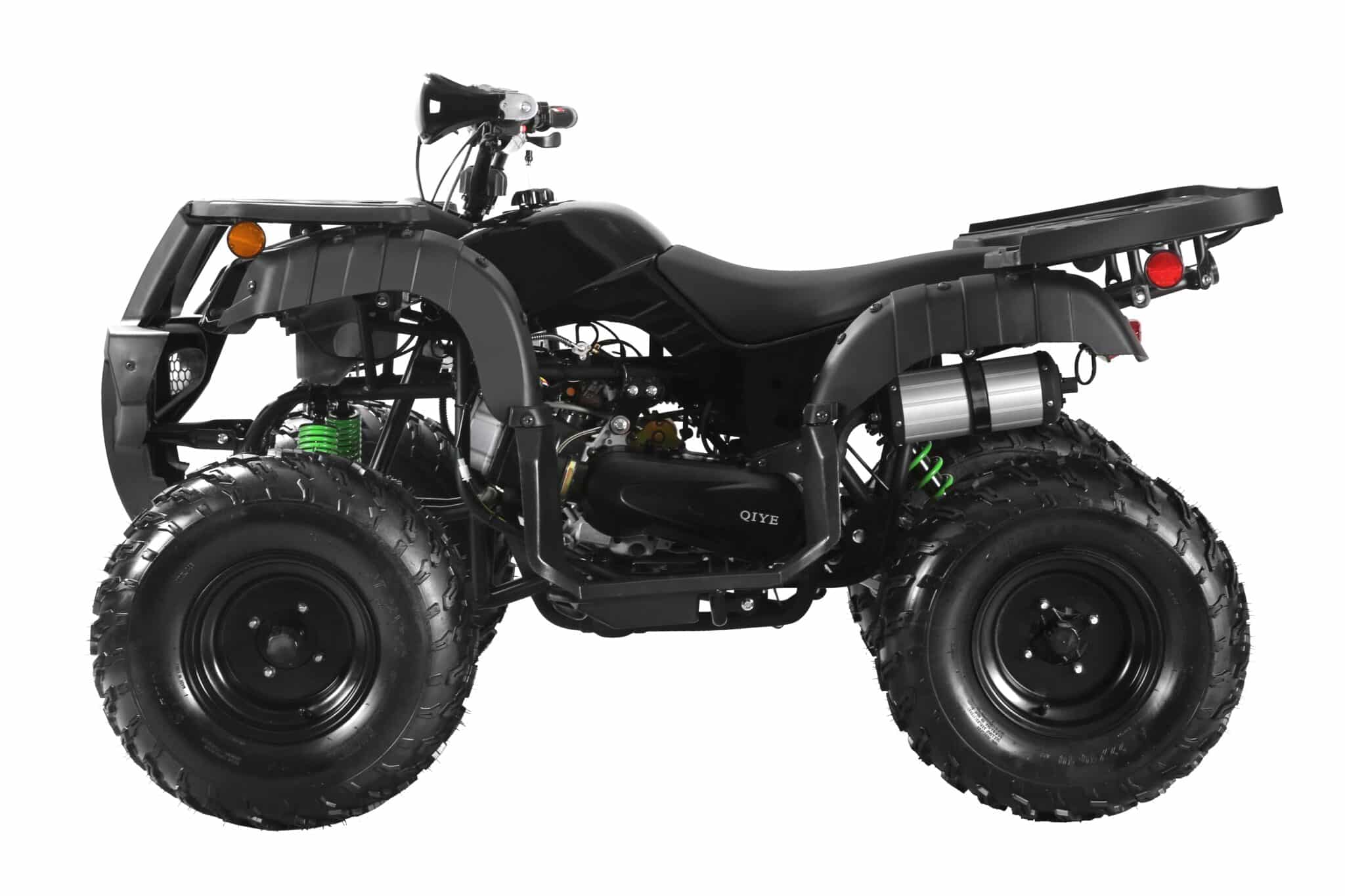

ATV-3175U
170CC Fully Automatic Full Sized Utility ATV
Available Colors
Army Black

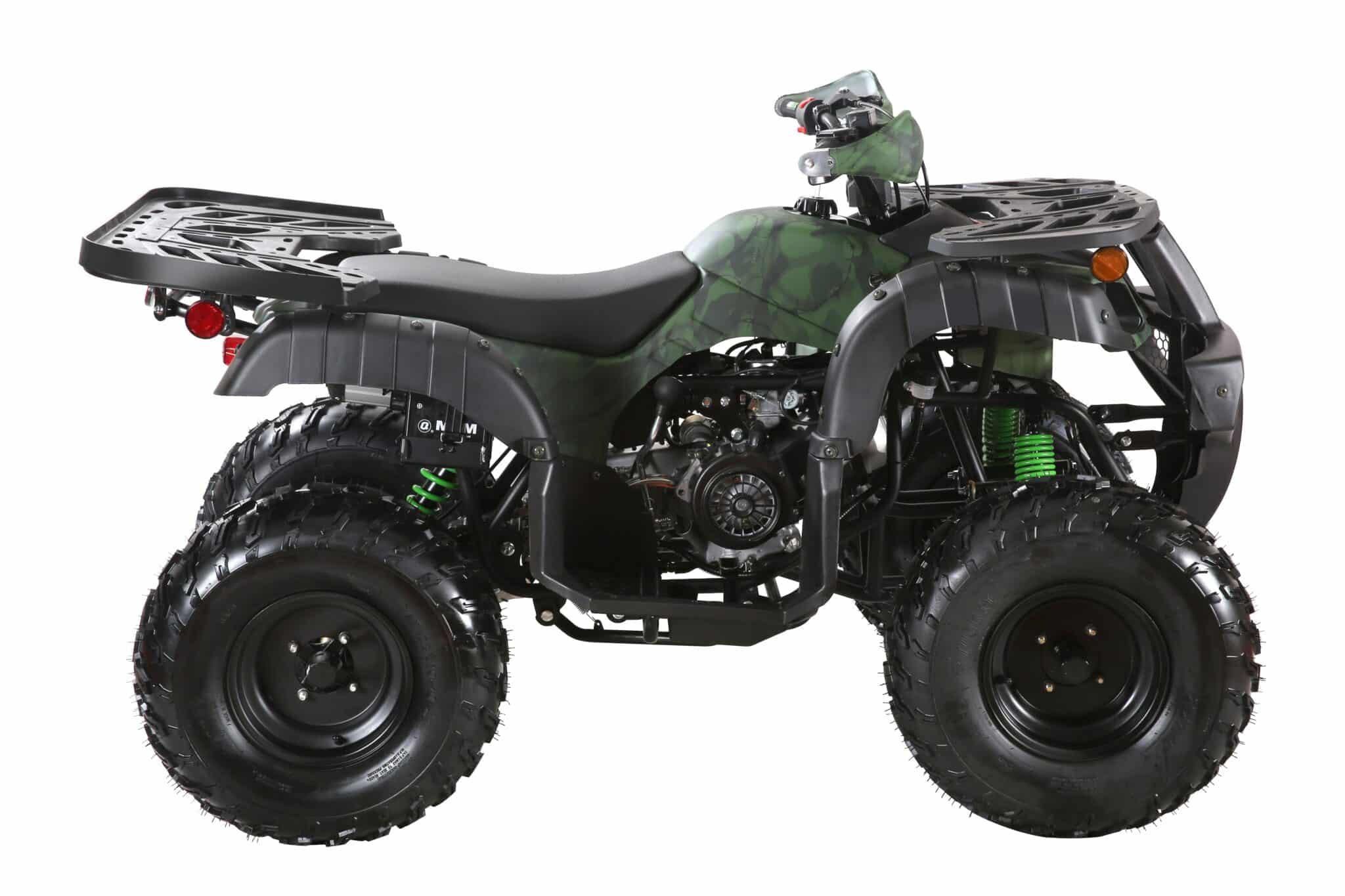

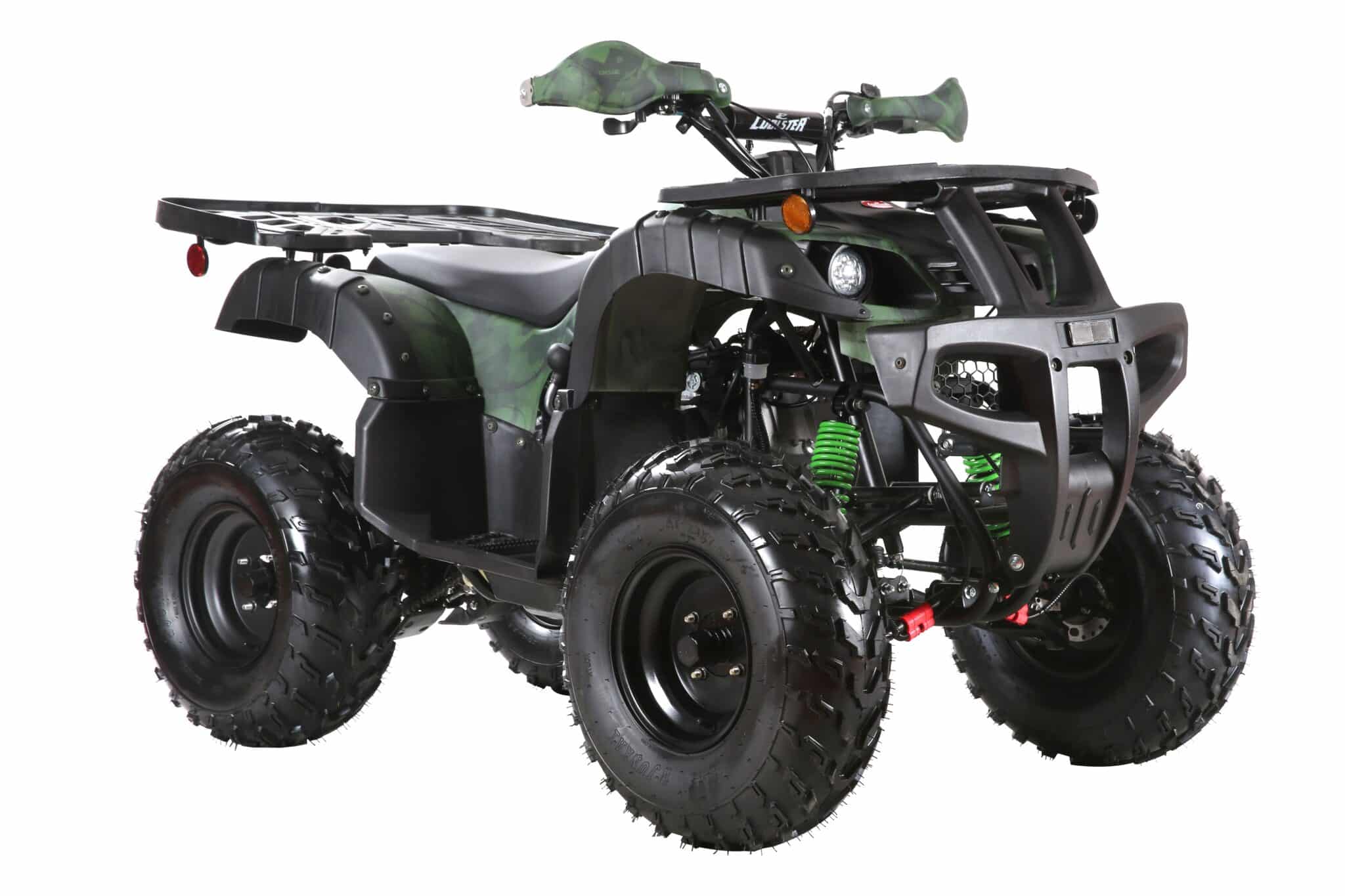

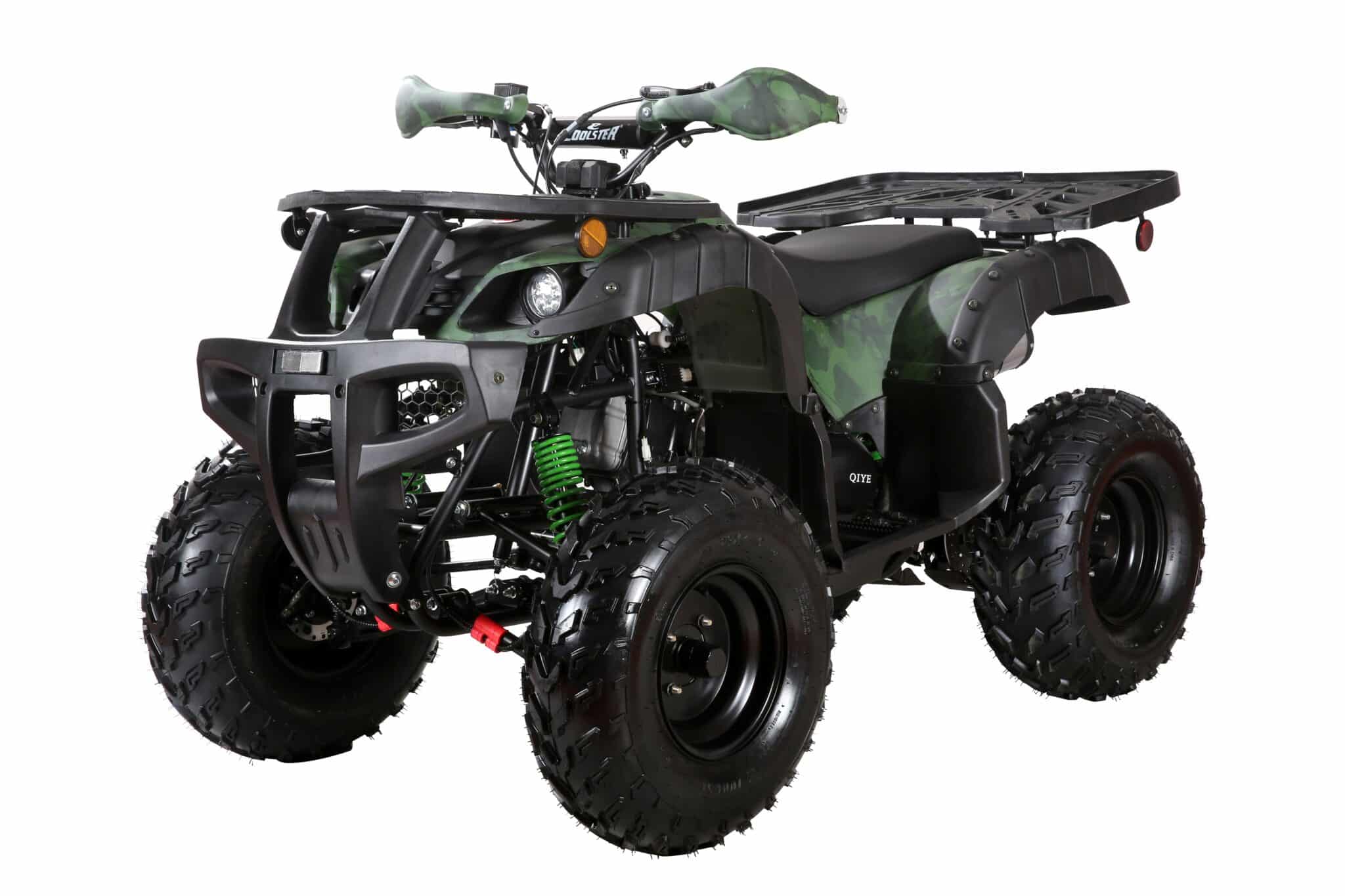

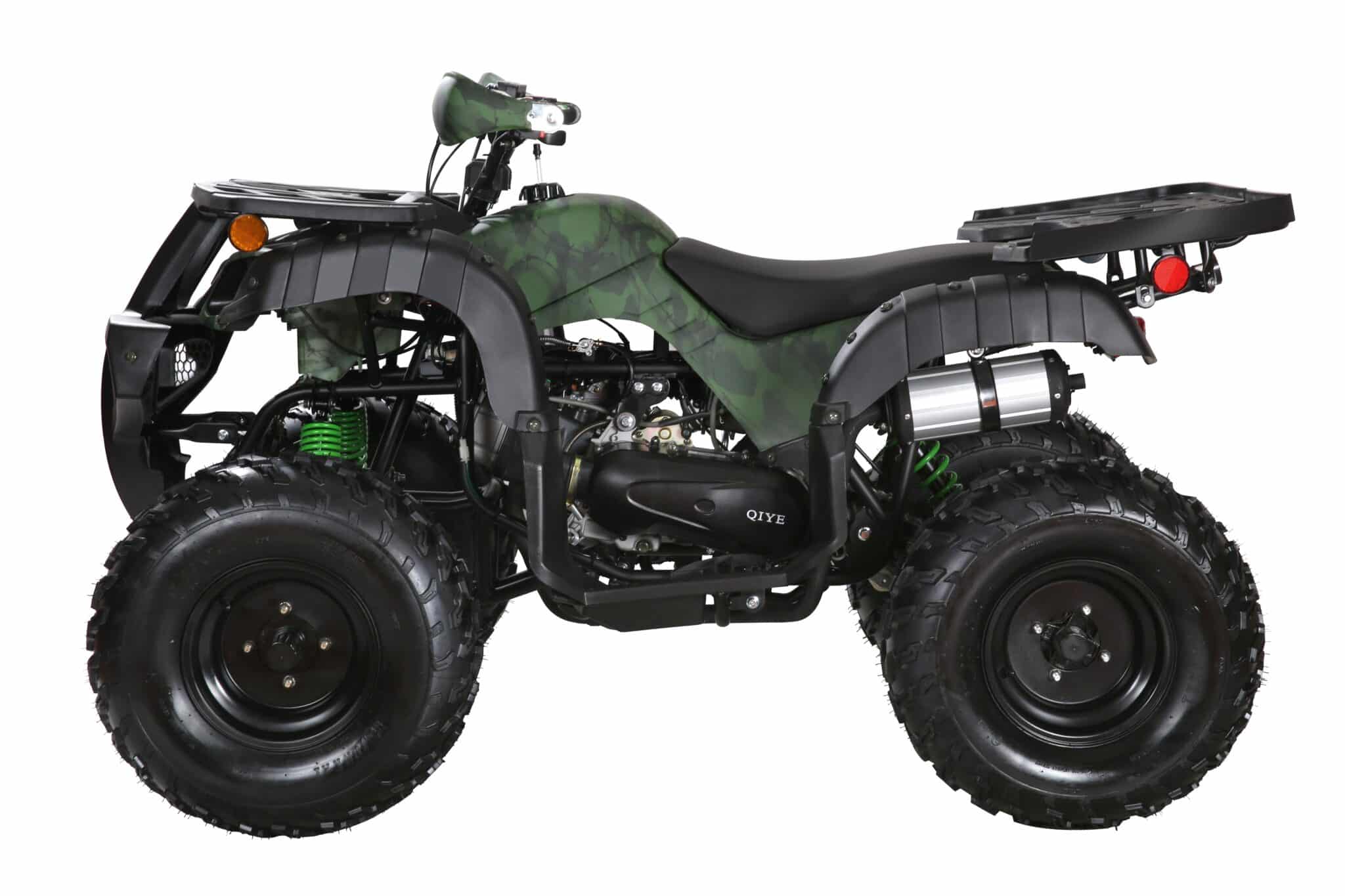

Army Green

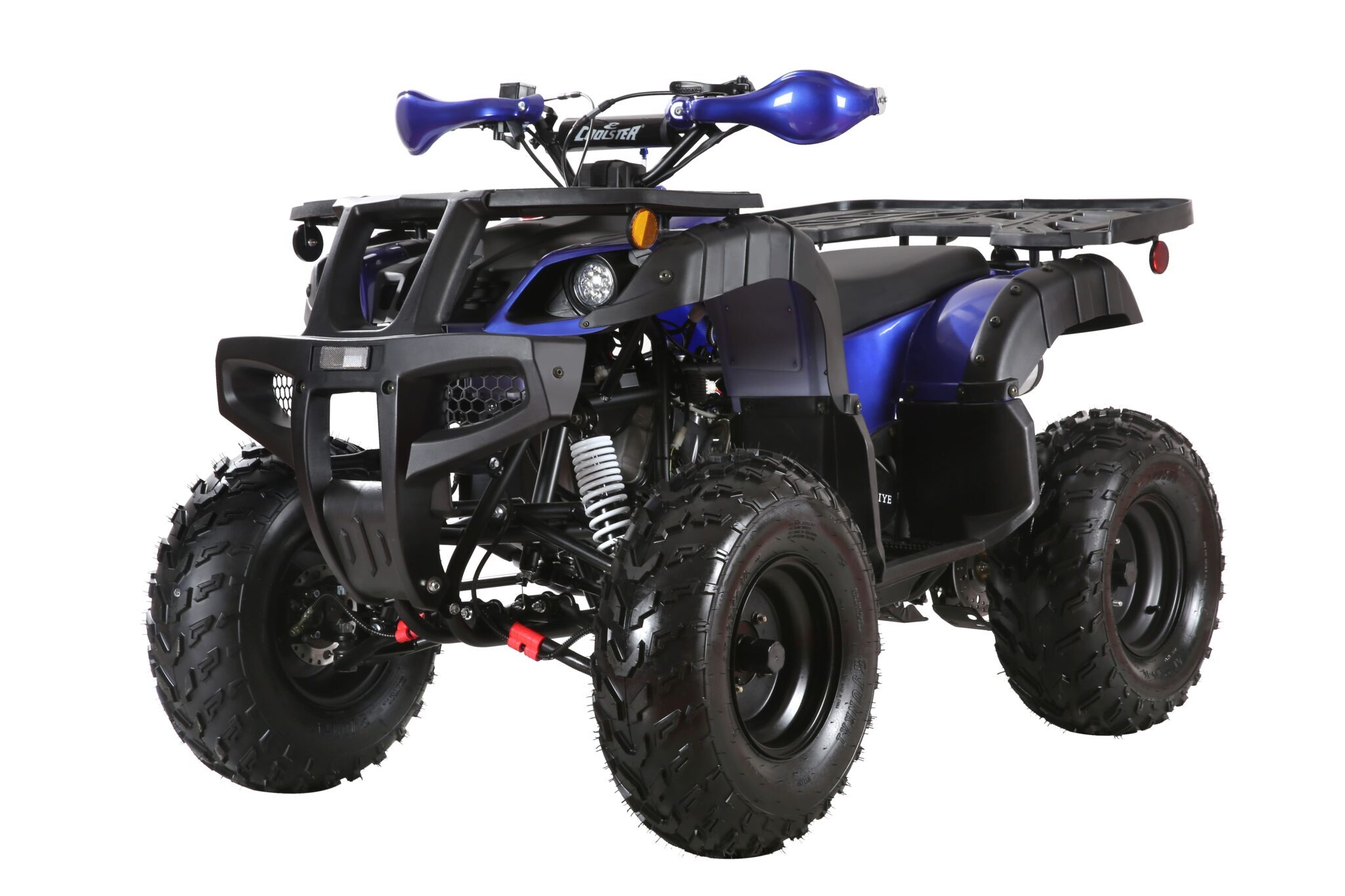

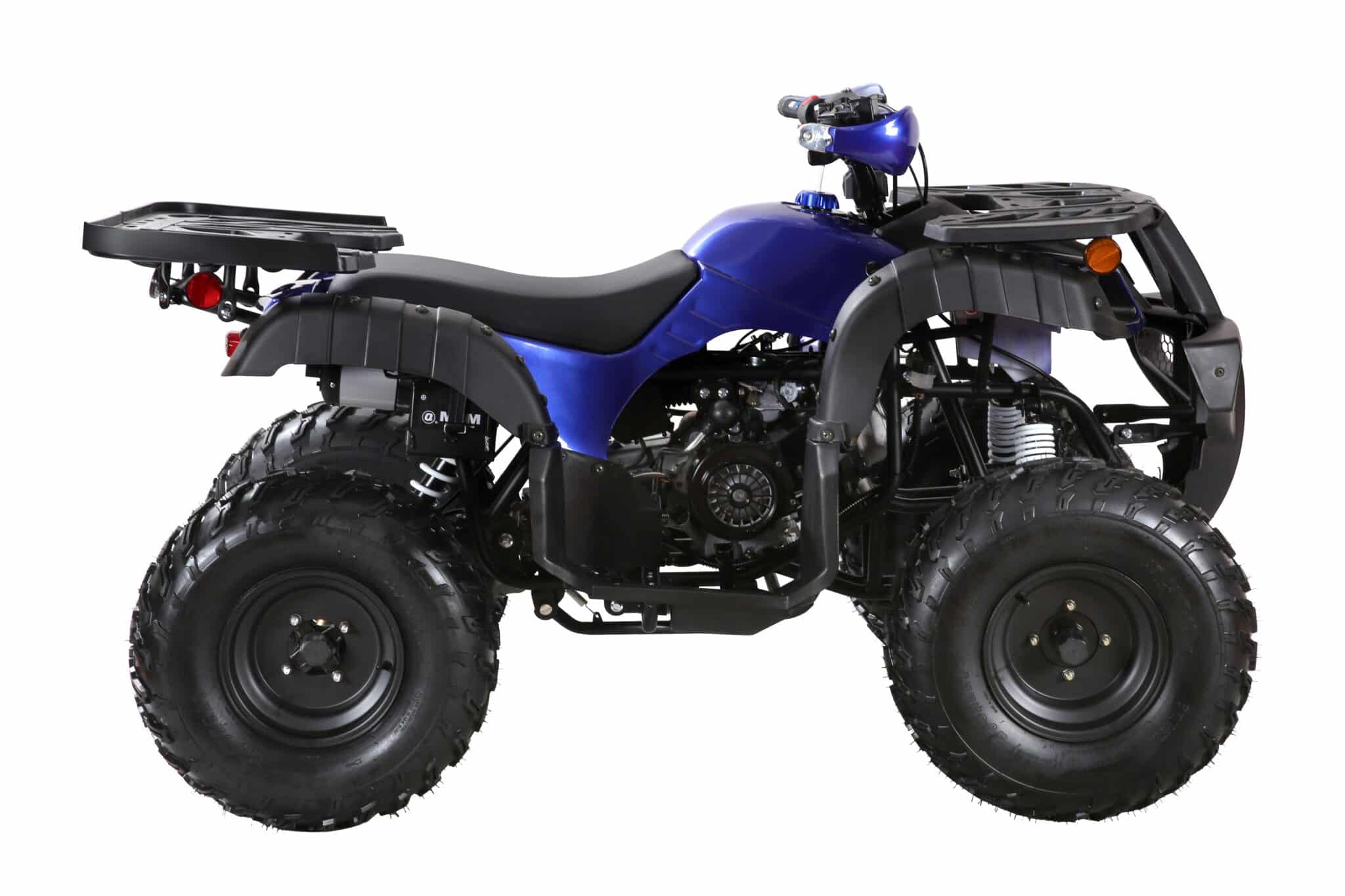

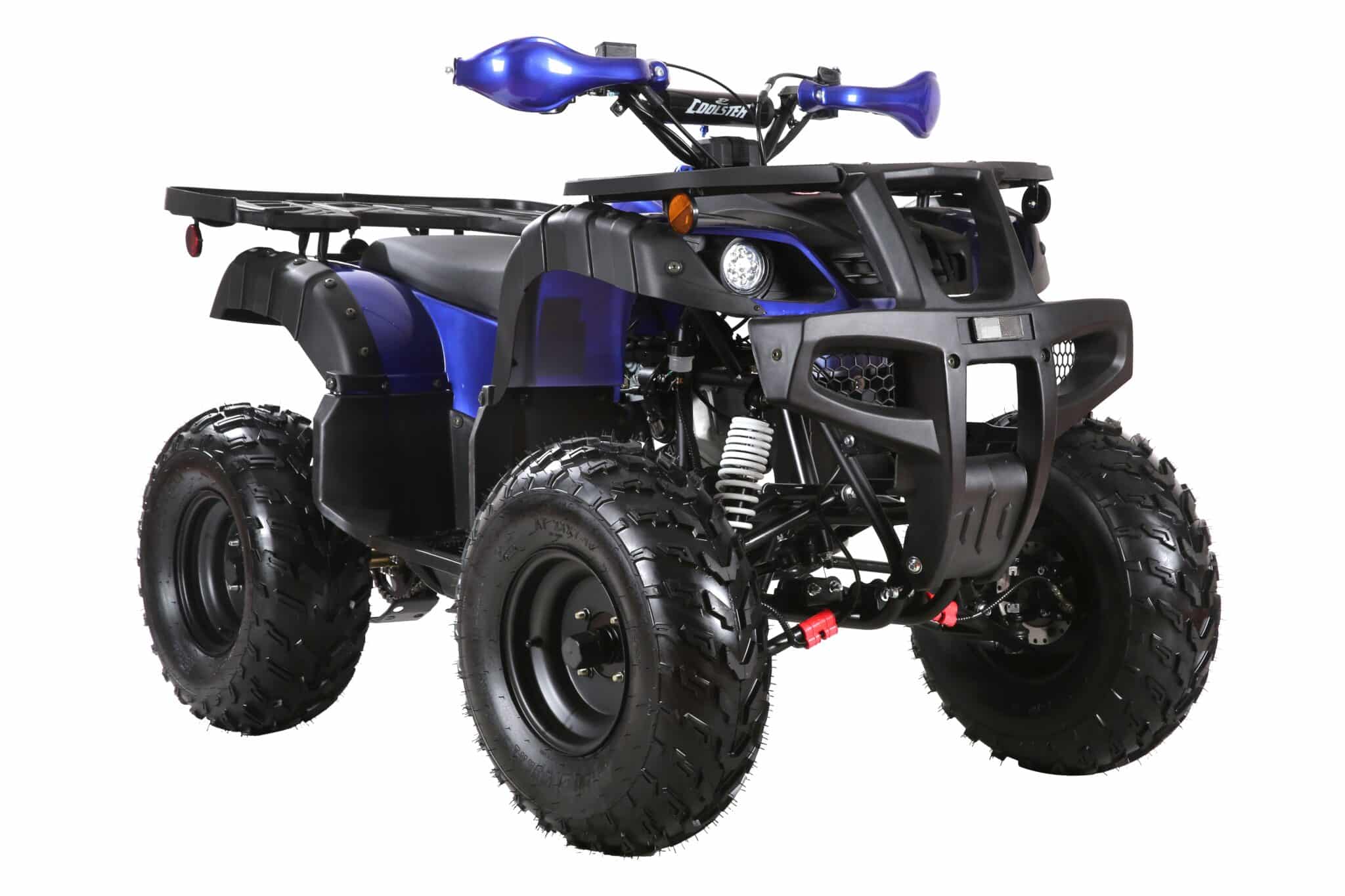

Blue

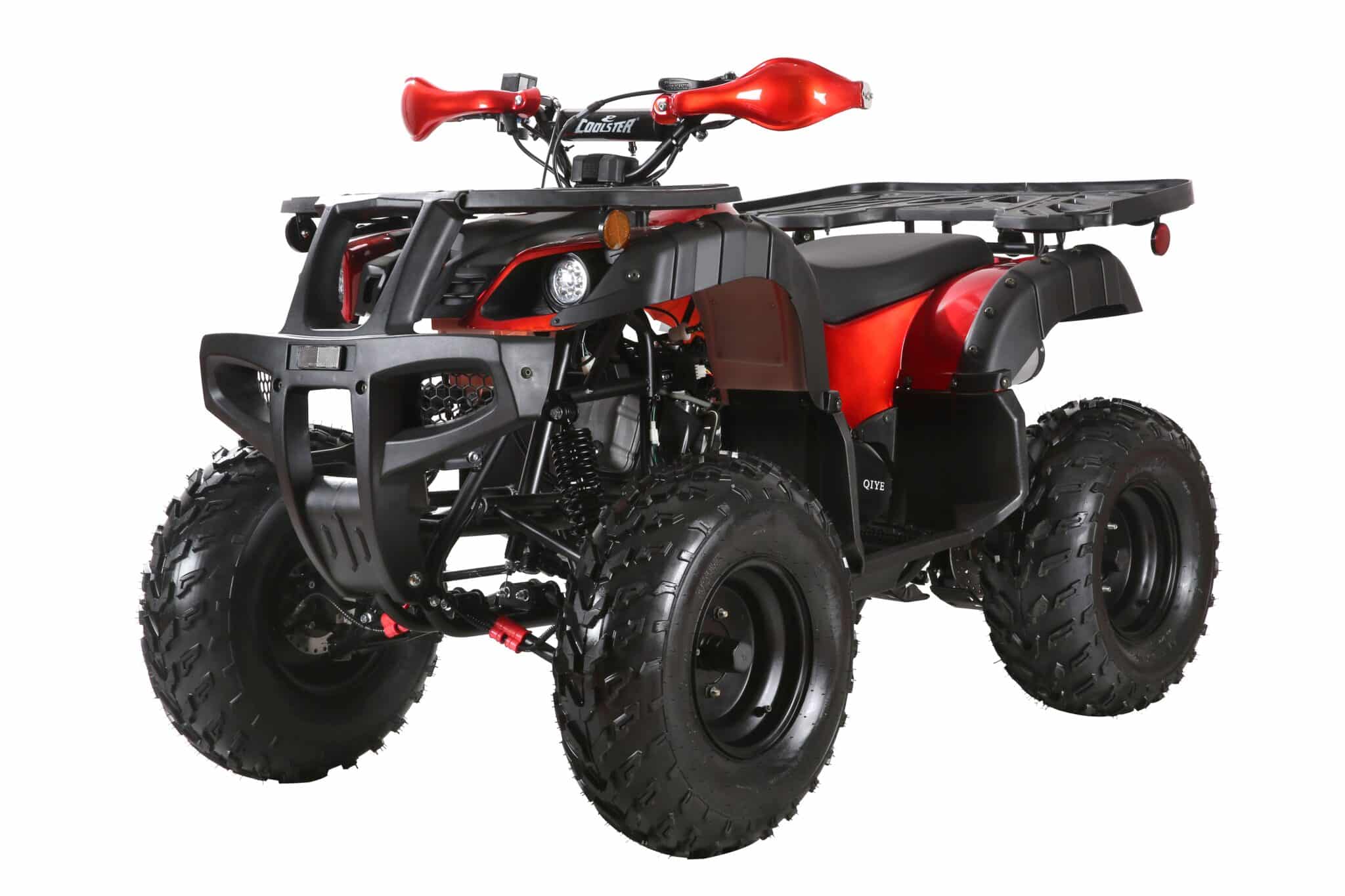

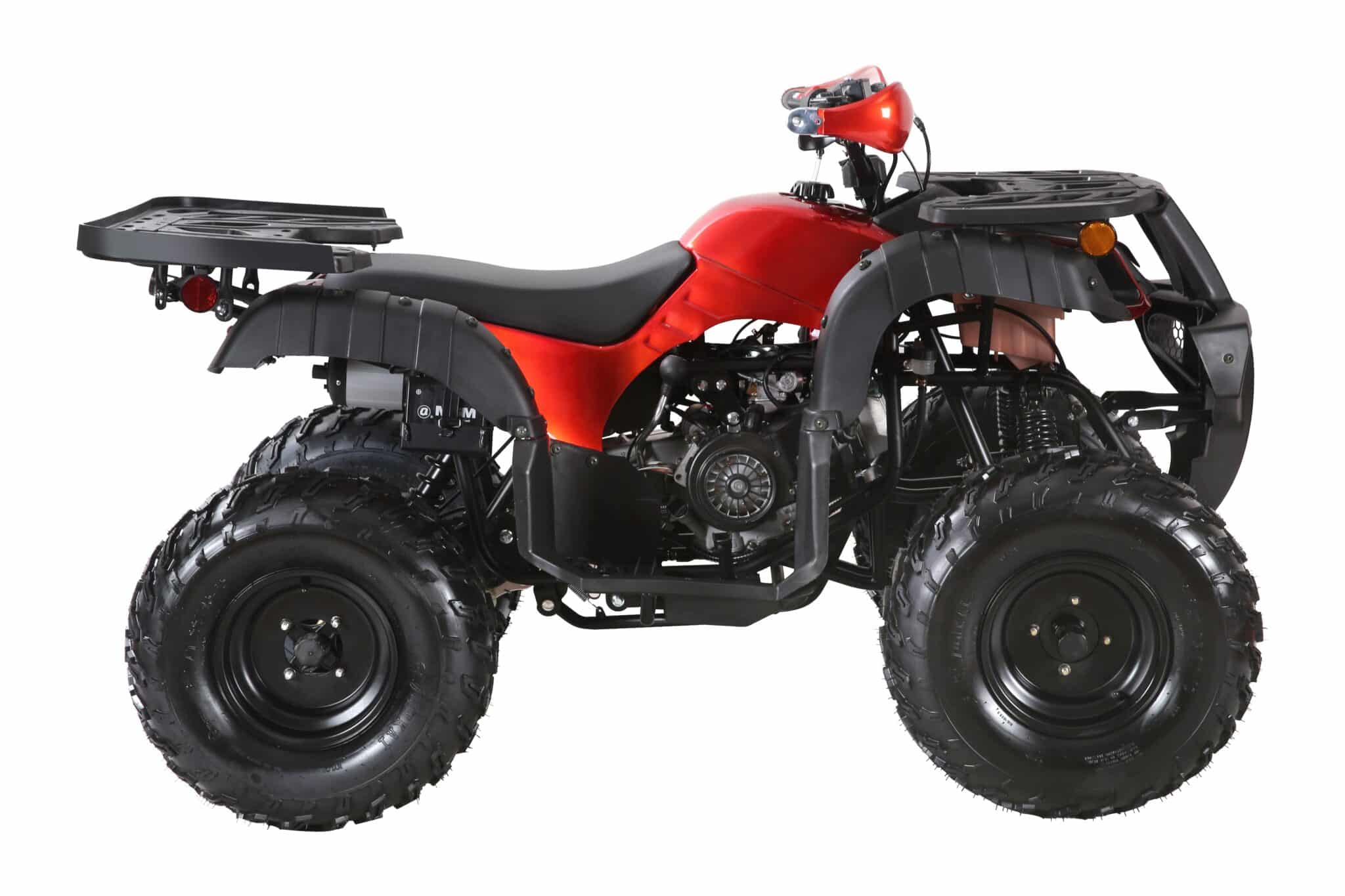

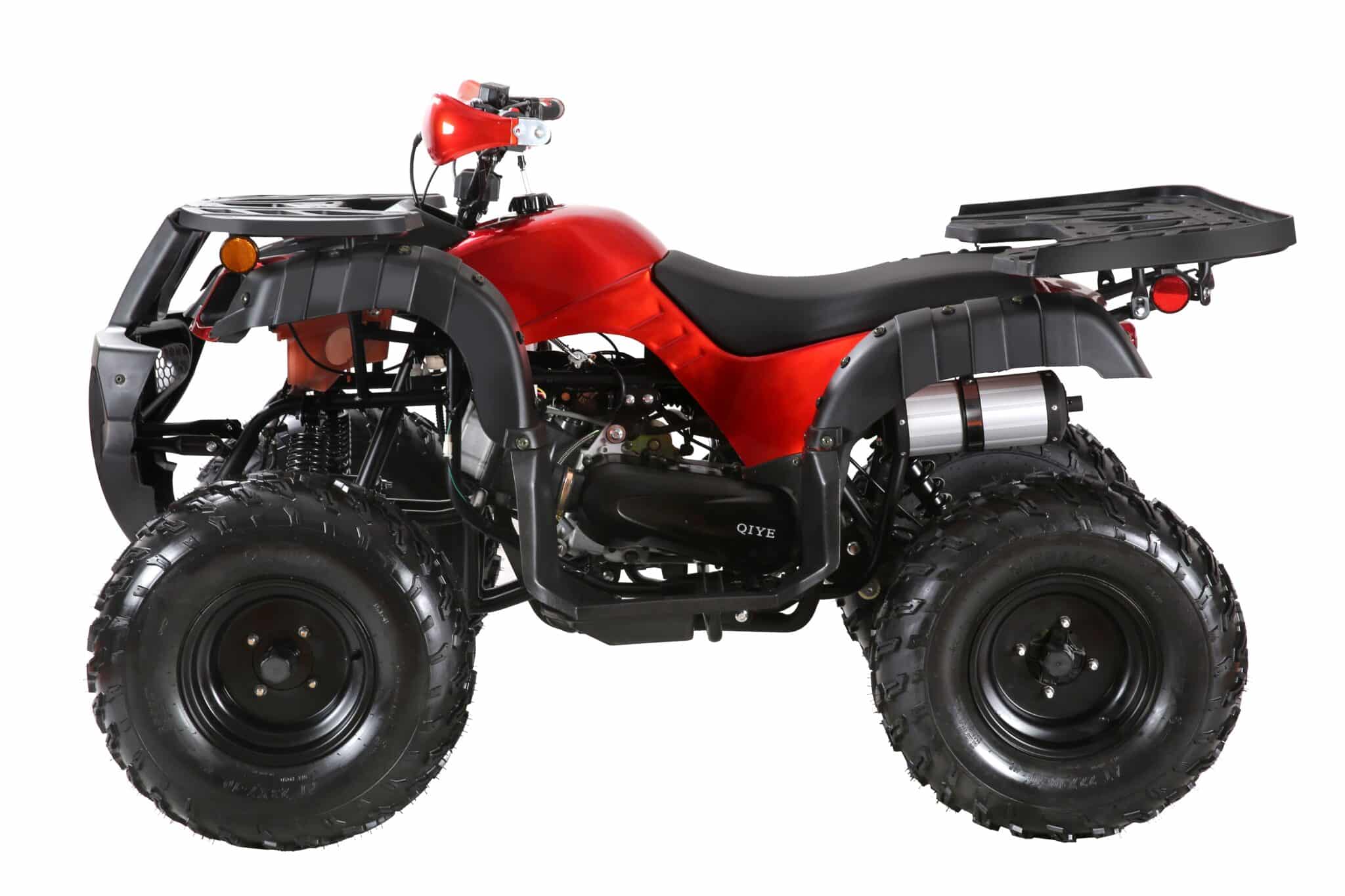

Red

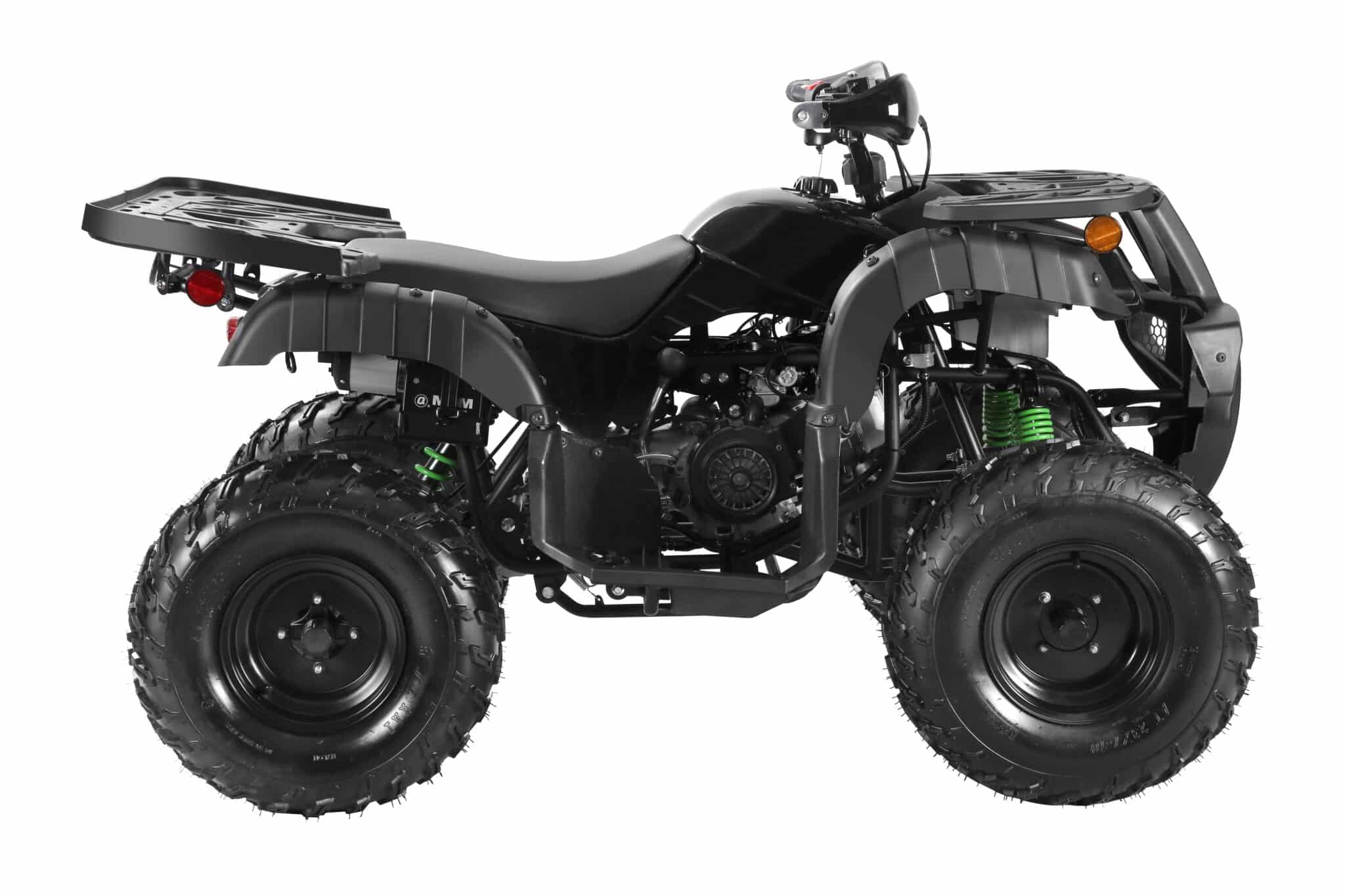

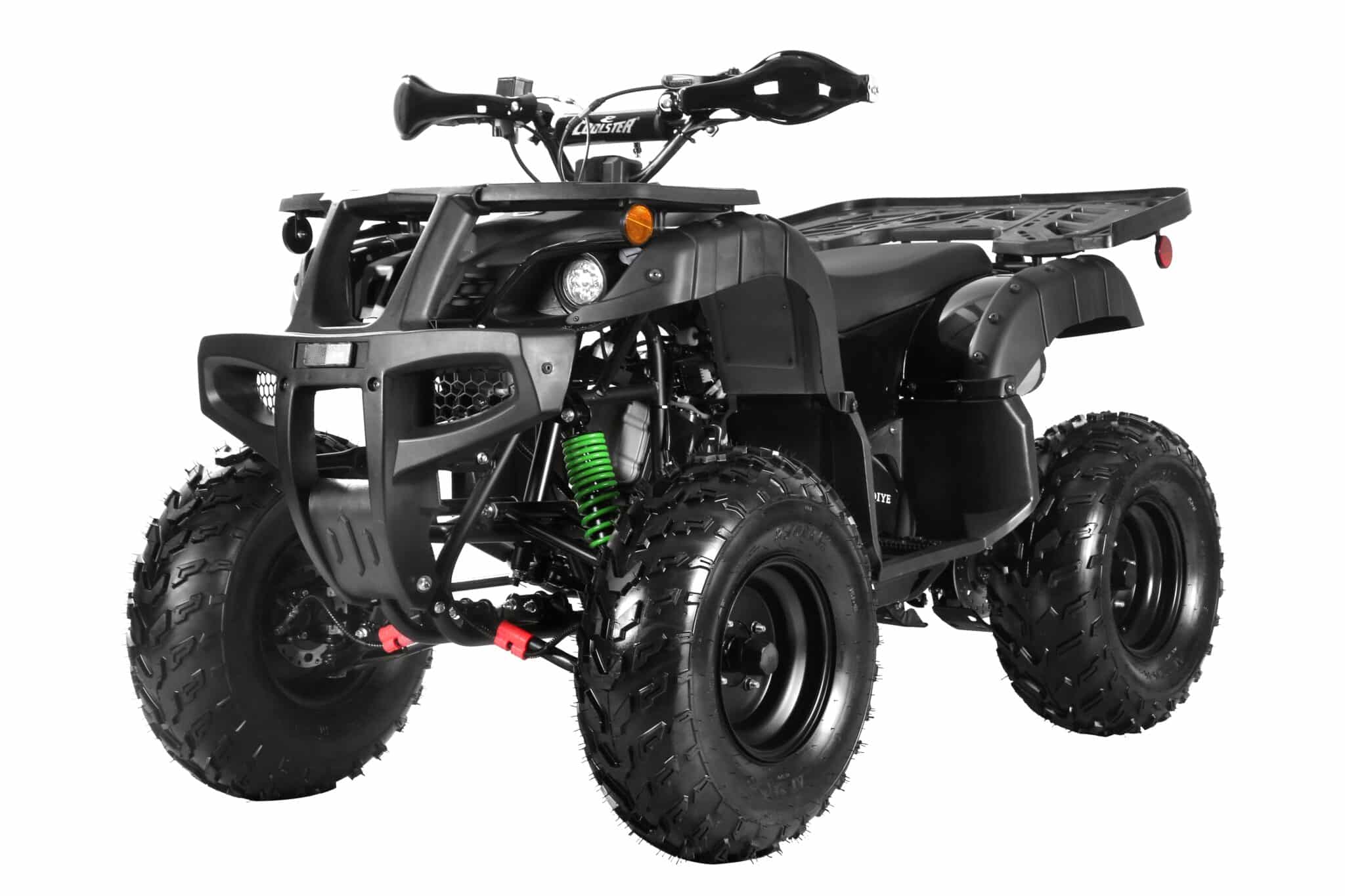

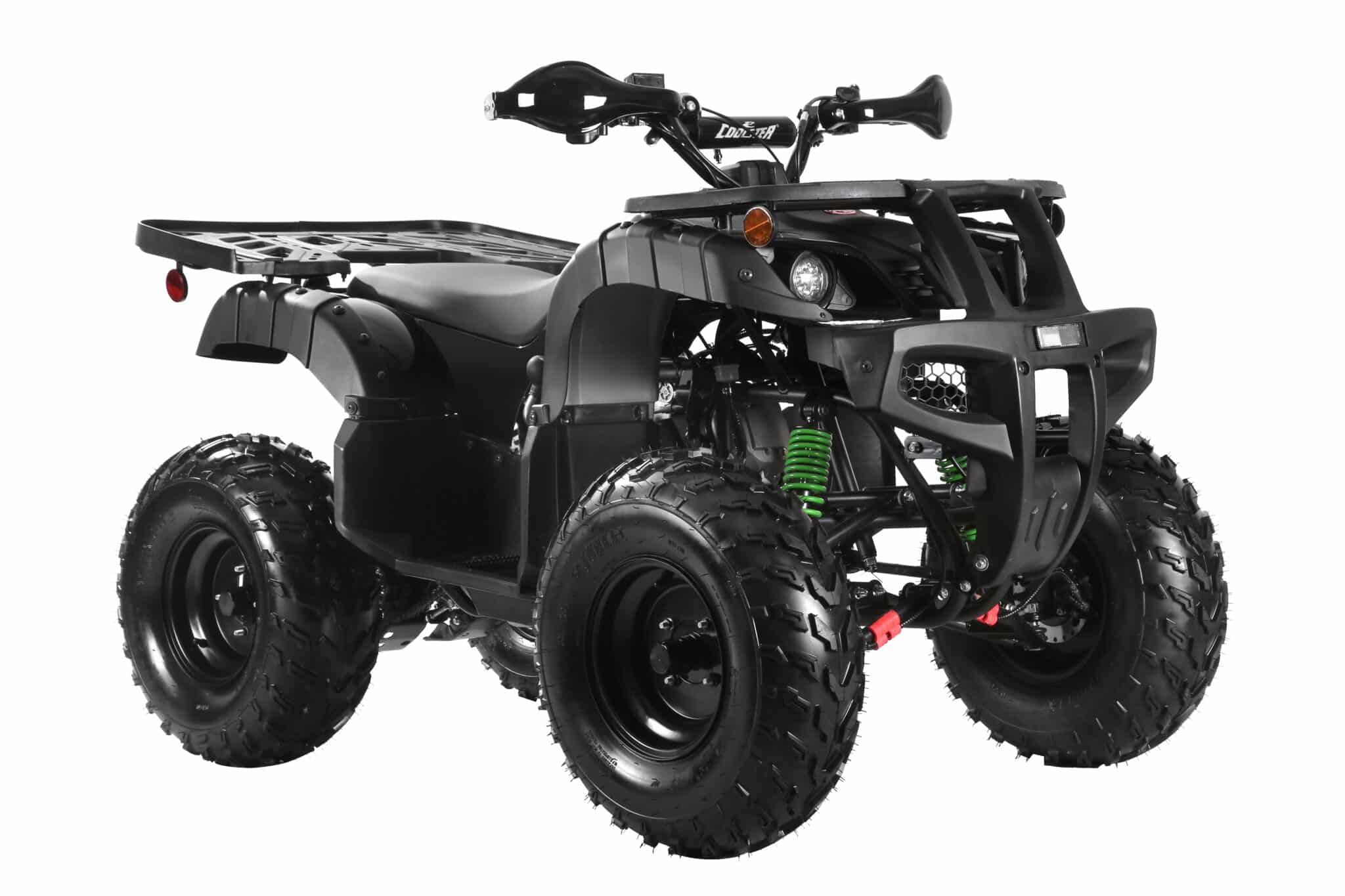

Black
Product Description
Specifications
Parts
Disclaimer
Product Description
The Coolster ATV-3175U is the perfect utility ATV to get work done. The bigger, meaner version of its 150cc counterpart, this new model sports all the glory of its older sibling plus an upgraded front and rear rack system, more durable and tougher plastic body accessories.Â
Â
For more information, please click the tabs, or click here to reach us directly.
Â
Â
Download ATV-3175U Manual (coming soon)
(Must be logged in to download)
Specifications
| Â Model Number: | Â ATV-3175U |
| Â Engine Type: | Â Single cylinder, 4-stroke, air-cooled |
| Â Displacement: | Â 170cc |
| Â Max Torque: | Â 10.2 N.m/5,000r/min (N.m/r/min) |
| Â Max Power: | Â 7.6 kW/7000 r/min (kW/r/min) |
| Â Bore Stroke: | Â 57.4 x 57.8mm |
| Â Ignition: | Â CDI |
| Â Starting System: | Â Electric |
| Â Battery: | Â 12V, 9Ah |
| Â Clutch: | Â CVT Automatic |
| Â Transmission: | Â Chain, rear wheel drive |
| Â Brakes Front/Rear: | Â Hydraulic disc |
|  Tires Front/Rear: |  23 x 7 – 10 / 22 x 10 – 10 |
| Â Fuel Capacity: | Â 5.6L |
| Â Weight: | Â (G.W./N.W) 183 kg/164 kg |
| Â Wheelbase: | Â 1215mm |
| Â Dimensions: | Â 1,825 x 1,075 x 1100 mm |
| Â Height to Seat: | Â 620mm |
| Â Min. Ground Clearance: | Â 165mm |
Â
Parts
| Image | Name | Price | Buy |
|---|
Disclaimer
Please read the owner’s manual and all on-product warnings. ATVs can be hazardous to operate. For operator’s safety, always wear a helmet, eye protection, and protective gear. Never carry a passenger. Never ride under the influence of drugs nor alcohol. Never ride on public roads nor pavement. Be extra careful on difficult terrain. Never allow a child under the age of 16 to operate an ATV without adult supervision. It is strongly recommended that all ATV riders take a training course. For more information, contact your local dealer or call 1-626-228-0251
