ATV-3125F2
125CC Fully Automatic Mid Size ATV
Previous
Next
3125F2 Parts
Dealers Near You
Specifications
Manual
Exploded Diagram
Disclaimer
3125F2 Parts
| Image | Name | Price | Buy |
|---|
Dealers Near You
Search Location
Dealers: 0
PRINT
Specifications
| Model Number: | ATV-3125F2 |
| Engine Type: | Single Cylinder, 4-Stroke, Air-Cooled |
| Displacement: | 125cc |
| Max Torque: | 6.9N.m/6,500 ± 500r/min (N.m/r/min) |
| Max Power: | 5.5kW/8,500 ± 500r/min (kW/r/min) |
| Bore Stroke: | 52.4 x 55.5mm |
| Ignition: | CDI |
| Starting System: | Electric |
| Battery: | 12V, 5Ah |
| Clutch: | Fully-Automatic |
| Transmission: | Chain, Rear Wheel Drive |
| Brakes Front/Rear: | Hydraulic Disc |
| Tires Front/Rear: | 19 x 7 – 8 / 18 x 9.5 – 8 (10 PSI) |
| Fuel Capacity: | 2.4L |
| Maximum Weight Capacity: | 165 lbs / 75 kg (rider, all cargo and accessories) |
| Wheelbase: | 1010mm |
| Dimensions: | 1,580 x 985 x 1,010mm |
| Height to Seat: | 725mm |
| Min. Ground Clearance: | 135mm |
Manual
Exploded Diagram
Coming soon
Disclaimer
Please read the owner’s manual and all on-product warnings. ATVs can be hazardous to operate. For operator’s safety, always wear a helmet, eye protection, and protective gear. Never carry a passenger. Never ride under the influence of drugs nor alcohol. Never ride on public roads nor pavement. Be extra careful on difficult terrain. Never allow a child under the age of 16 to operate an ATV without adult supervision. It is strongly recommended that all ATV riders take a training course. For more information, contact your local dealer or call 1-626-228-0251
Maxtrade LLC. 2022

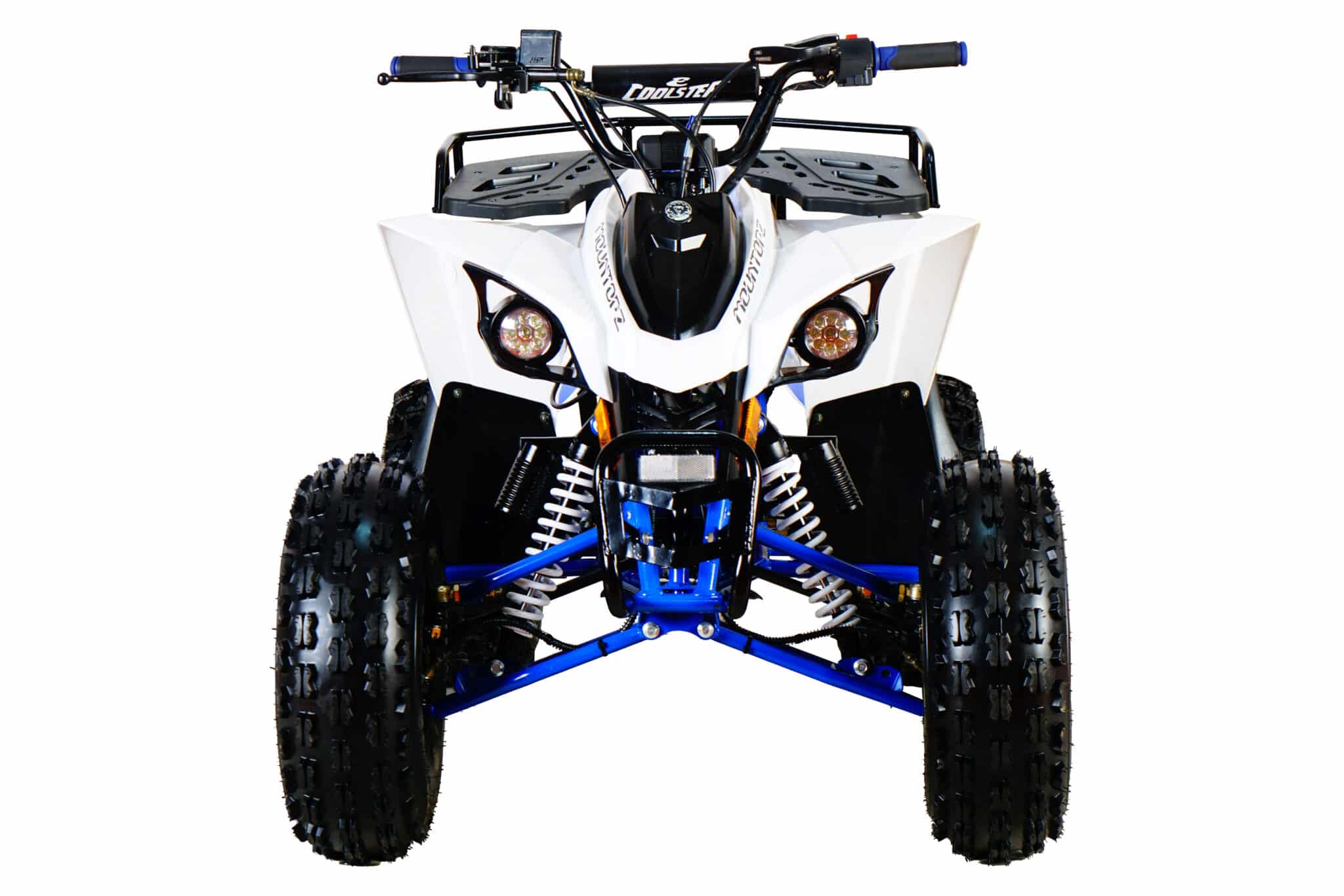

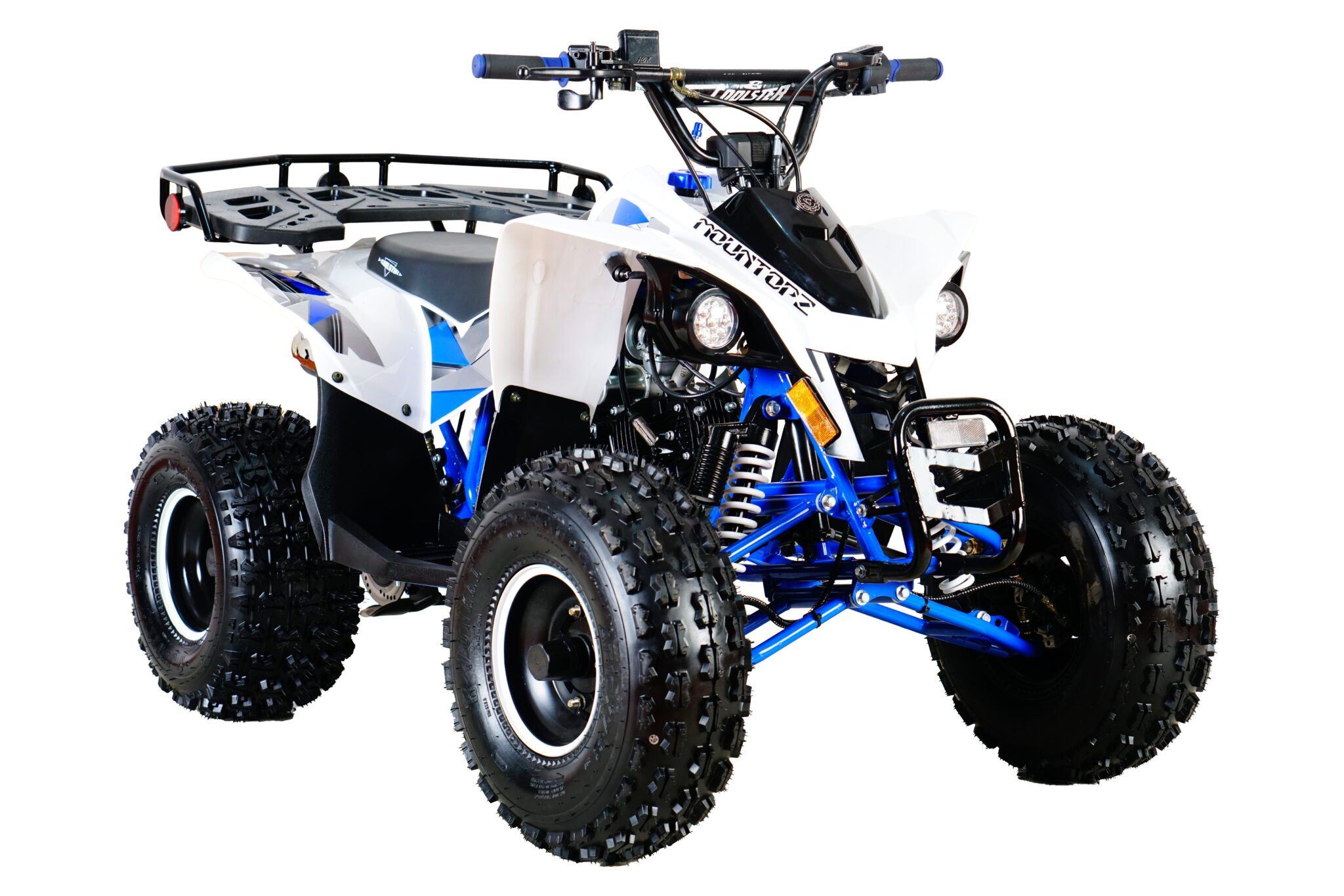

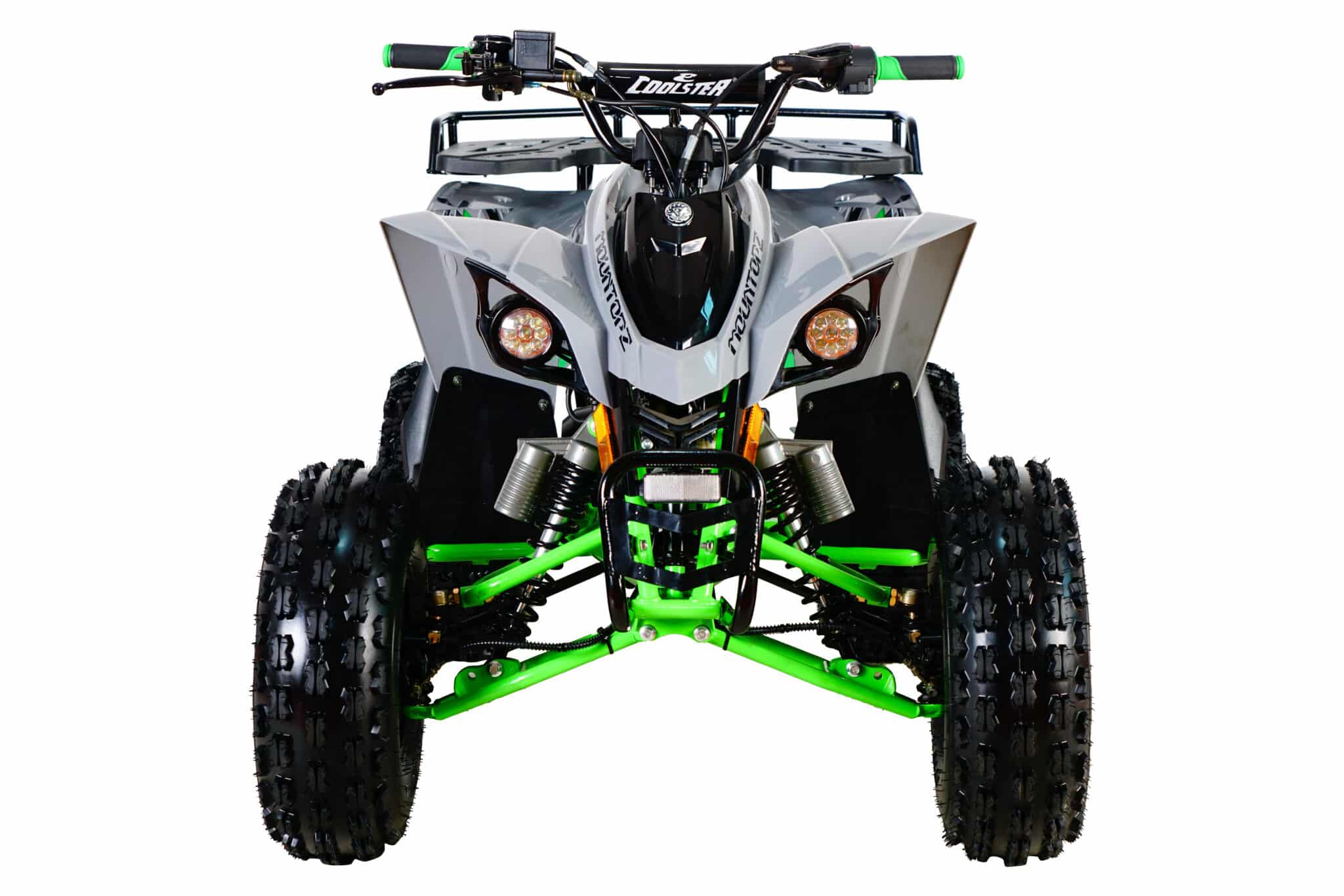

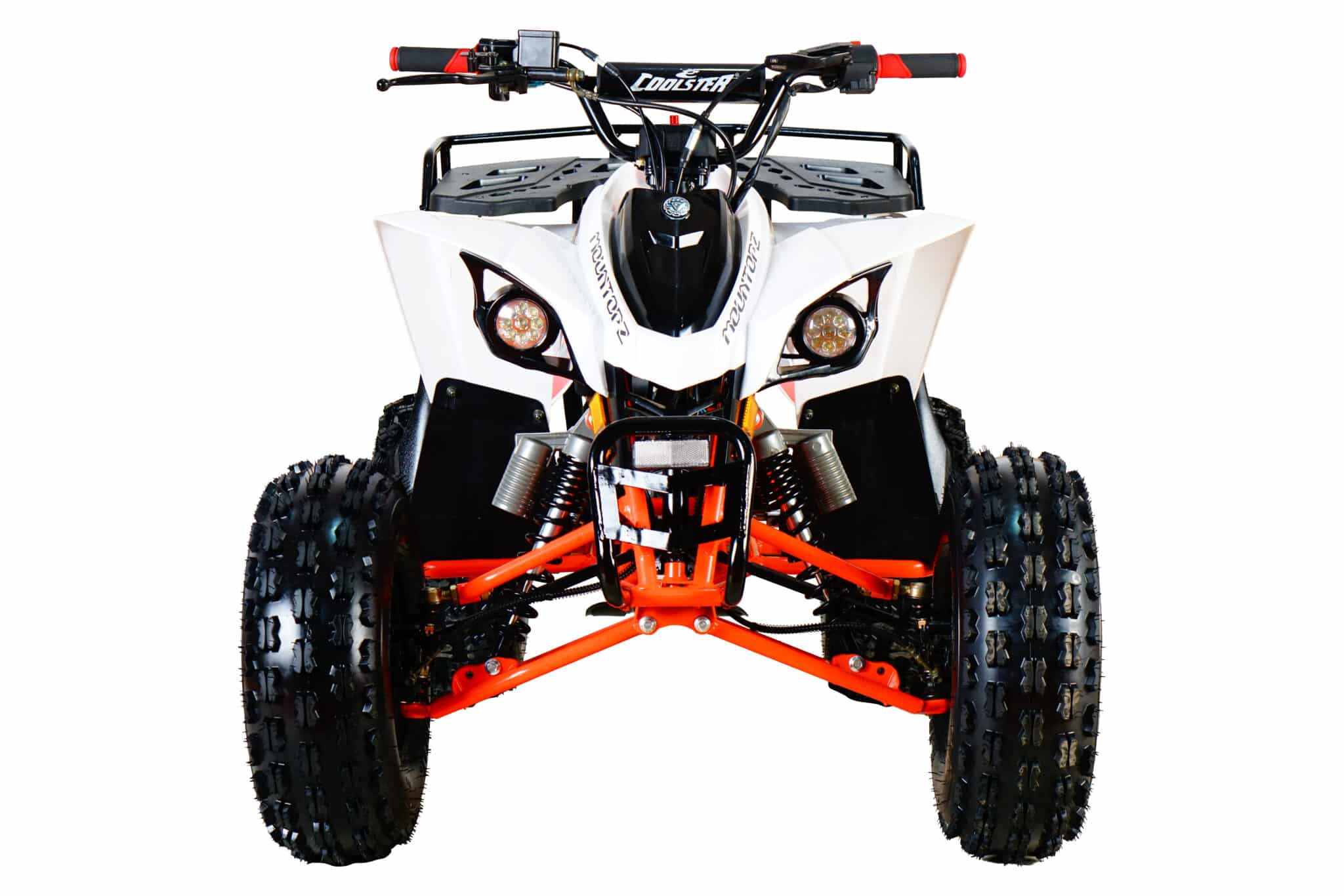

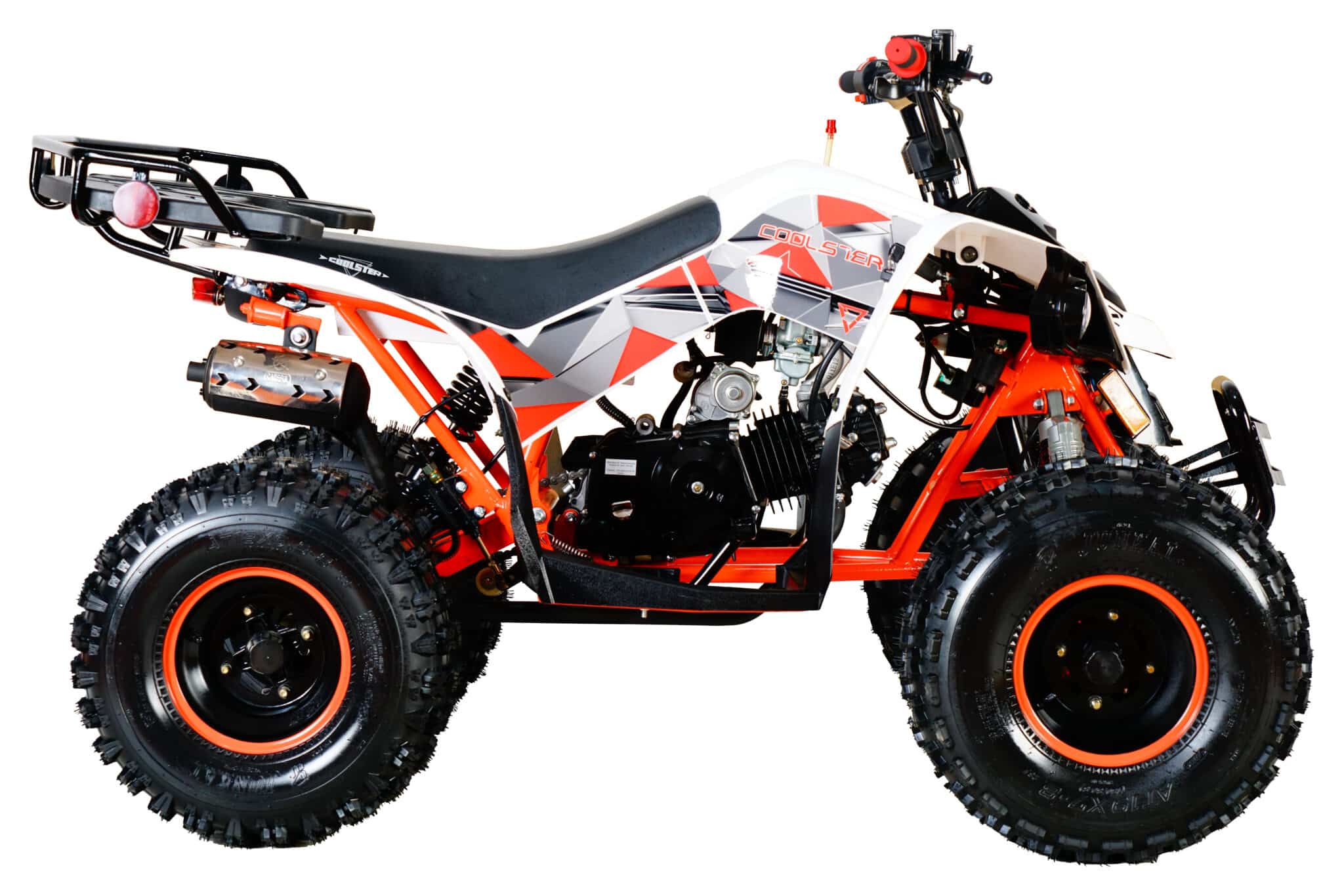

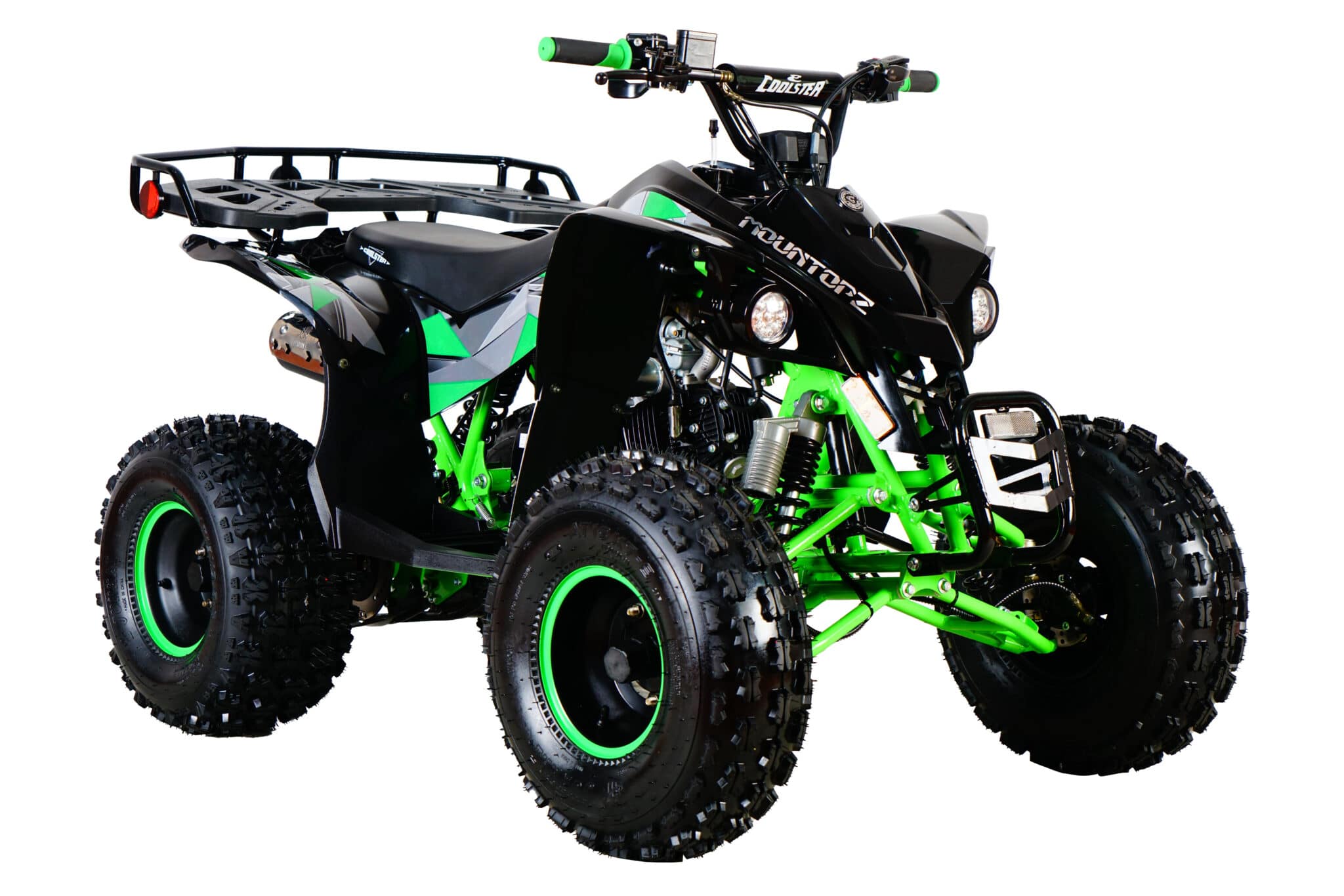

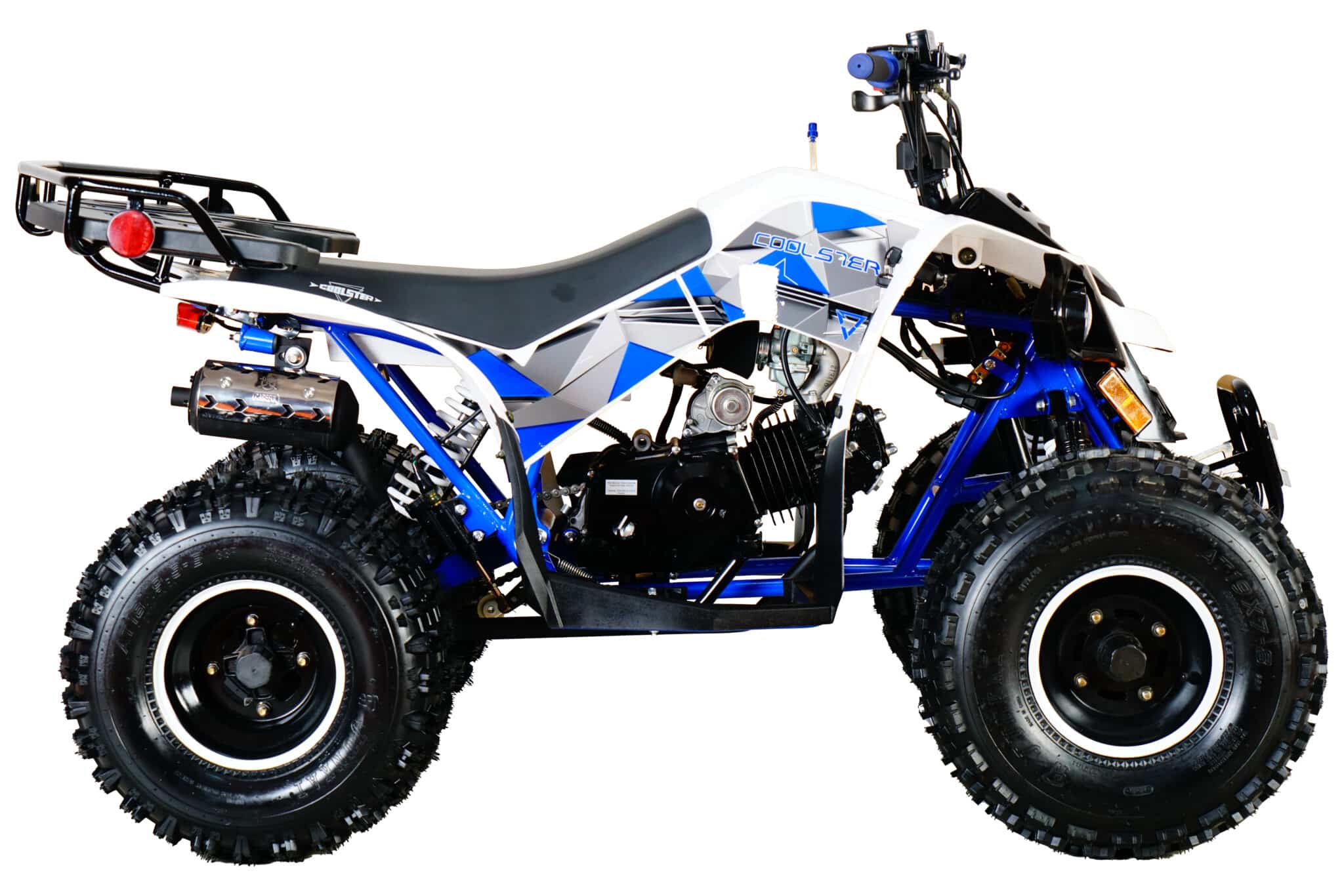

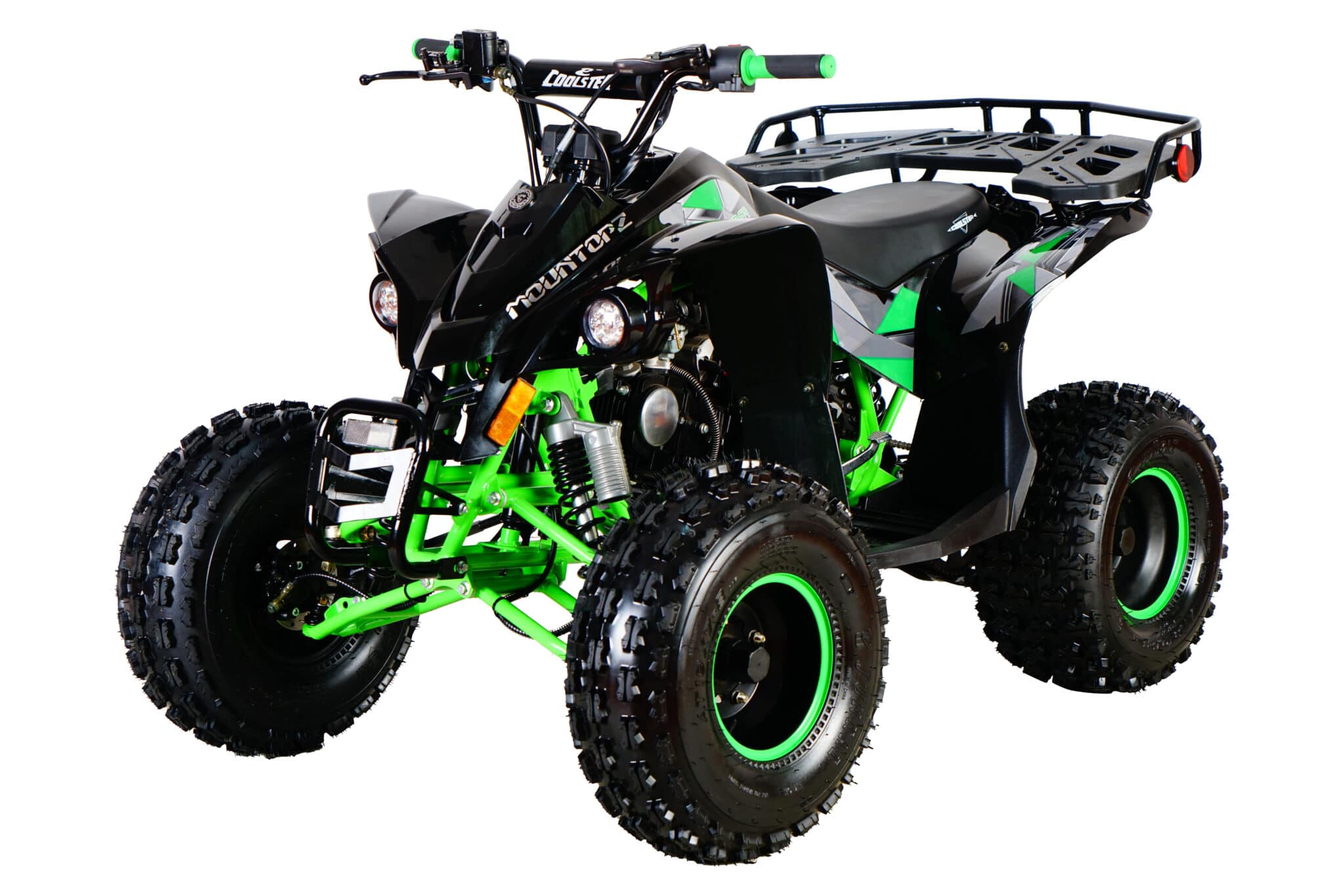

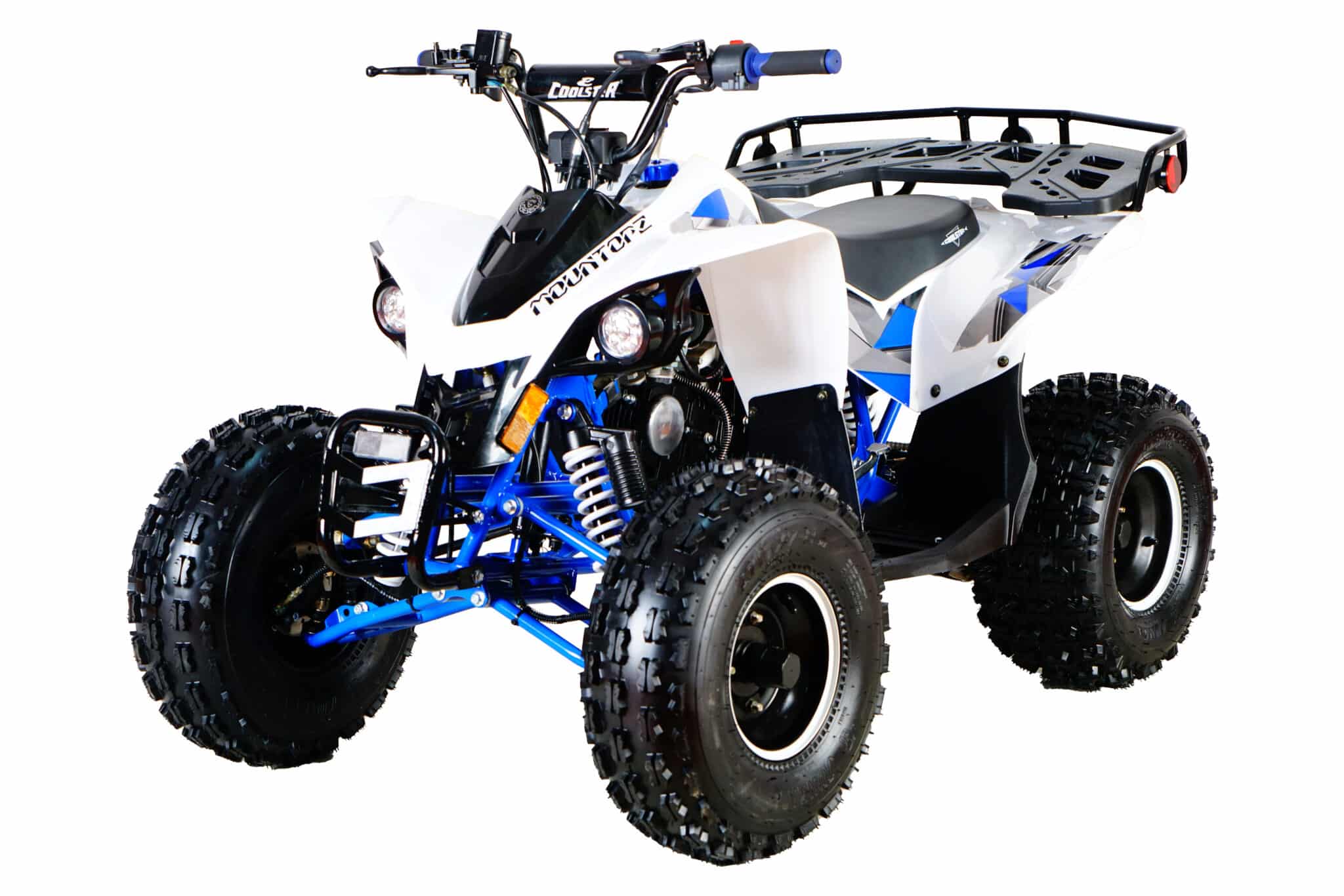

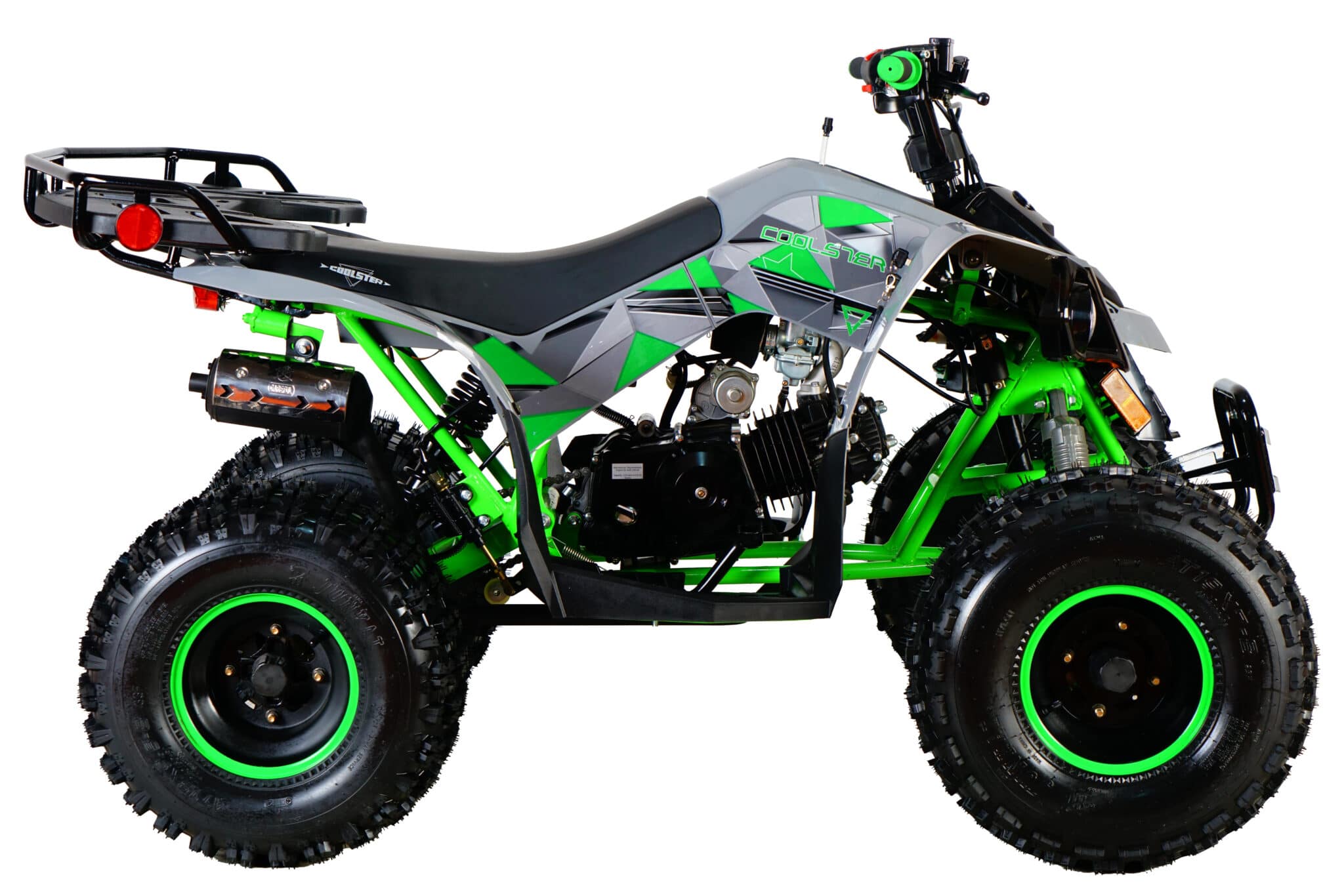

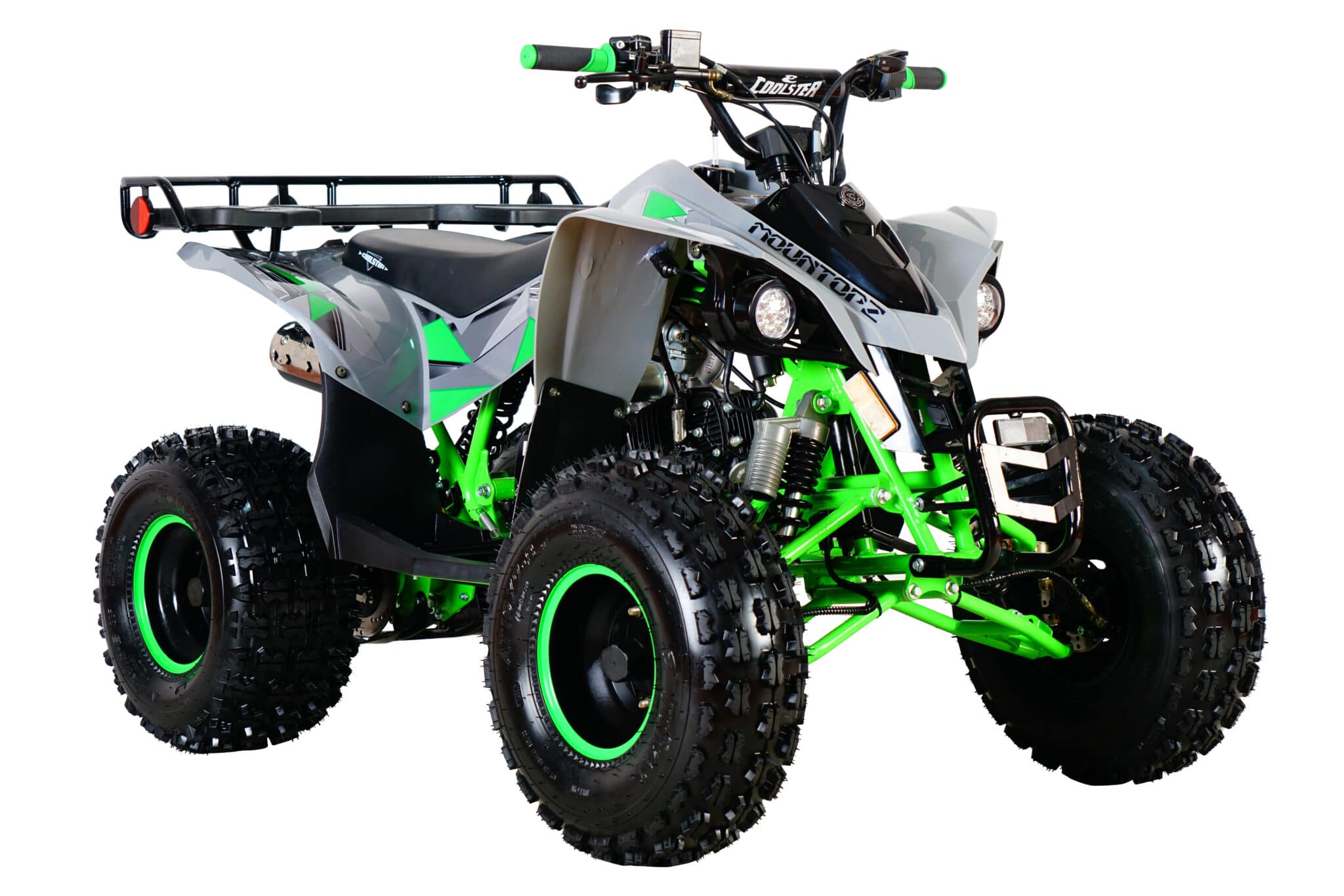

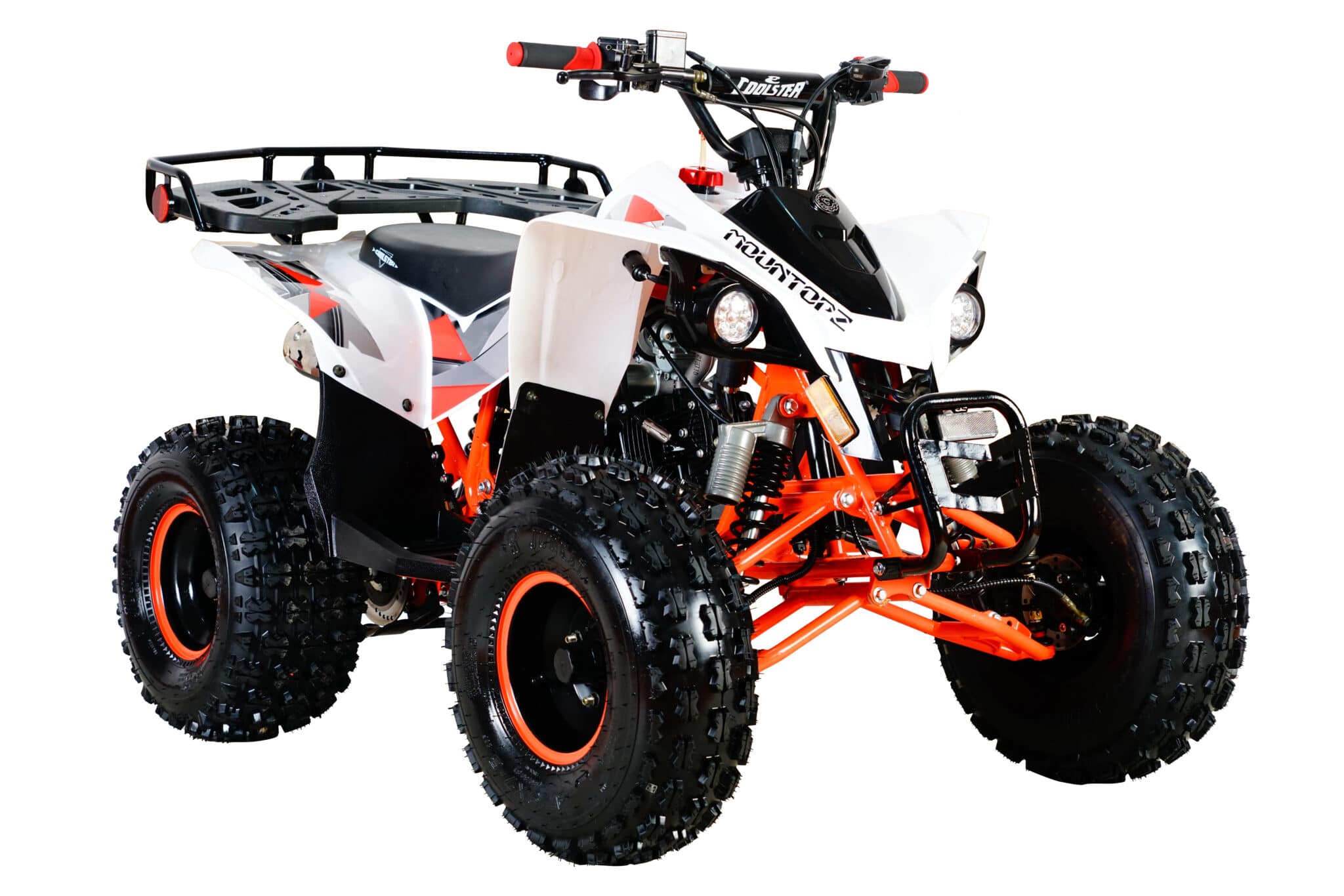

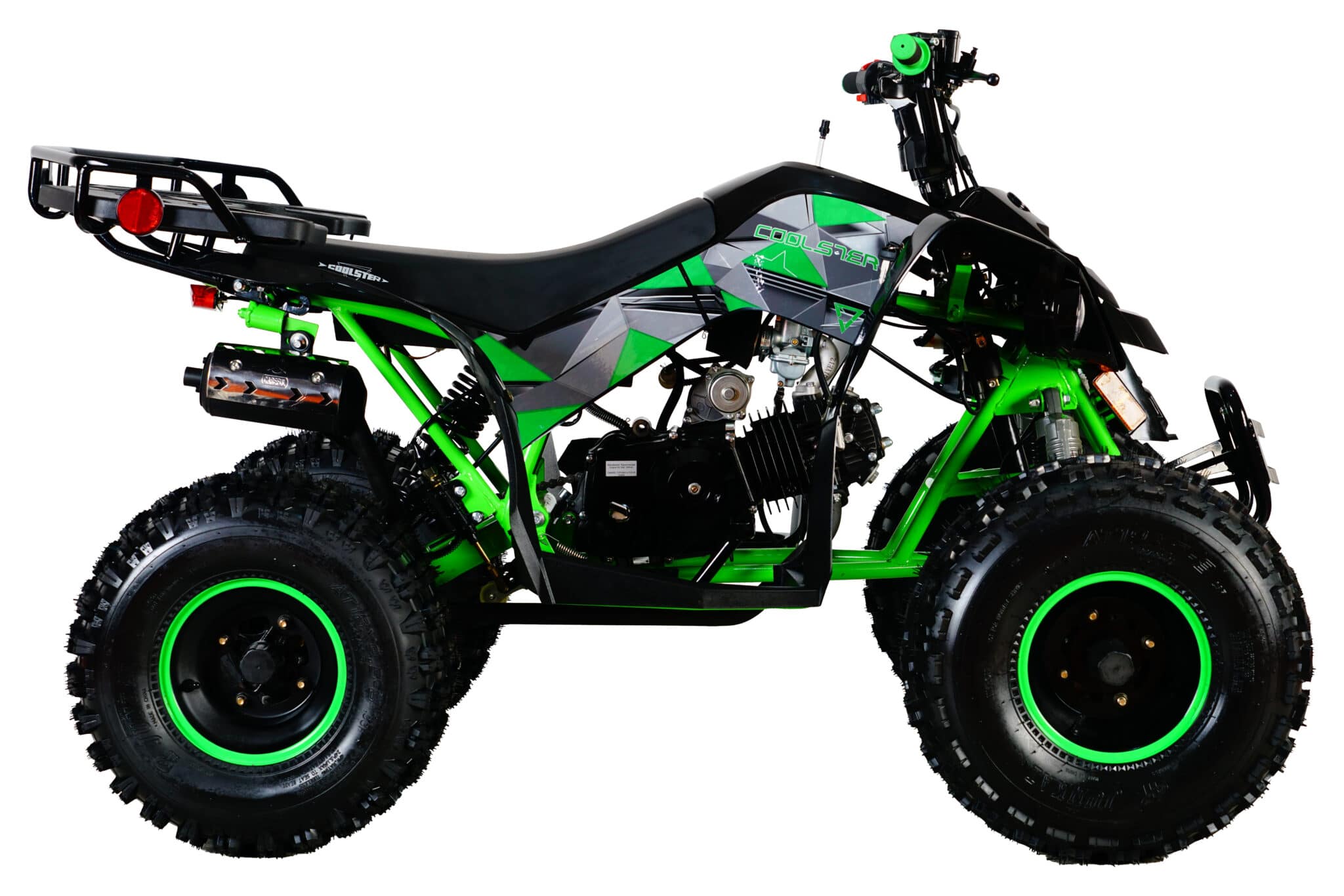

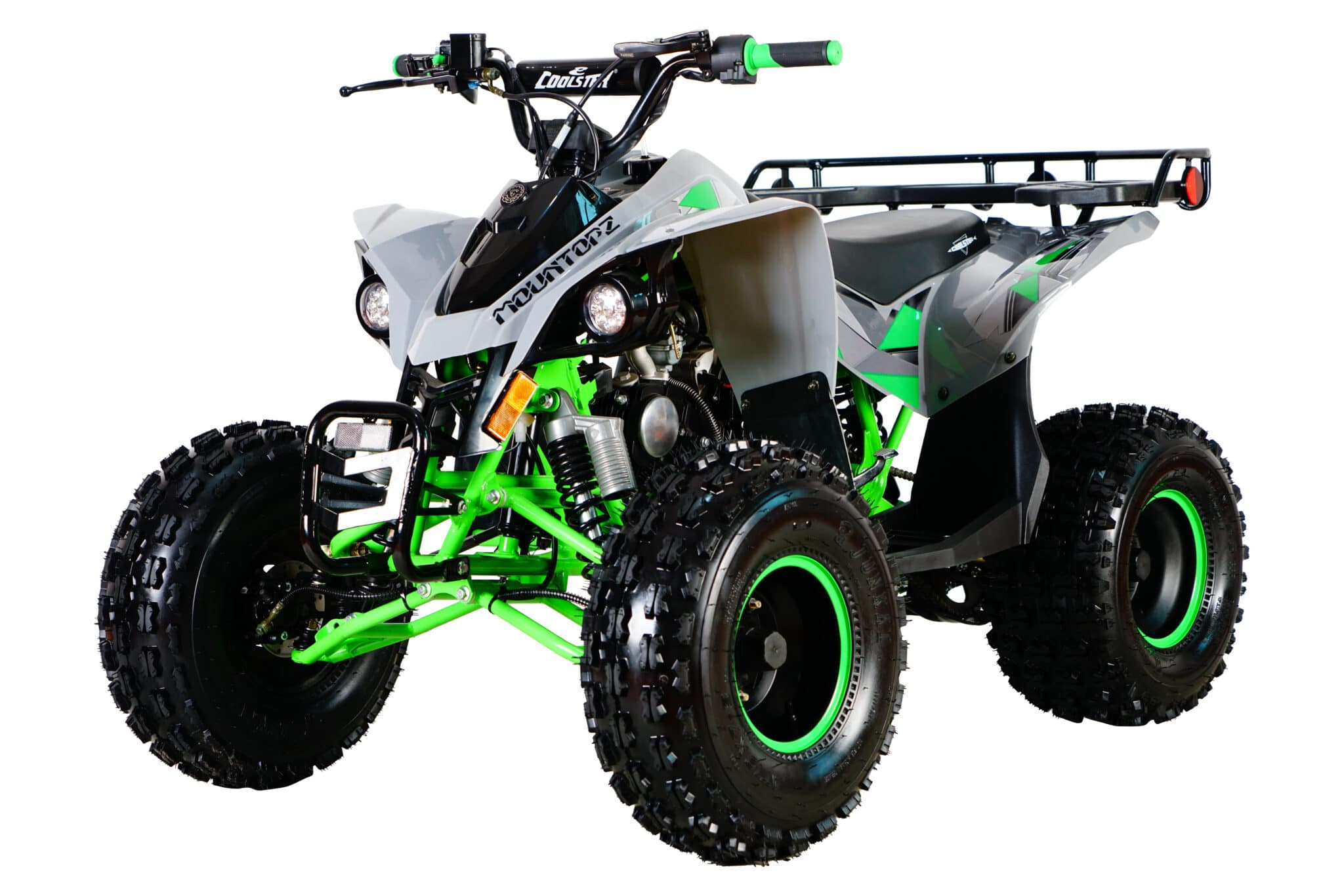

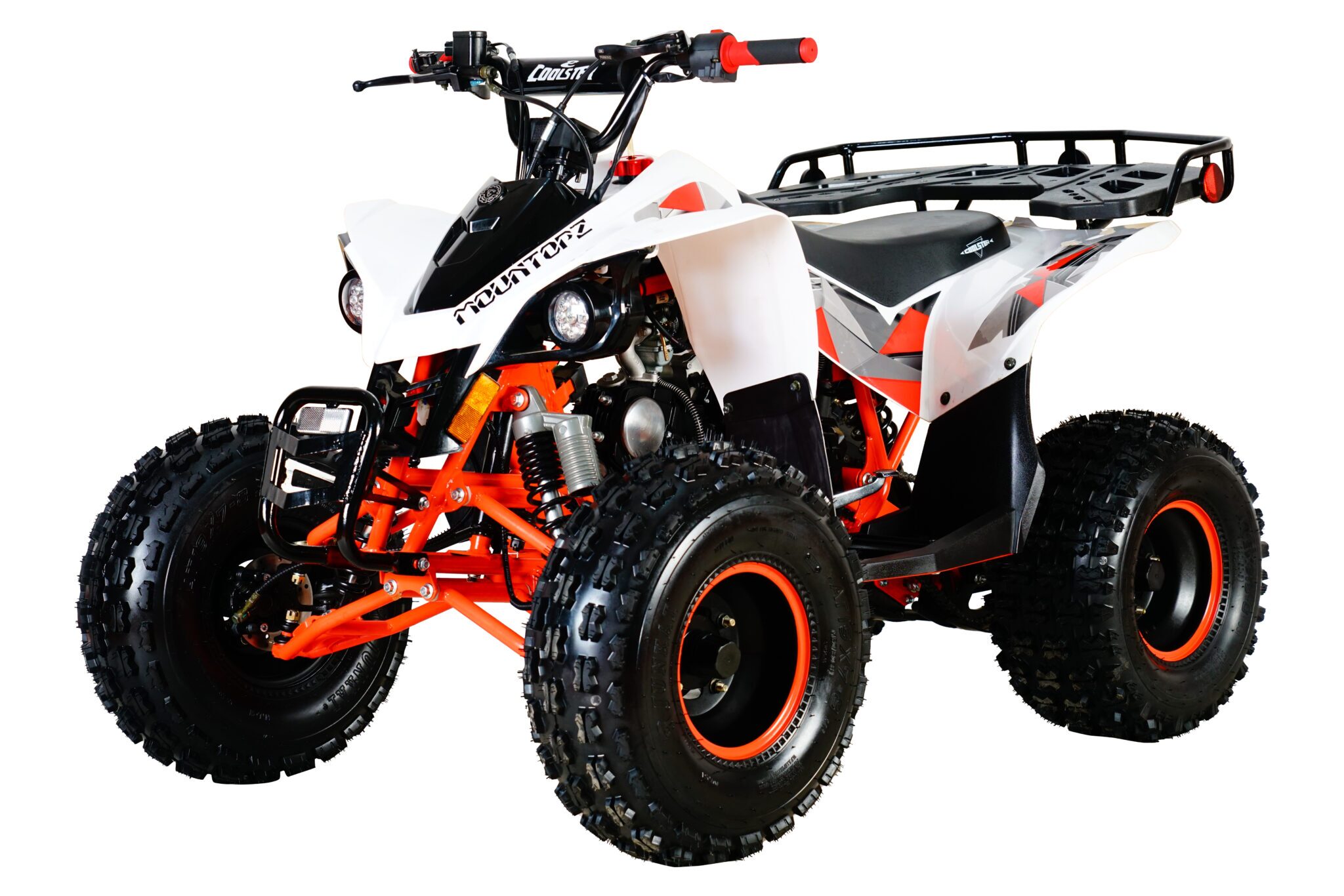

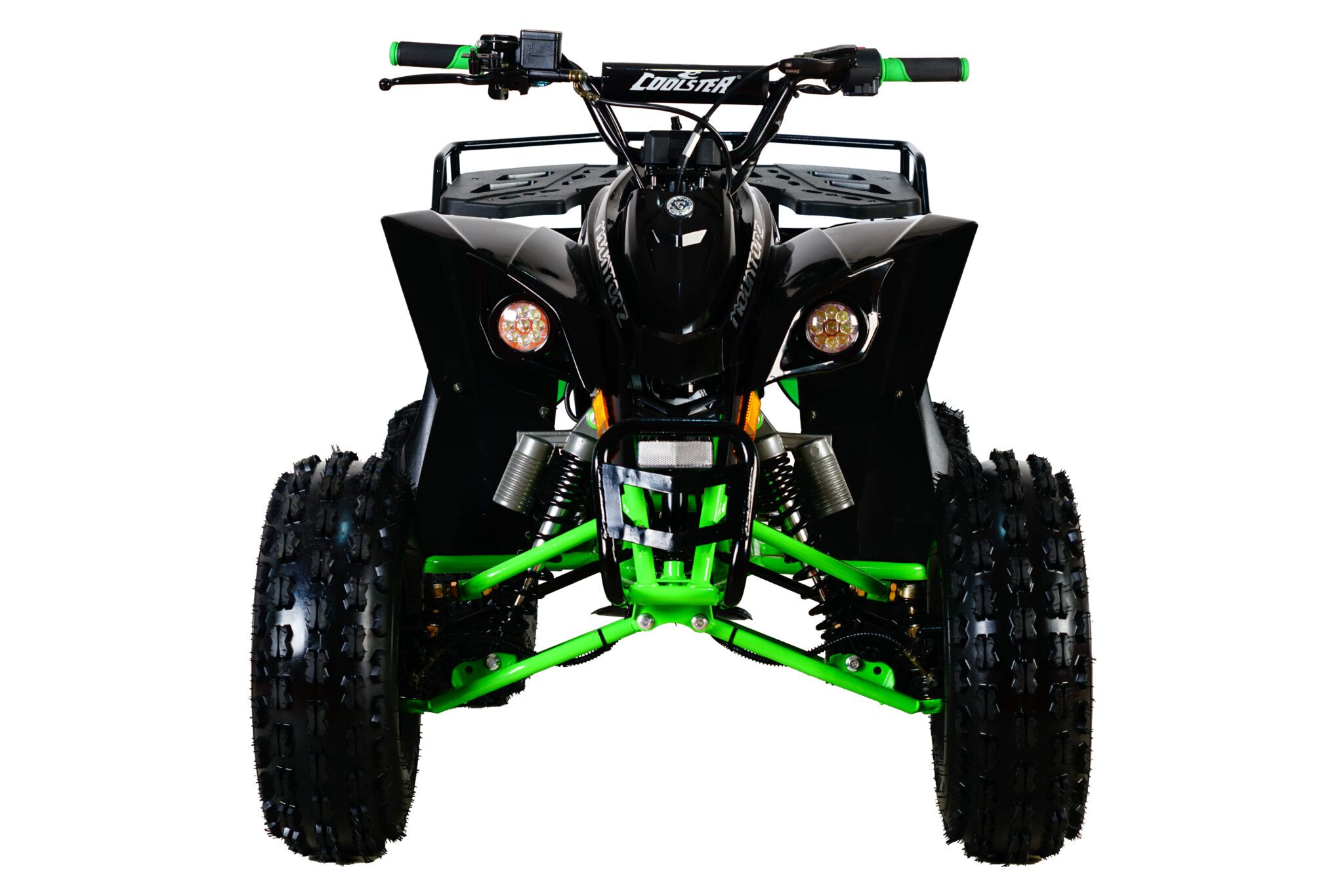

The Coolster ATV-3125F2 is the latest addition to the MOUNTOPZ line, sporting a futuristic look that is the first of its kind. The Coolster ATV-3125F2 has an array of features, such as its reinforced plastic body, metal grille, modern LED headlights and a more durable rear rack. The vehicle is equipped with a 125cc fully automatic engine and is a great vehicle to use for trail riding.
