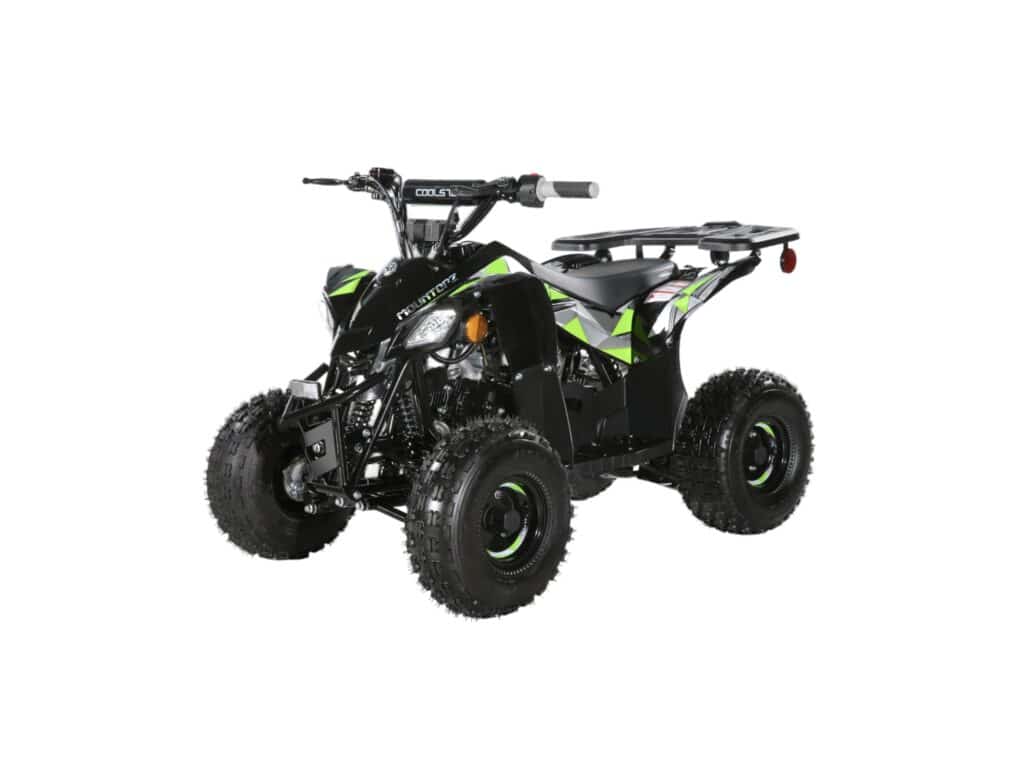

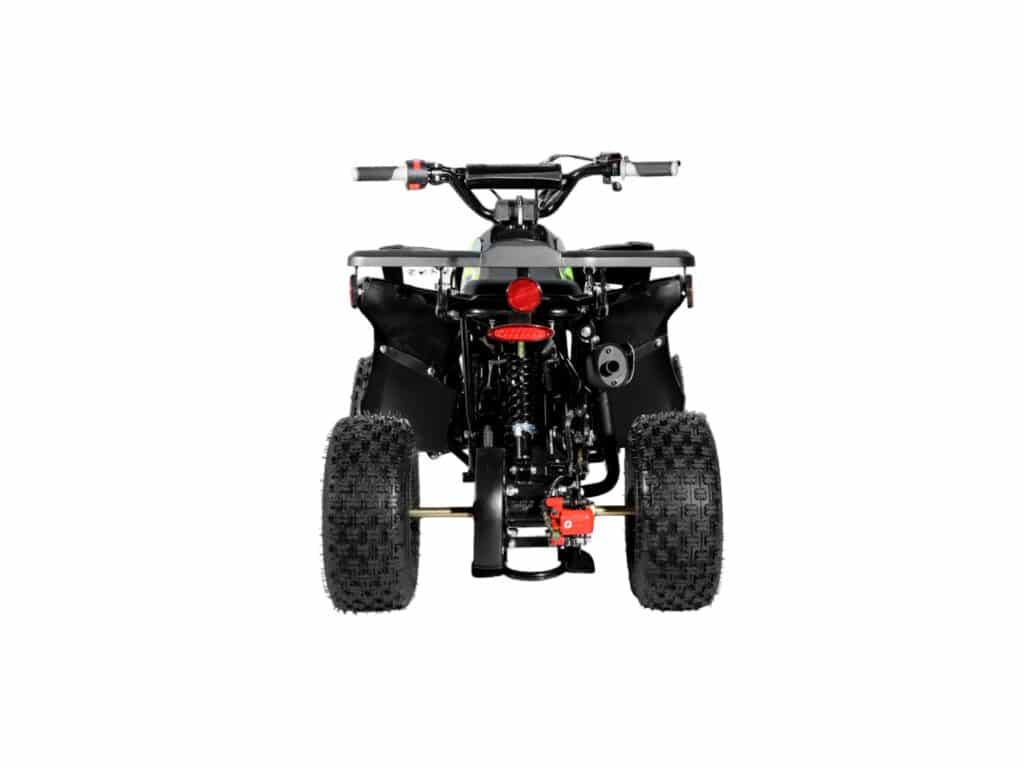

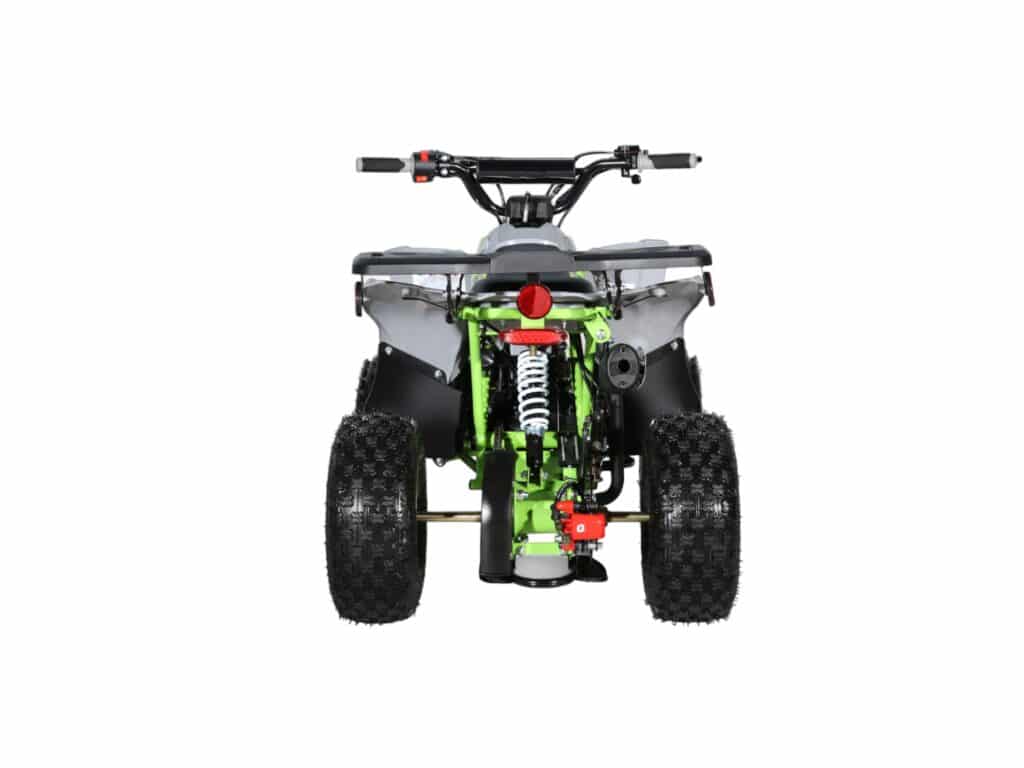

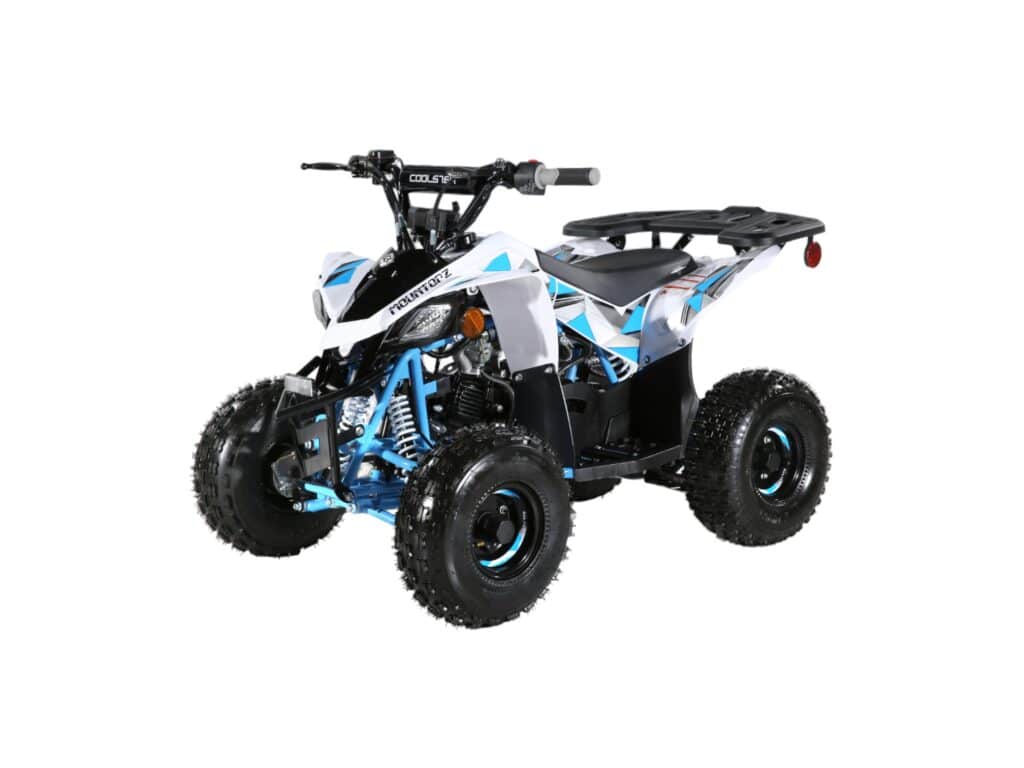

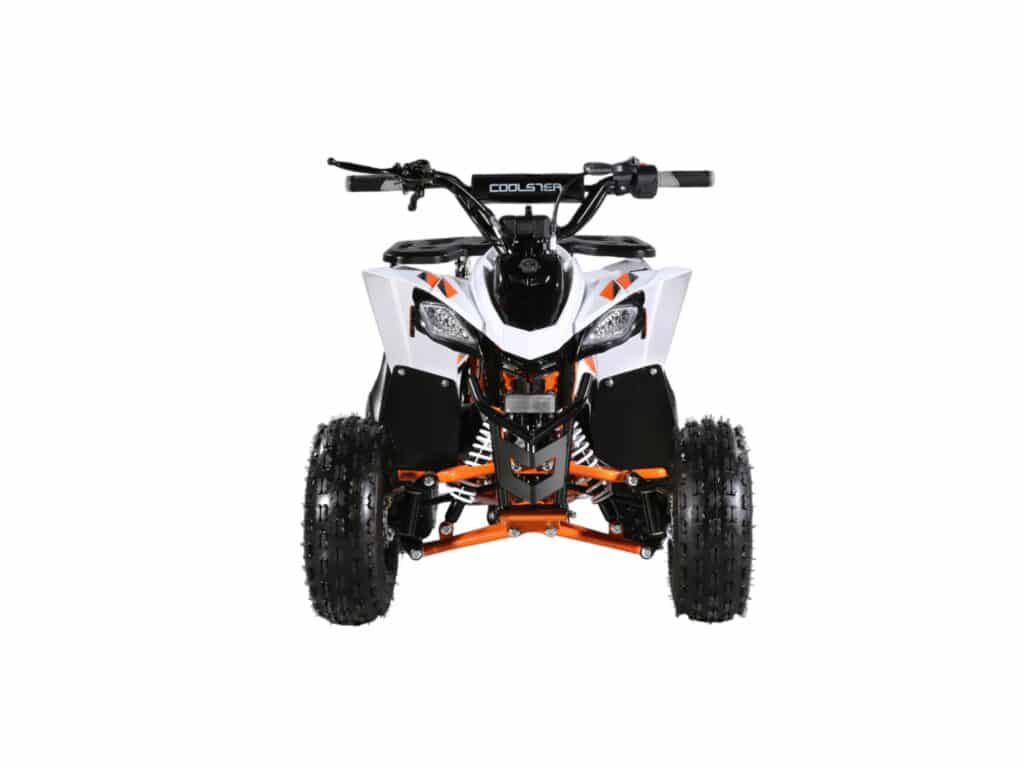

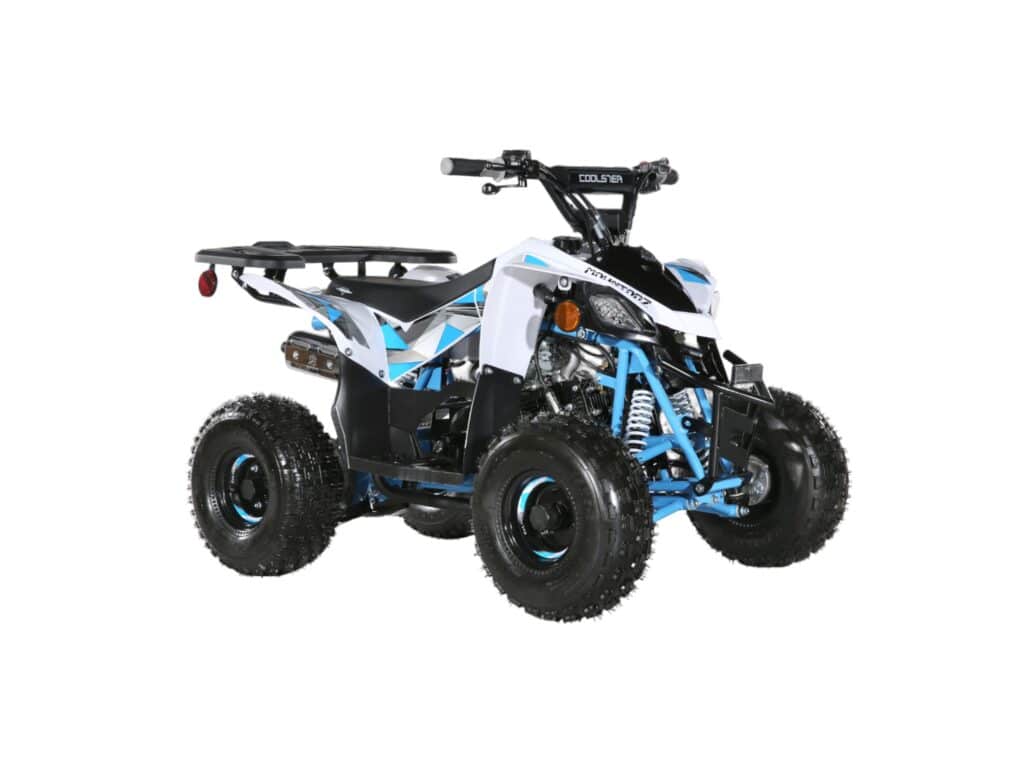

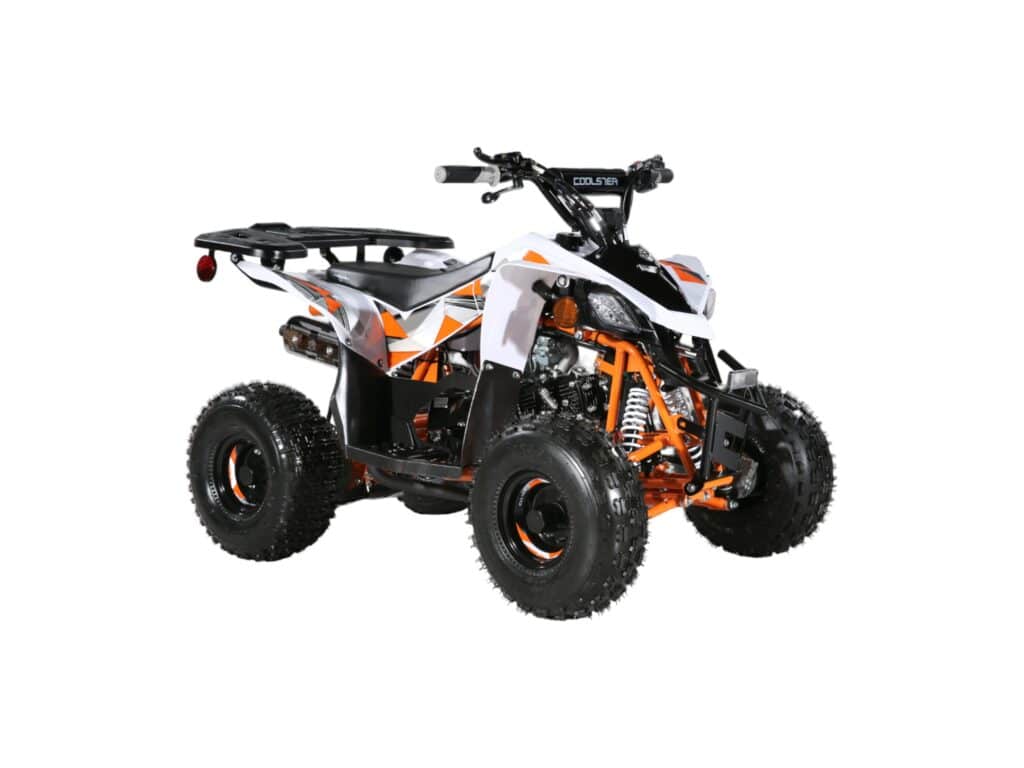

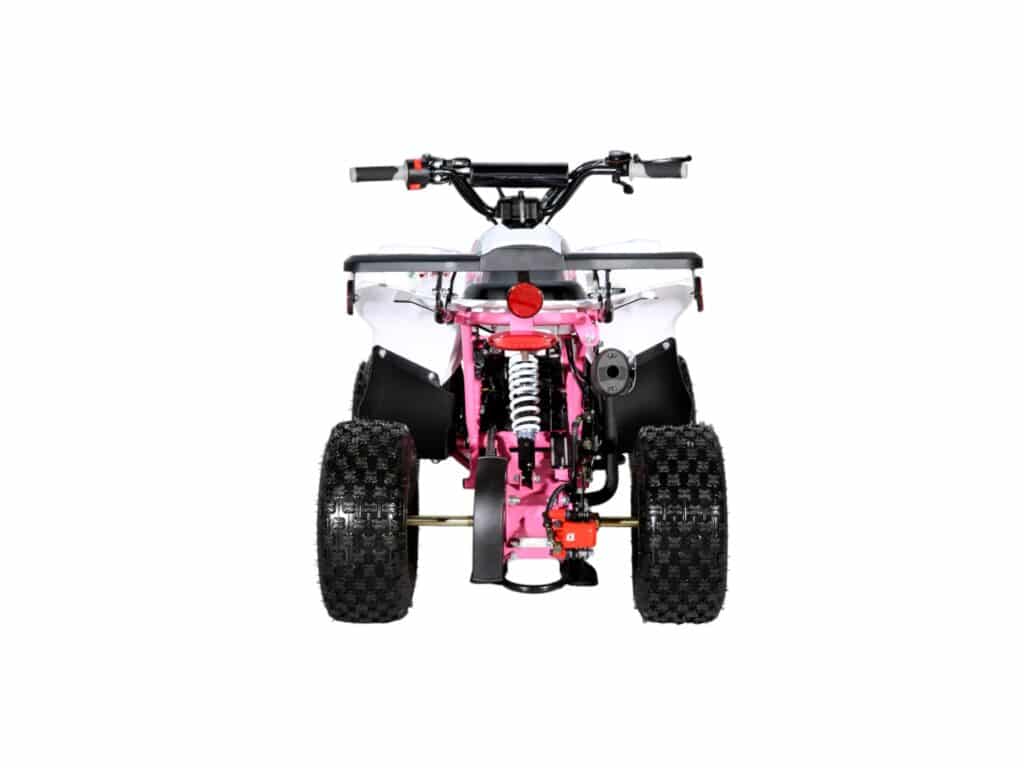

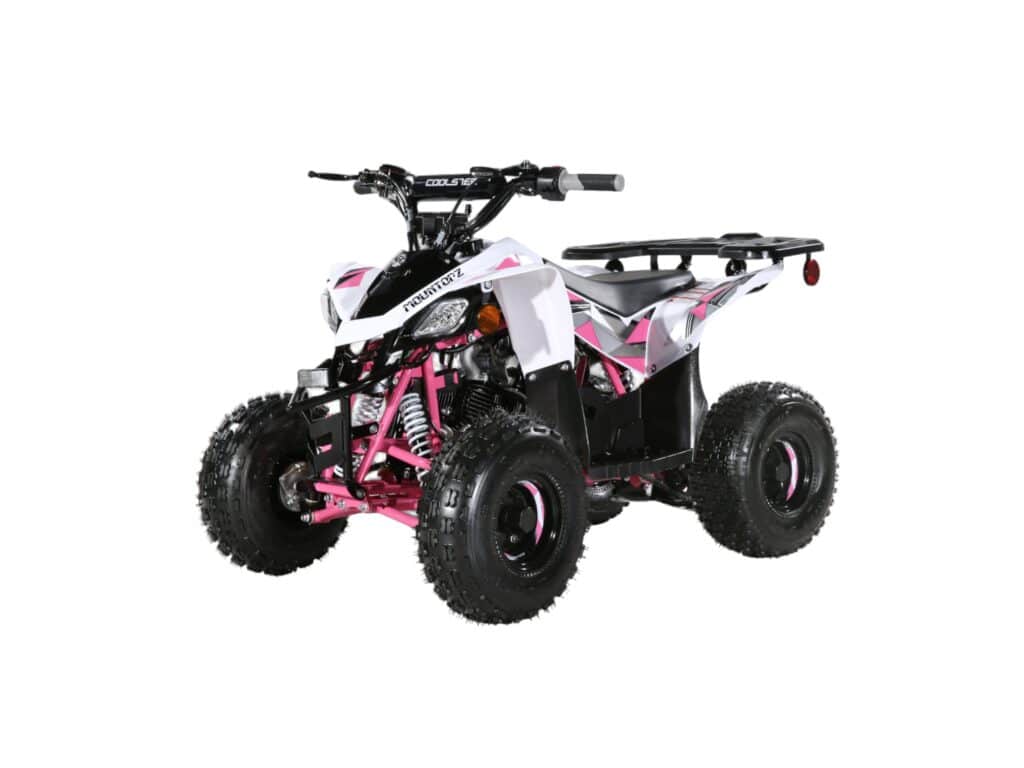

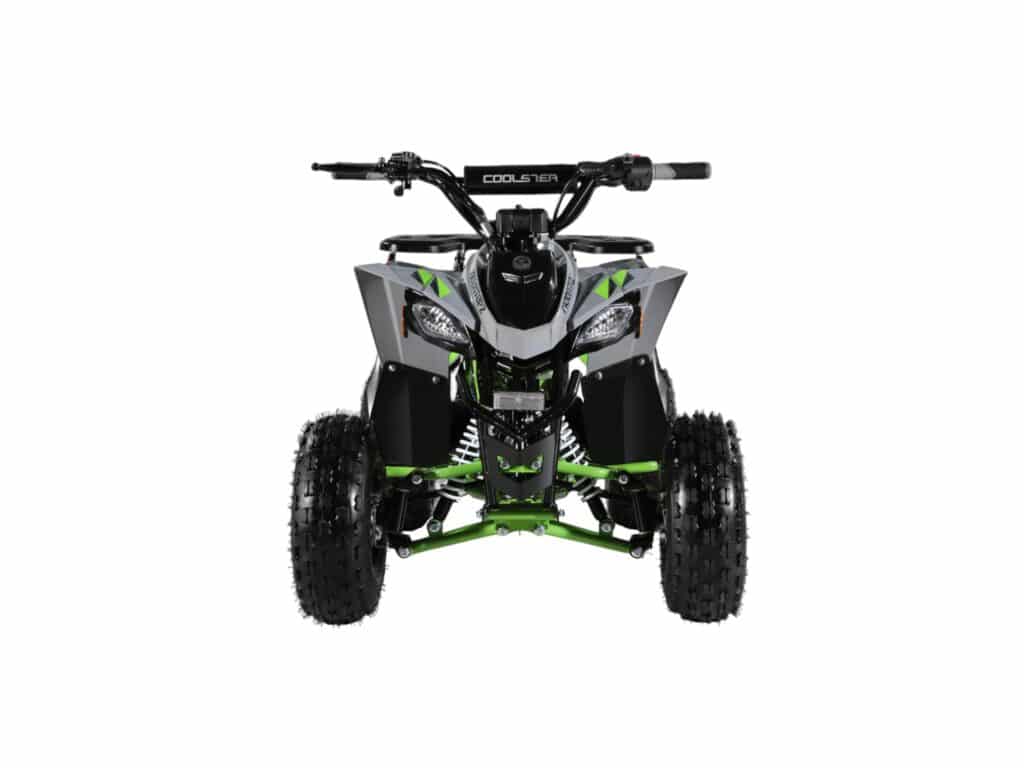

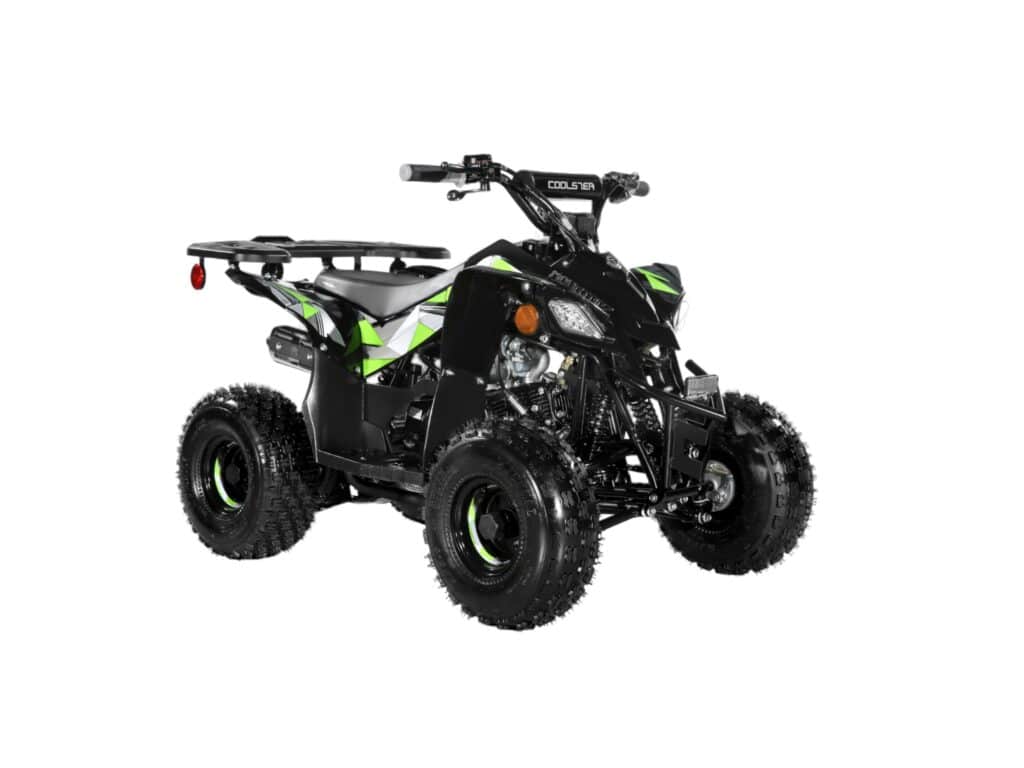

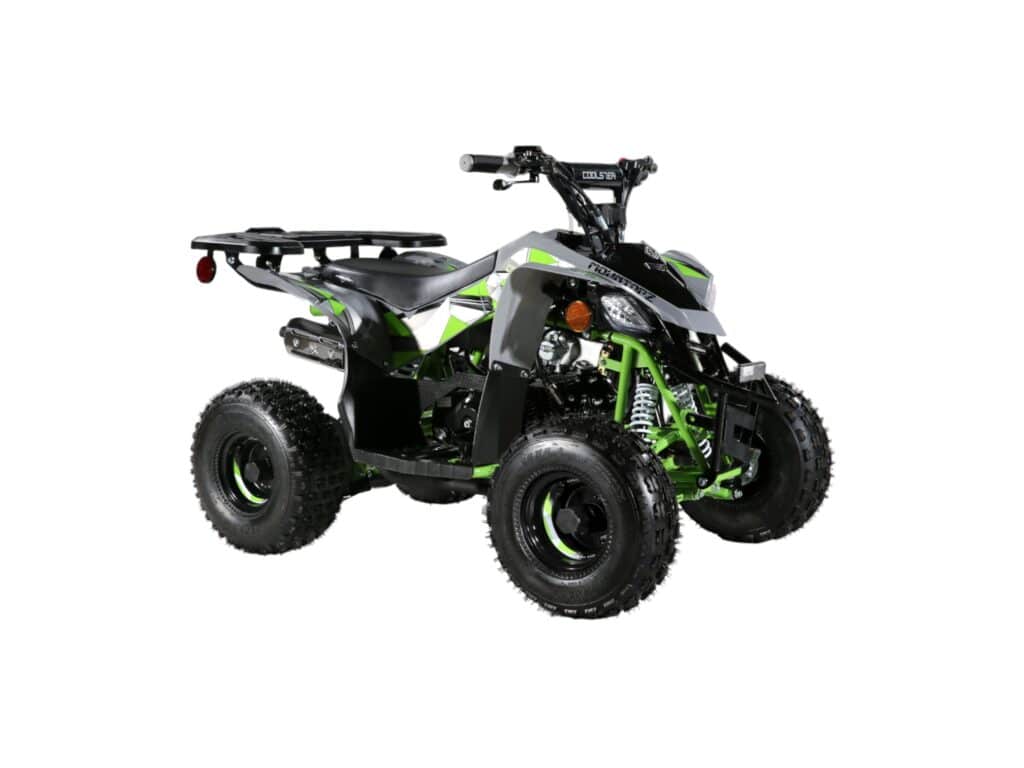

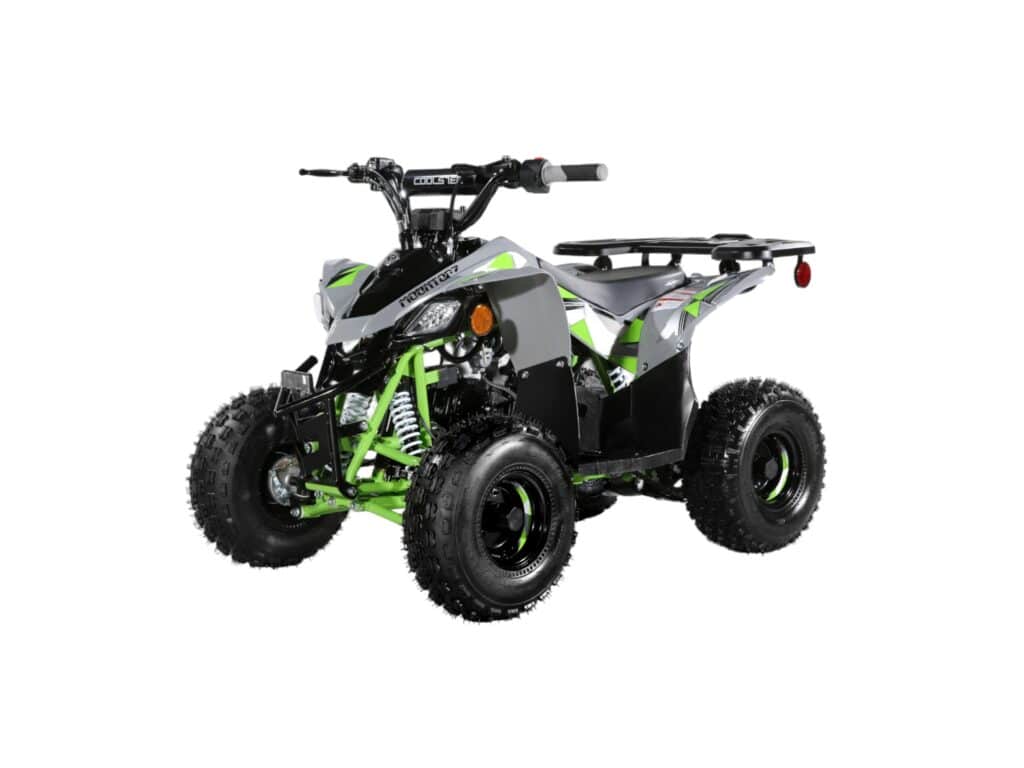

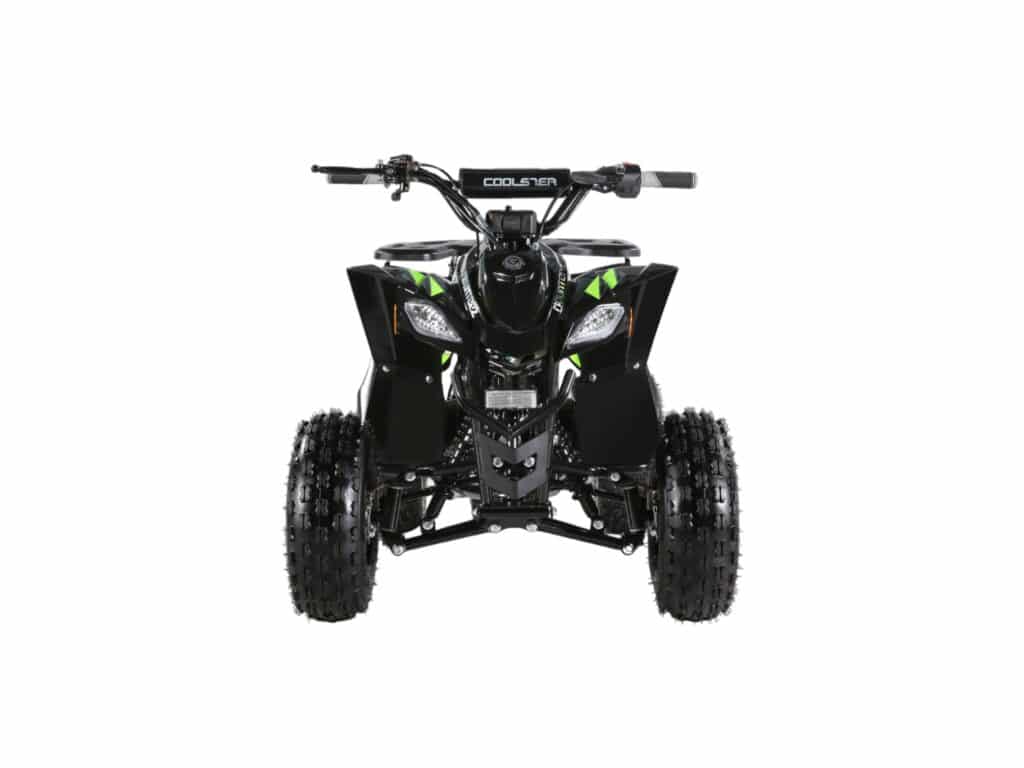

ATV-3050B2
110CC Fully Automatic Mini Size ATV

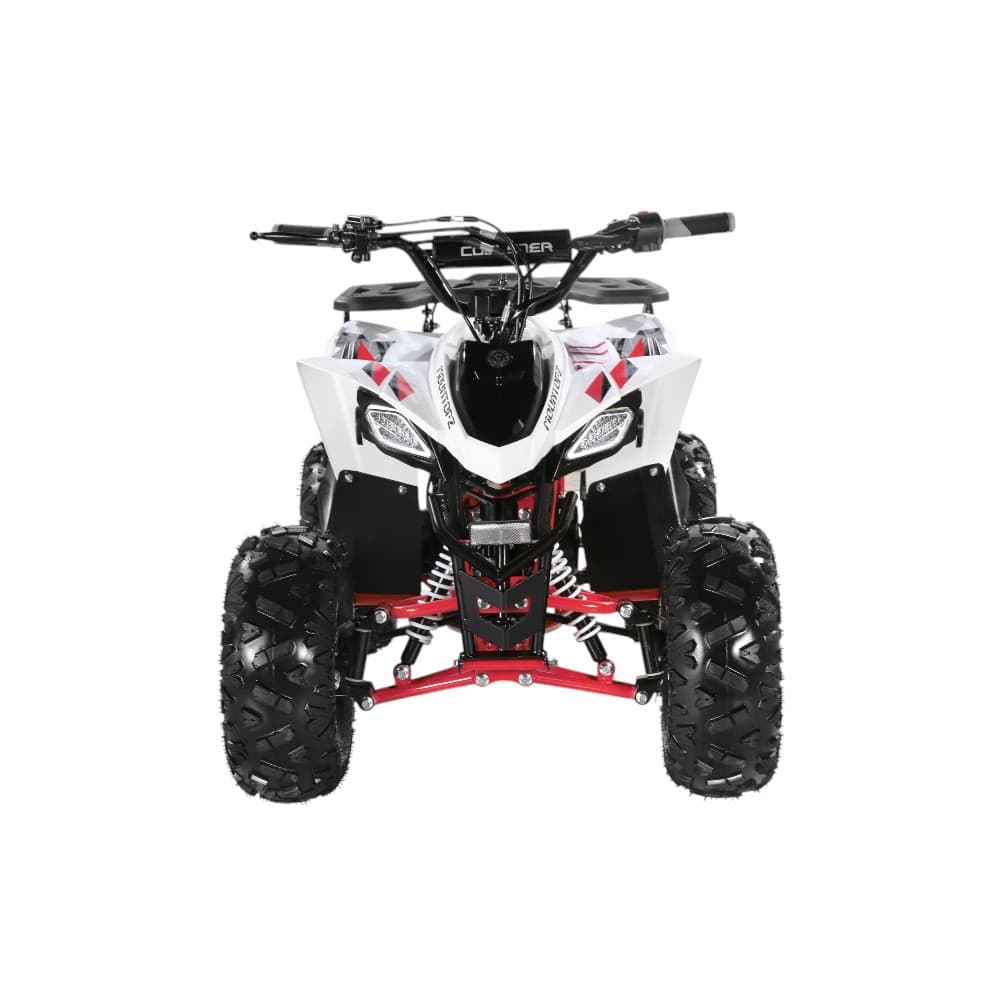

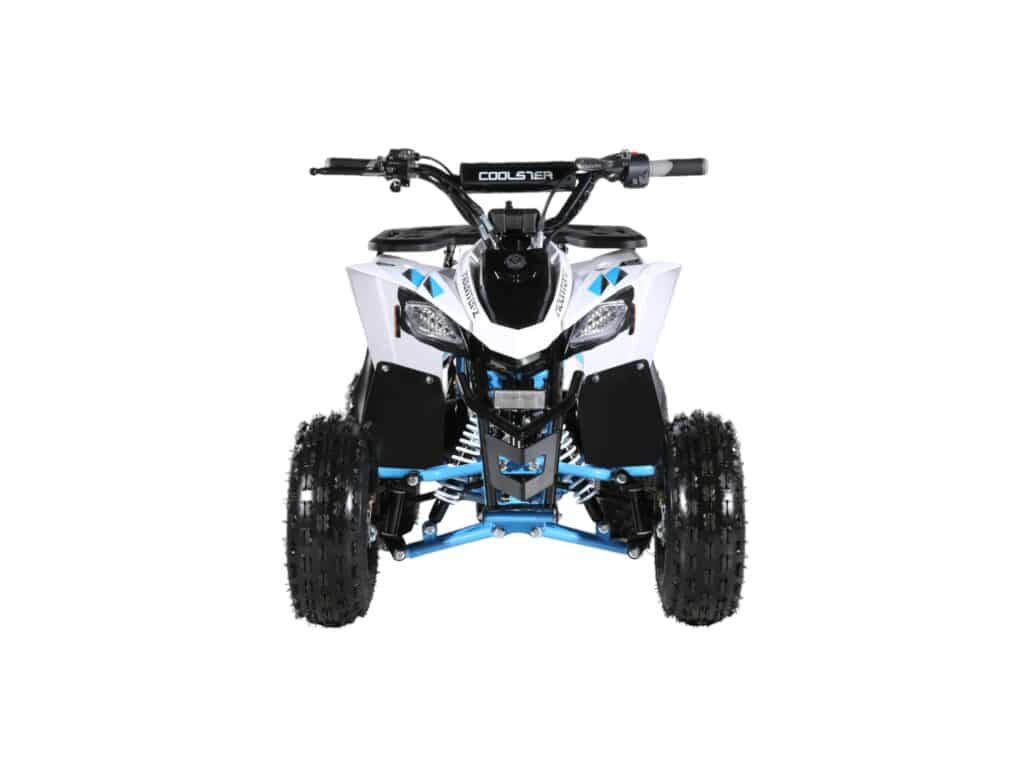

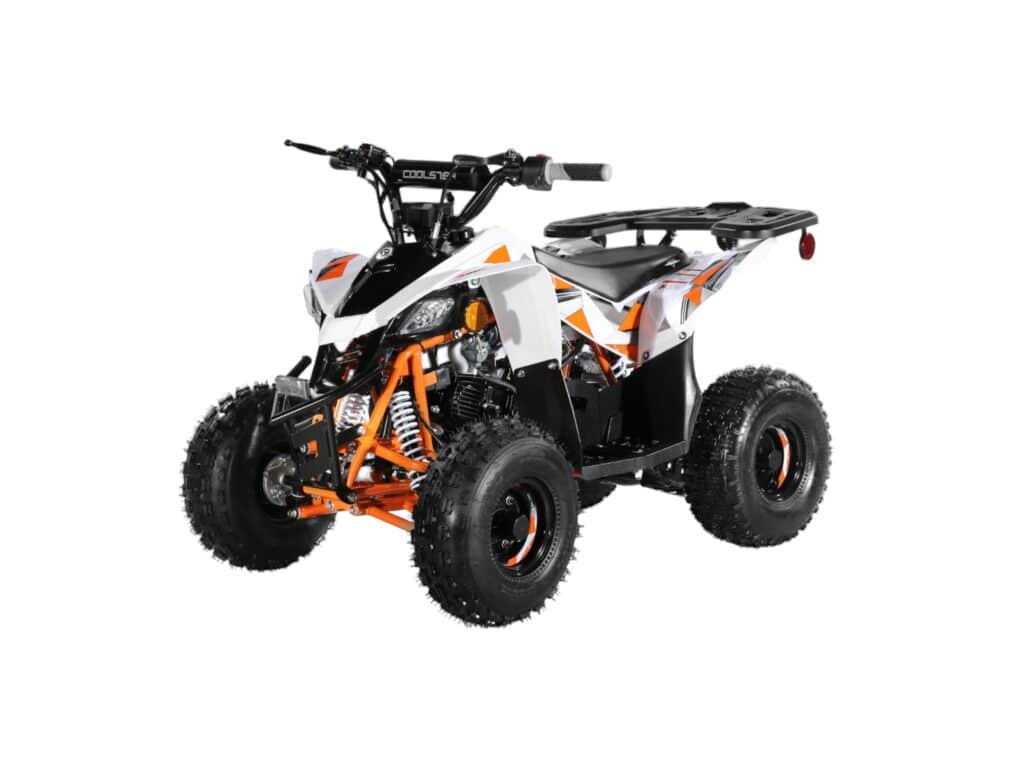

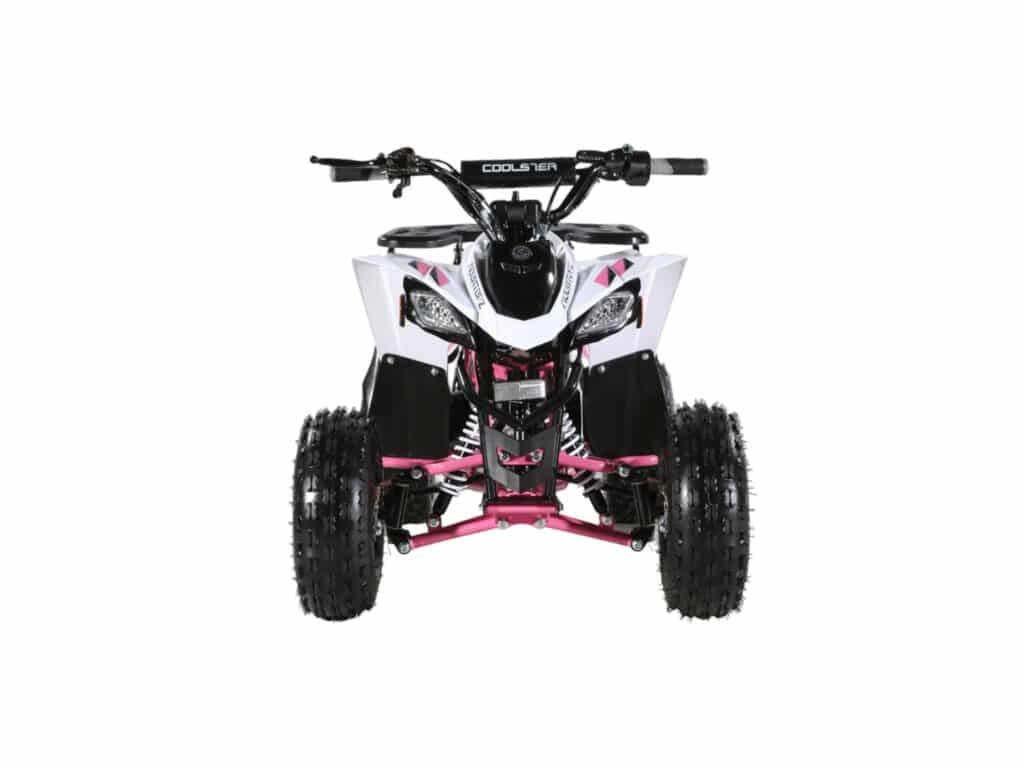

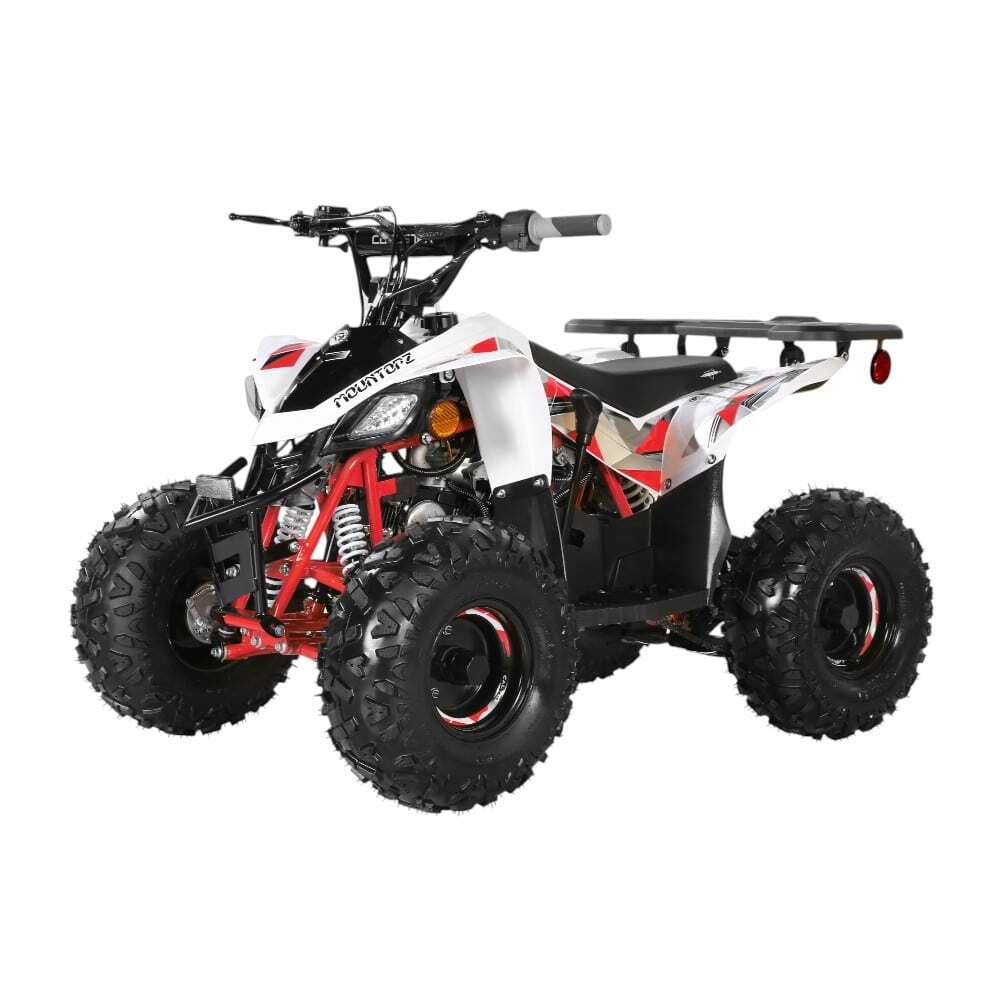

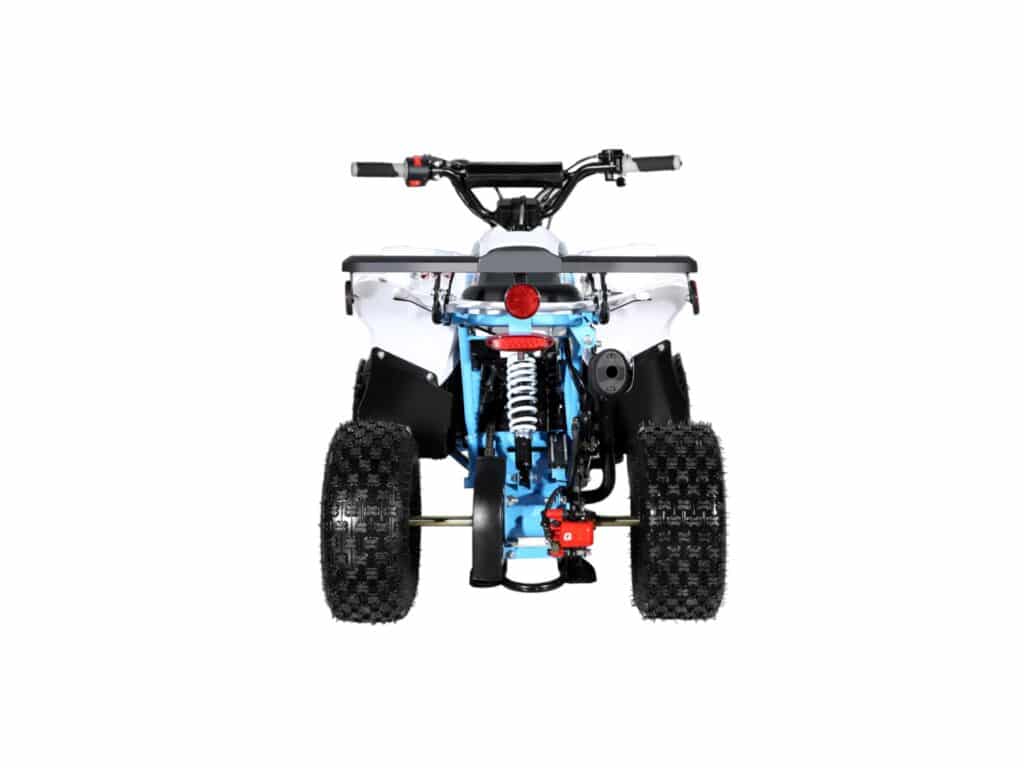

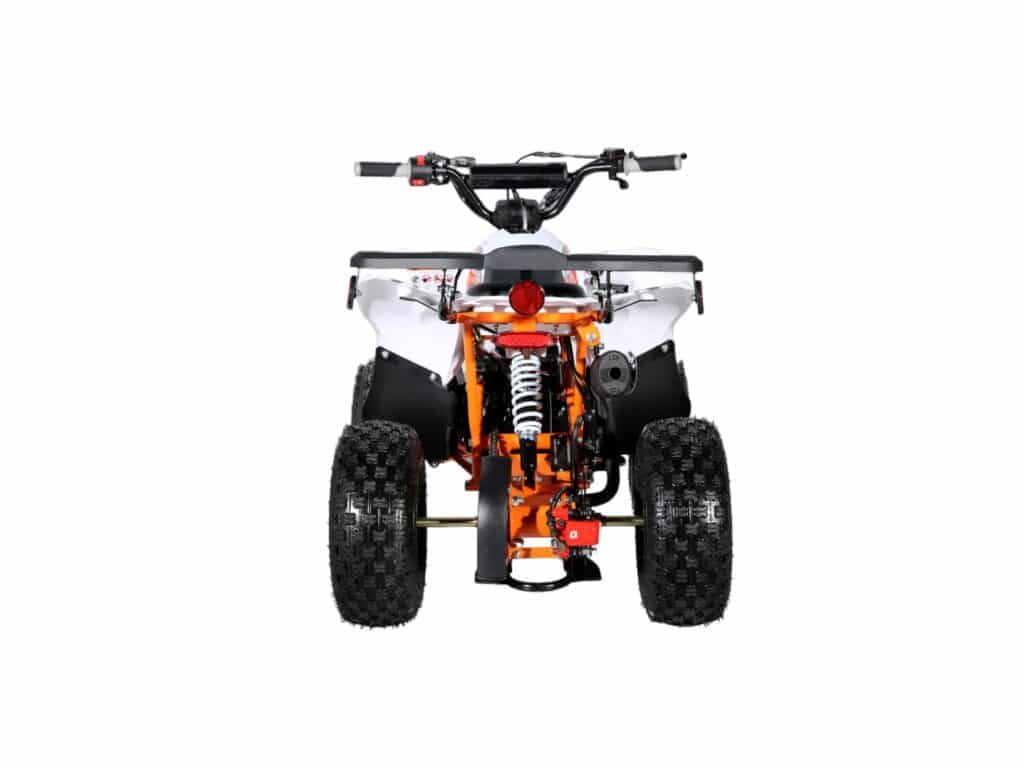

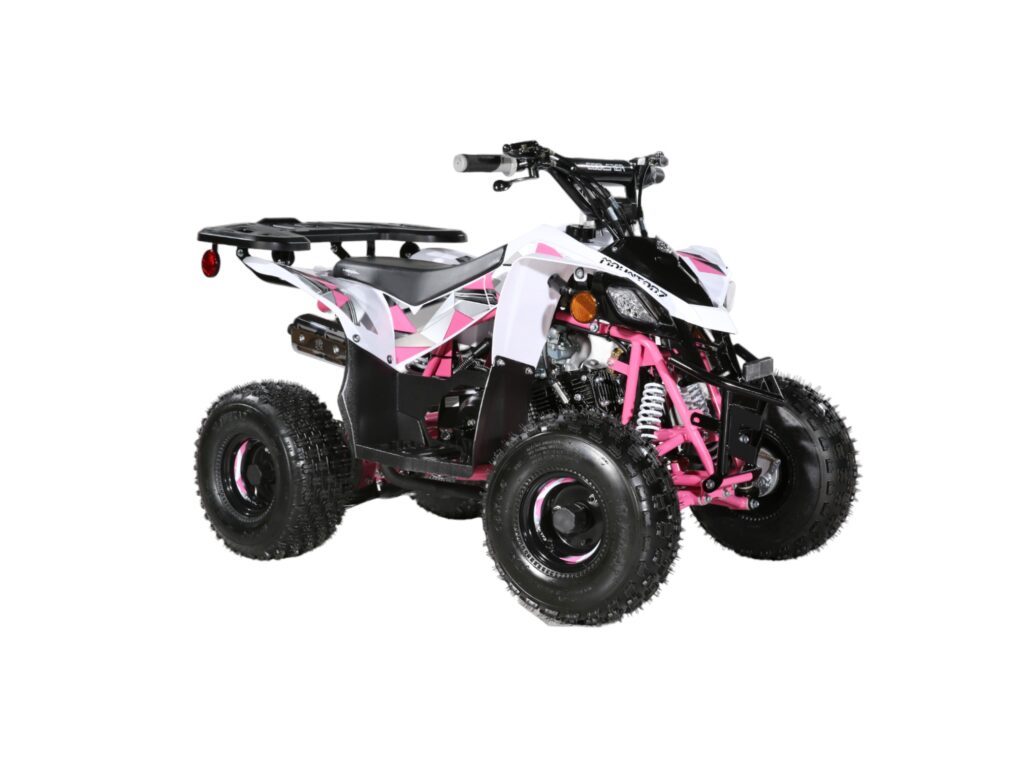

Available Colors
Our Coolster ATV-3050B2 all-terrain vehicle is designed specifically for off-road fun. Powered by a dependable 110CC 4-stroke, air cooled engine, the vehicle features durable double a-arms, shock-absorbent suspensions, and light handling. Perfect for beginners and younger riders. For more information, please click the tabs, or click here to reach us directly.
Download ATV-3050B2 Manual
(Must be logged in to download)
|
Model Number: |
ATV-3050B2 |
|
Engine Type: |
Single Cylinder, 4-Stroke, Natural Air Cooling |
|
Displacement: |
107cc |
|
Max Torque: |
6.9N.m/6,500 ± 500r/min (N.m/r/min) |
|
Max Power: |
4.8kW/8,000 ± 500r/min (kW/r/min) |
|
Bore Stroke: |
52.4 x 49.5 mm |
|
Ignition: |
CDI |
|
Starting System: |
Electric |
|
Battery: |
12V, 4Ah |
|
Clutch: |
Automatic |
|
Transmission: |
Chain, Rear Wheel Drive |
|
Brakes Front/Rear: |
Drum/Hydraulic Disc |
|
Tires Front/Rear: |
15 x 5-6 /15 x 6-6 (10 Psi for both) |
|
Fuel Capacity: |
0.54 gallons / 2.06L |
|
Weight: |
Gross (165lbs/74.8kg), Net (160.5lbs/72.8kg) |
|
Max Load: |
165 lbs / 75 kg (rider, all cargo and accessories) |
|
Wheelbase: |
850 mm |
|
Dimensions: |
1,345 x 785 x 835 mm |
|
Height to Seat: |
590 mm |
|
Min. Ground Clearance: |
80 mm |
| Image | Name | Price | Buy |
|---|
Please read the owner’s manual and all on-product warnings. ATVs can be hazardous to operate. For operator’s safety, always wear a helmet, eye protection, and protective gear. Never carry a passenger. Never ride under the influence of drugs nor alcohol. Never ride on public roads nor pavement. Be extra careful on difficult terrain. Never allow a child under the age of 16 to operate an ATV without adult supervision. It is strongly recommended that all ATV riders take a training course. For more information, contact your local dealer or call 1-626-228-0251
