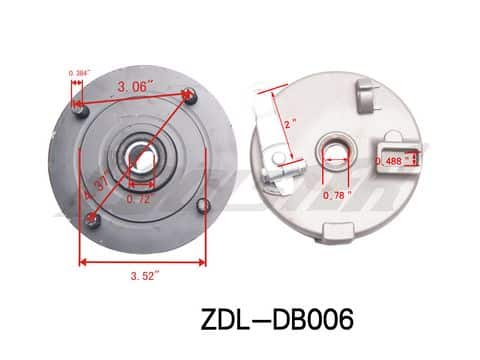

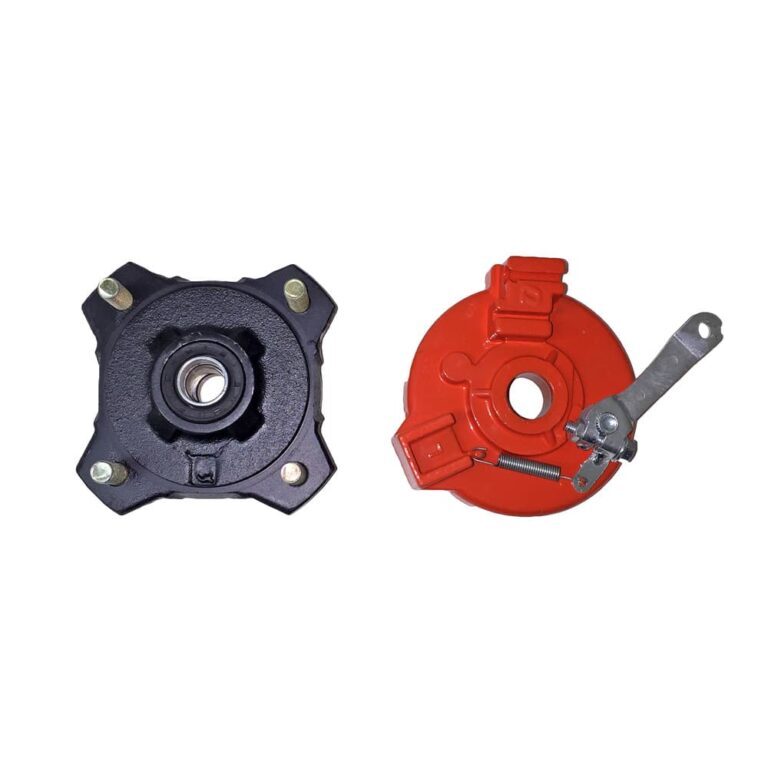

The Front-Right Brake Shoe Assembly 3150DX-2 (BSFR-7) (ZDL-DB006) is shown with a diagram of the Brake Hub and Drum parts.

Front-Right Brake Shoe Assembly 3150DX-2 (BSFR-7) (ZDL-DB006)

$ 50.00

SKU: ZDL-DB006 Categories: , , Tag:

Fit with: 3150DX-2 / 3125B

Please check pictures and specifications for compatibility.

Weight 4 lbs
