ATV-3125C-2/CX-2
120CC Mid-Size ATV with Semi/Fully-Automatic Option
Available Colors

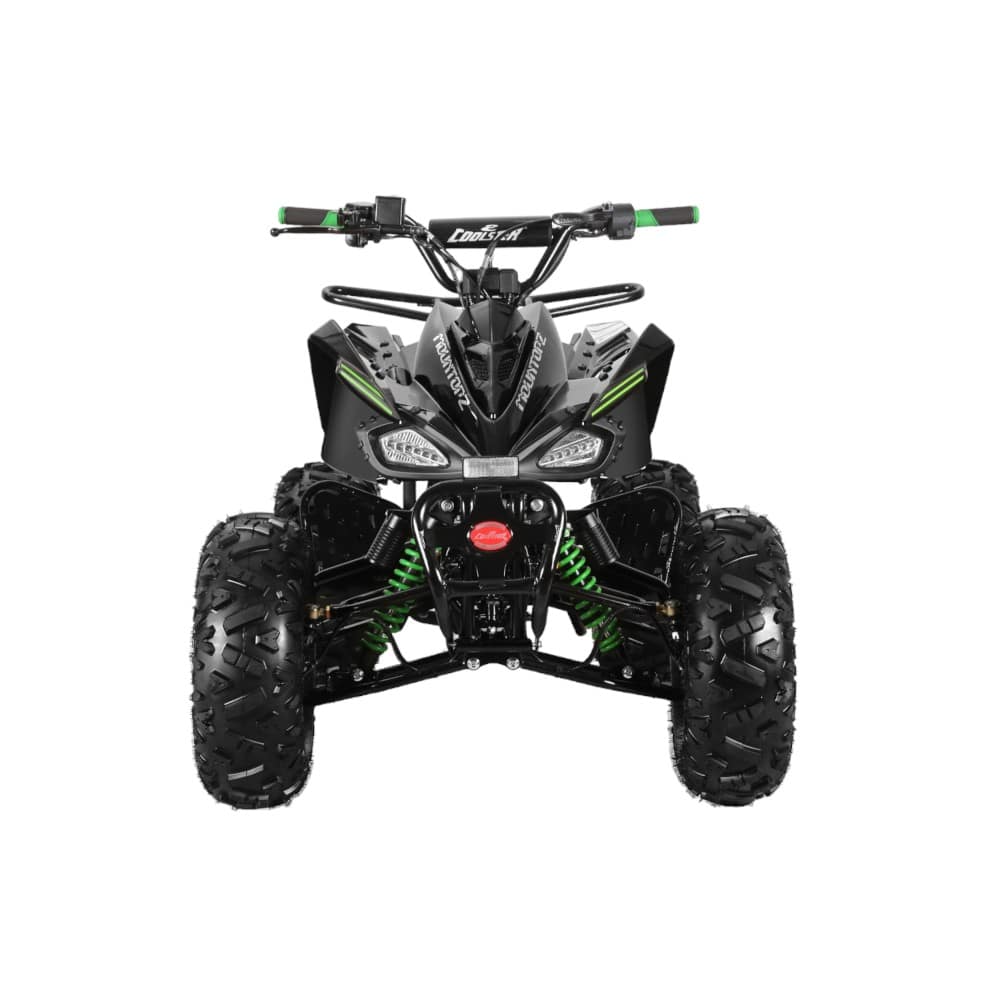

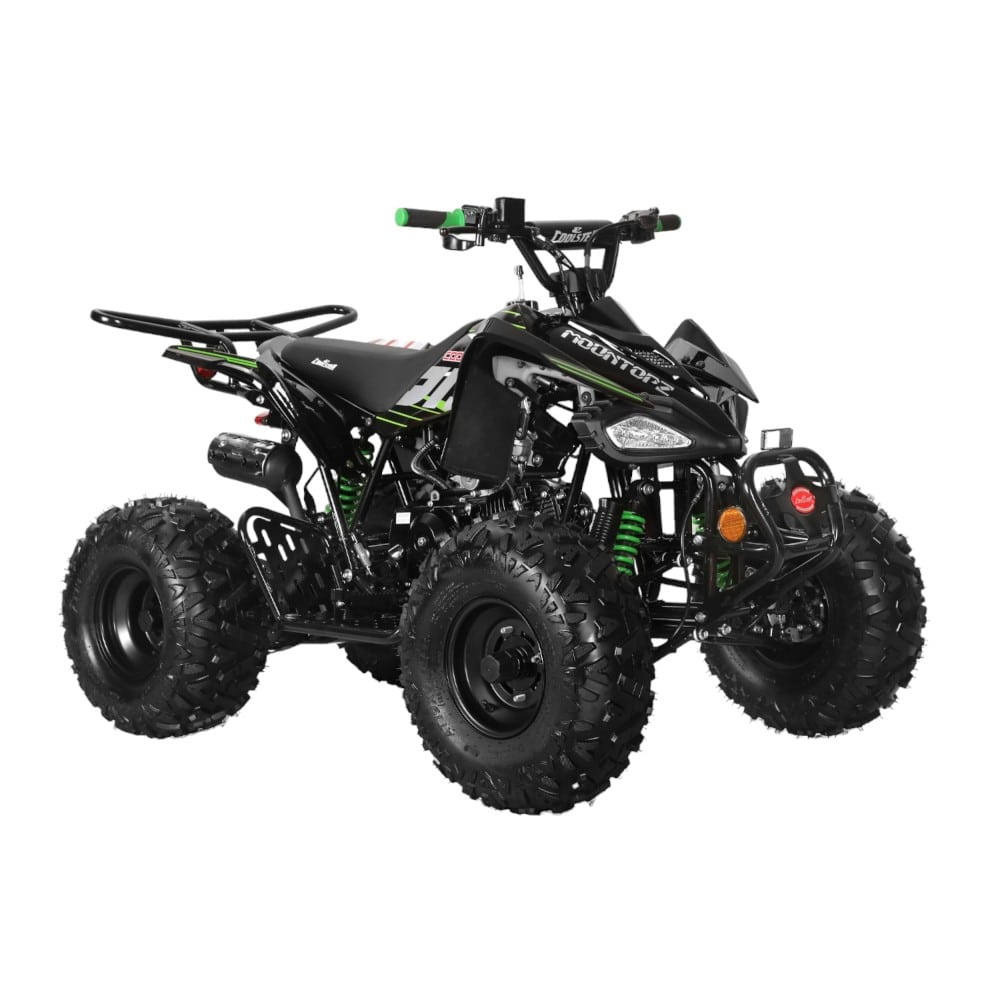

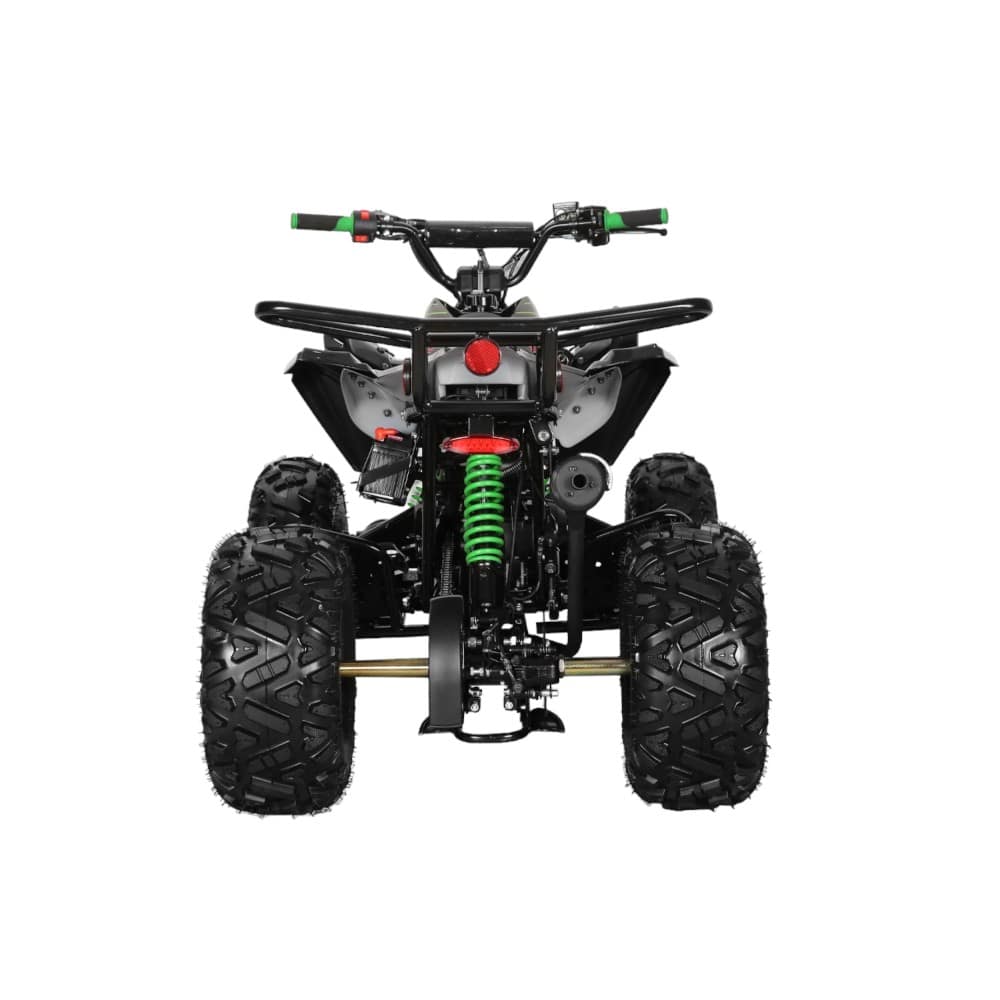

The Coolster ATV-3125C-2 is the successor of our popular 3125C. More versatile and durable, the 3125C-2 is powered by a 125cc semi-automatic 4-stroke engine, larger wheels, and greater spring suspensions. The 3125C-2 can also come as a fully automatic version (3125CX-2) and also features the same aesthetics.
ATV-3125CX-2 is the fully automatic version of the 3125C-2. The Coolster ATV-3125CX-2 has all the same features of its semi-automatic sibling, such as the 18×9.50-8 rear wheels, durable shocks, and aggressive sporty aesthetics. The ATV-3125CX-2 also comes in a version with chrome rims (ATV-3125CX-3).
For more information, please click the tabs, or click here to reach us directly.
Download ATV-3125C-2/CX-2 Manual
(Must be logged in to download)
| Model Number: | ATV-3125C-2/CX-2 |
| Engine Type: | Single cylinder, 4-stroke, air-cooled |
| Displacement: | 120cc |
| Max Torque: | 6.9N.m/6,500 ± 500r/min (N.m/r/min) |
| Max Power: | 5.5kW/8,500 ± 500r/min (kW/r/min) |
| Bore Stroke: | 52.4 x 55.5mm |
| Ignition: | CDI |
| Starting System: | Electric |
| Battery: | 12V, 5Ah |
| Clutch: | Automatic/Semi-Automatic |
| Transmission: | Chain, Rear Wheel Drive |
| Brakes Front/Rear: | Hydraulic Disc |
| Tires Front/Rear: | 19 x 7.00 – 8 / 18 x 9.50 – 8 |
| Fuel Capacity: | 2.06L |
| Maximum Weight Capacity: | 165 lbs / 75 kg (rider, all cargo and accessories) |
| Wheelbase: | 1000mm |
| Dimensions: | 1,530 x 1030 x 1,010mm |
| Height to Seat: | 710mm |
| Min. Ground Clearance: | 135mm |
Please read the owner’s manual and all on-product warnings. ATVs can be hazardous to operate. For operator’s safety, always wear a helmet, eye protection, and protective gear. Never carry a passenger. Never ride under the influence of drugs nor alcohol. Never ride on public roads nor pavement. Be extra careful on difficult terrain. Never allow a child under the age of 16 to operate an ATV without adult supervision. It is strongly recommended that all ATV riders take a training course. For more information, contact your local dealer or call 1-626-228-0251
