ATV-3175S2
170CC Fully Automatic Full Sized ATV

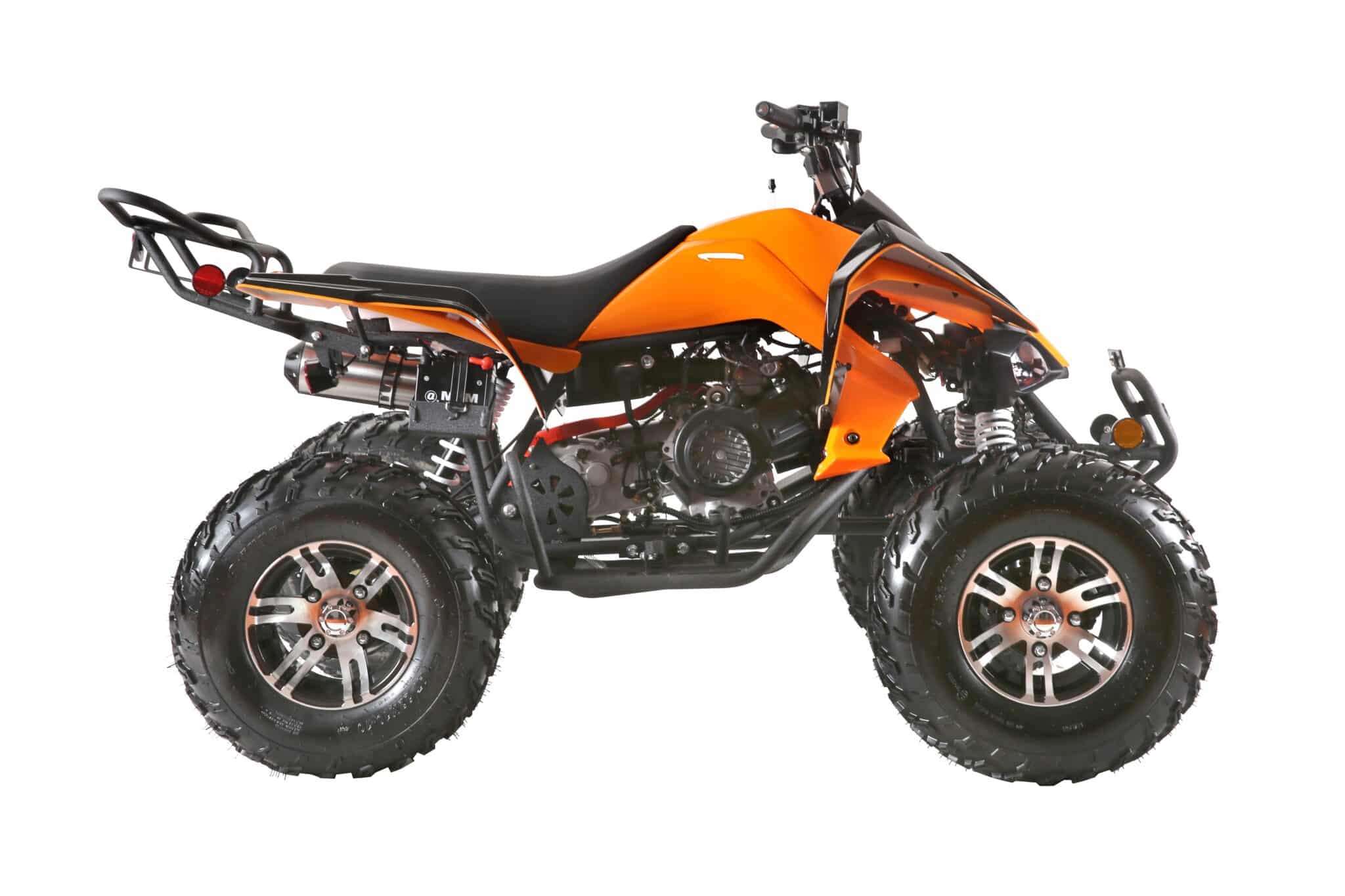

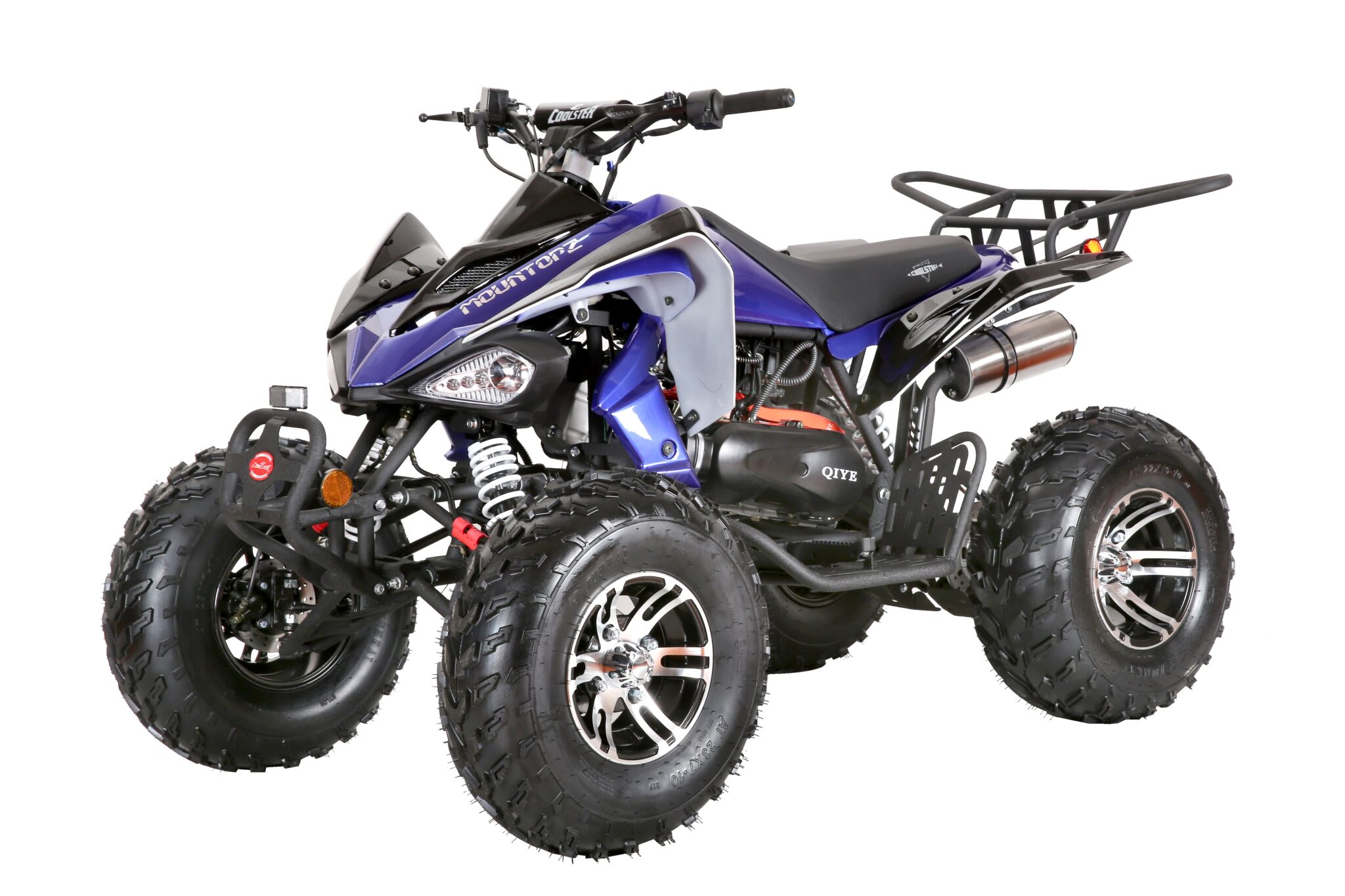

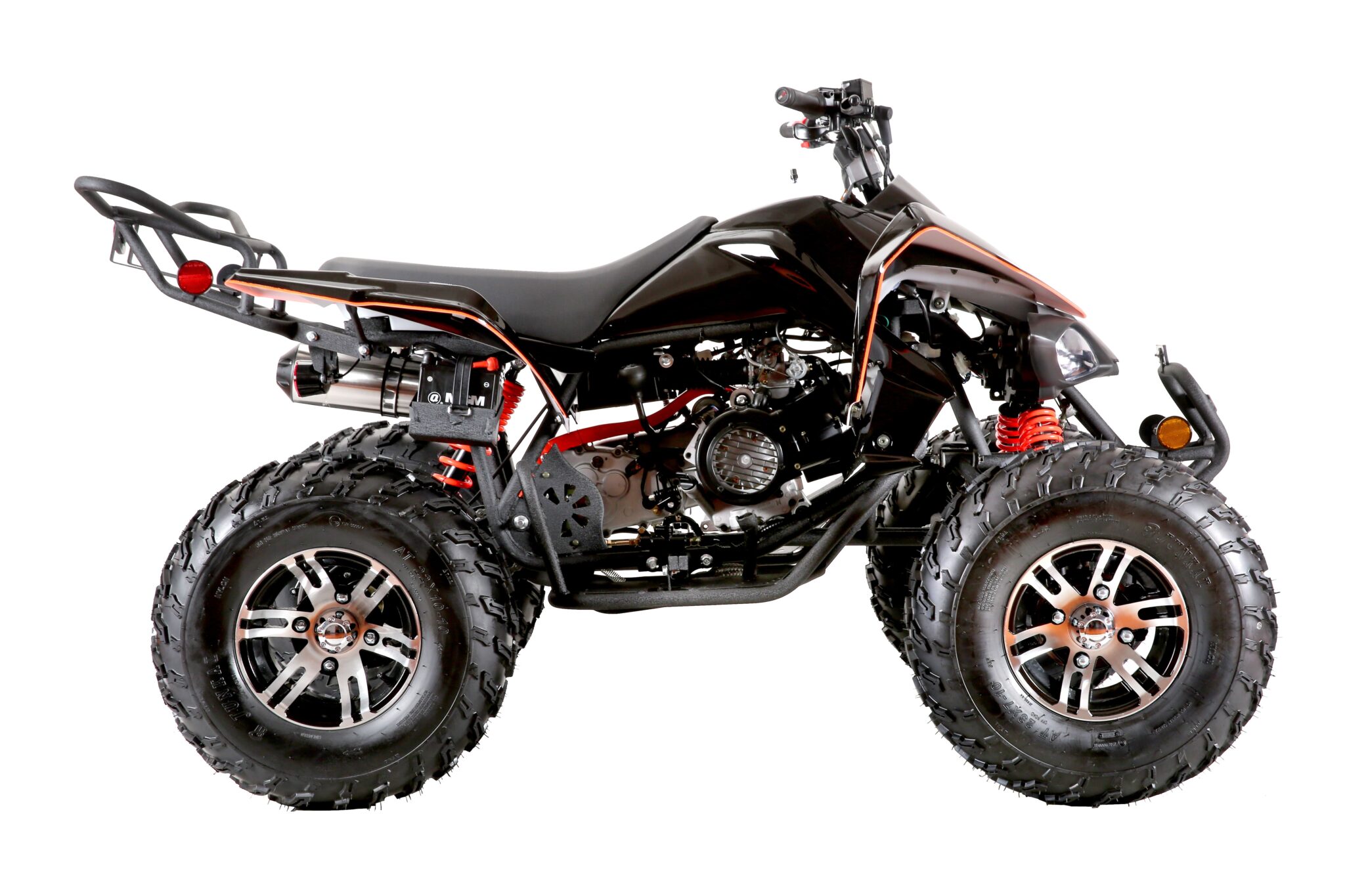

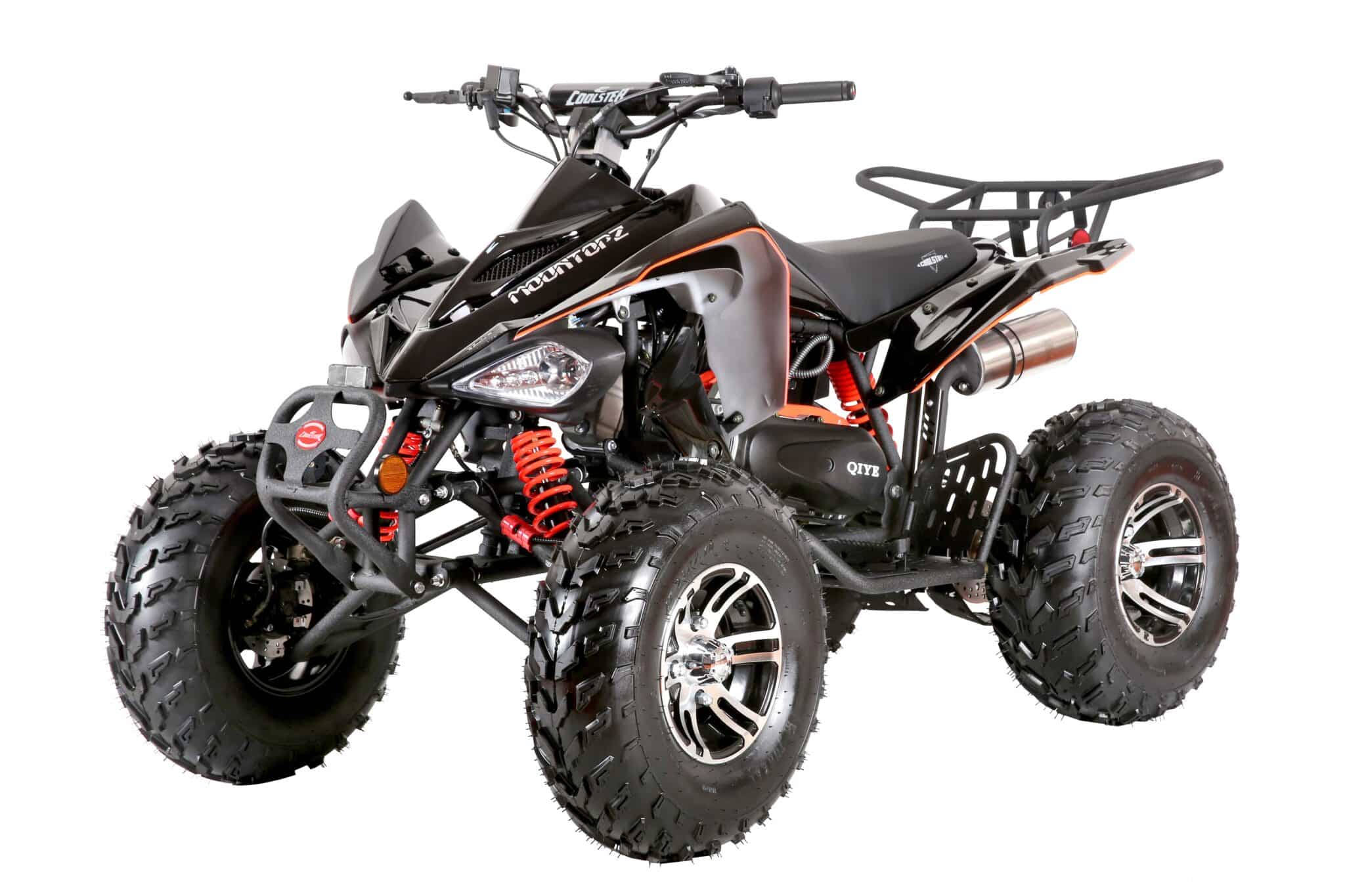

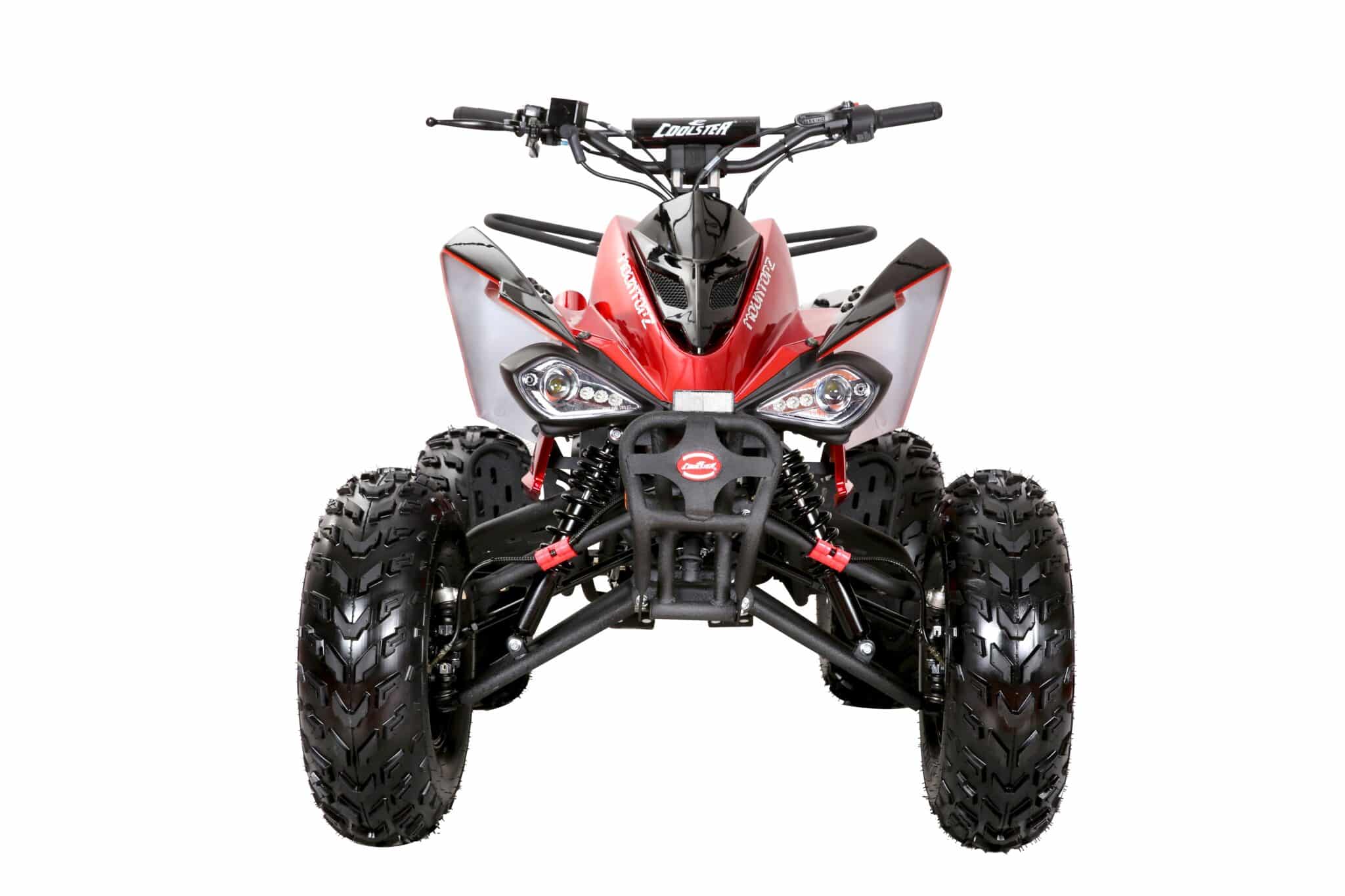

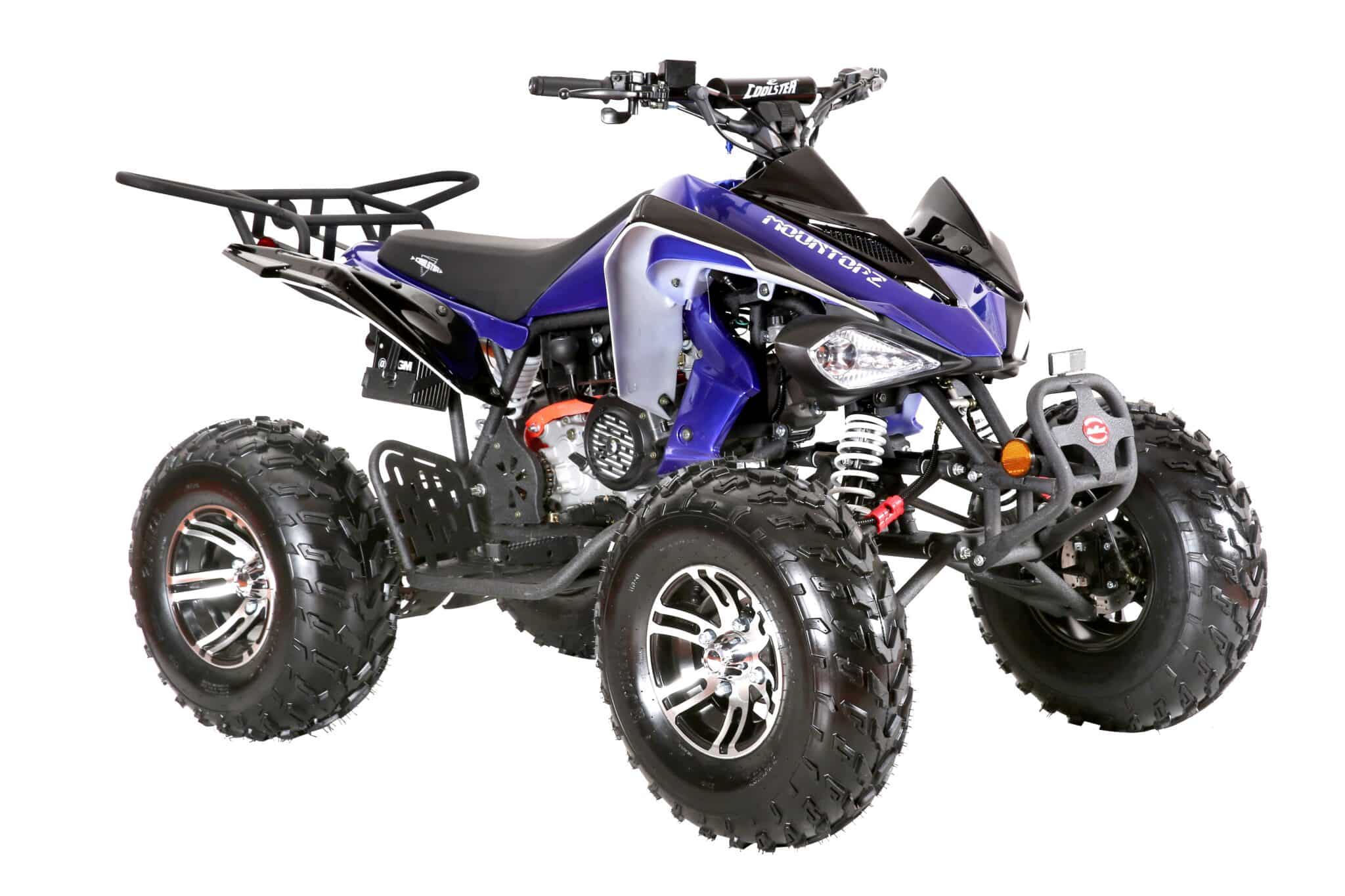

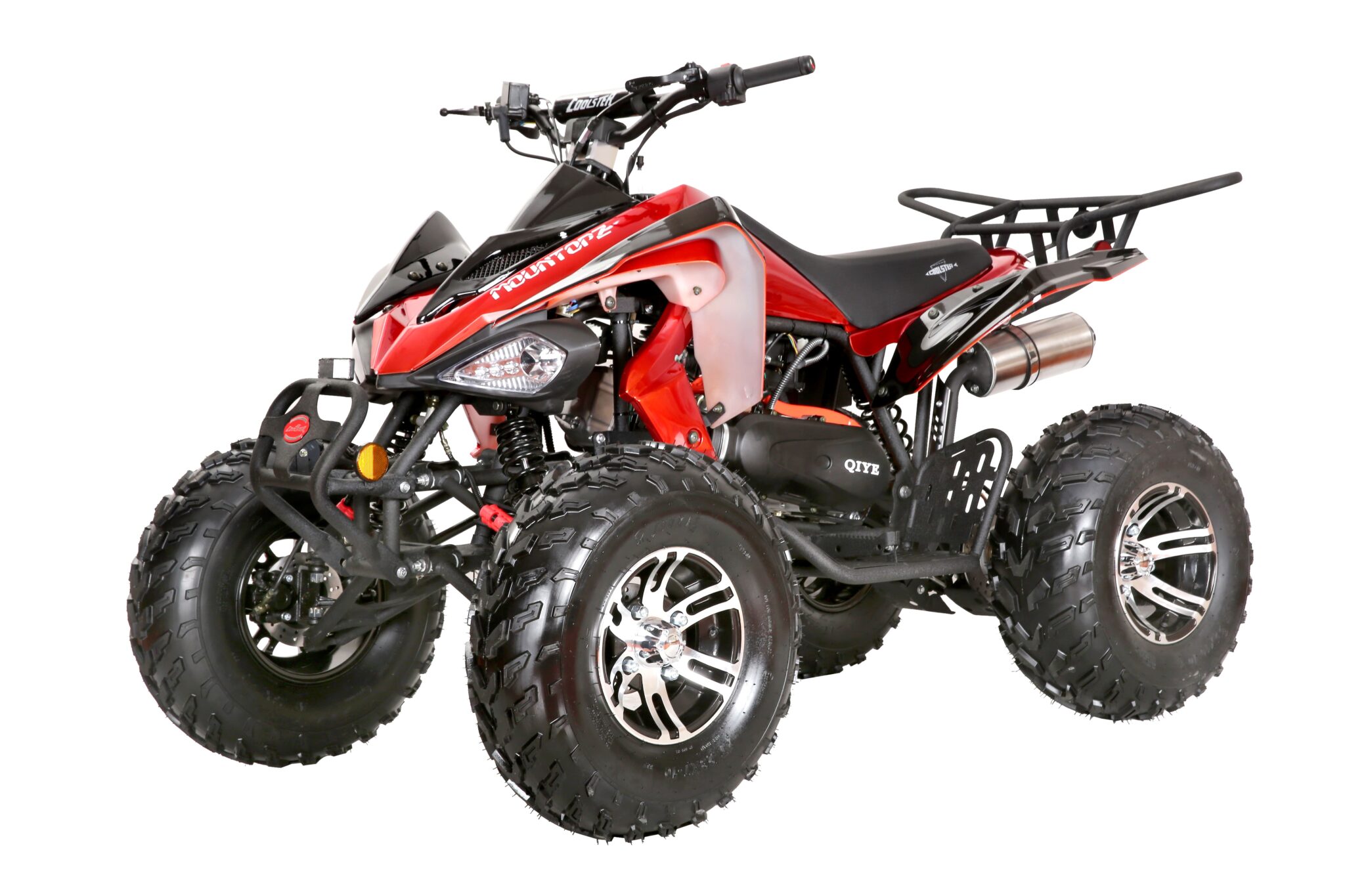

Available Colors

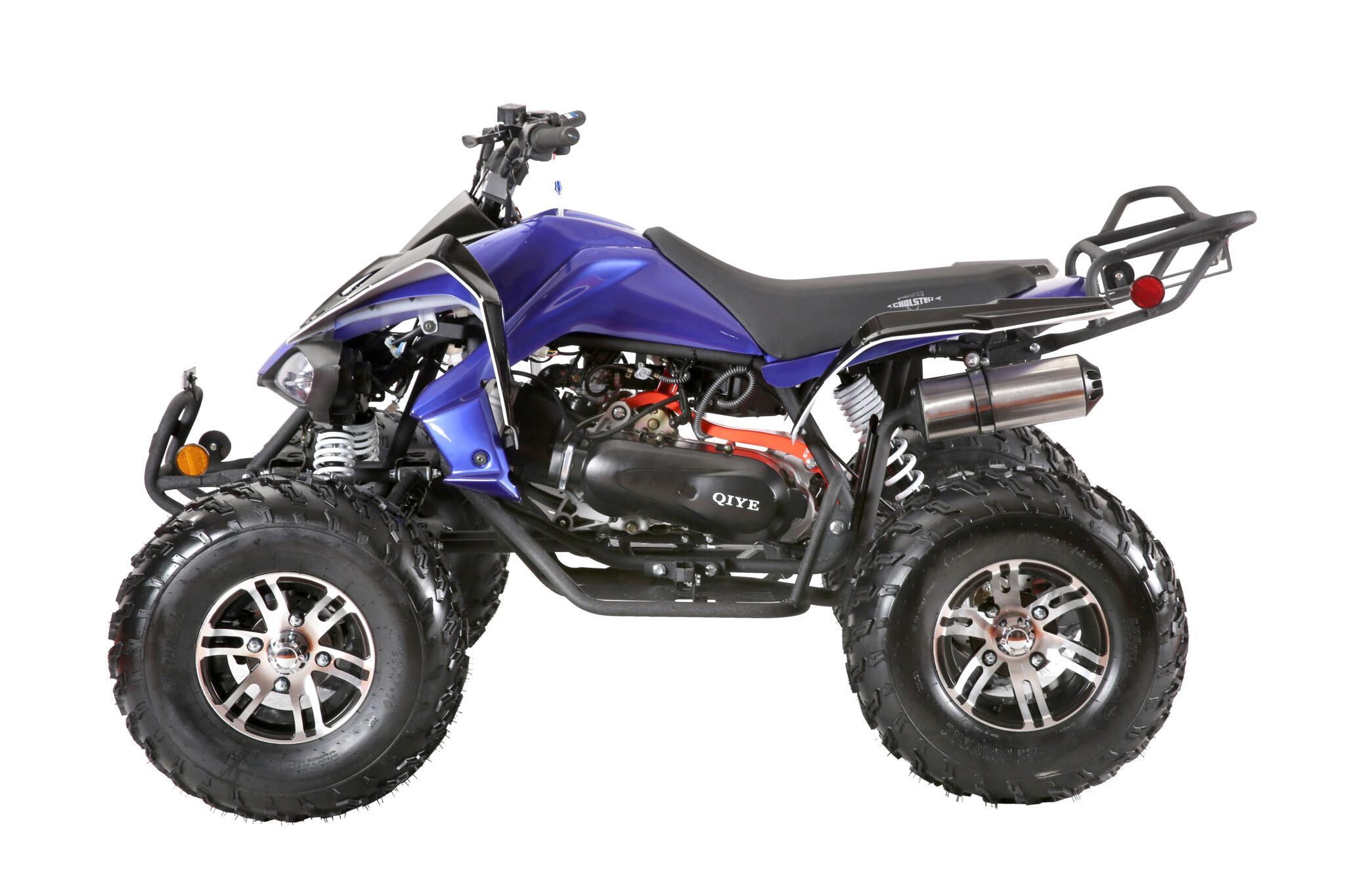

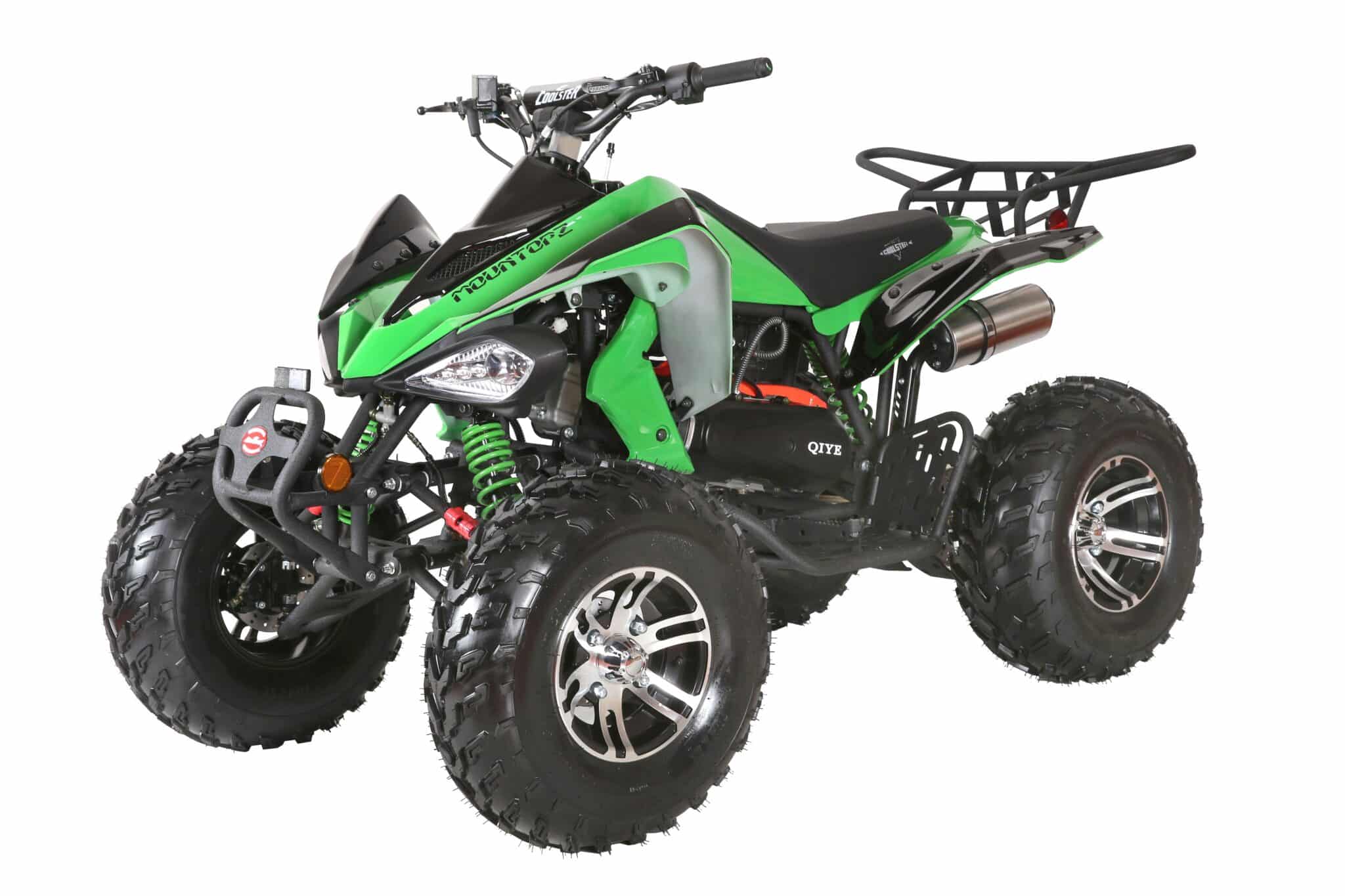

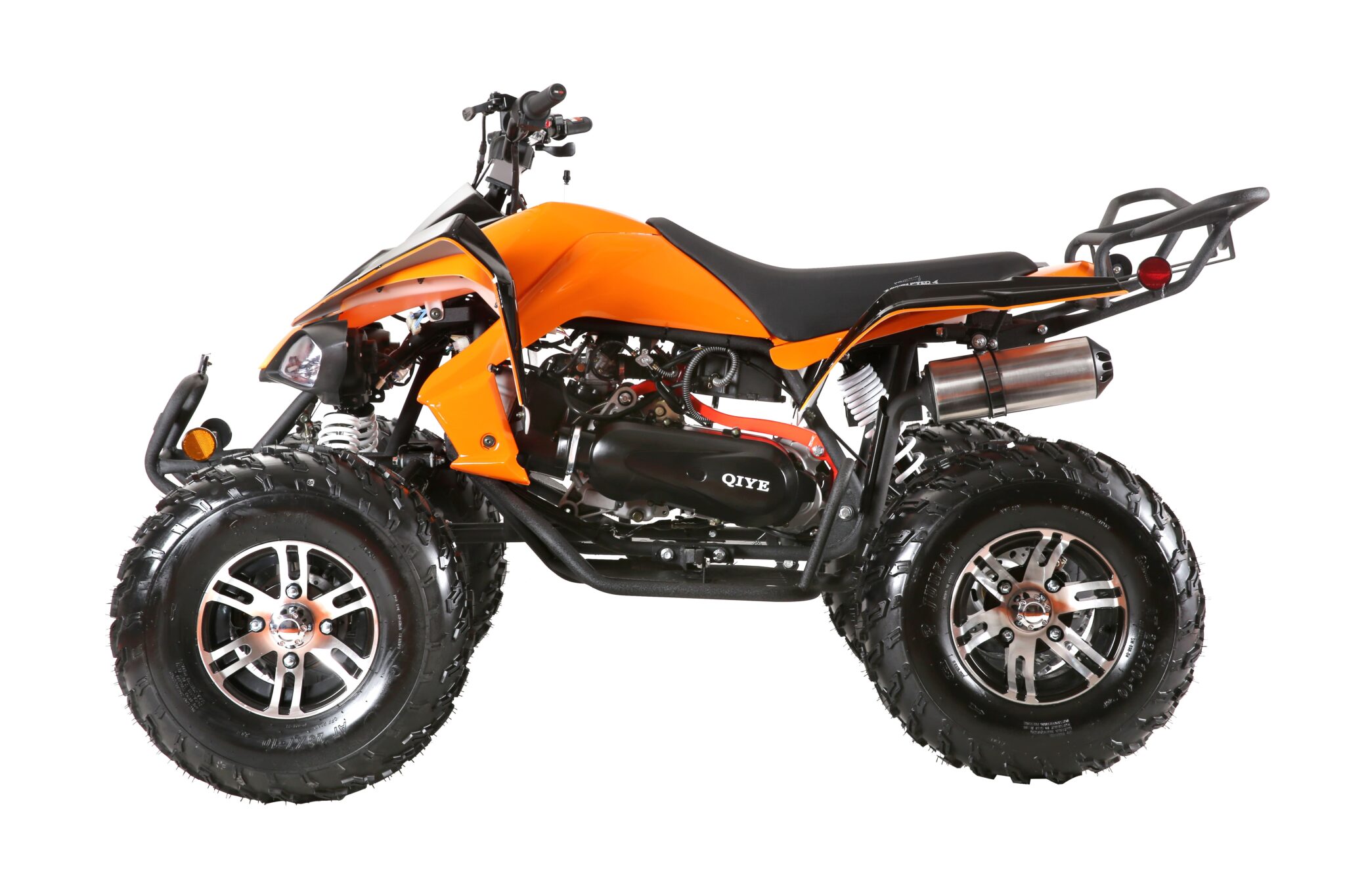

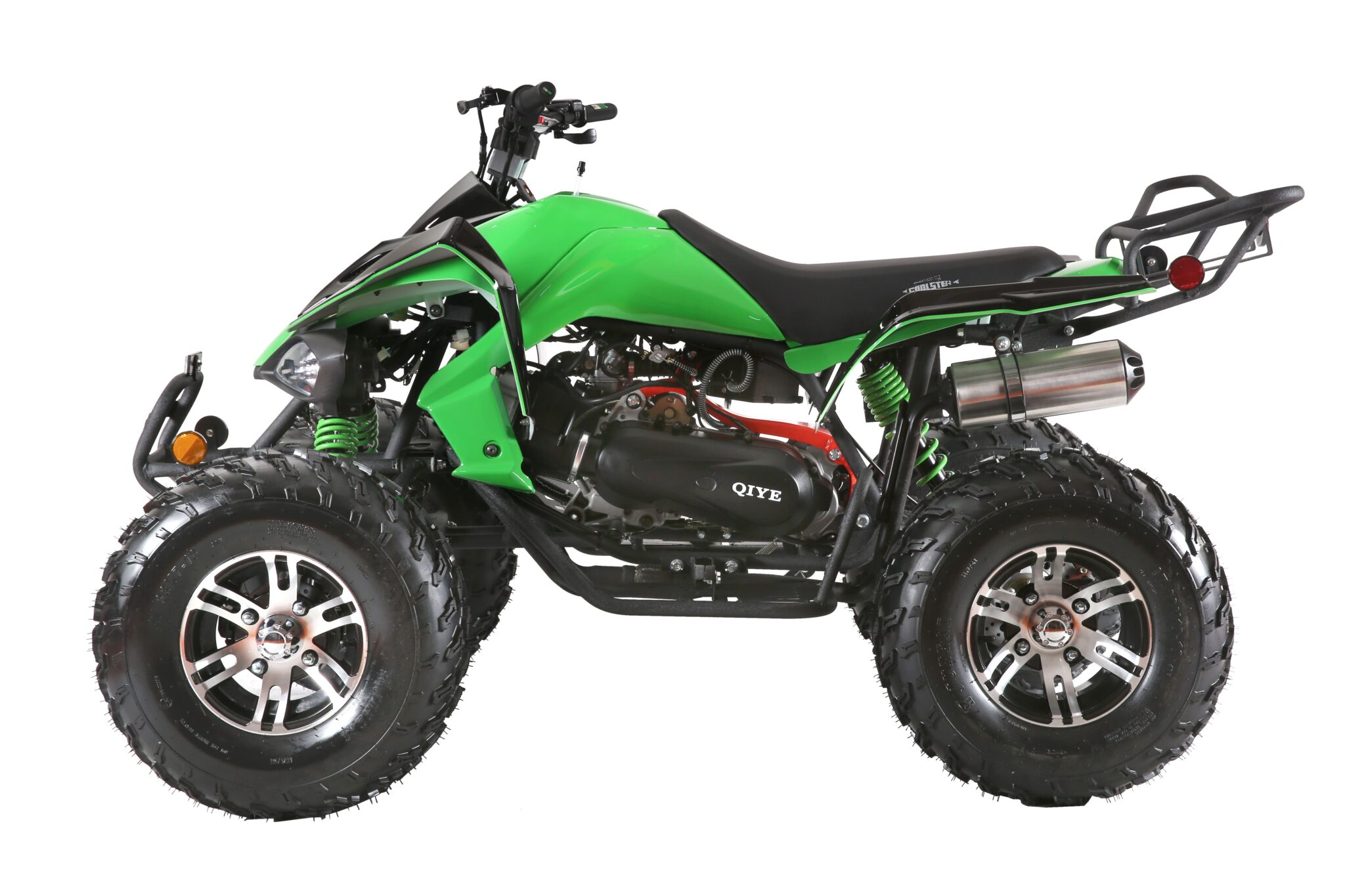

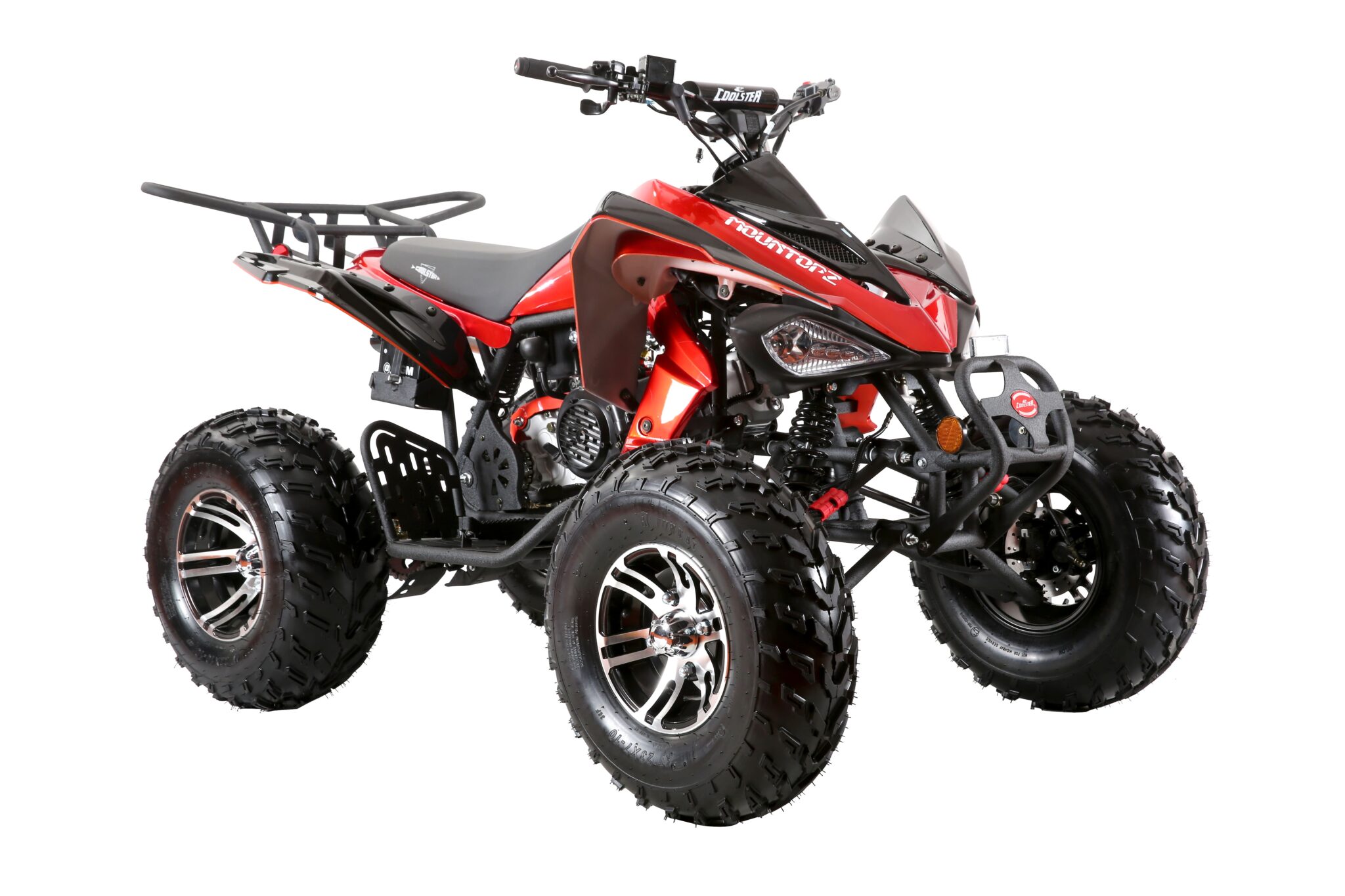

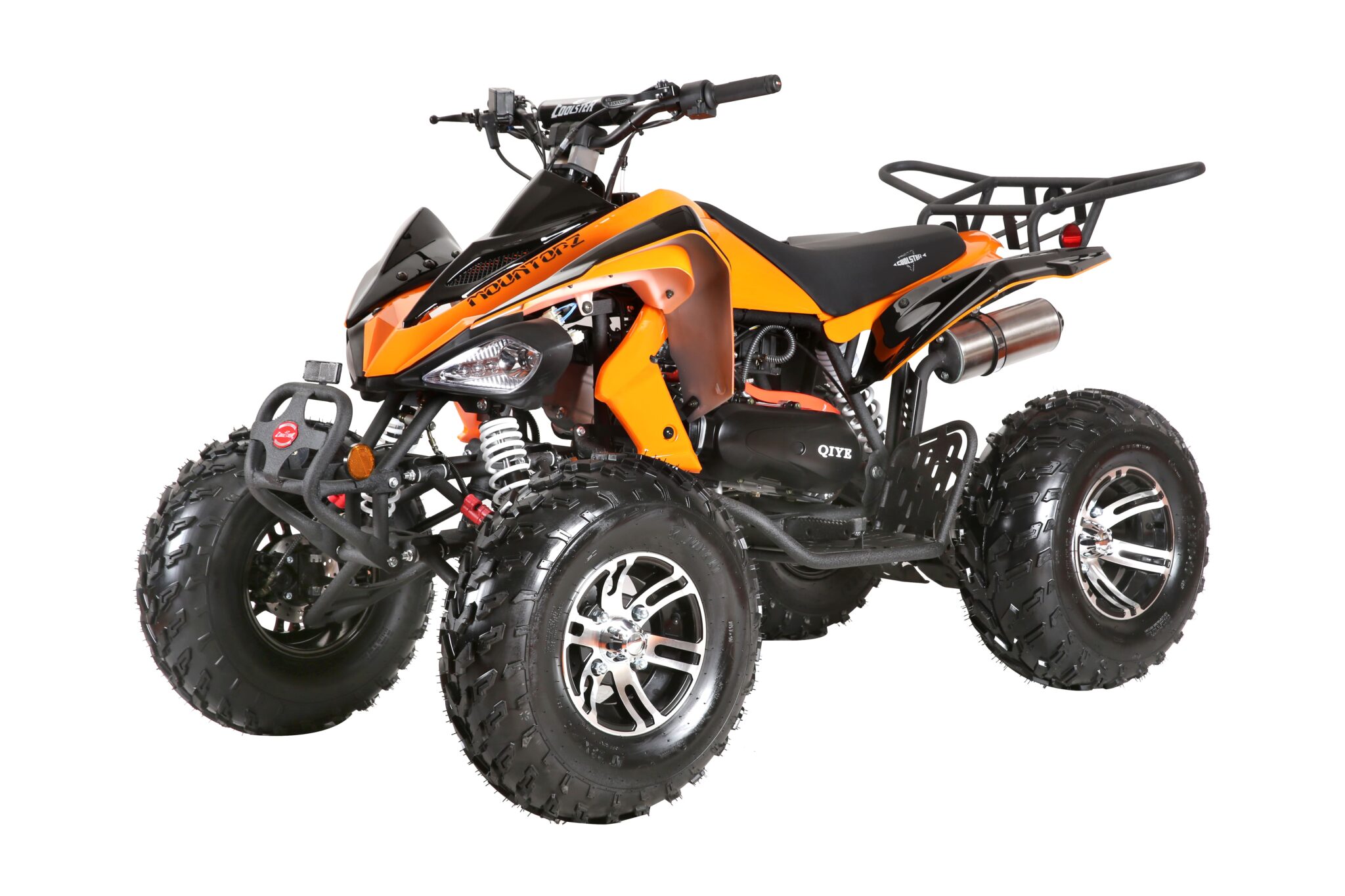

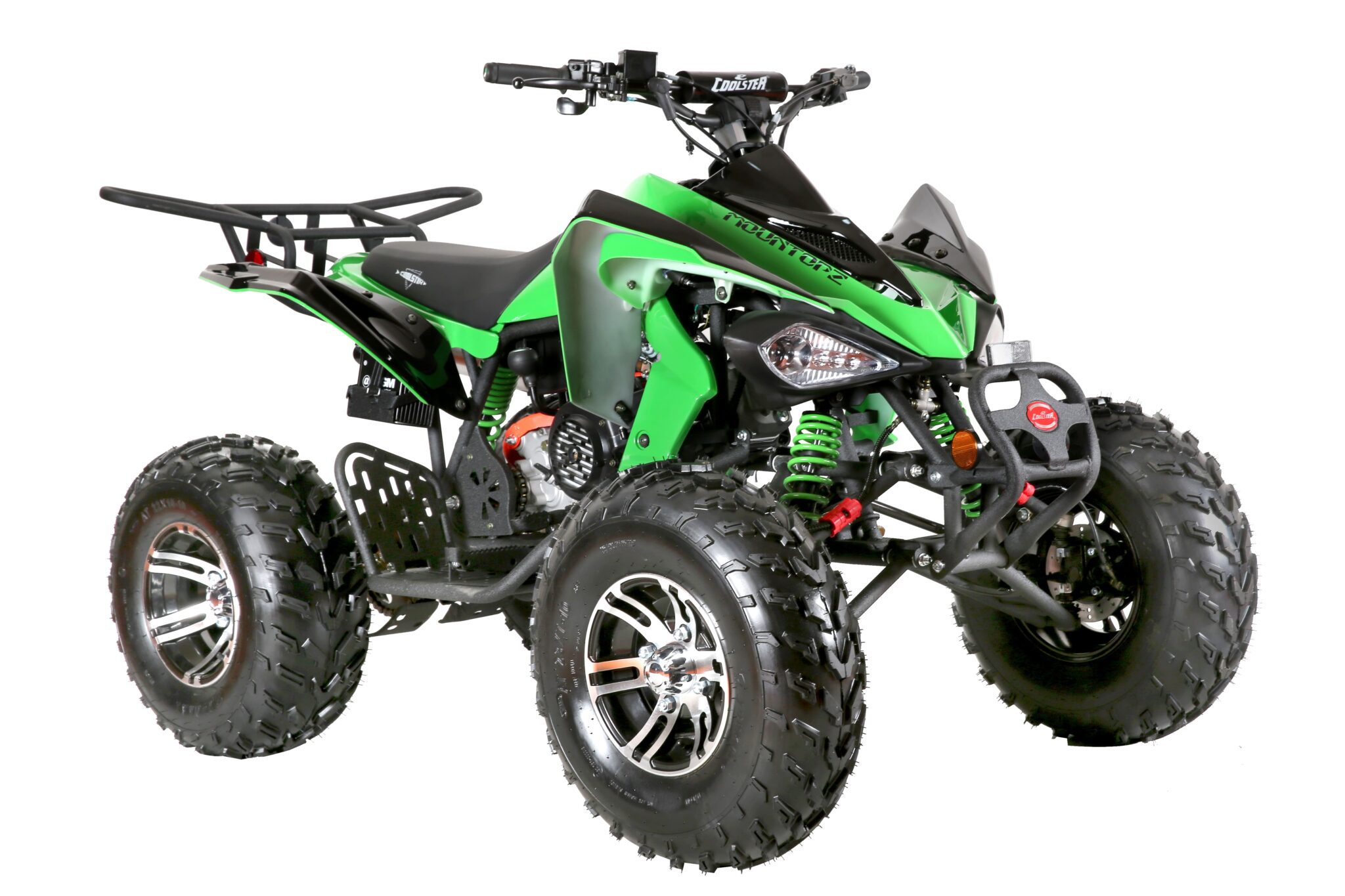

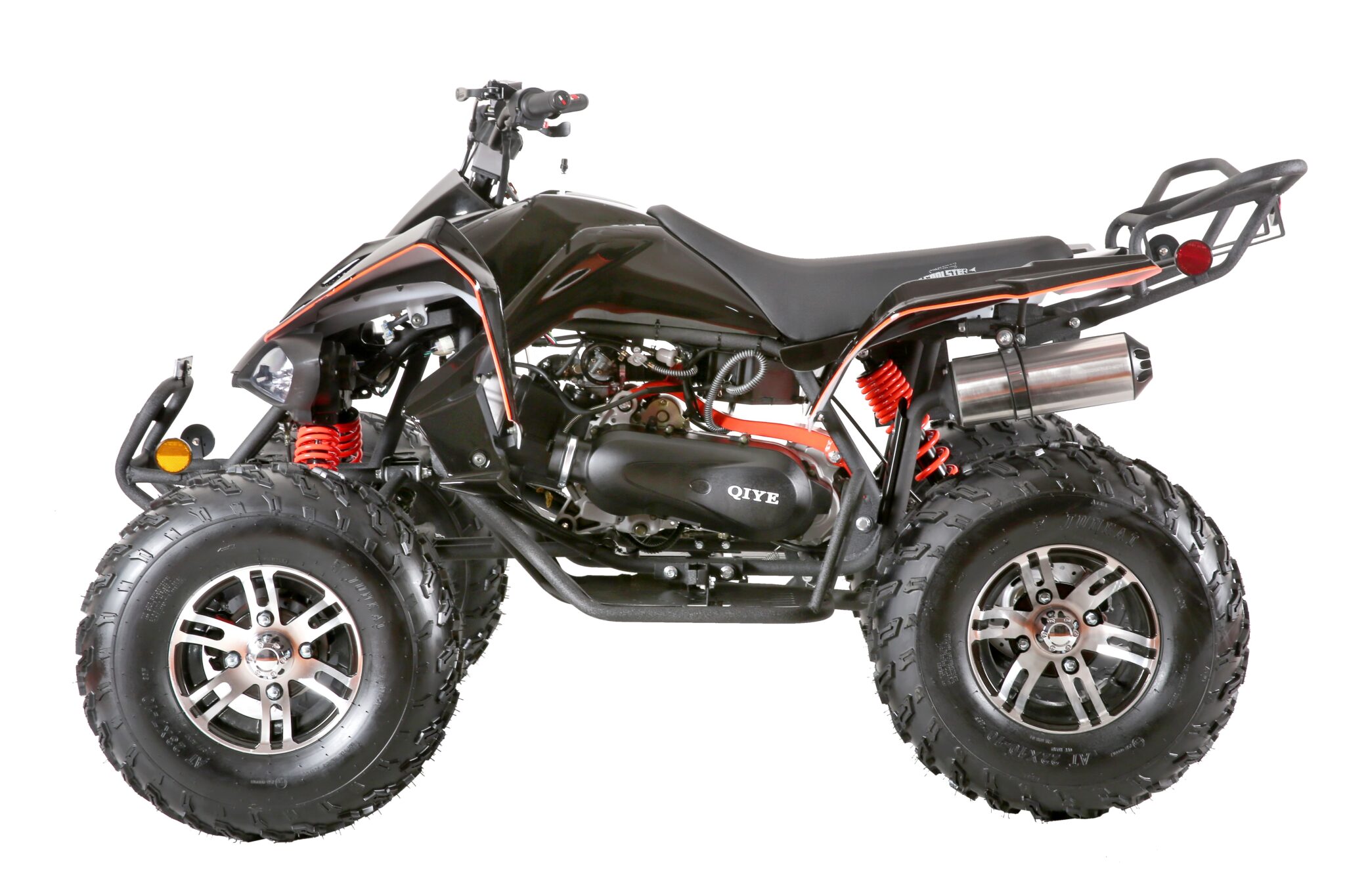

The Coolster ATV-3175S2 is our first ever 170cc sport ATV. The Coolster ATV-3175S features all the bells and whistles of the 3150CXC, except with a more powerful engine. Equipped with chrome rims, 22×10-10 rear wheels, better shock absorption, and a rear utility rack, the Coolster ATV-3175S2 is sure to please riders of all experiences.
For more information, please click the tabs, or click here to reach us directly.
Download ATV-3175S2 Manual (coming soon)
(Must be logged in to download)
| Model Number: | ATV-3175S2 |
| Engine Type: | Single cylinder, 4-stroke, air-cooled |
| Displacement: | 170cc |
| Max Torque: | 10.2.N.m/5,500r/min (N.m/r/min) |
| Ignition: | CDI |
| Starting System: | Electric |
| Battery: | 12V, 9Ah |
| Clutch: | CVT Automatic |
| Transmission: | Chain, rear wheel drive |
| Brakes Front/Rear: | Hub/hydraulic disc |
| Tires Front/Rear: | 23 x 7 – 10 / 22 x 10 – 10 |
| Fuel Capacity: | 5.6L |
| Weight: | (G.W./N.W) 181 kg/160 kg |
| Wheelbase (Front/Rear): | 930mm/795mm |
| Dimensions: | 1865 x 1100x 1160mm |
| Height to Seat: | 810mm |
| Min. Ground Clearance: | 140mm |
| Image | Name | Price | Buy |
|---|
Please read the owner’s manual and all on-product warnings. ATVs can be hazardous to operate. For operator’s safety, always wear a helmet, eye protection, and protective gear. Never carry a passenger. Never ride under the influence of drugs nor alcohol. Never ride on public roads nor pavement. Be extra careful on difficult terrain. Never allow a child under the age of 16 to operate an ATV without adult supervision. It is strongly recommended that all ATV riders take a training course. For more information, contact your local dealer or call 1-626-228-0251
