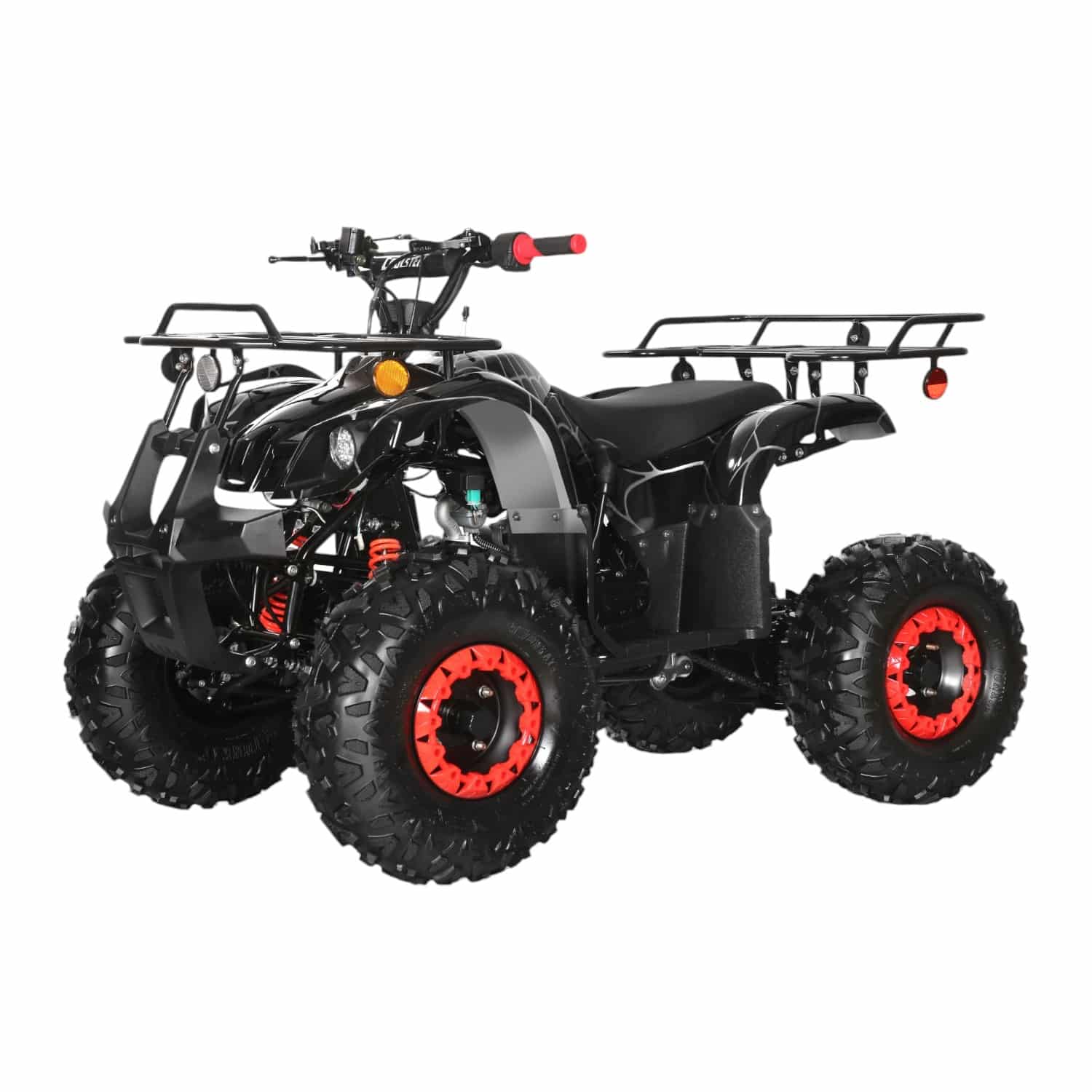

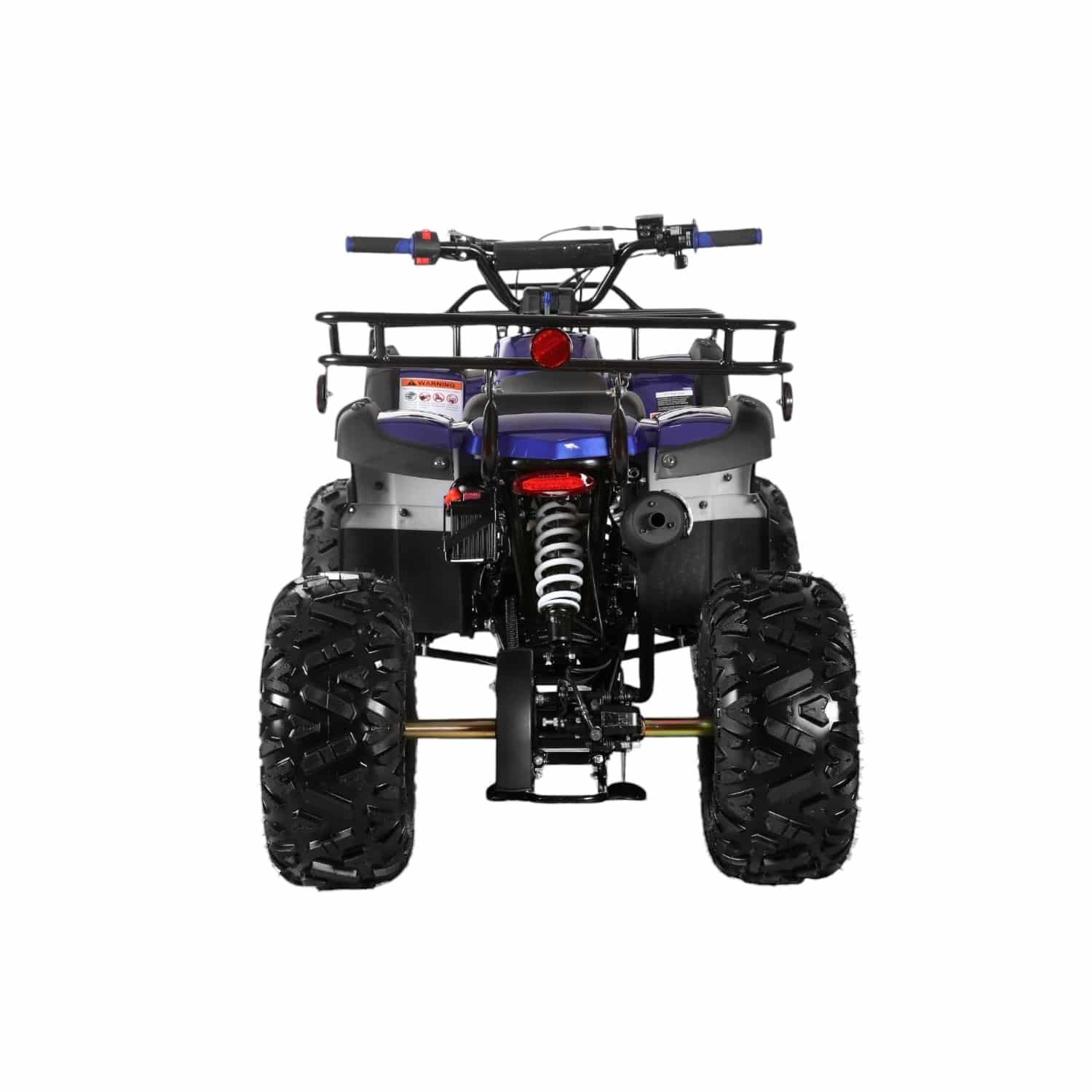

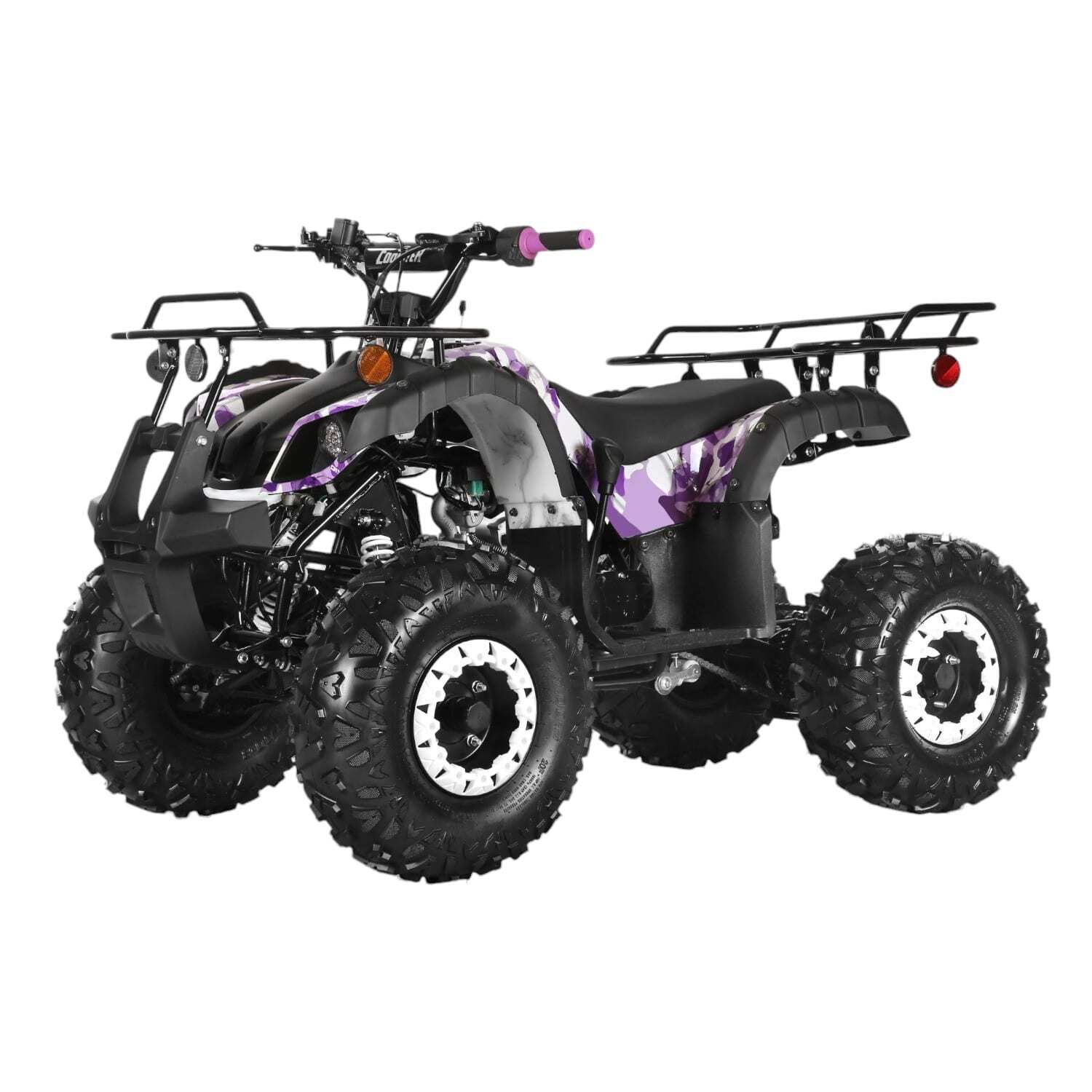

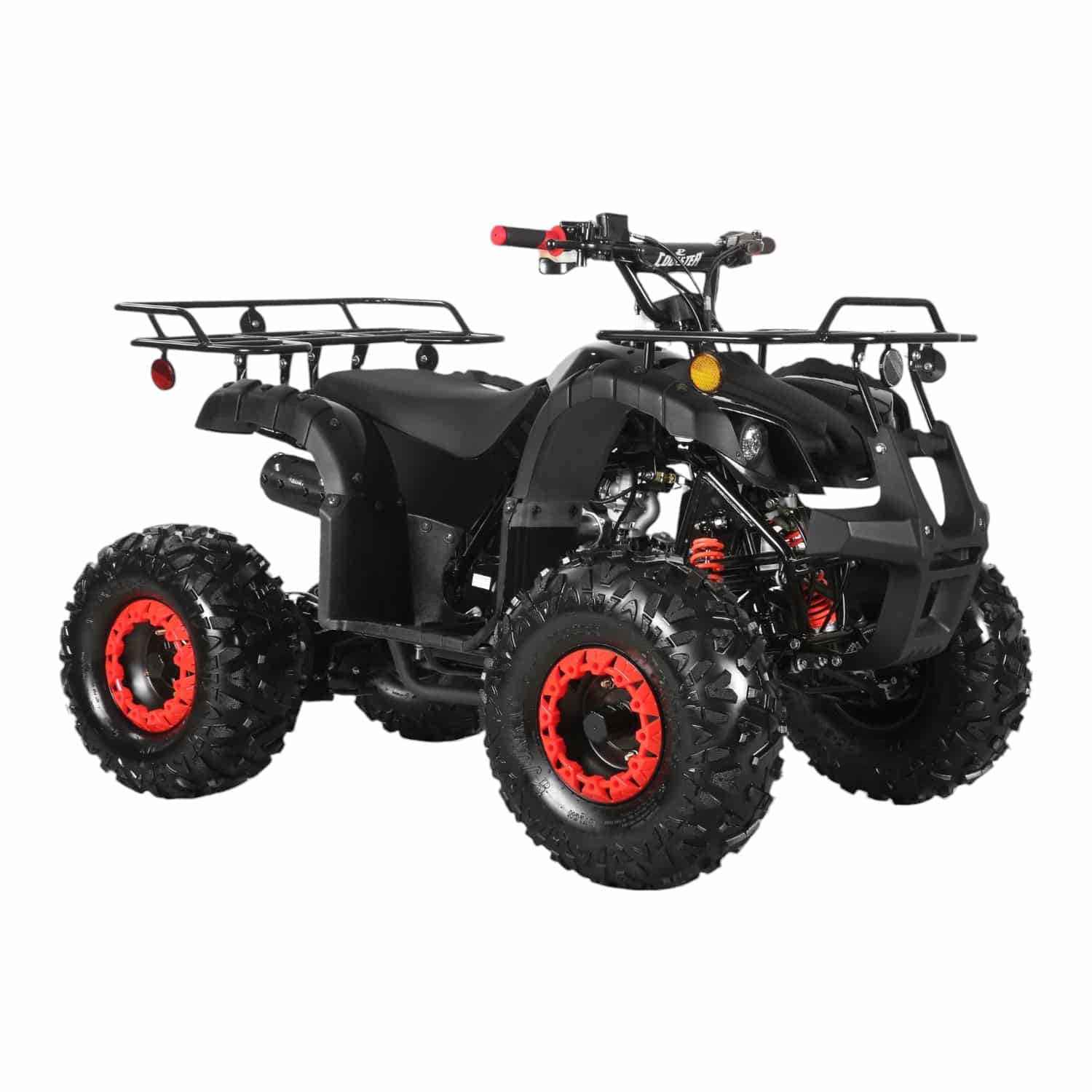

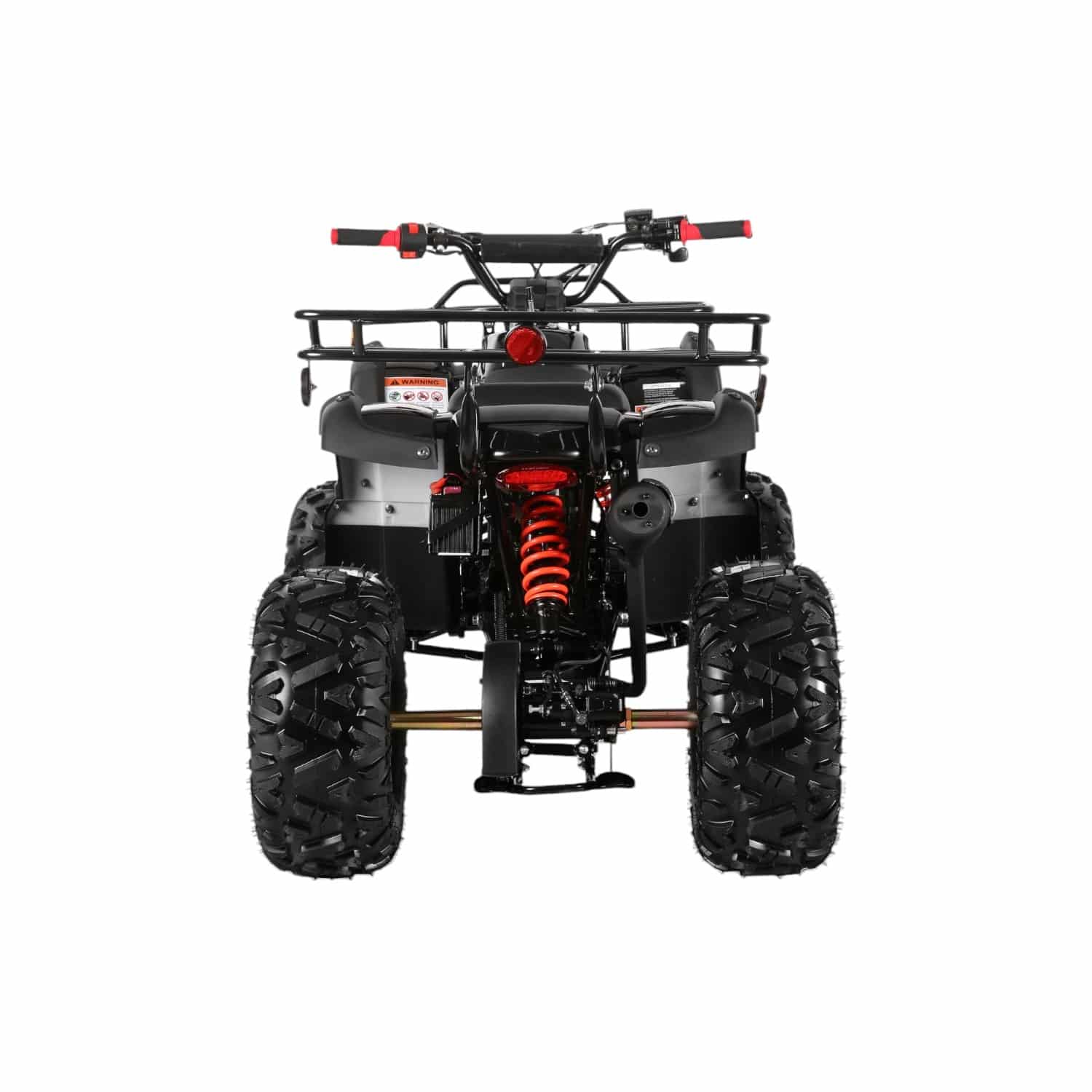

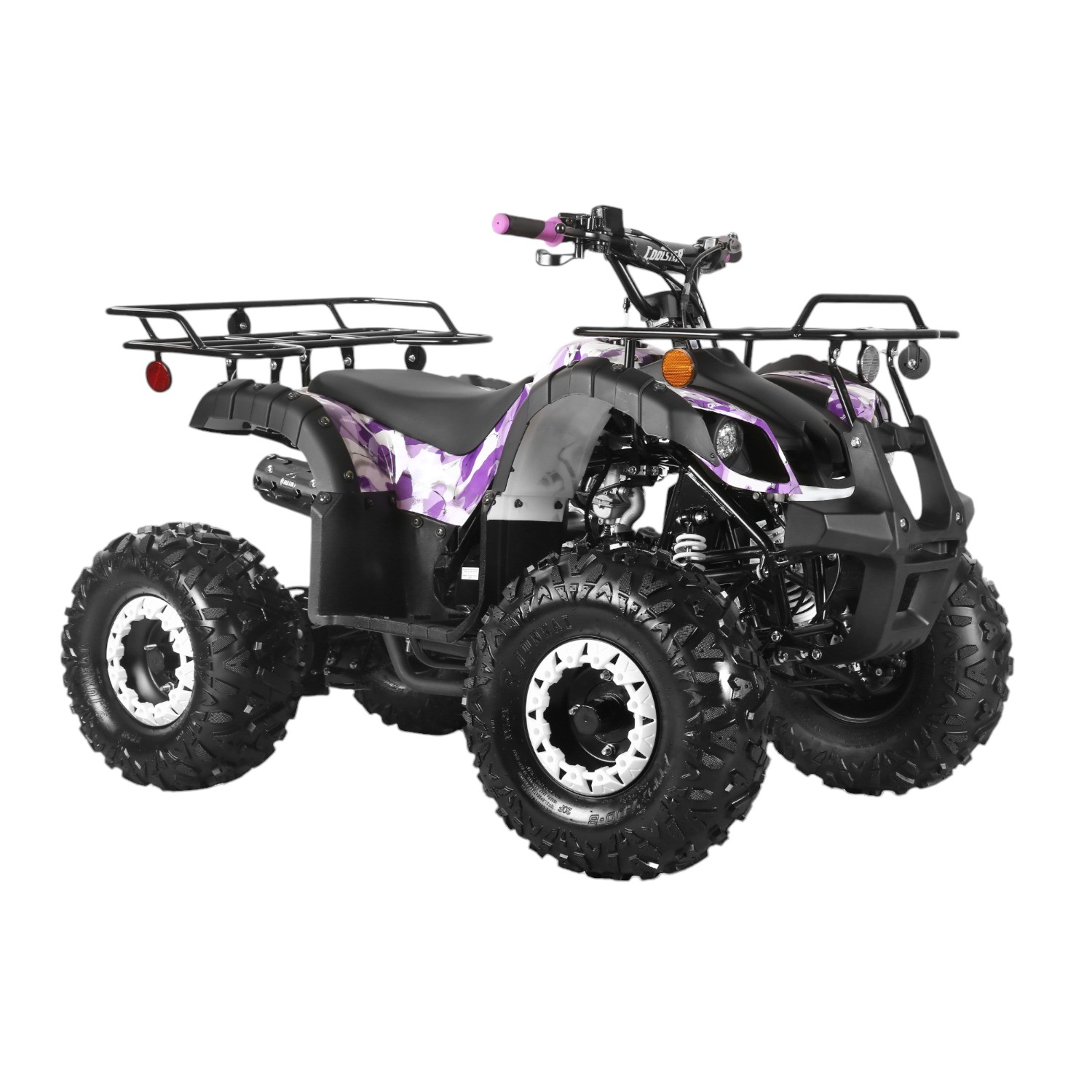

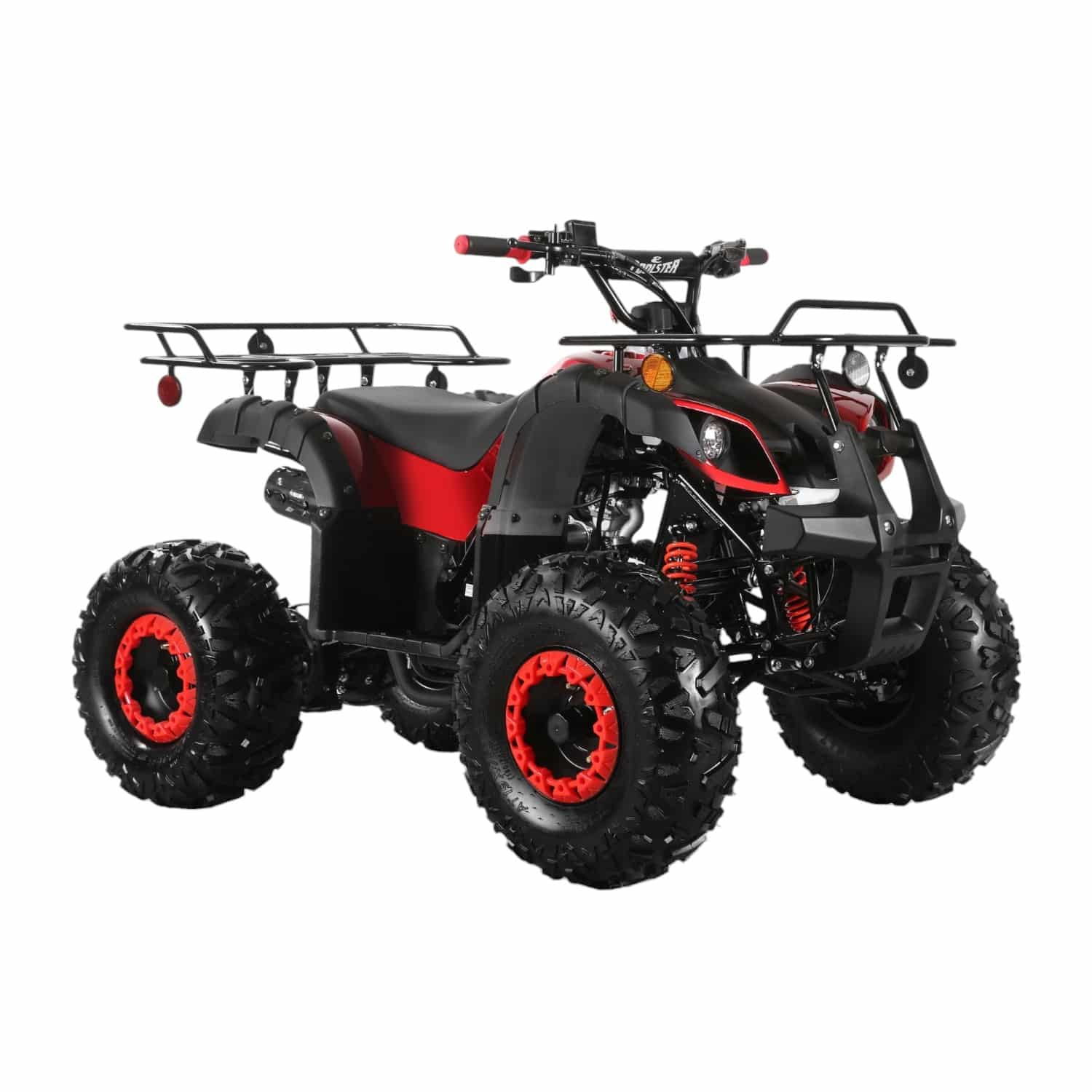

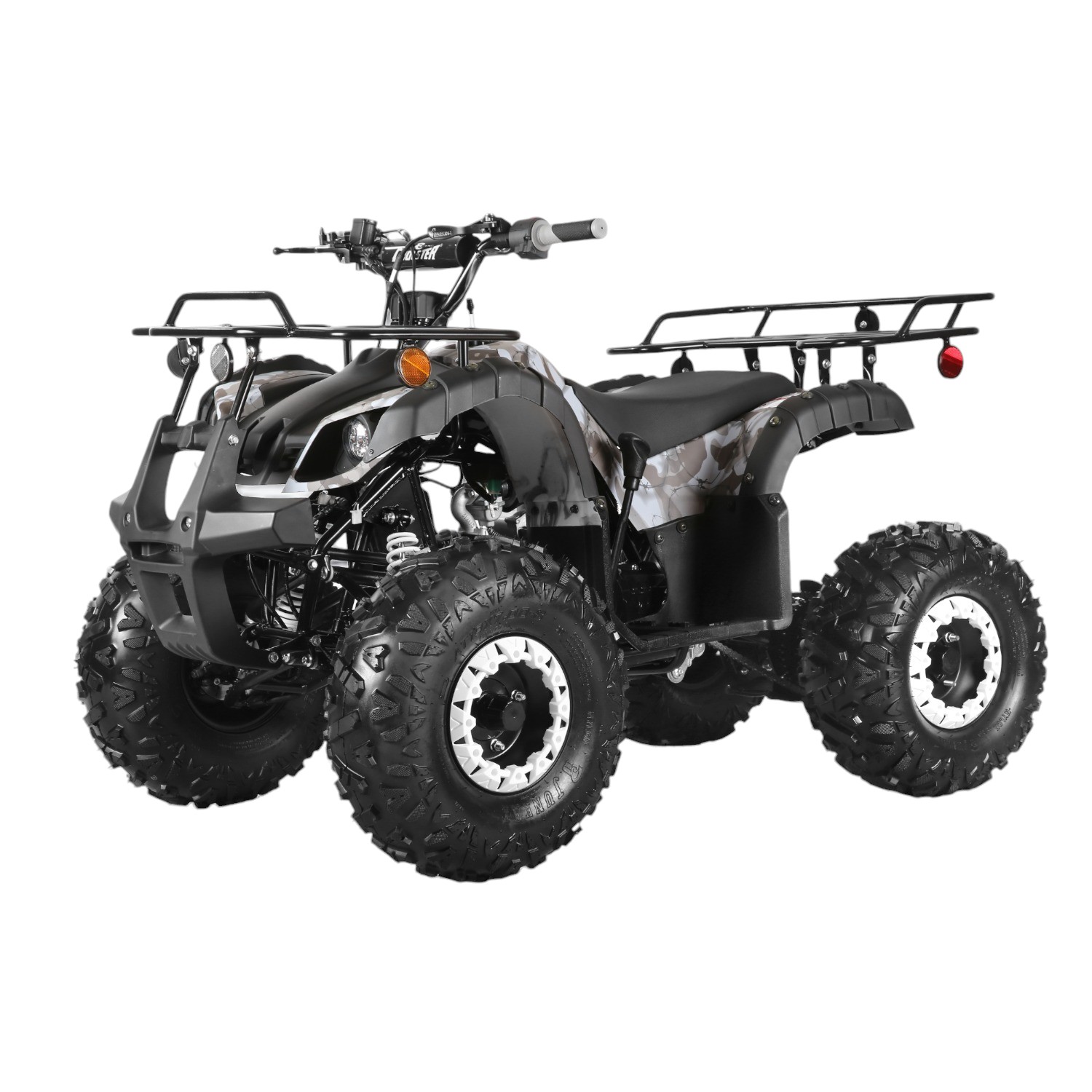

ATV-3125XR8-U2
125CC Fully-Automatic Mid Sized Utility ATV

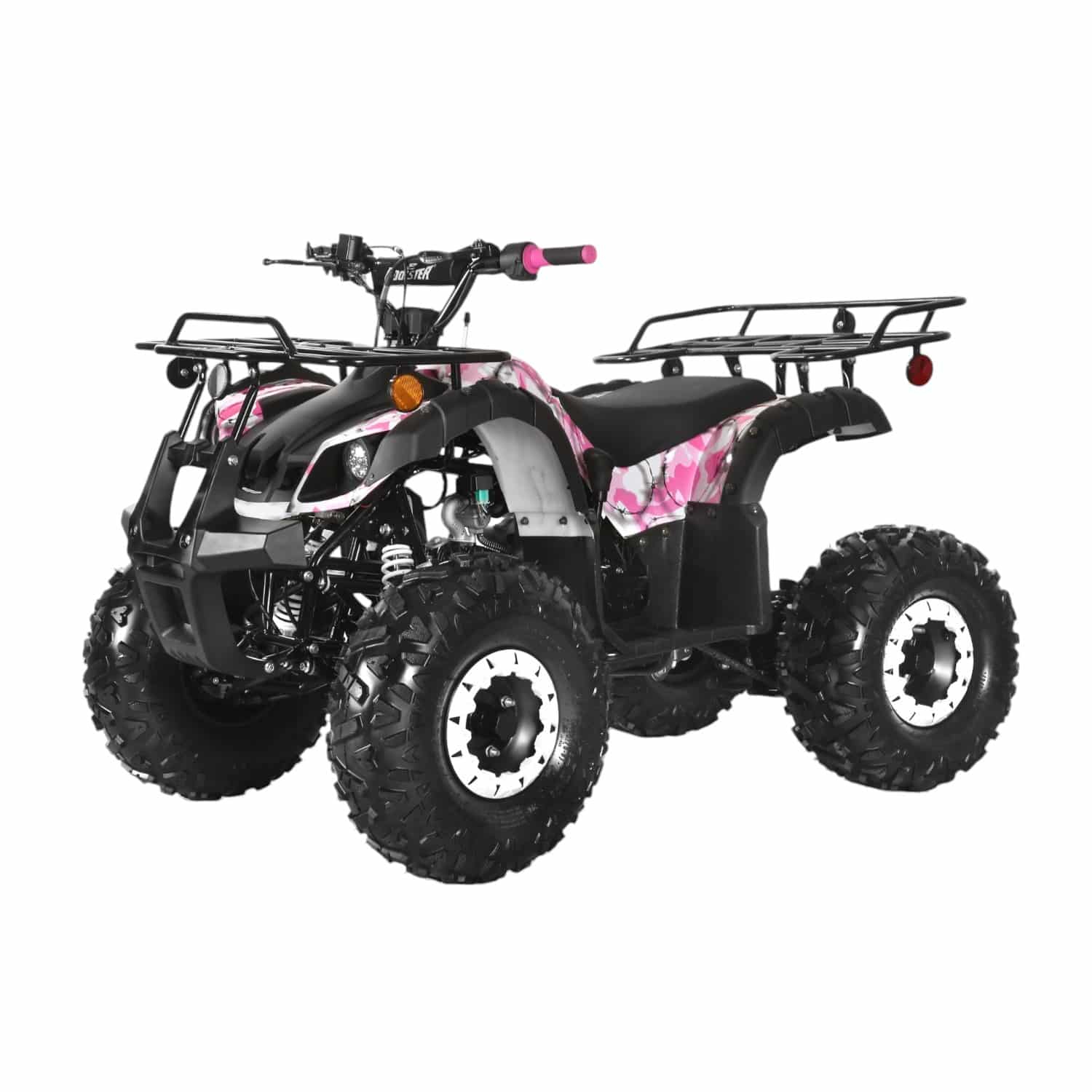

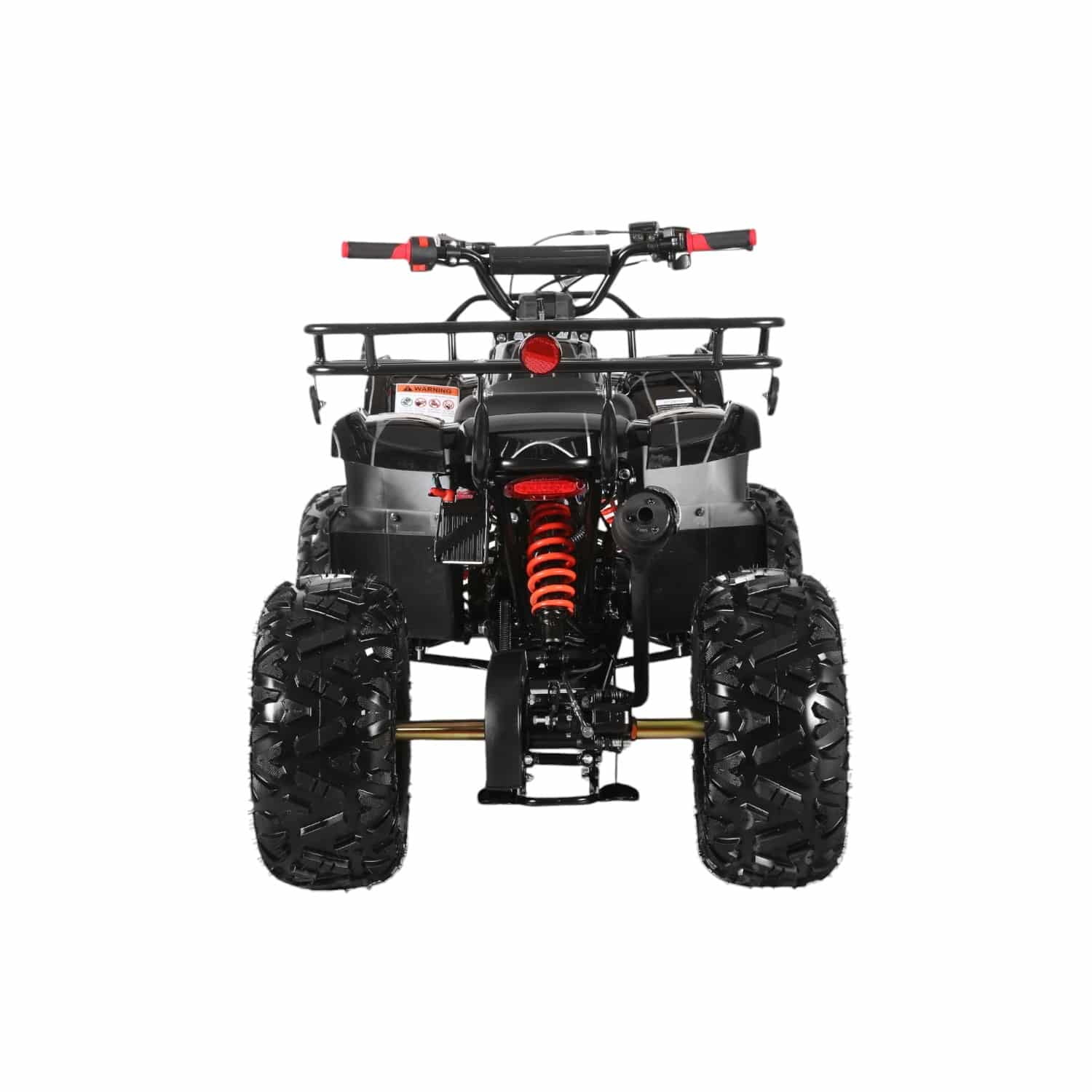

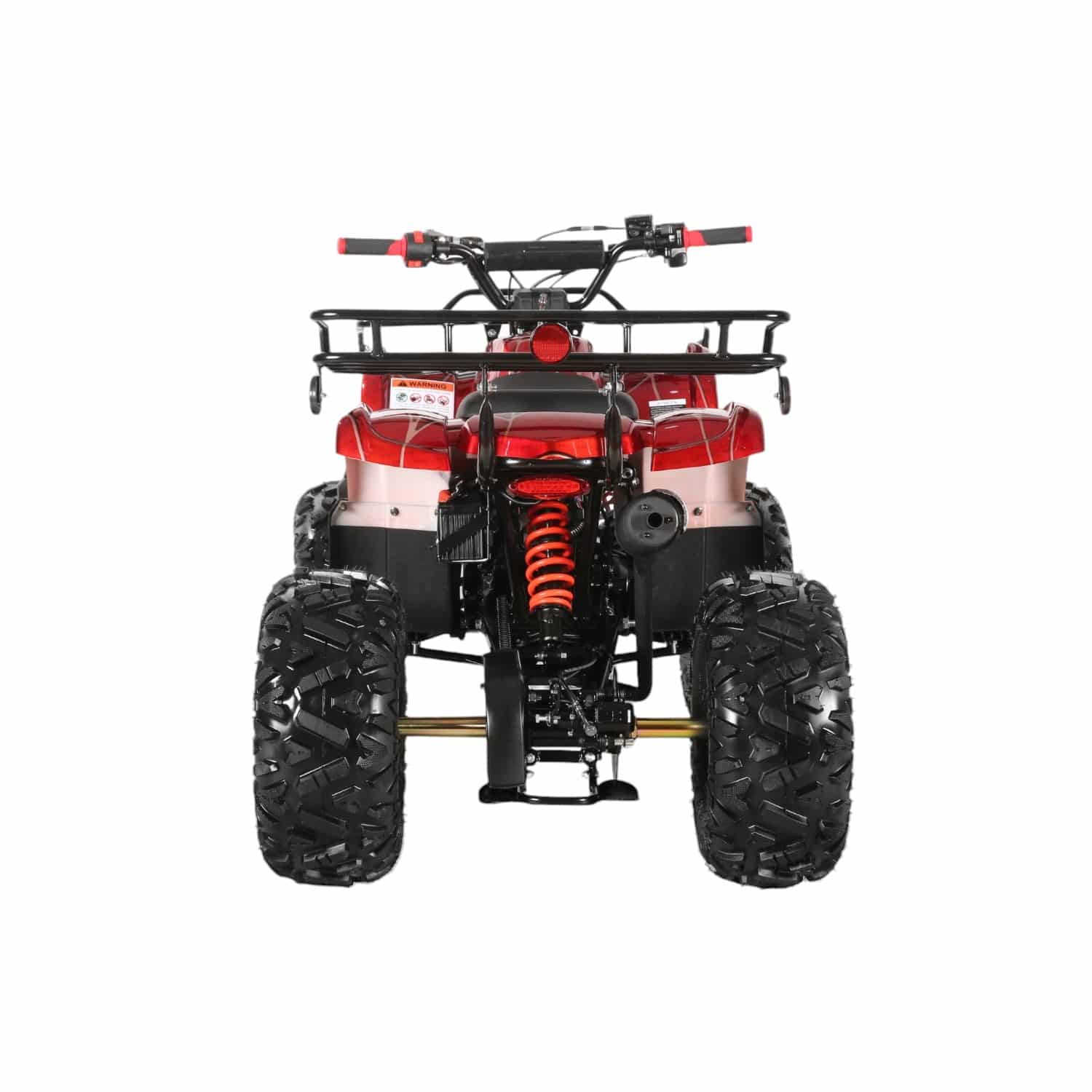

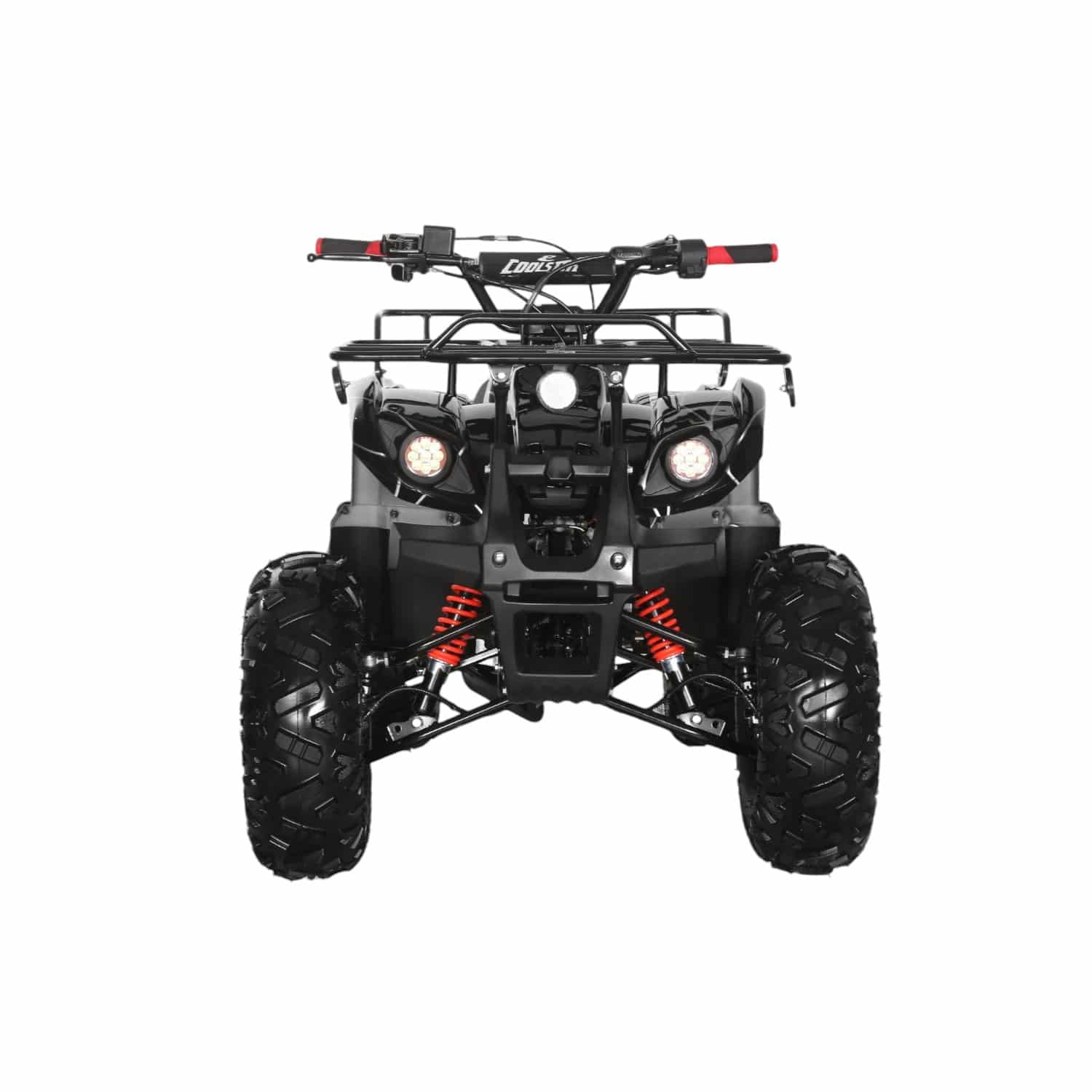

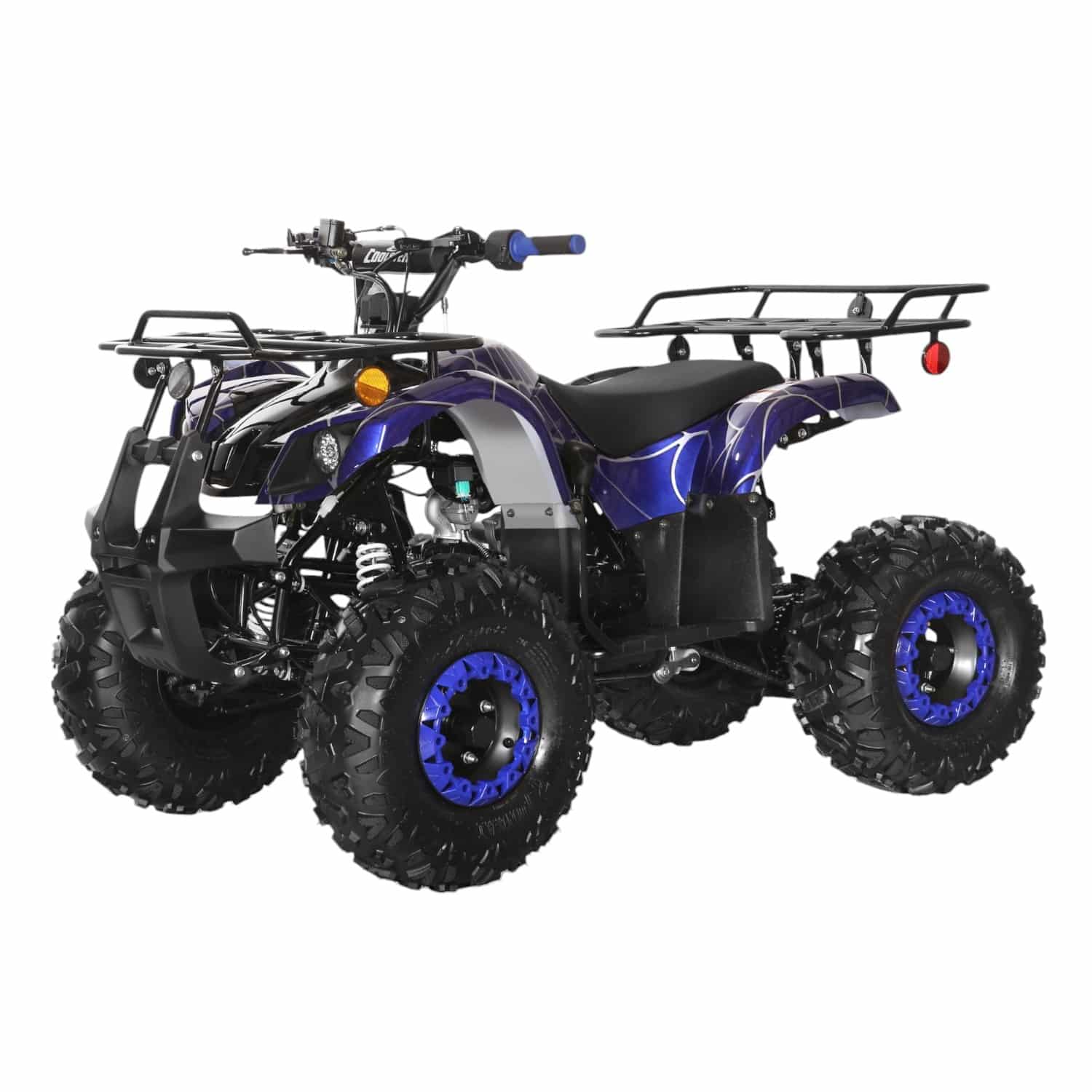

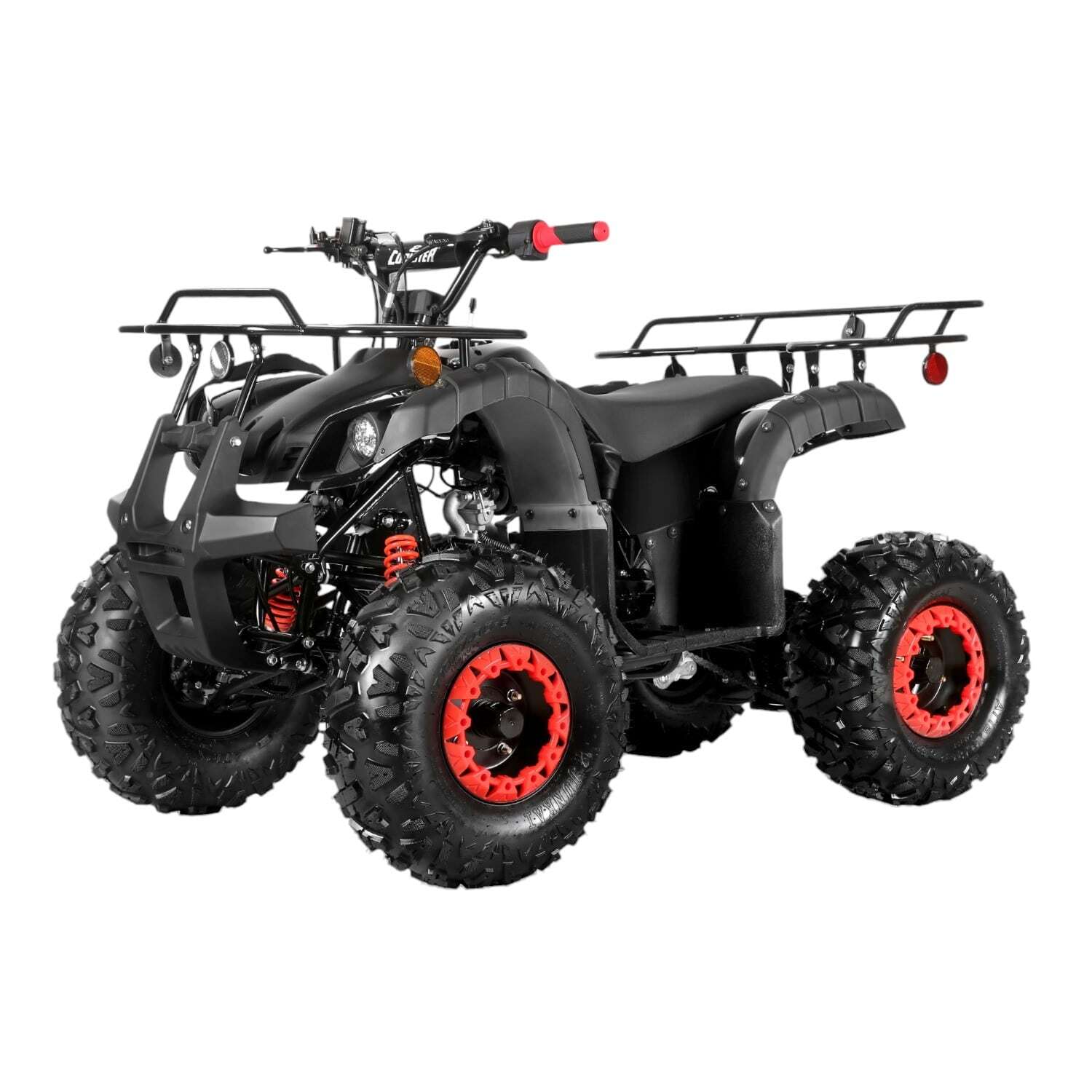

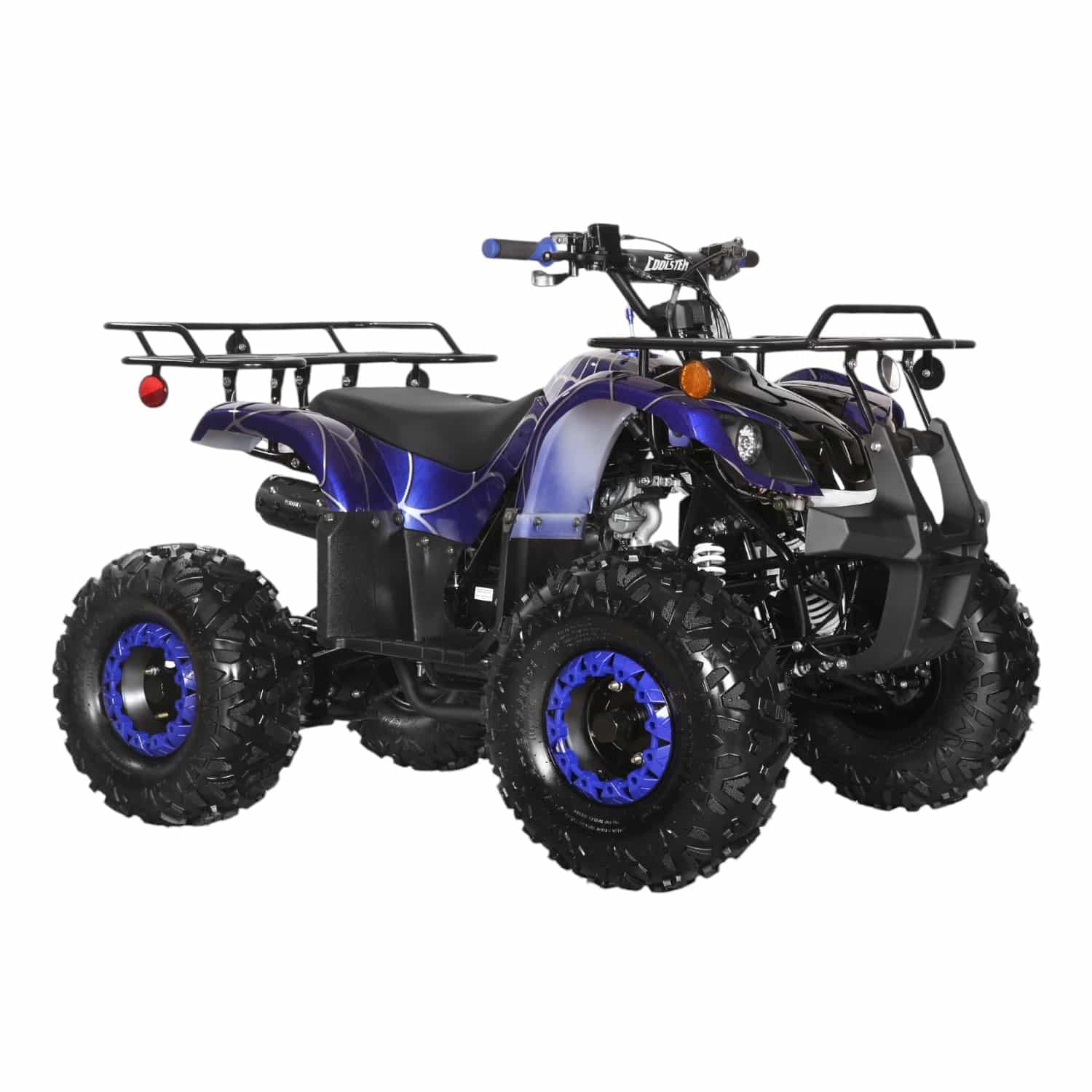

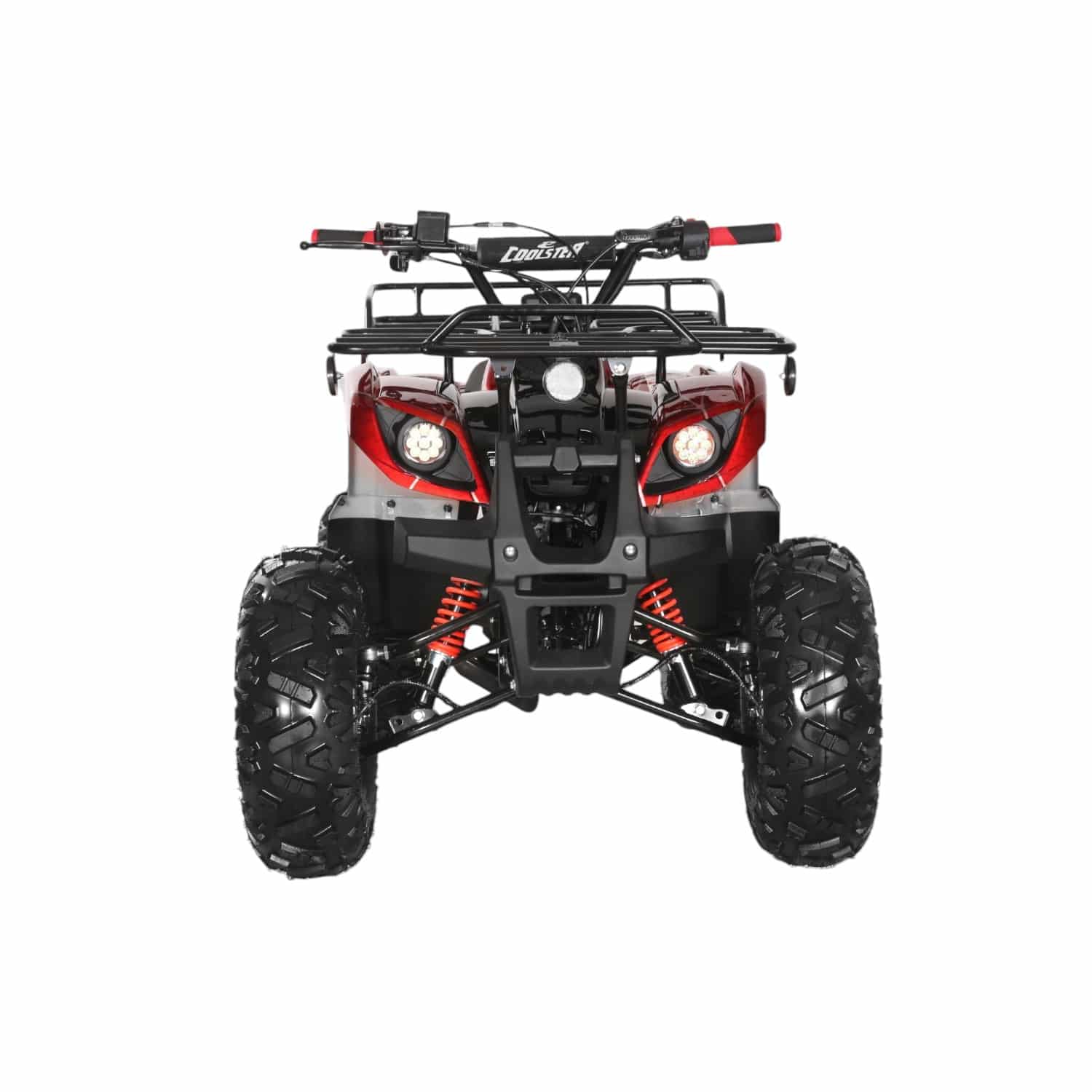

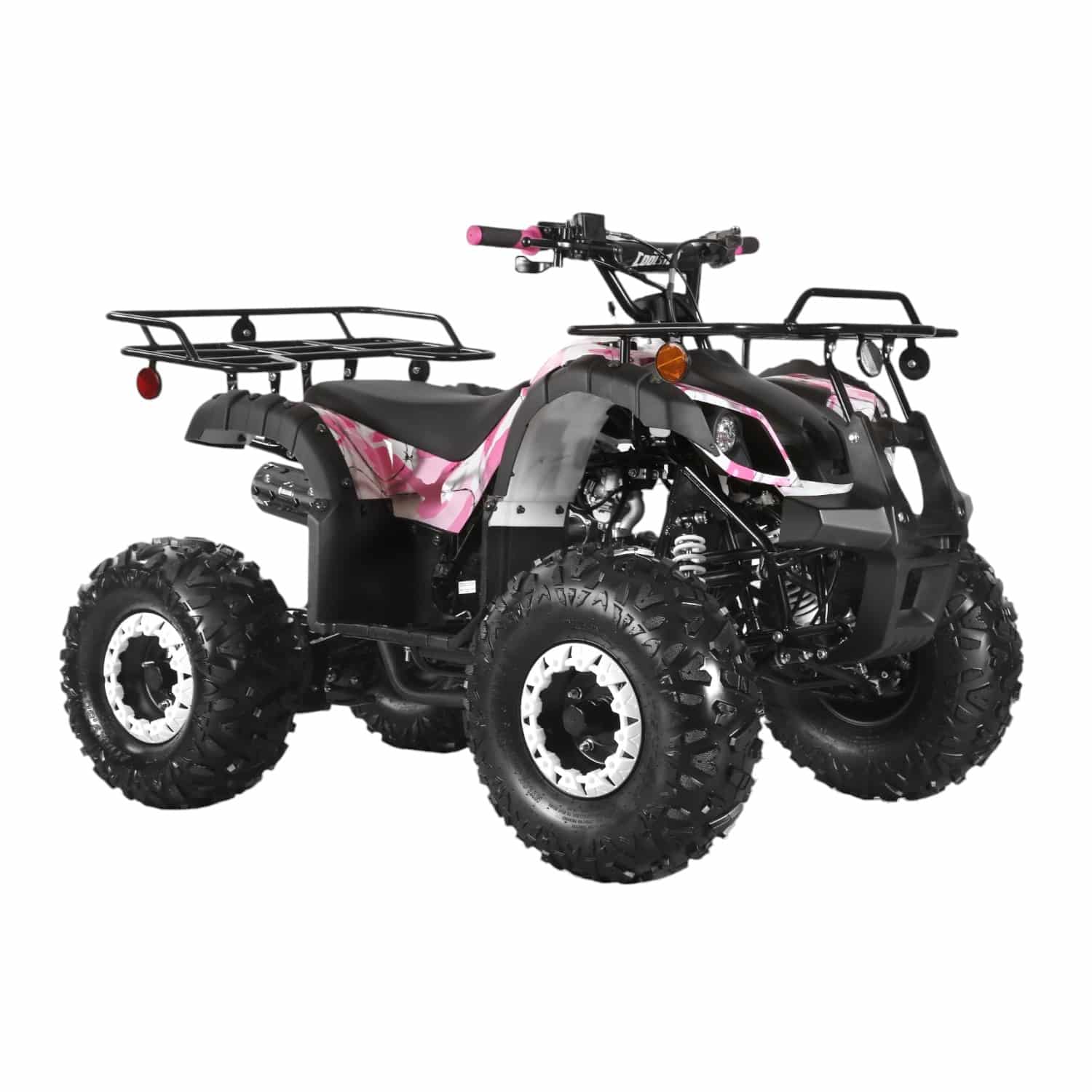

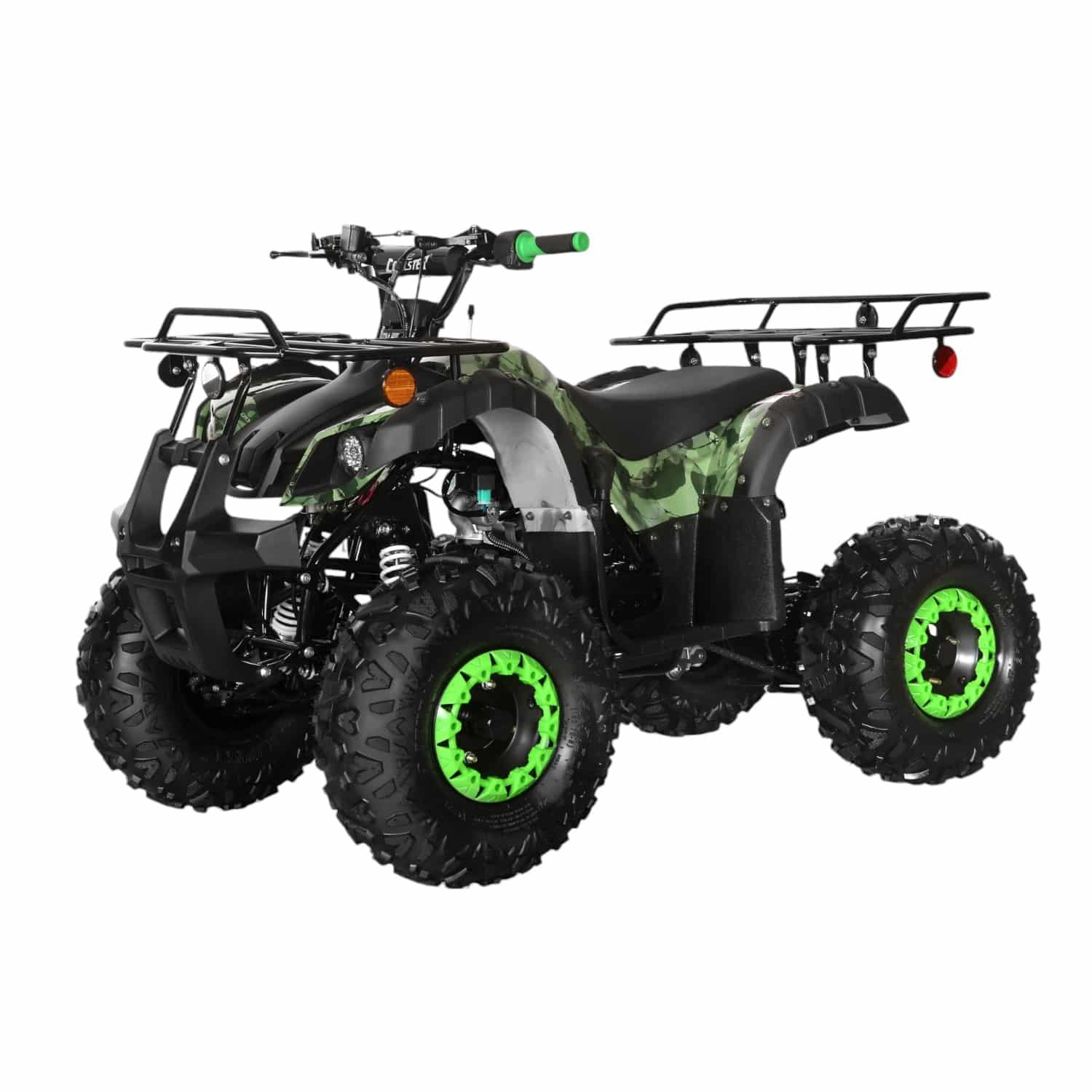

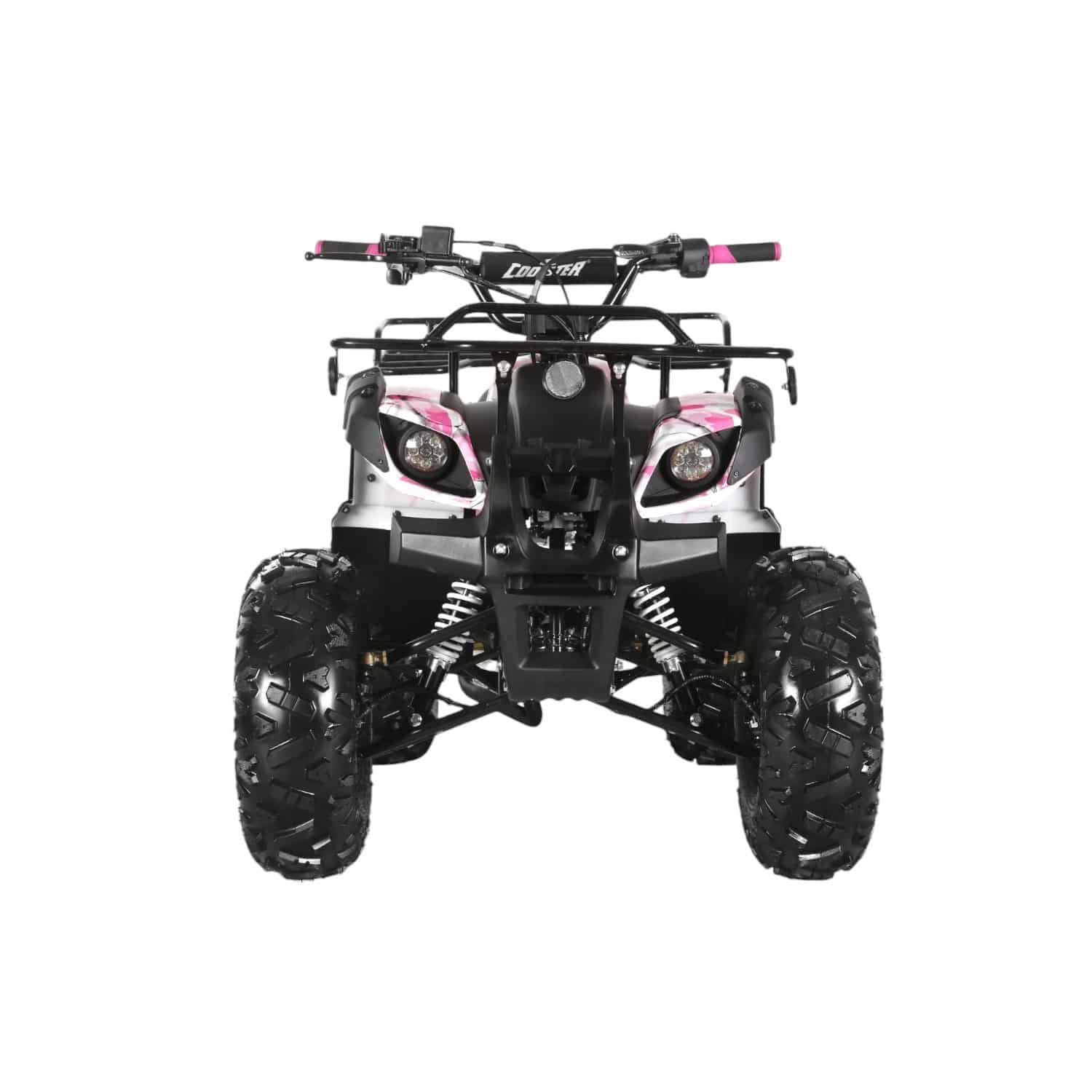

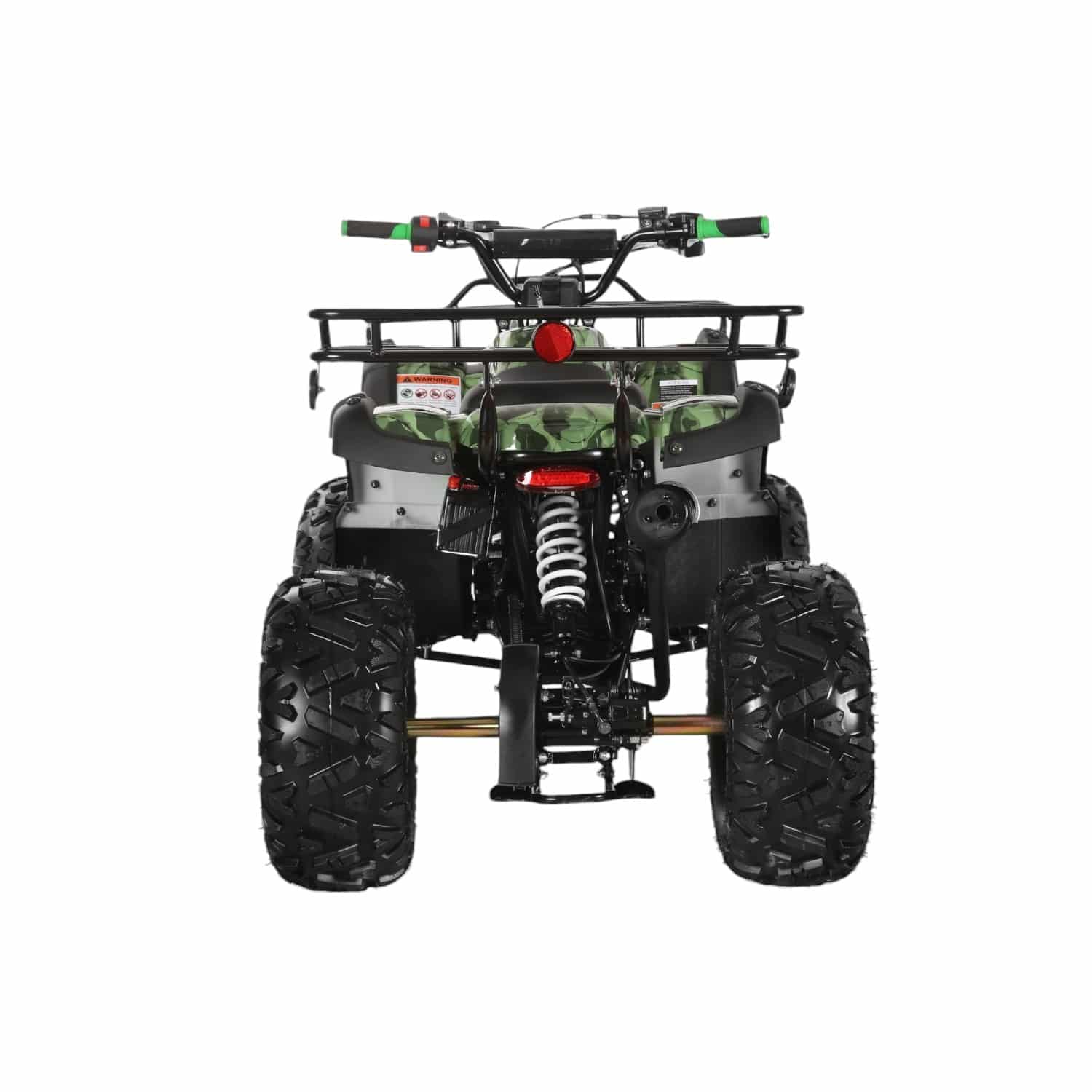

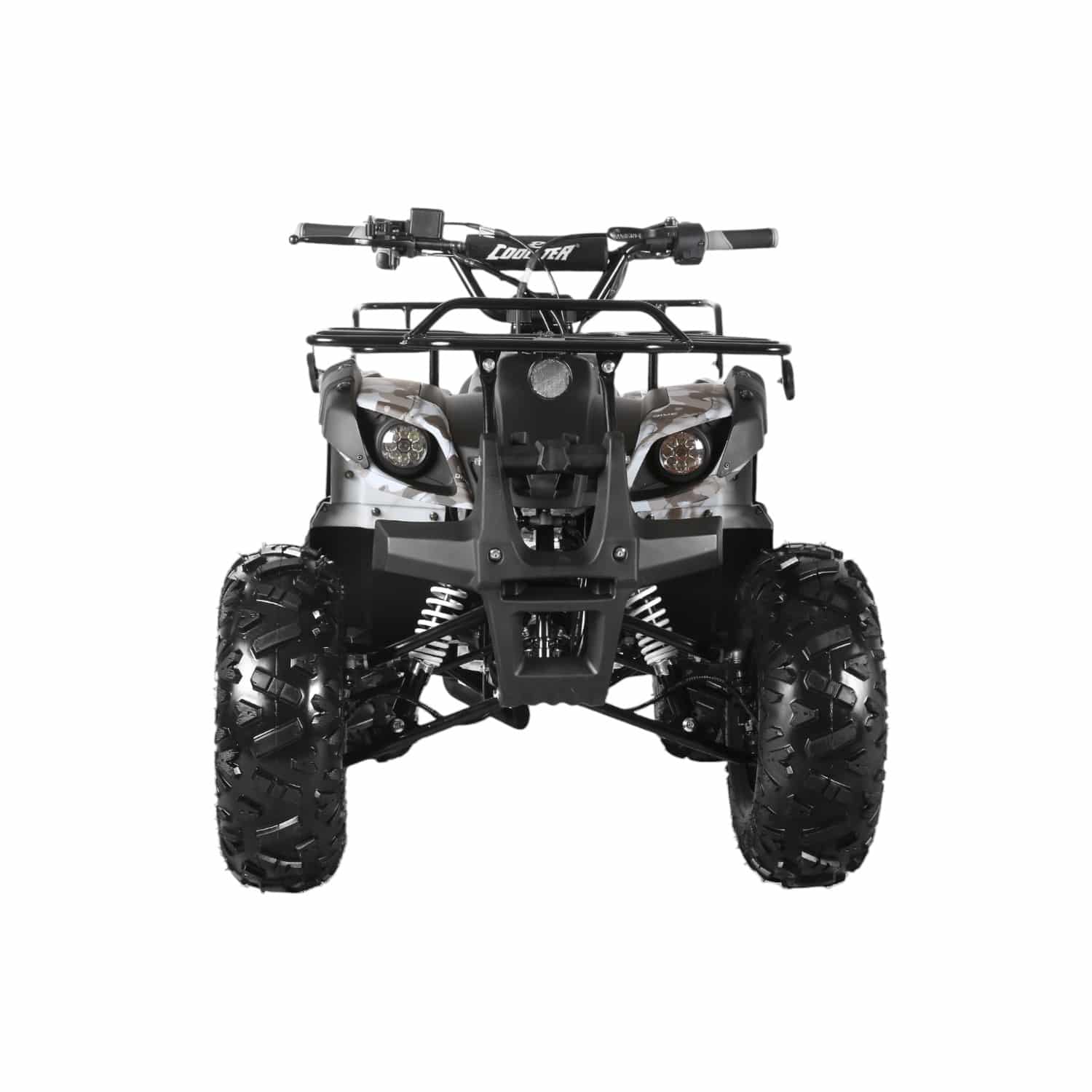

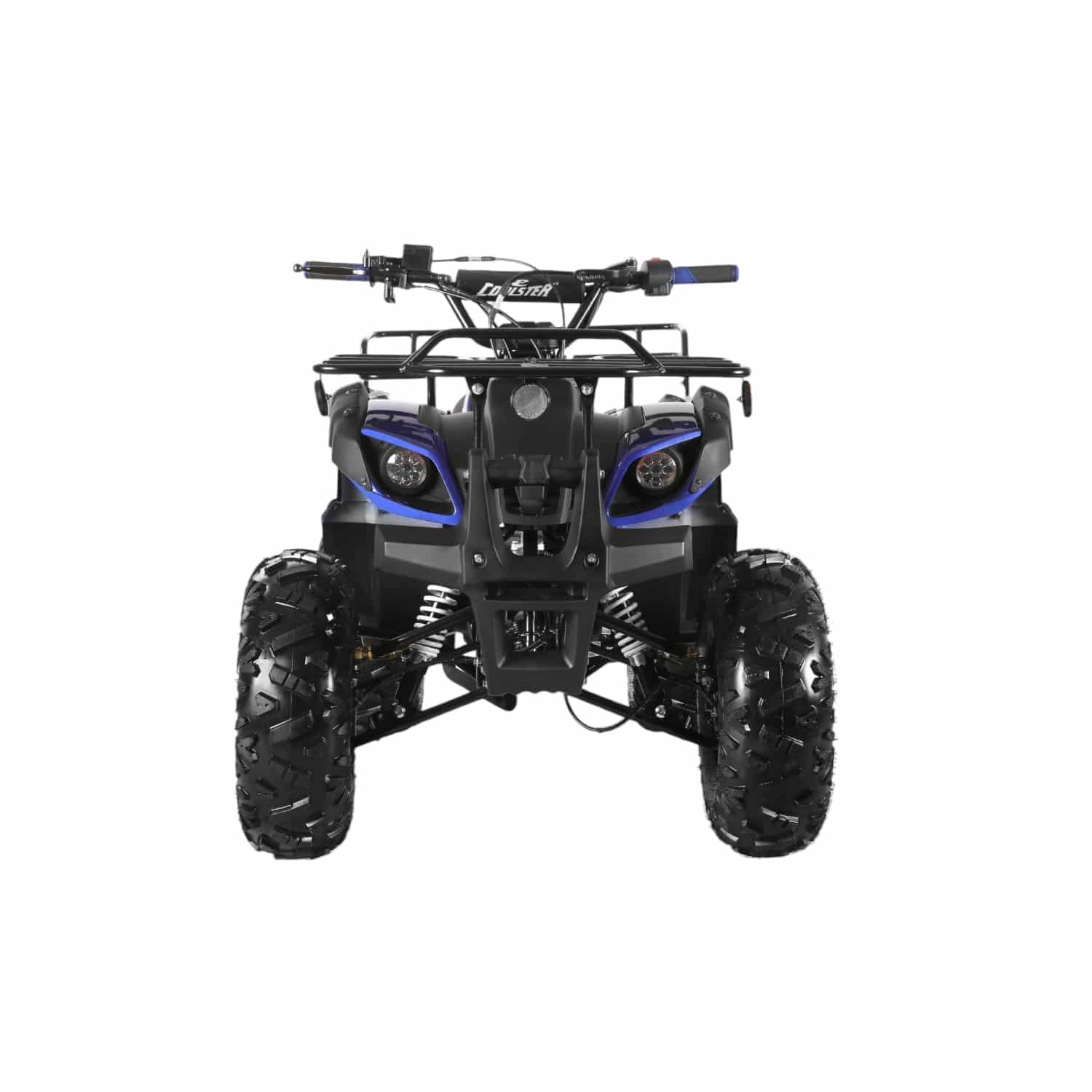

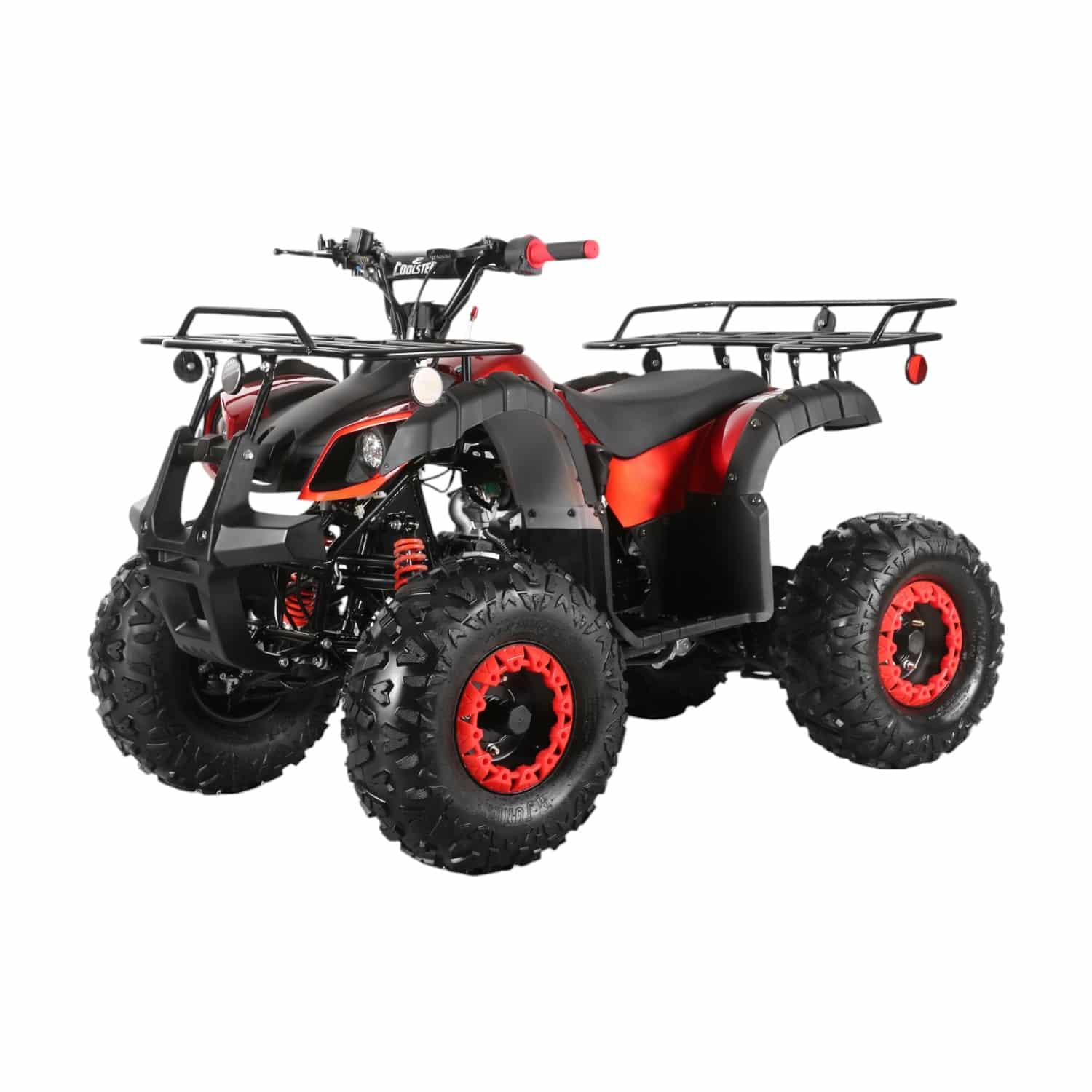

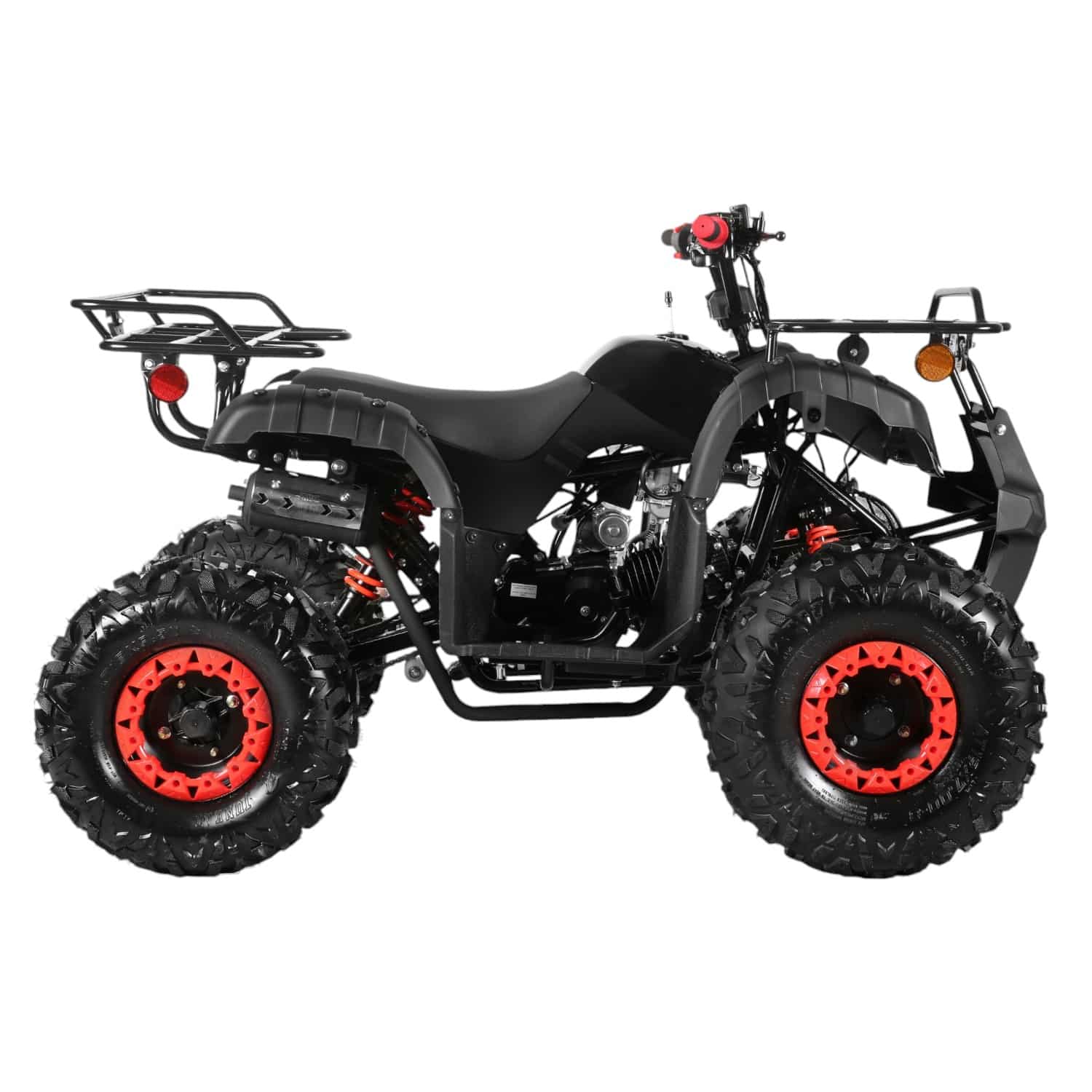

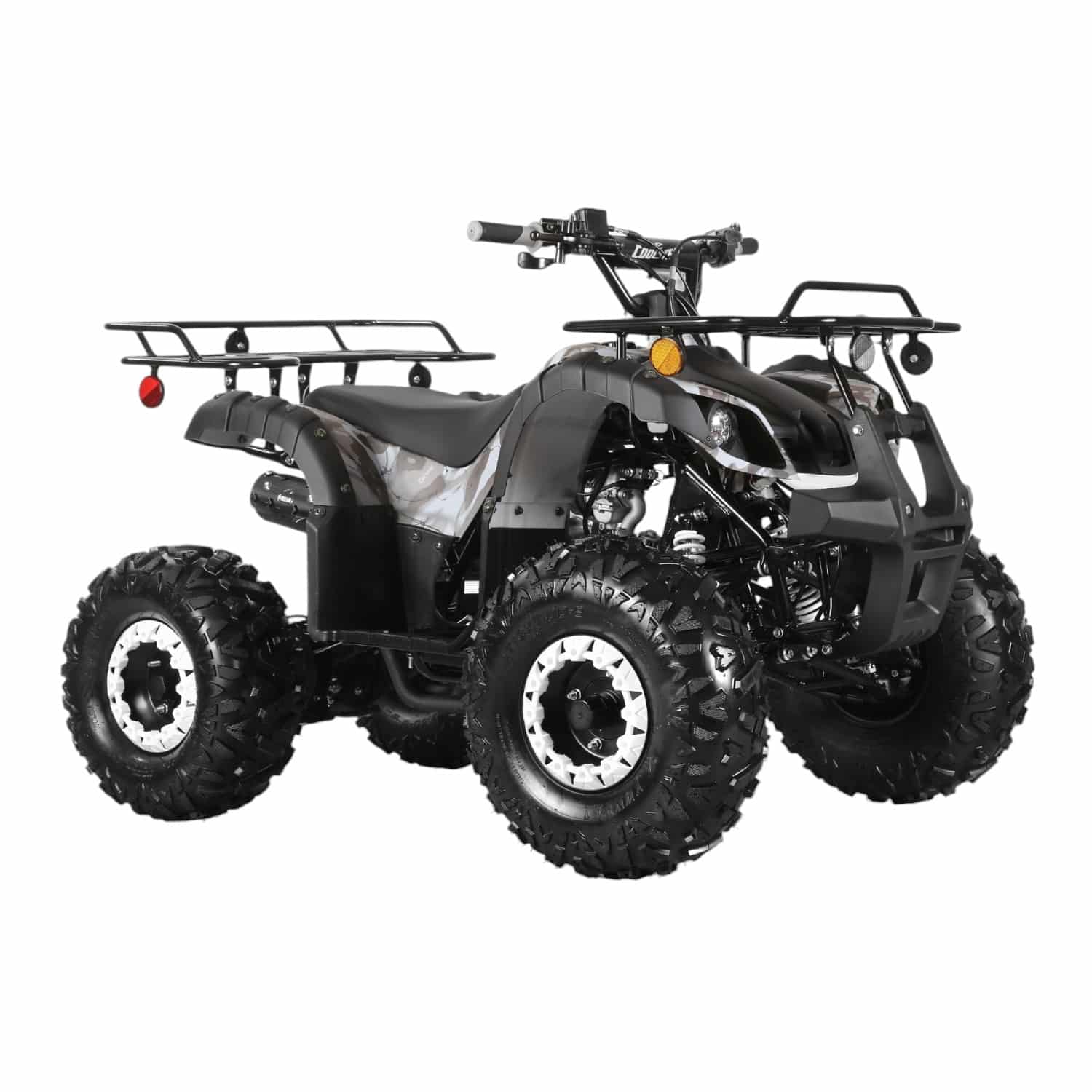

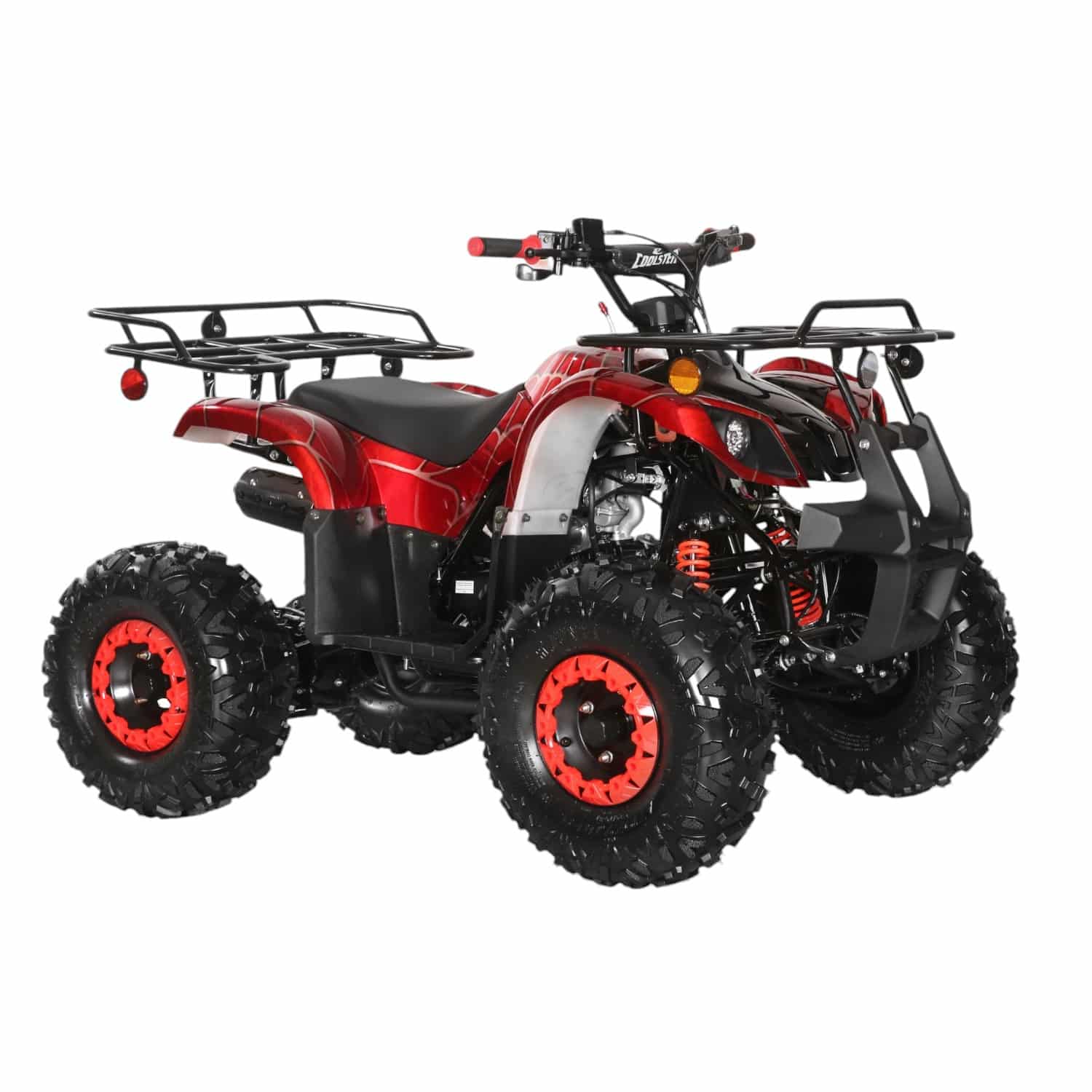

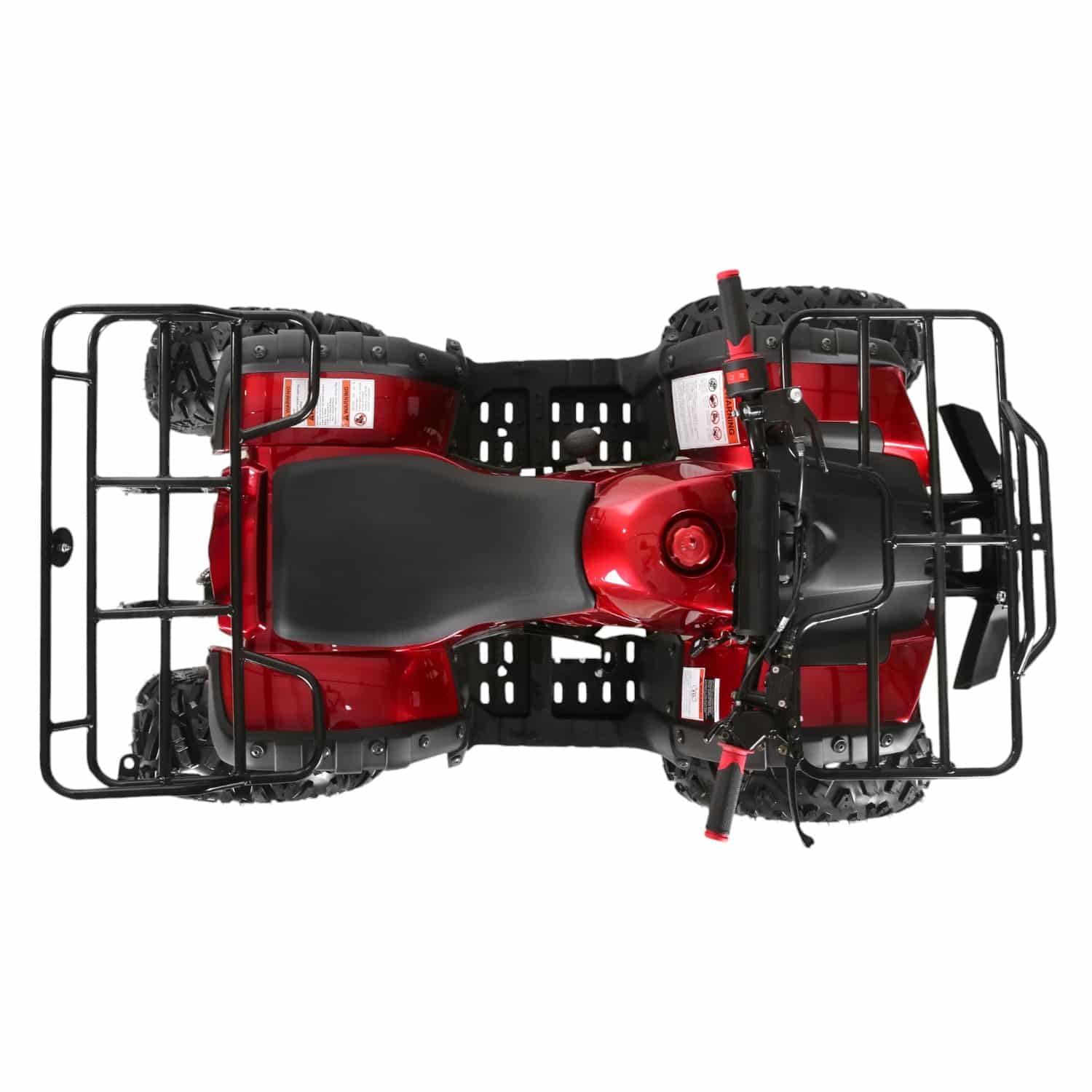

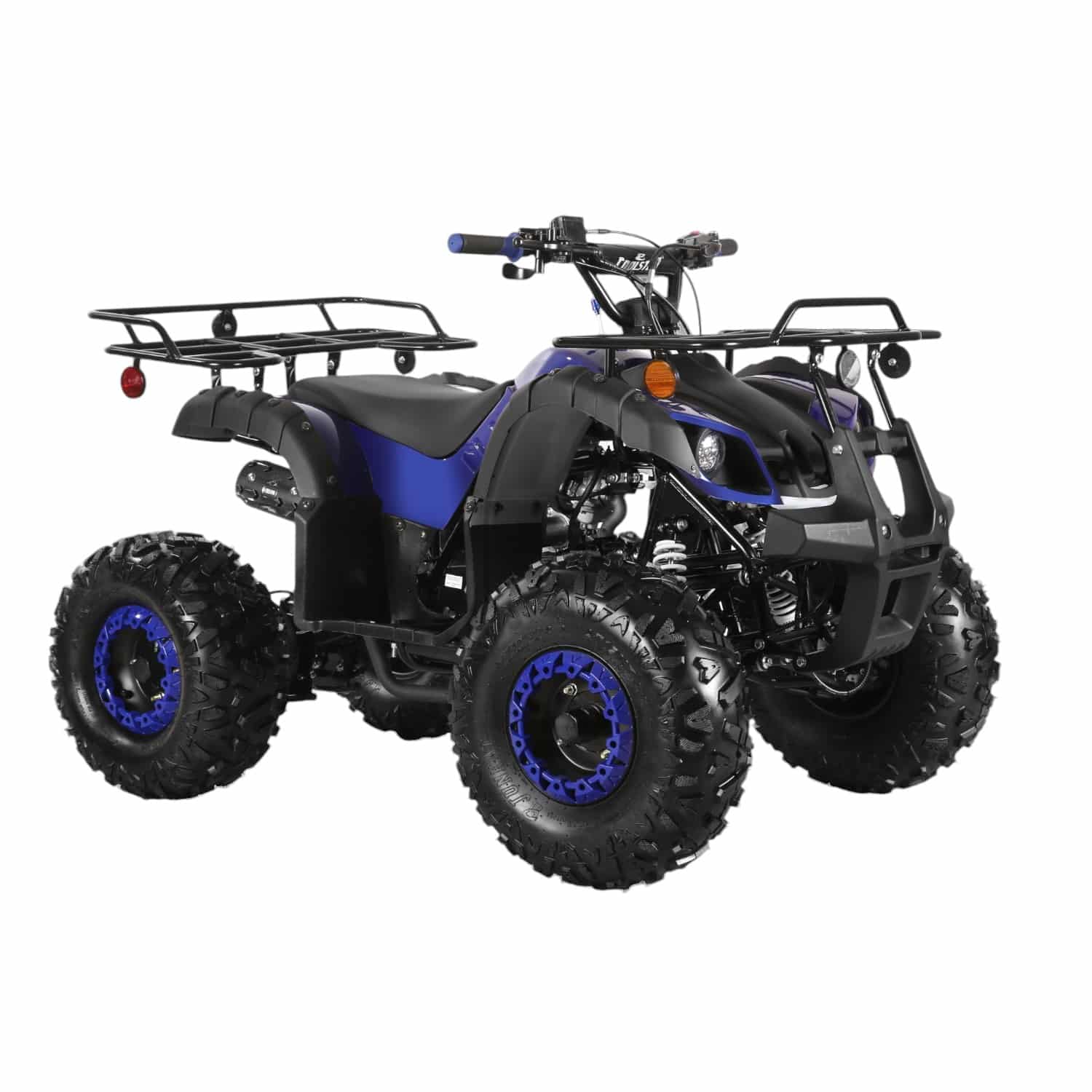

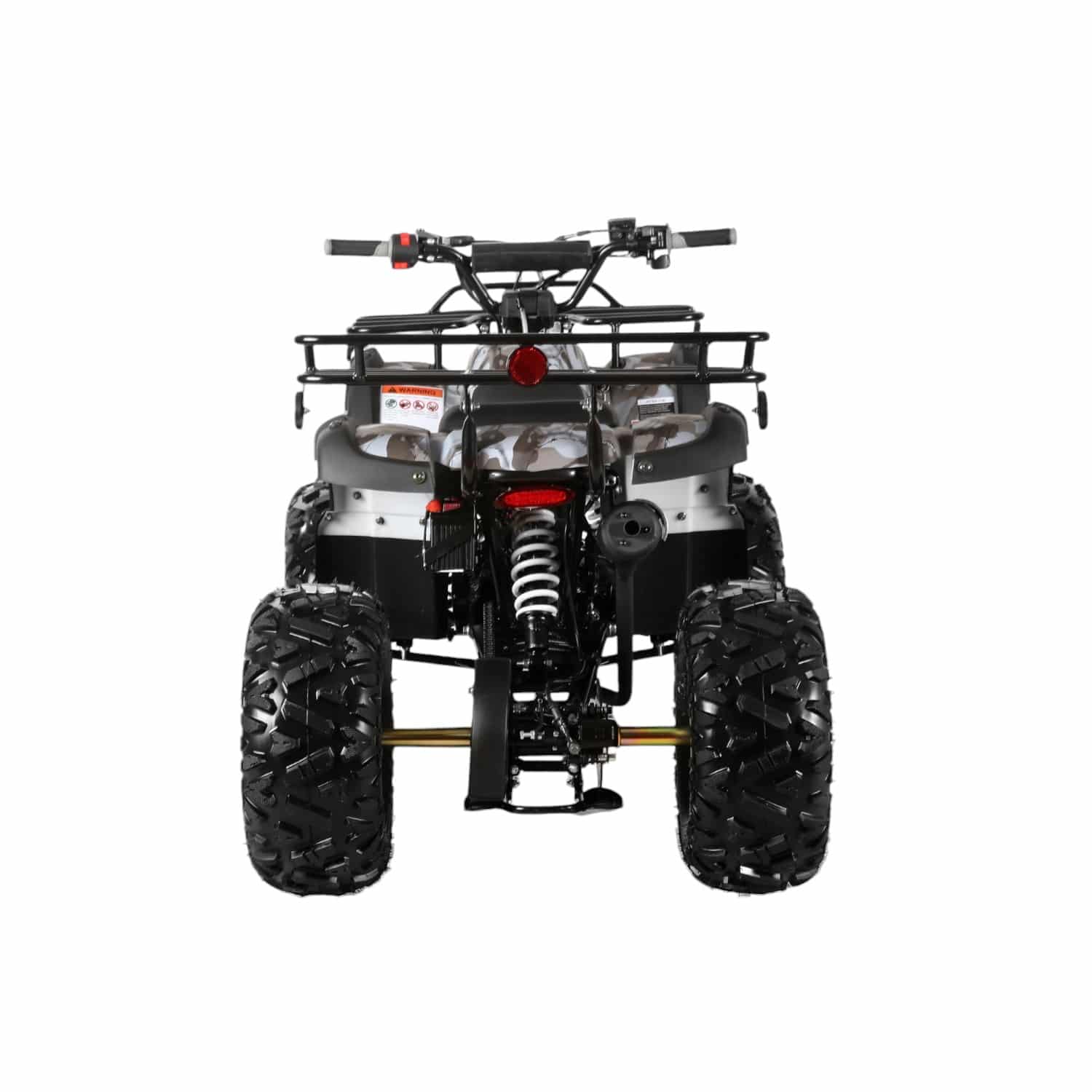

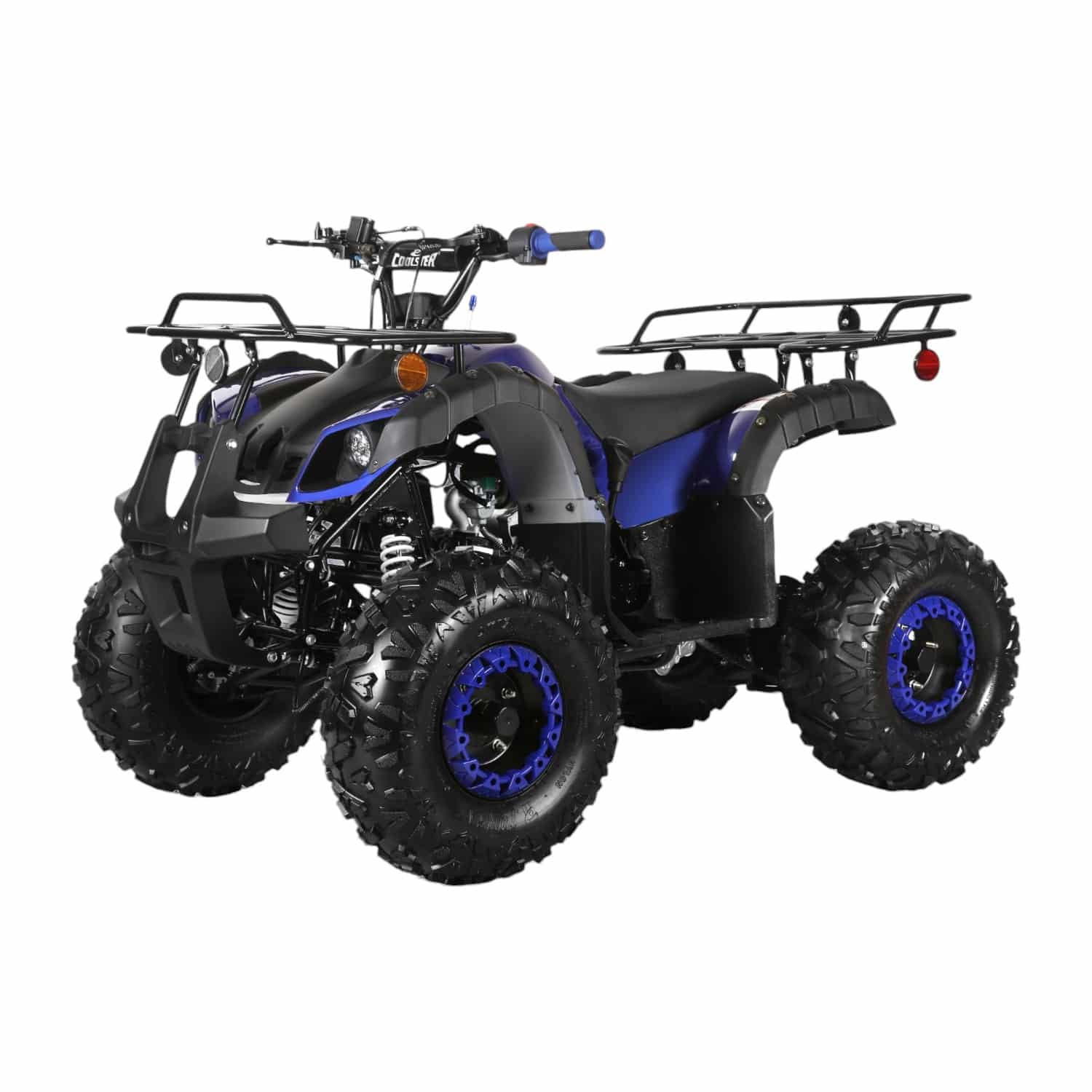

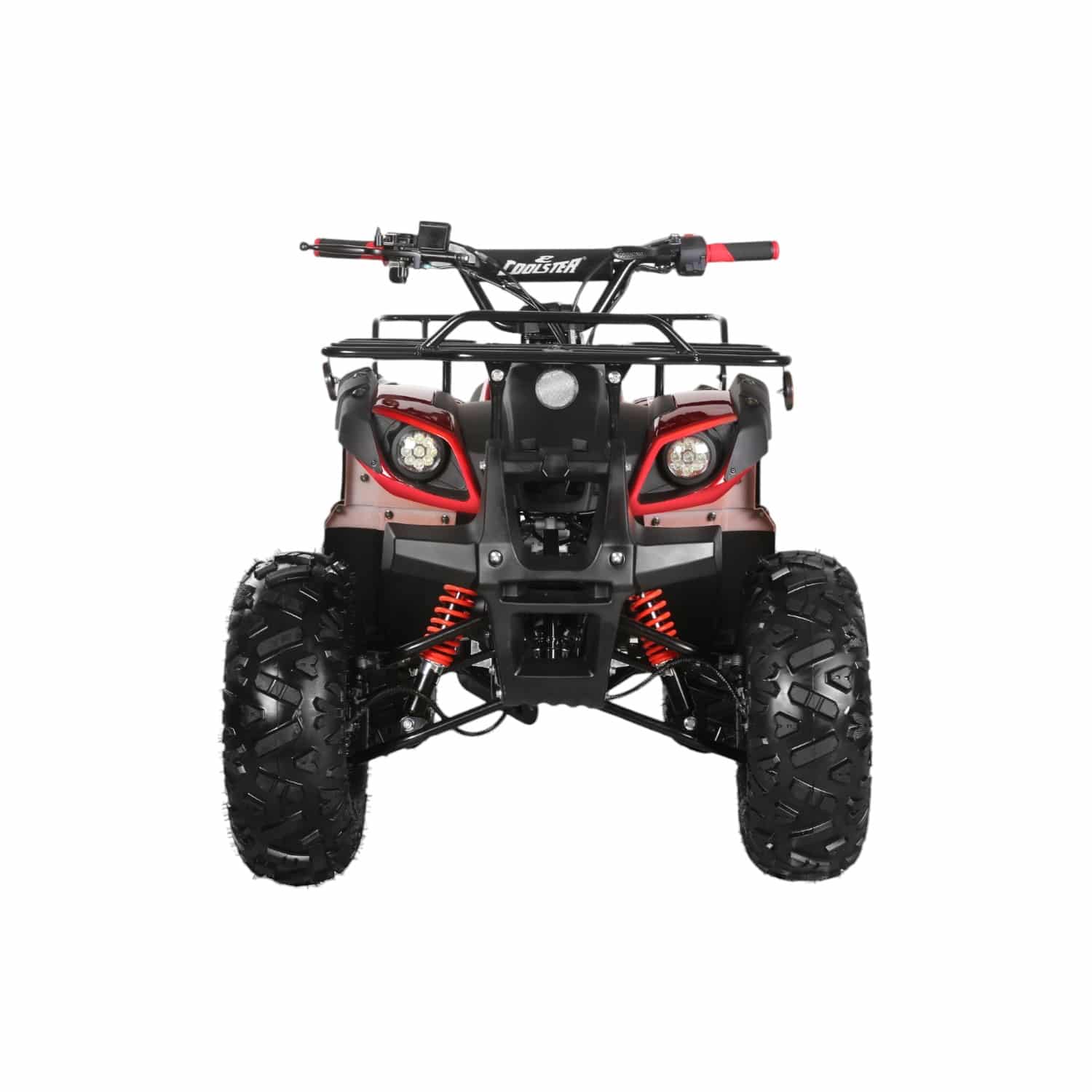

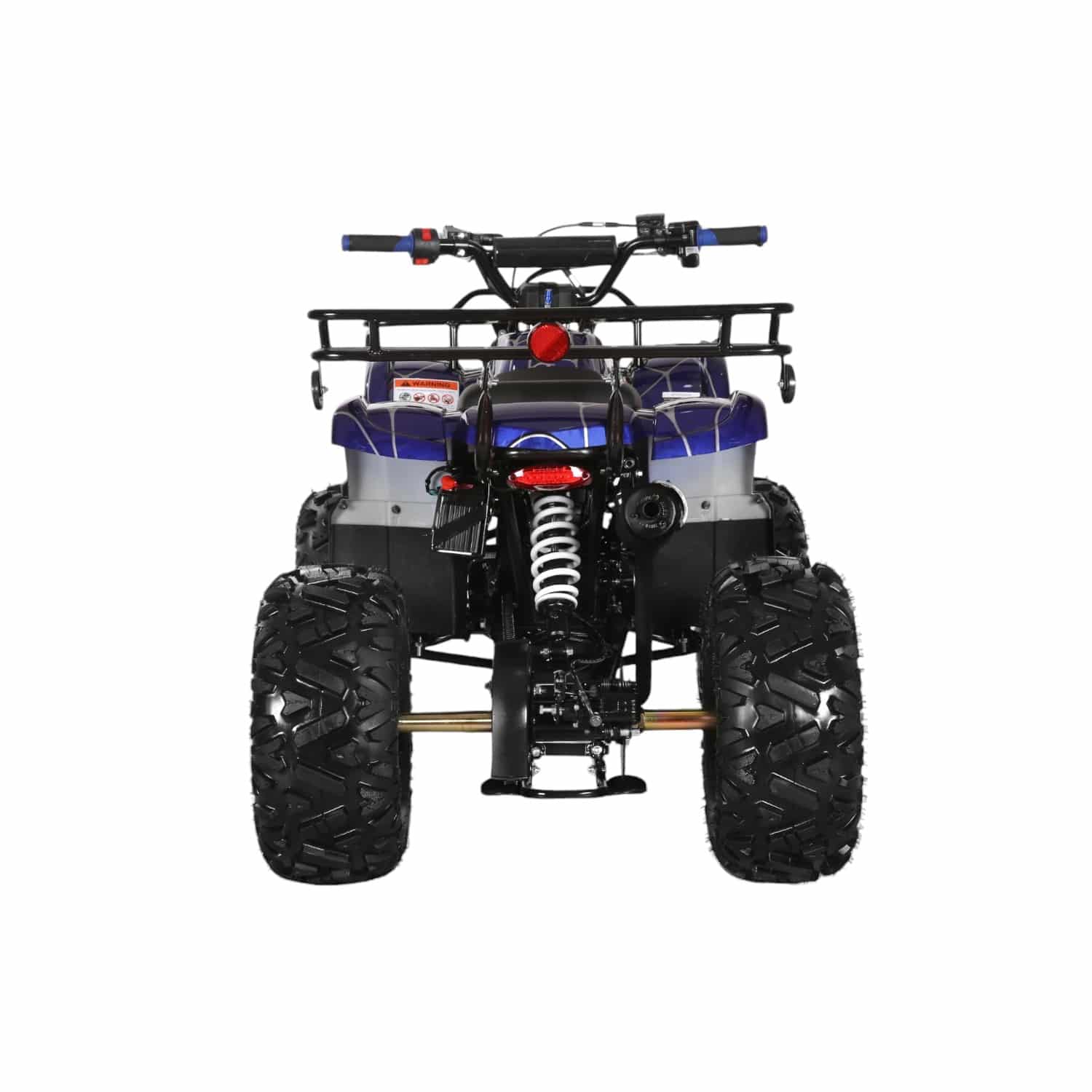

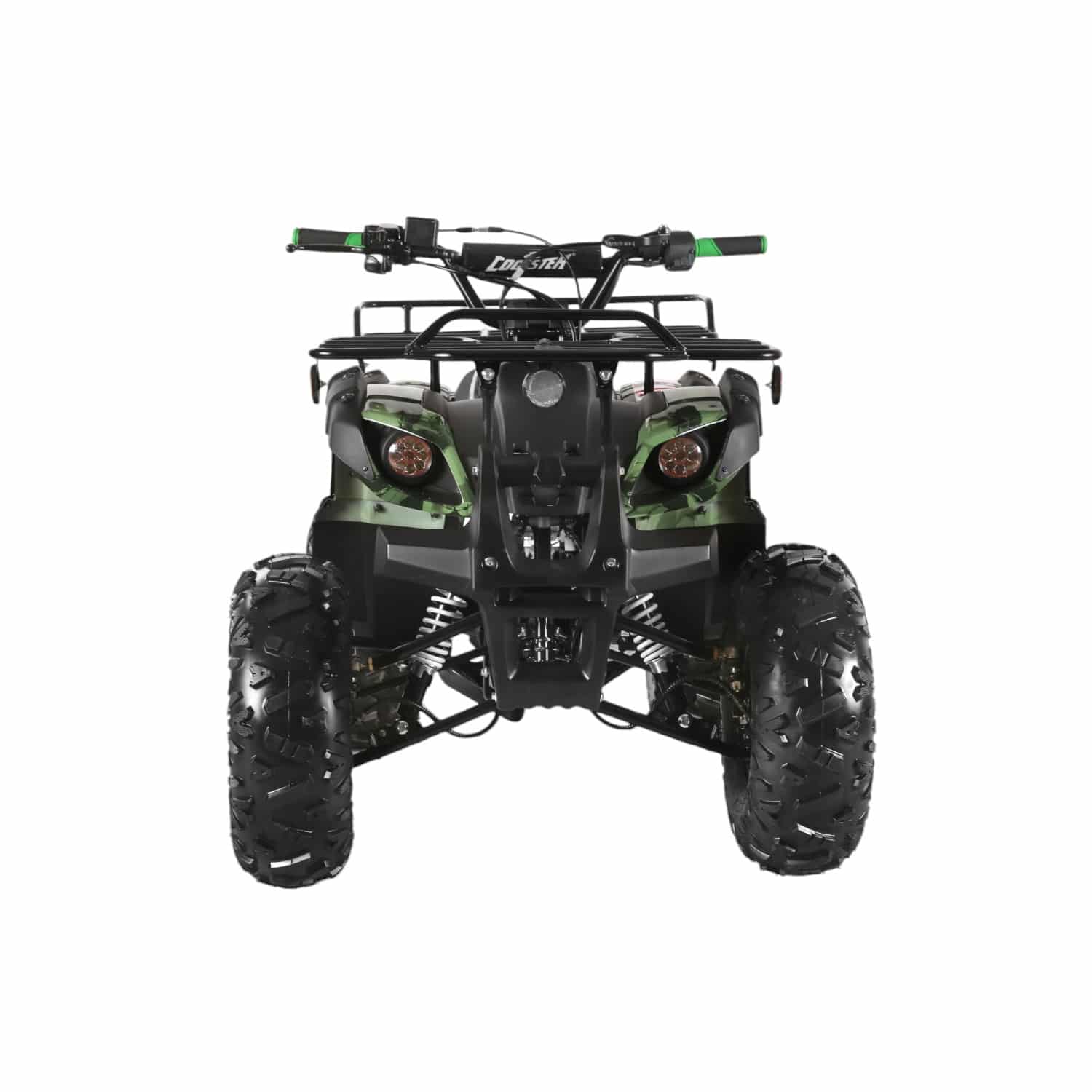

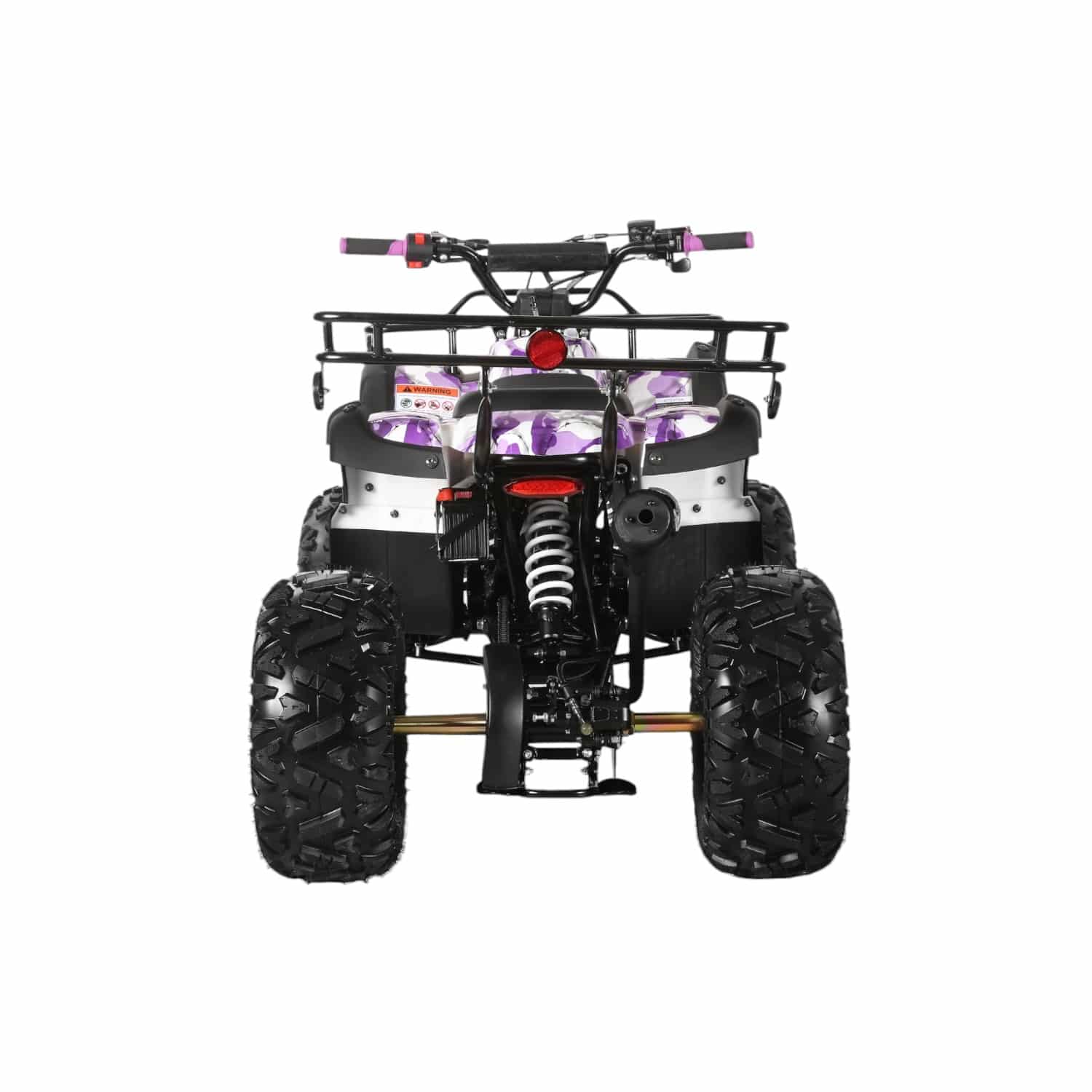

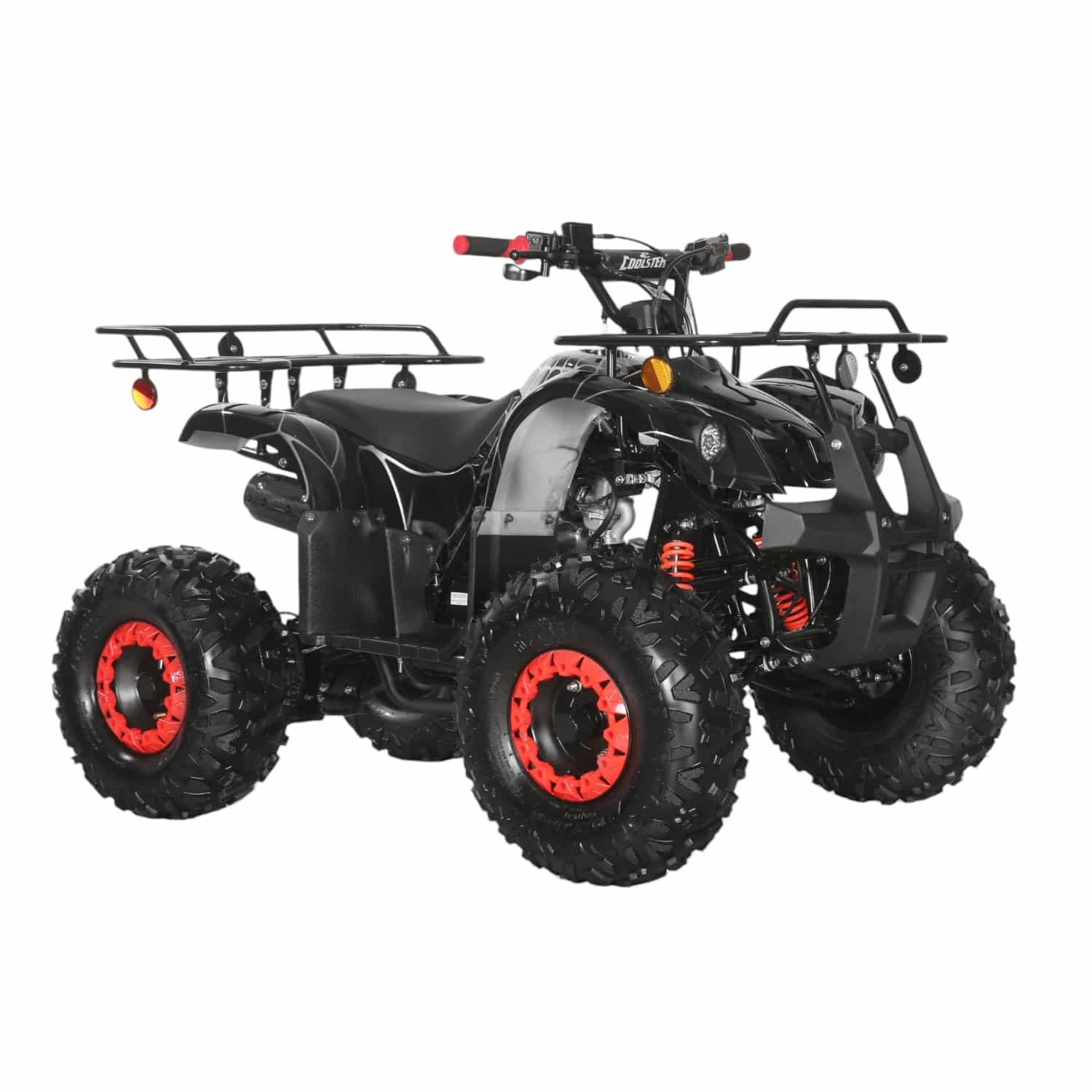

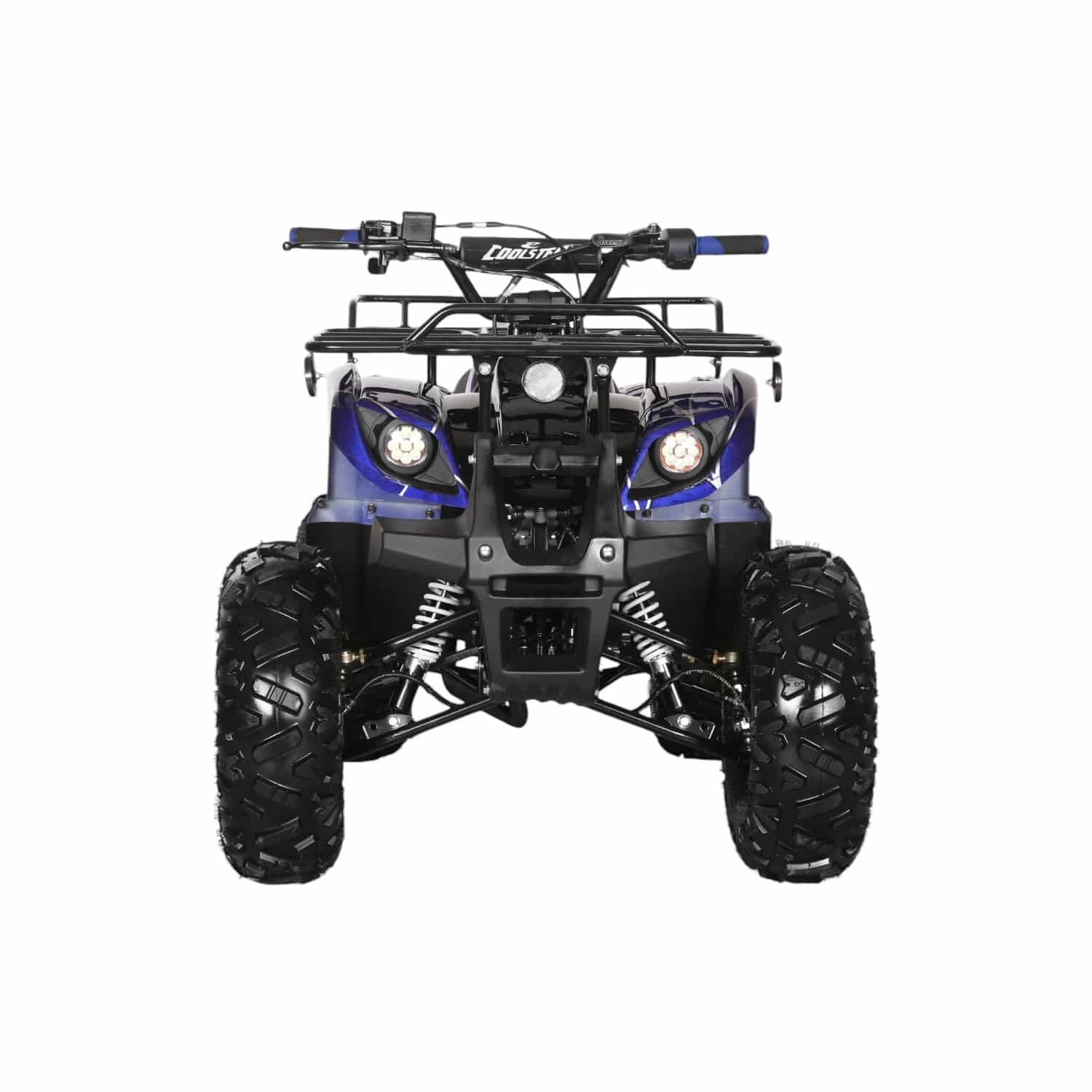

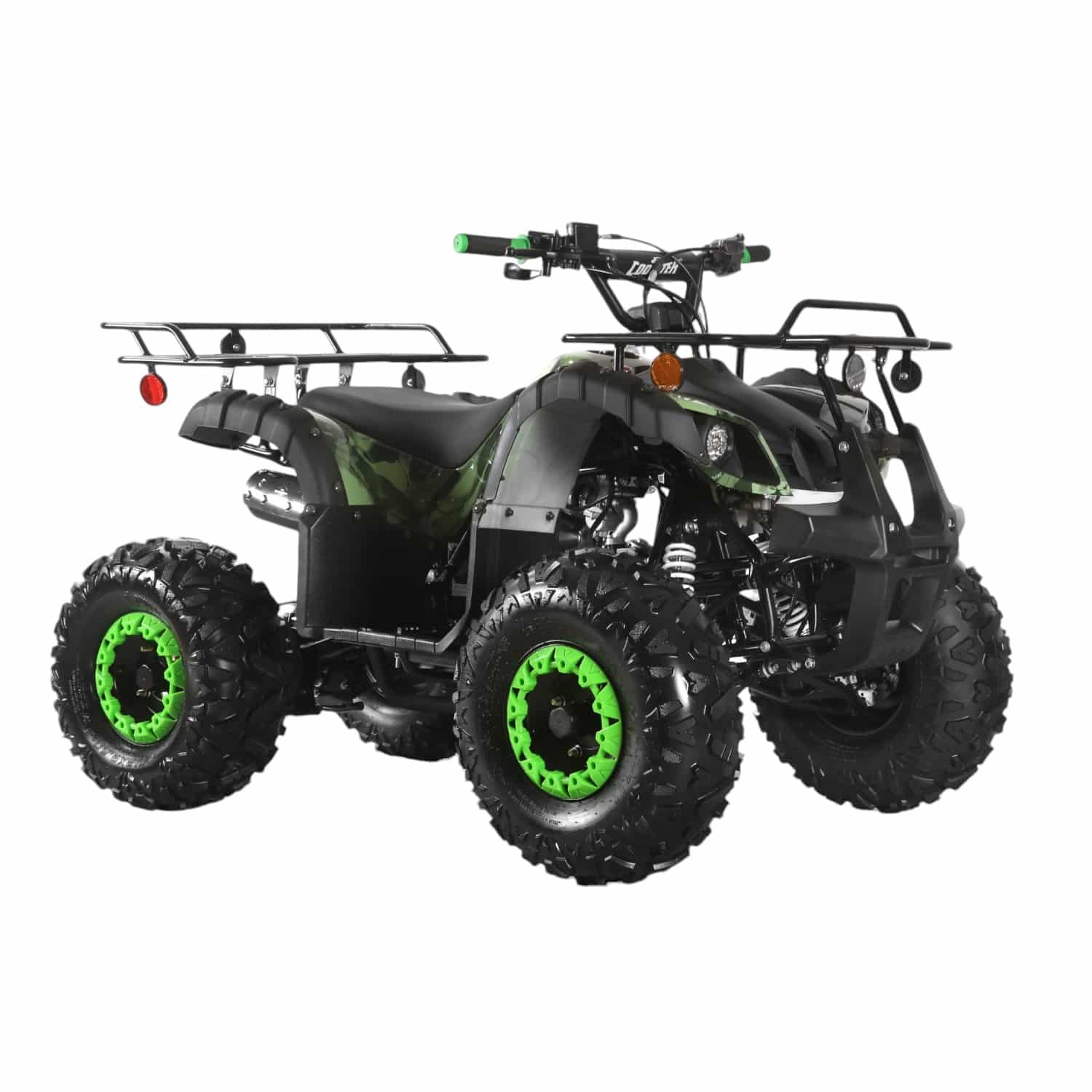

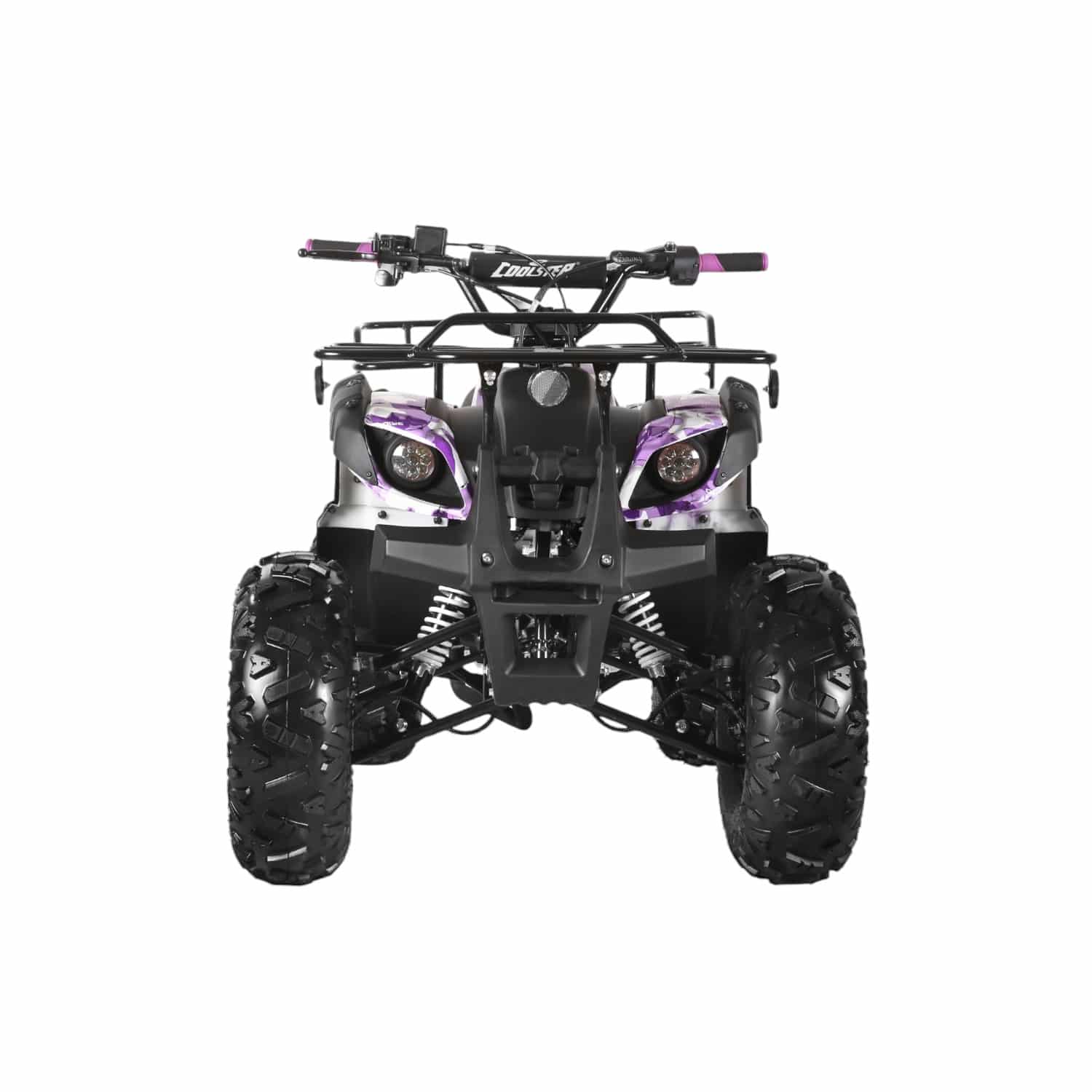

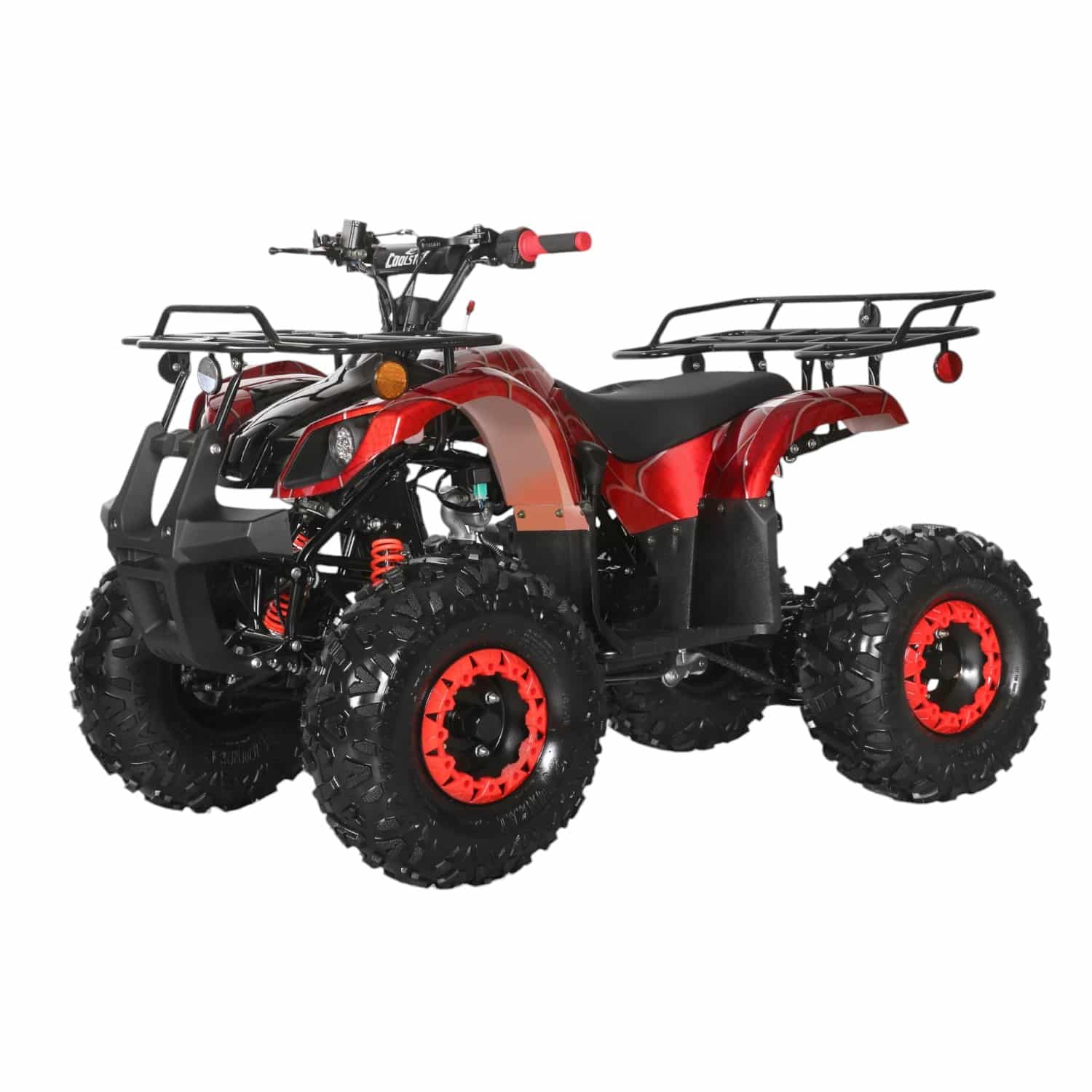

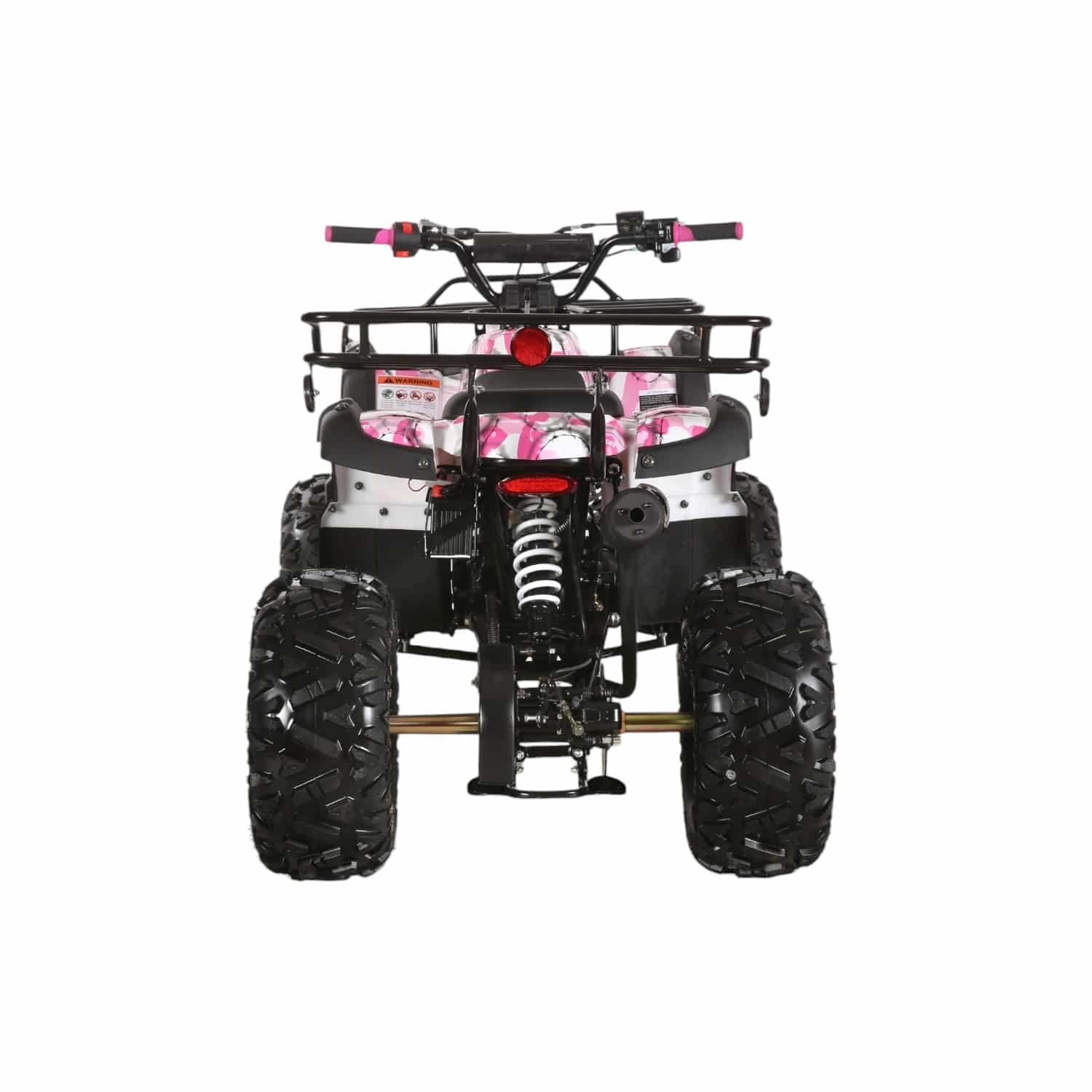

Available Colors
The Coolster ATV-3125XR8-U/US is the ultimate utility ATV. With both front and rear racks, 19/18 inch front/rear wheels, and a reliable 125cc 4-stroke engine, this machine is suitable for adults and youth 10+. Unlike its predecessor the 3125XR8, the Coolster ATV-3125XR-U/US is available in fully automatic.
For more information, please click the tabs, or click here to reach us directly
Download ATV-3125XR8-U2 Manual
(Must be logged in to download)
| Model Number: | ATV-3125XR8-U2/US |
| Engine Type: | Single Cylinder, 4-Stroke, Air-Cooled |
| Displacement: | 120cc |
| Max Torque: | 6.9N.m/6,500 ± 500r/min (N.m/r/min) |
| Max Power: | 5.5kW/8,500 ± 500r/min (kW/r/min) |
| Bore Stroke: | 52.4 x 55.5mm |
| Ignition: | CDI |
| Starting System: | Electric |
| Battery: | 12V, 5Ah |
| Clutch: | Fully-Automatic/Semi-Automatic |
| Transmission: | Chain, Rear Wheel Drive |
| Brakes Front/Rear: | Hydraulic Disc |
| Tires Front/Rear: | 19 x 7 – 8 / 18 x 9.5 – 8 |
| Fuel Capacity: | 0.54 gallons / 2.06L |
| Maximum Weight Capacity: | 165 lbs / 75 kg (rider, all cargo and accessories) |
| Wheelbase: | 960mm |
| Dimensions: | 1,470 x 970 x 935mm |
| Height to Seat: | 685mm |
| Min. Ground Clearance: | 120mm |
| Image | Name | Price | Buy |
|---|
Please read the owner’s manual and all on-product warnings. ATVs can be hazardous to operate. For operator’s safety, always wear a helmet, eye protection, and protective gear. Never carry a passenger. Never ride under the influence of drugs nor alcohol. Never ride on public roads nor pavement. Be extra careful on difficult terrain. Never allow a child under the age of 16 to operate an ATV without adult supervision. It is strongly recommended that all ATV riders take a training course. For more information, contact your local dealer or call 1-626-228-0251
