The Optimal ATV Suspension Setup: A Complete Rider’s Guide

TL;DR:

Getting your ATV suspension dialed in makes all the difference for comfort, control, and performance. The right setup depends on sag, preload, compression, rebound, and terrain. Measure carefully, make one adjustment at a time, and test ride to feel the difference.

Set free and rider sag first
Adjust camber, caster, and toe
Tune preload, compression, and rebound
Match settings to terrain
Maintain parts for longevity

If you’ve ever felt like your quad was either bouncing you around like a pinball or bottoming out every time you hit a dip, chances are your suspension isn’t set up the way it should be. The right ATV suspension setup doesn’t just improve comfort — it transforms your control, stability, and overall riding experience. Whether you’re blasting across sand dunes, crawling rocky trails, or just cruising around your property, getting your suspension dialed in will keep you safer and less fatigued.

This guide breaks down everything you need to know: what adjustments matter, how terrain affects suspension, and the steps you can take to tune your ride.

Understanding ATV Suspension Basics

Before you adjust, it’s important to understand what your suspension is doing for you. At its core, suspension has three jobs:

Keep your tires in contact with the ground.
Absorb bumps so your body doesn’t have to.
Help you maintain stability and control at speed and in turns.

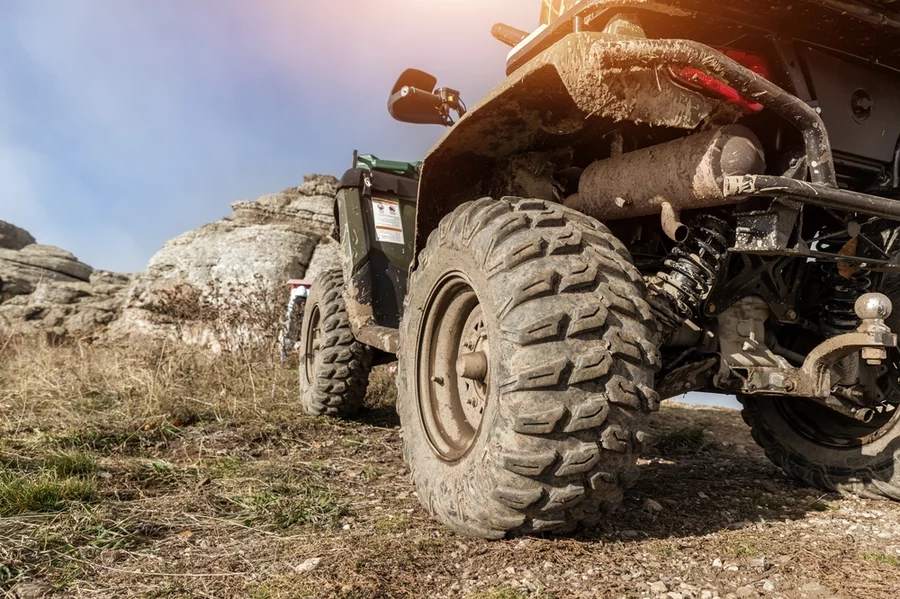

Your shocks, springs, and linkages all work together to balance comfort and performance. The trick is that no two riders — or terrains — are the same, so your suspension needs to be set up for your specific situation.

Suspension Geometry: Camber, Caster, and Toe

The way your front suspension is aligned dramatically affects how your ATV handles.

Camber

Camber is the angle of your wheels when viewed from the front. A little negative camber (top of the tire tilted inward) ensures that when you lean into corners, more tread stays in contact with the ground. This equals better grip where you need it most.

Caster

Caster is the tilt of your steering spindle. More positive caster makes your ATV more stable at speed, while less caster allows quicker, lighter steering. For most recreational riders, 5–7 degrees of positive caster is a good balance.

Toe

Toe measures whether your wheels point slightly in or out. The general rule: about ¼ inch of toe-in helps with stability and steering precision.

Getting these three angles right gives you predictable handling and reduces tire wear.

The Role of Sag: Free and Rider Sag

Sag is one of the most overlooked aspects of suspension tuning. In simple terms, sag is how much your suspension compresses under its own weight (free sag) and under your weight (rider sag).

Free Sag: Typically set at about 10% of your total suspension travel.
Rider Sag: Around 30% for dirt bikes and closer to 50% for ATVs.

Setting sag correctly ensures you’re sitting in the proper part of your suspension travel — not too high where you lose traction, and not too low where you bottom out.

Adjusting Preload, Compression, and Rebound

Now let’s get into the actual adjustments you can make on your shocks.

Preload

Preload determines how much force is on your springs before you sit on the ATV. More preload makes the ride stiffer and raises ride height; less preload lowers the ride and softens the feel.

Compression

Compression controls how fast the shock compresses when hitting a bump. Too soft and you’ll blow through the travel, too stiff and you’ll feel every little ripple. The sweet spot is where you’re using almost all your travel but not bottoming out harshly.

Rebound

Rebound controls how quickly your shocks return to normal after compressing. If rebound is too fast, your ATV will bounce around like a pogo stick. Too slow, and the suspension “packs up” over repeated bumps.

Tuning for Different Terrains

Different surfaces demand different setups. Here’s a breakdown:

Sand Dunes

Setup: Softer suspension to help “float” over sand.
Why: Stiff settings make tires dig in, killing momentum.
Extra Tip: Lower tire pressure slightly for better flotation.

Rocky Trails

Setup: Medium-soft shocks with careful rebound adjustment.
Why: You need to absorb rocks without bouncing out of control.

Muddy Trails

Setup: Slightly firmer suspension to prevent leaning.
Why: Too soft and you’ll sink; too stiff and you’ll lose traction.

Hard-Pack Dirt

Setup: Stiffer preload and damping.
Why: Improves cornering control and stability at speed.

Practical Steps: How to Set Up Your ATV’s Front End

Work on a level surface.
Make sure tire pressures are equal side-to-side.
Set caster first by adjusting your A-arms.
Move on to camber using an angle finder.
Adjust toe with a tape measure, ensuring equal distance from the frame on each side.

Small, consistent changes make the process easier to track.

FAQs: ATV Suspension Setup and Adjustments

How to adjust ATV suspension?

Start with sag. Measure free and rider sag, then adjust preload until you hit recommended percentages. From there, test ride and tweak compression and rebound in small increments.

How to lower ATV suspension?

Reduce preload on your shocks. Keep in mind that lowering too much will reduce ground clearance and may affect handling.

How to stiffen ATV rear suspension?

Add preload to the rear shock and increase compression damping if available. This helps when carrying extra weight or riding aggressively on hard-packed terrain.

Is there an ATV suspension setup guide for beginners?

Yes — the steps above are a solid ATV suspension setup guide for most riders. The key is to measure carefully, make one change at a time, and test ride between adjustments.

Maintenance Tips for Longevity

Always check for torn shock boots or leaking seals.
Never blast ball joints or pivots with a pressure washer.
Grease pivot points as recommended by your manufacturer.
Replace worn parts immediately to prevent bigger issues down the line.

Looking for replacement parts? Check out the Coolster swing arm section for quality components designed to fit your machine.

Conclusion: Dial in Your Ride

The right ATV suspension tuning isn’t rocket science — but it does take patience, measuring, and a little trial and error. By learning how camber, caster, toe, sag, preload, compression, and rebound all work together, you can fine-tune your quad for comfort, stability, and performance.

Remember: make one adjustment at a time, ride, and then recheck. With the right setup, you’ll not only ride longer and harder, but you’ll also walk away less fatigued and more confident.

Ready to take things further? Upgrade your suspension system.
